Product Overview

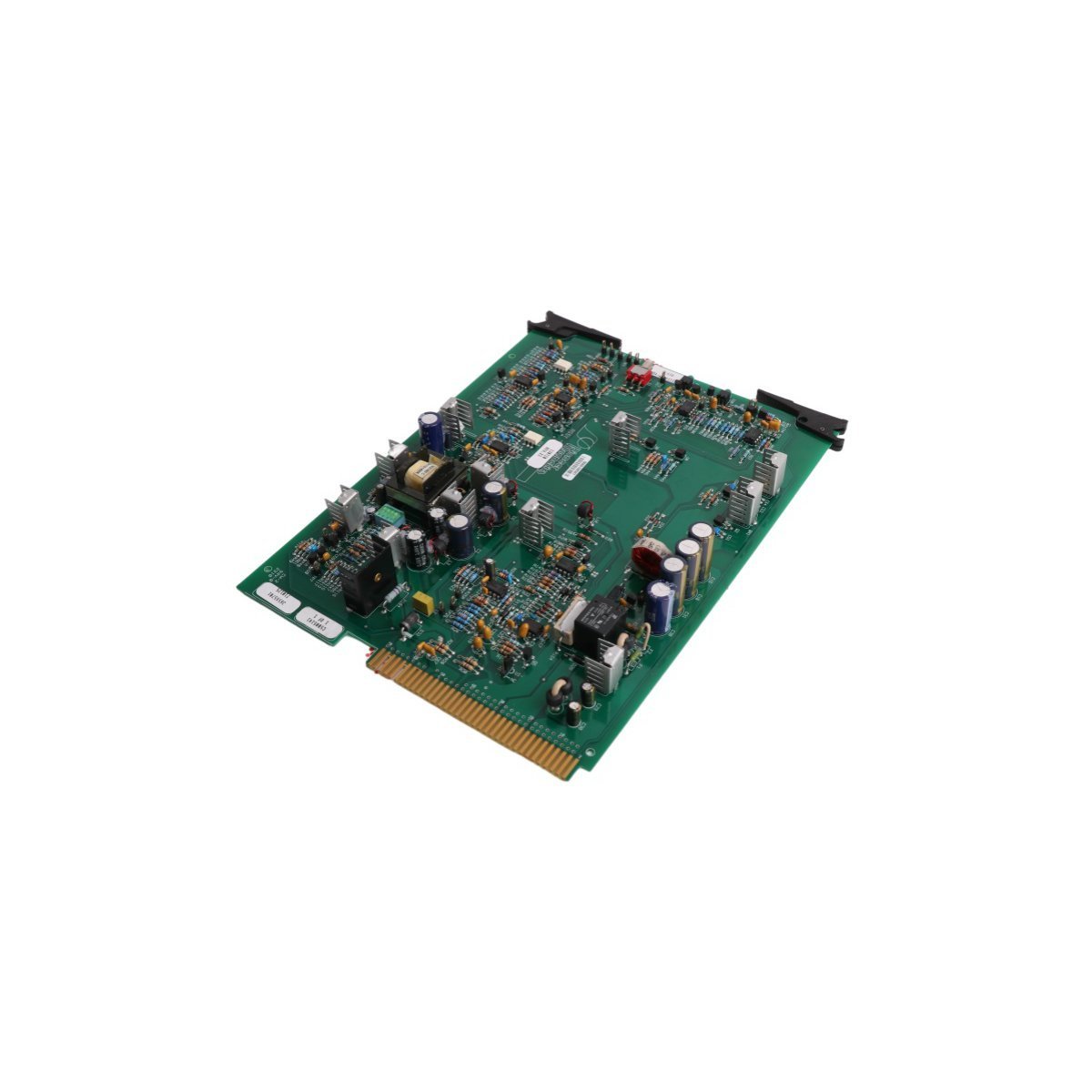

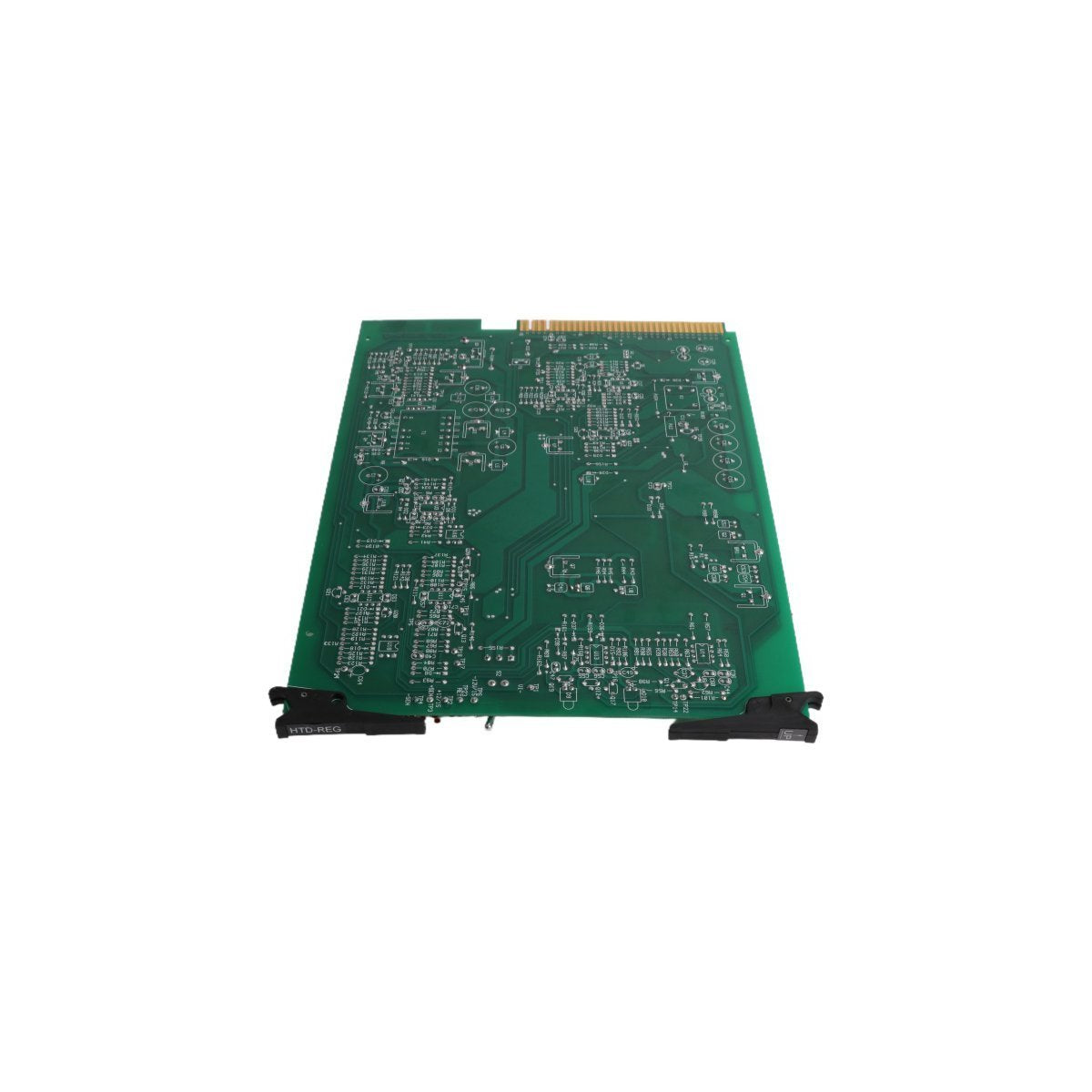

The Honeywell 51155506-110 is a high-performance Controller I/O interface designed specifically for the Experion PKS (Process Knowledge System) and legacy TotalPlant Solution (TPS) architectures. Functioning as a Universal Process Cabinet (UPC) component, this module provides a centralized point for signal conditioning, data acquisition, and remote I/O management. It is engineered to thrive in demanding field environments, offering an bridge between field instrumentation and the Distributed Control System (DCS). With integrated support for redundant power architectures and fiber optic extensions, the 51155506-110 ensures that critical process data remains available even in the presence of localized hardware failures or significant electromagnetic interference.

Hardware Configuration and Technical Parameters

• Model Number: 51155506-110

• System Series: Experion PKS / TPS Universal Process Cabinet

• Protection Rating: NEMA 4X / IP66 (Dust-tight and Water-resistant)

• Connectivity: Integrated Fiber Optic Extender (FOE) support

• Power Architecture: Dual redundant power supply compatibility

• Wiring Interface: Secure Terminal Block assembly for field leads

• Vibration Resistance: Industrial-grade shock and vibration dampening

• Operational Weight: 0.4 kg

• Module Dimensions: 7 x 14 x 14.5 cm

• HS Classification: 8537101190

• Manufacturing Origin: USA

Industrial Deployment and Field Utility

The 51155506-110 module is a vital asset for distributed control applications in high-hazard industries such as petrochemical refining, offshore oil platforms, and power generation. Its NEMA 4X rating makes it particularly effective for outdoor or remote installations where equipment is exposed to corrosive salt spray, high humidity, or extreme ambient temperature shifts. By utilizing fiber optic communication, the module facilitates long-distance data transmission without the risk of electrical noise "crosstalk," which is common in motor control centers (MCC) or heavy machinery areas. This module simplifies maintenance by centralizing terminal connections, allowing technicians to troubleshoot field loops without disturbing the primary controller processor.

FAQ

Q: Is the 51155506-110 compatible with older Honeywell TPS systems?

A: Yes, this module is designed as an integral part of the Universal Process Cabinet (UPC) used in TPS systems, while maintaining full compatibility with the Experion PKS migration path.

Q: What is the benefit of the integrated Fiber Optic Extender (FOE)?

A: The FOE allows the I/O module to be placed significantly further from the main controller than standard copper wiring would permit. Furthermore, fiber optics provide total galvanic isolation, protecting the DCS from lightning strikes or high-voltage surges in the field.

Q: Does this module require a separate housing for outdoor use?

A: While the 51155506-110 is rated for IP66/NEMA 4X, it is typically installed within a larger process cabinet. However, its internal components are specifically ruggedized to handle the condensation and temperature cycling found in such enclosures.

Q: How does the redundant power system function in this module?

A: The module is designed to accept two independent power feeds. If one power supply fails or a cable is compromised, the module automatically draws current from the secondary source without any interruption to the signal processing or data flow.

Q: Can this module be used for high-speed data acquisition?

A: Yes, the 51155506-110 is engineered for high-integrity process control, supporting the fast scan rates required for pressure monitoring, flow control, and safety-related data logging.
