Product Overview

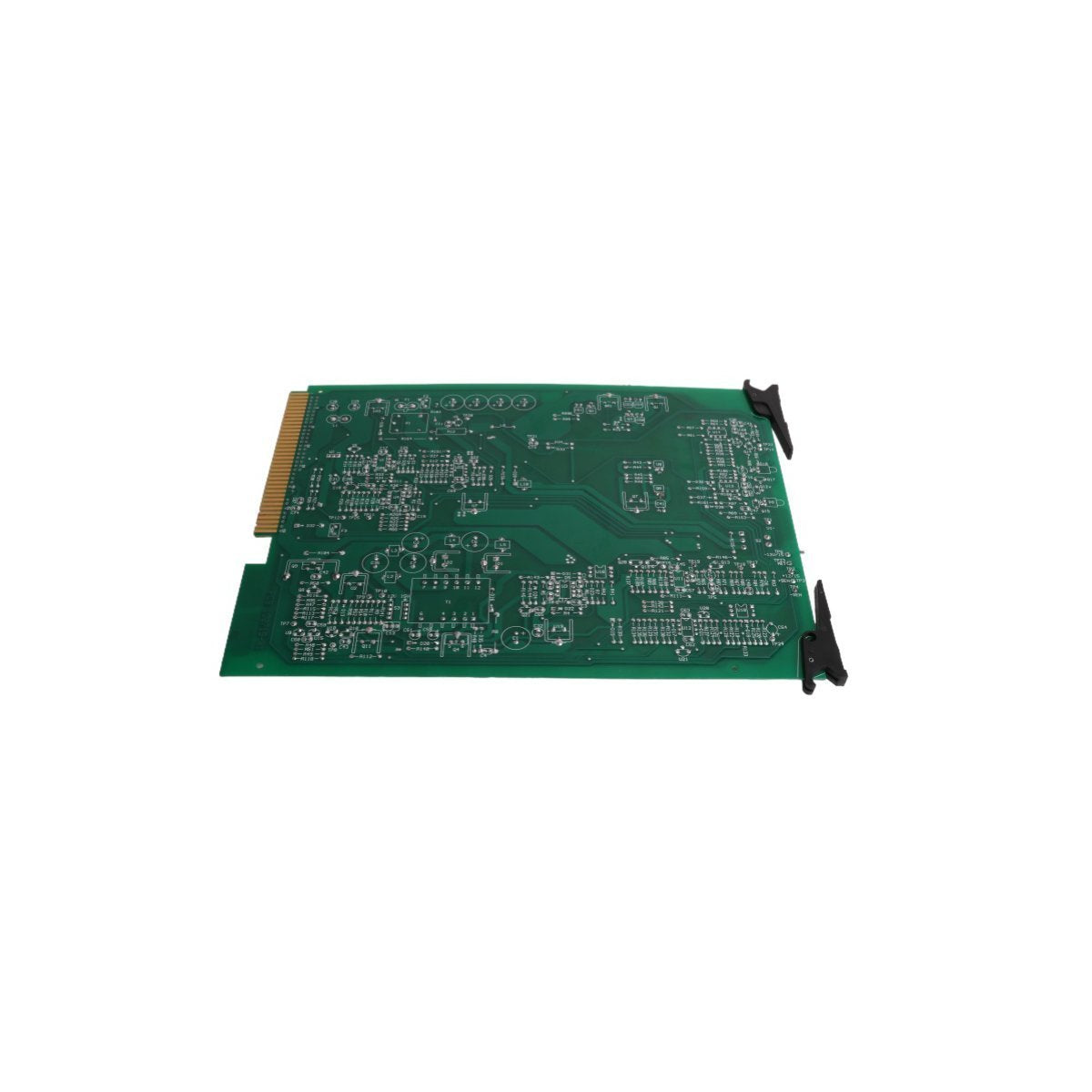

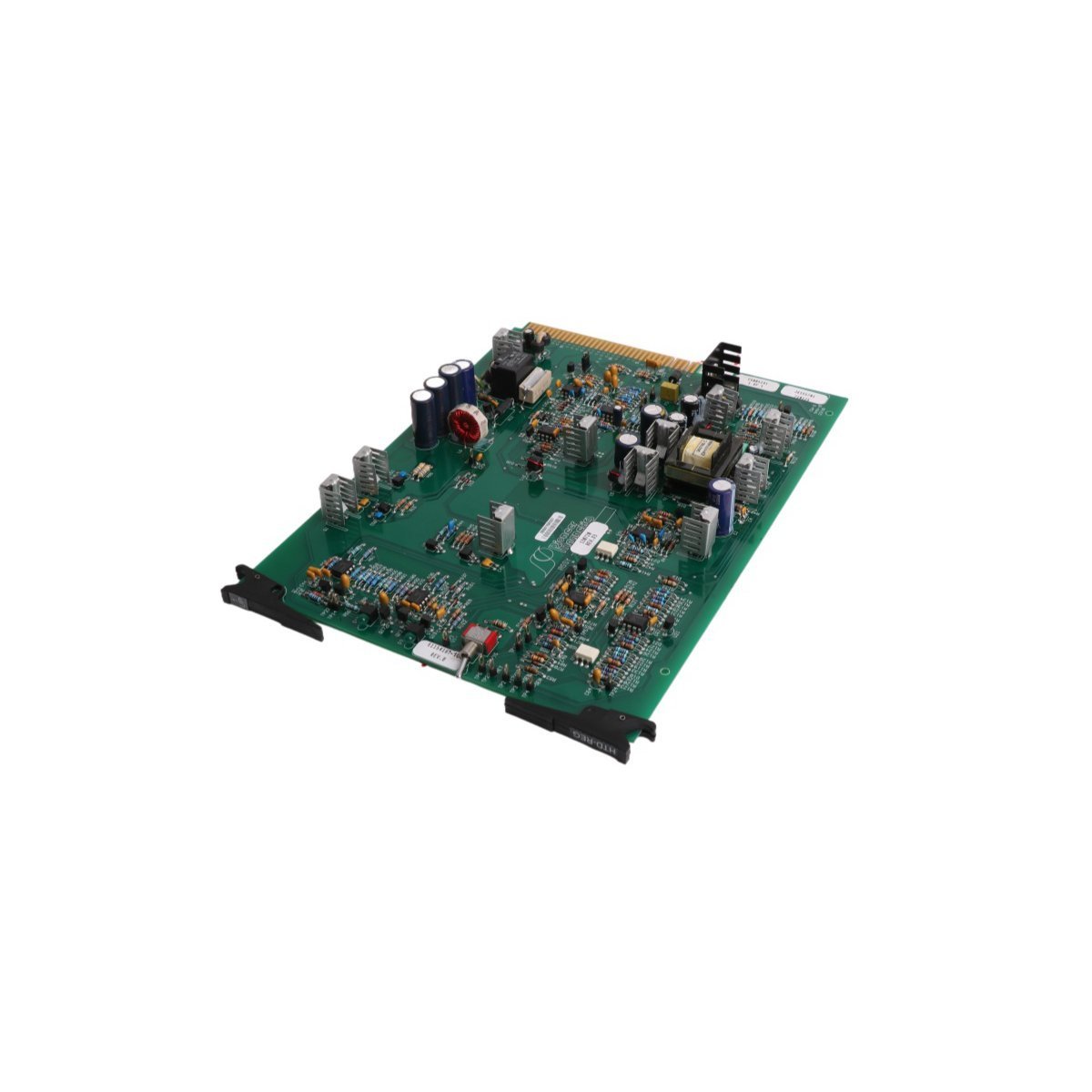

The Honeywell 51155506-105 is a high-capacity universal relay interface engineered for the Experion PKS and 5115 series PLC ecosystems. This module acts as a rugged intermediary between low-voltage control logic and high-power field actuators, facilitating the safe switching of motors, contactors, and large solenoids. Designed with versatility in mind, the unit supports both 120V and 240V AC/DC load environments. By providing complete optical isolation between the internal processor and external field wiring, the 51155506-105 safeguards the integrity of the Distributed Control System (DCS) against electrical transients and inductive kickback, ensuring high-reliability performance in mission-critical automation loops.

Technical Hardware Profiles and Physical Data

• Contact Configuration: Single Pole Double Throw (SPDT) featuring Form A (NO) and Form B (NC)

• Maximum Switching Voltage: 300V AC/DC

• Steady-State Current Rating: 10A Continuous (Total); 5A per individual channel

• Electrical Safety: 1500V AC channel-to-channel isolation

• Switching Durability: Rated for up to 100,000 operations at full load

• Isolation Technology: High-speed optical coupling for noise immunity

• Environmental Tolerance: 5% to 95% Relative Humidity (non-condensing)

• Included Accessories: Comes with a specialized 5-meter Digital Output (Source) Relay Cable Assembly

• Module Mass: 0.4 kg (Net)

• Chassis Dimensions: 7 x 14 x 14.5 cm

• HS Code Efficiency: 8537101190

• Manufacturing Origin: USA

Industrial Operational Scenarios

The 51155506-105 is extensively deployed in environments where delicate PLC outputs must control heavy-duty machinery. In HVAC and building management, it is used to cycle large fan motors and dampers; in industrial process control, it manages high-power solenoid valves and heating elements. The inclusion of a 5-meter relay cable assembly allows for flexible mounting within deep cabinets or across adjacent marshalling panels, streamlining the installation process. Its dual SPDT contact architecture allows for "fail-safe" wiring, where a device can be held in either an energized or de-energized state during a control signal loss—a critical requirement for safety-instrumented functions and secure lighting or security system overrides.

FAQ

Q: Can this module be used with both AC and DC field loads?

A: Yes, the 51155506-105 is rated for universal operation up to 300V in both AC and DC applications, providing significant flexibility for diverse field instrument requirements.

Q: What is the purpose of the optical isolation in this specific module?

A: Optical isolation separates the sensitive 5115 series PLC electronics from the high-voltage field side using light signals. This prevents electrical noise and surges from the field devices from traveling back into the DCS and causing logic errors or hardware damage.

Q: Does the 51155506-105 require a separate cable for installation?

A: This module is shipped with a 5-meter DO (Source) Relay Cable Assembly, providing a complete out-of-the-box solution for connecting the module to your relay base or field terminal block.

Q: How do the LED indicators help with maintenance?

A: The integrated LEDs provide real-time visual feedback on the state of each relay channel. This allows technicians to quickly verify if the control logic is successfully activating the relay without needing to probe the wiring with a multimeter.

Q: Is this module suitable for high-vibration industrial environments?

A: Yes, the 51155506-105 is built to Honeywell’s industrial standards for the Experion PKS range, featuring a rugged enclosure and secure locking connectors designed to withstand typical vibration and thermal stress in factory settings.
