Product Overview

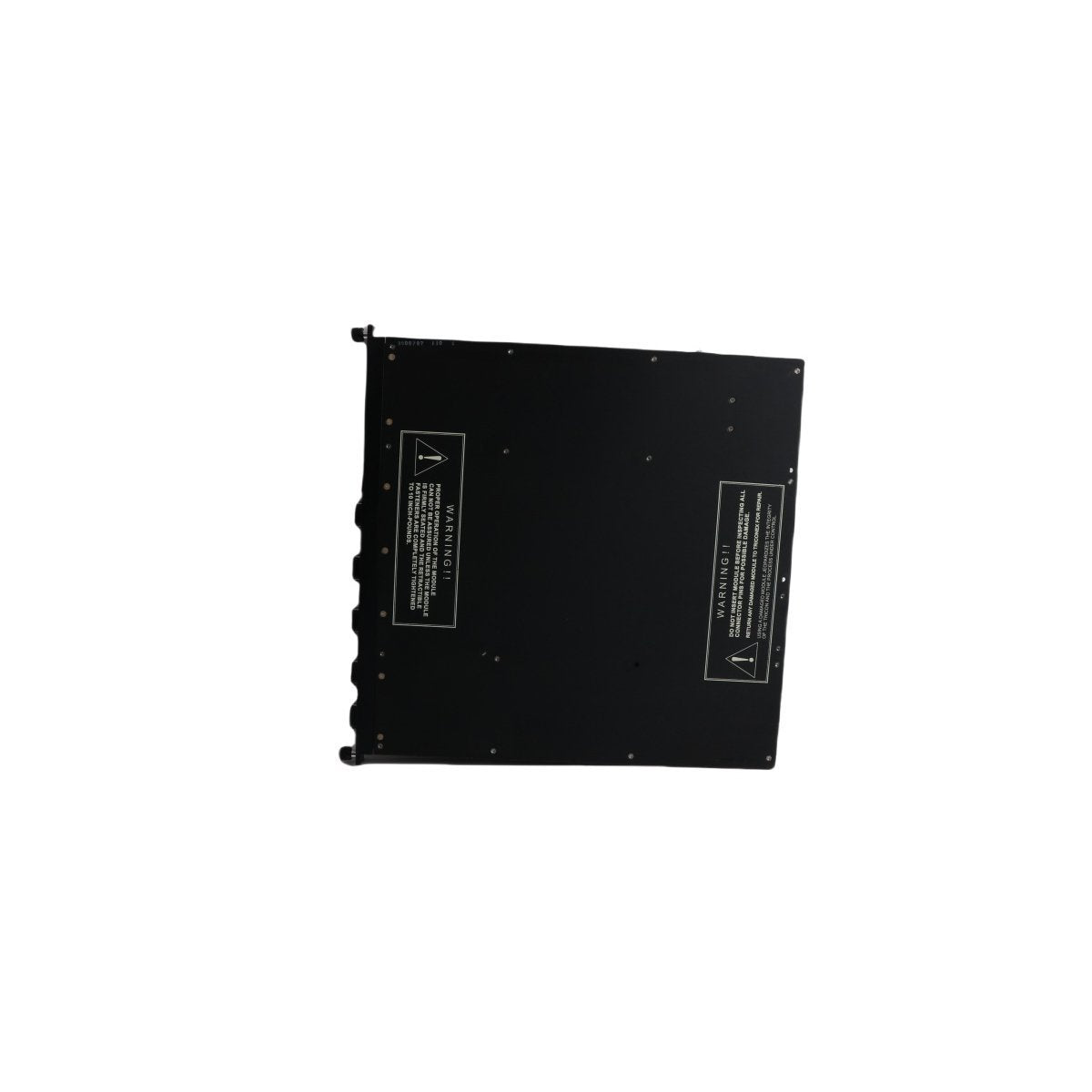

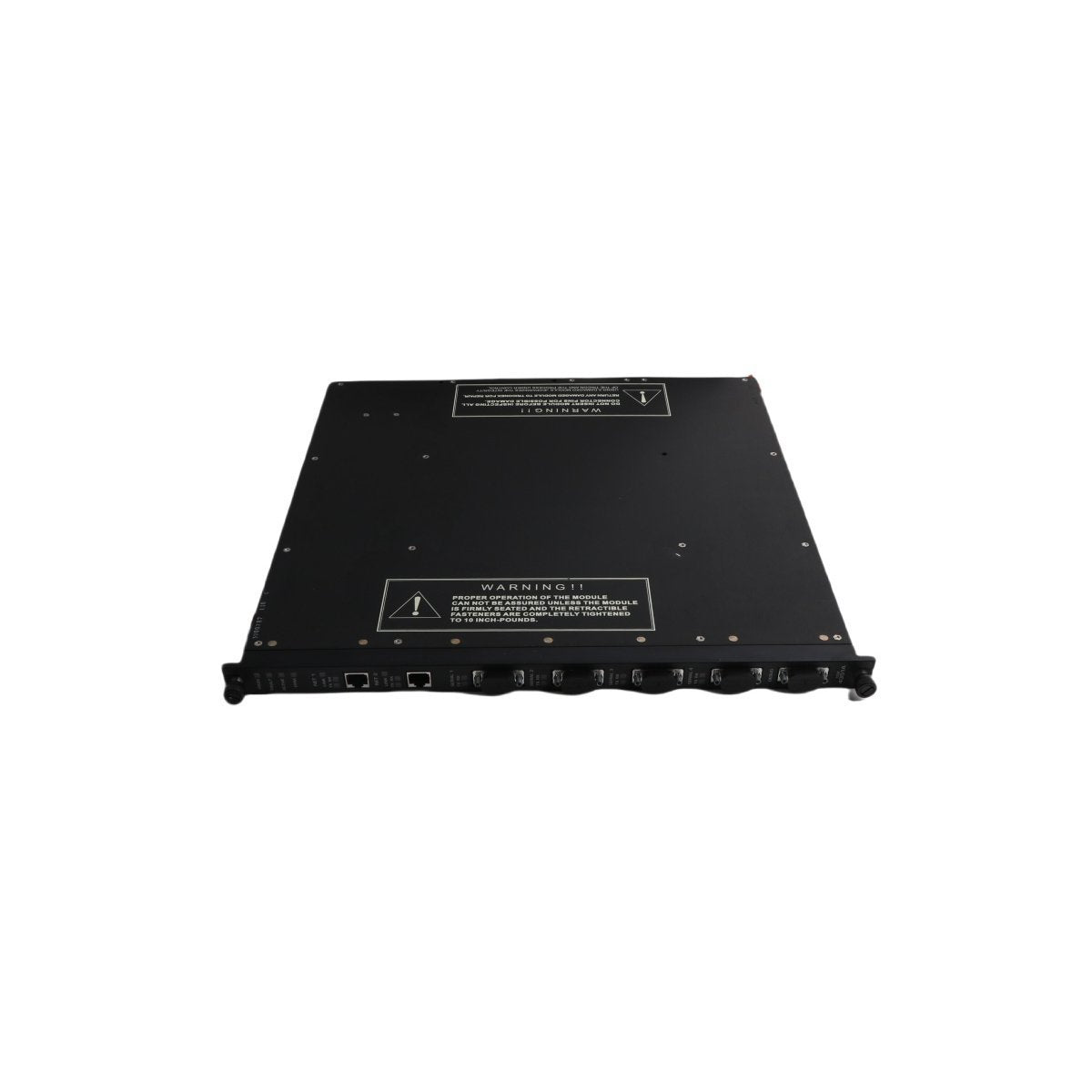

The Triconex 4351A is a high-performance External Communication Module (TCM) designed to act as the primary data gateway for the Tricon Safety Instrumented System (SIS). This module facilitates the secure and deterministic exchange of information between the Tricon safety controller and external networks, including Distributed Control Systems (DCS), Human-Machine Interfaces (HMI), and plant-wide Historians. By offloading communication tasks from the main processors, the 4351A ensures that the safety logic execution remains uninterrupted while providing rich diagnostic data to operators. It is a critical component for modern industrial facilities requiring high-bandwidth connectivity without compromising the integrity of the safety loop.

Core Architecture and Hardware Performance

The 4351A is engineered for high-availability networking, featuring robust physical interfaces and support for multiple concurrent industrial protocols.

• Communication Ports: Equipped with multiple Ethernet (RJ45 or Fiber Optic options) and Serial ports.

• Protocol Support: Native compatibility with Modbus (TCP/RTU), TSAA (Triconex System Access Application), and Peer-to-Peer networking.

• Fault Tolerance: Built-in hardware redundancy and hot-swappable capability within the Tricon chassis.

• Data Security: Features advanced encryption and restricted access controls to shield the safety network from external cyber threats.

• Module Mass: 2.2 kg.

• Form Factor: 2.1 cm x 41 cm x 40 cm.

Strategic Industrial Implementations

The 4351A module is essential for large-scale operations where real-time safety data must be synchronized across a distributed architecture.

Integrated Control and Safety Systems (ICSS)The 4351A provides the high-speed Ethernet backbone required to link Triconex safety controllers with DCS platforms, allowing for unified alarm management and synchronized time-stamping across the plant.

Remote Asset MonitoringIn the oil and gas sector, the module enables secure remote diagnostics for offshore platforms or unmanned stations, sending critical safety health status to centralized engineering hubs via encrypted Ethernet tunnels.

High-Speed Peer-to-Peer NetworkingFor complex facilities like refineries, the 4351A allows multiple Tricon controllers to communicate directly with each other. This ensures that a safety trip in one processing unit can trigger coordinated protective actions in downstream units with millisecond precision.

Plant-Wide Data HistorizationThe module serves as the primary conduit for streaming high-resolution process variables to data historians, facilitating post-incident analysis and helping facilities meet stringent regulatory reporting requirements.
