Product Overview

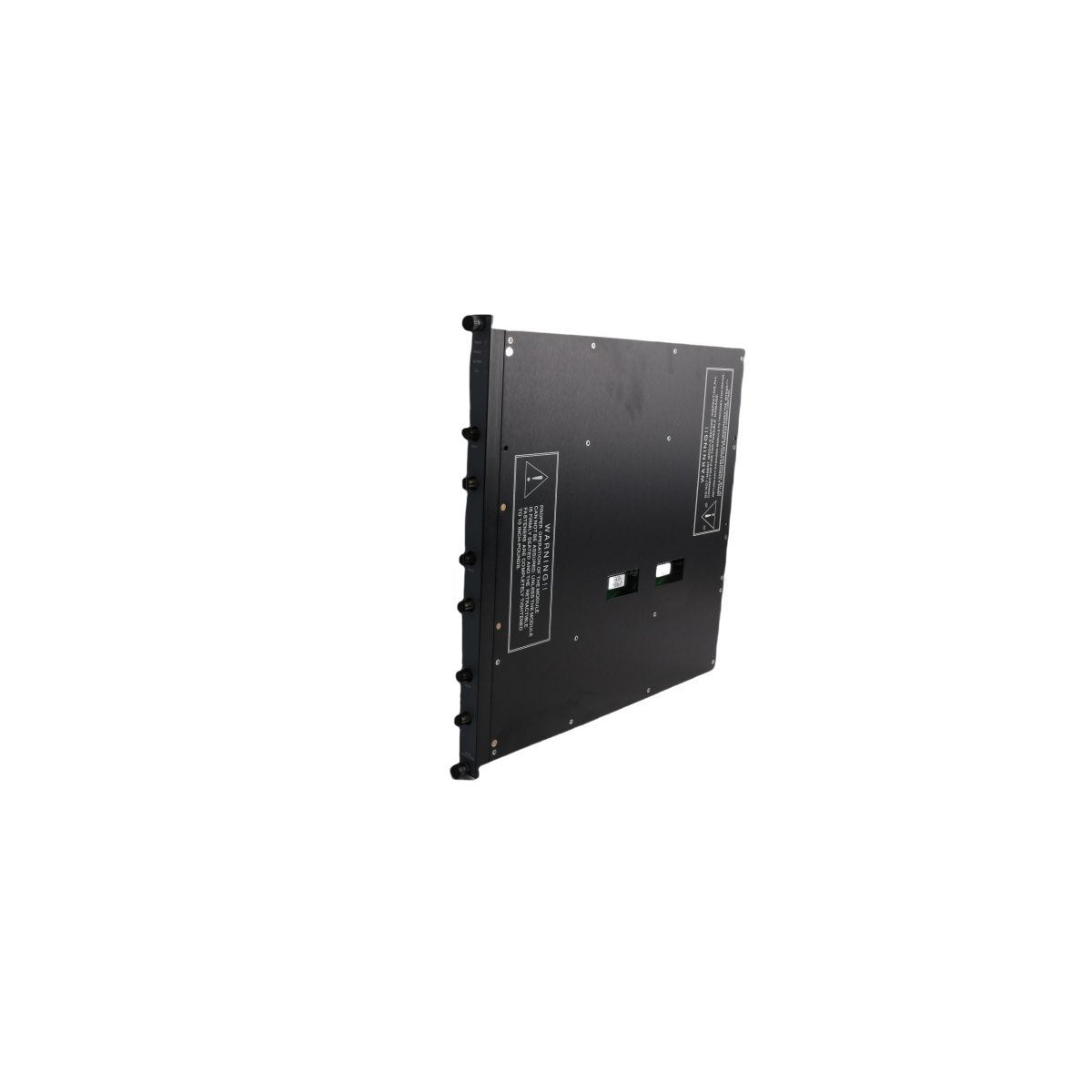

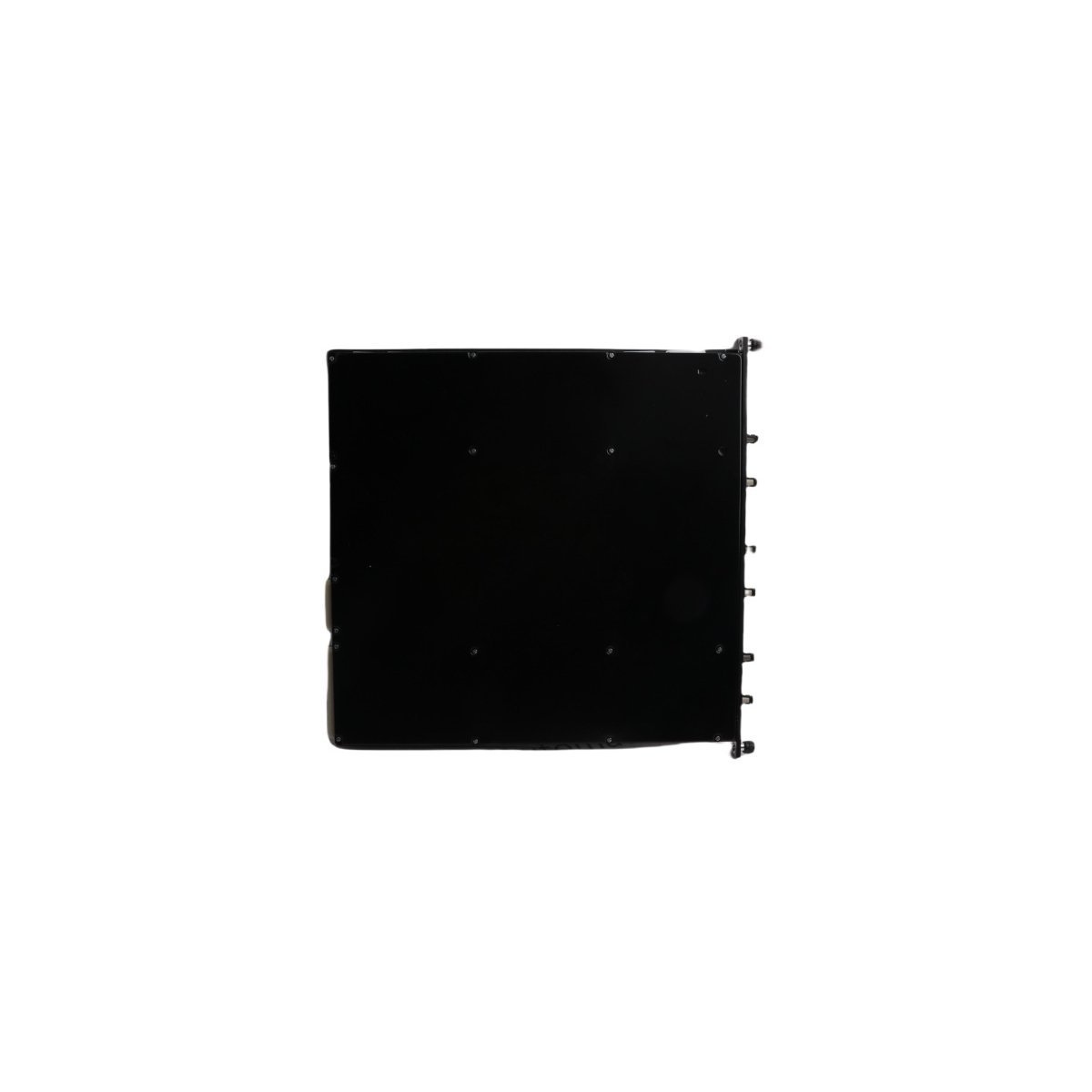

The Triconex 4200N is a specialized Remote Extender Module (RXM) designed to transcend the physical limitations of a standard localized chassis. In complex safety instrumented systems (SIS), the 4200N serves as the high-speed bridge between the primary Tricon™ controller and remote I/O expansion racks located at significant distances. By extending the system’s TriBus backplane, this module ensures that remote process signals are integrated with the same Triple Modular Redundant (TMR) integrity as those in the main rack. This capability is essential for large-scale industrial sites where field instrumentation is distributed across vast operational footprints, requiring a fault-tolerant communication link that maintains SIL 3 safety standards regardless of distance.

Infrastructure Capabilities and Hardware Profiles

• Module Type Remote Extender Module (RXM)

• Model Number 4200N

• Distance Extension Facilitates long-range I/O bus expansion over multi-mode or single-mode fiber optics

• Redundancy Pathing Dual-channel fiber optic ports to ensure communication continuity if one cable is damaged

• Signal Integrity Utilizes high-immunity optical transmission to eliminate EMI/RFI interference over long runs

• Network Compatibility Seamlessly integrates with Tricon v9 through v11 system architectures

• Latency Management Optimized for deterministic data exchange with minimal jitter for safety-critical logic

• Physical Weight 1.88 kg

• Chassis Footprint 2.2 cm x 40.5 cm x 40.0 cm

• Mounting Requirement Occupies specialized RXM slots within the Tricon main and expansion chassis

• Manufacturing Origin USA

• Safety Rating Fully compliant with TMR fault-tolerant operational standards

Industrial Deployment and Remote Networking

The 4200N module is the primary choice for infrastructure requiring decentralized safety control:

Vast Petrochemical ComplexesLinking remote tank farm monitoring stations to the central emergency shutdown (ESD) system. The 4200N allows for localized I/O racks to communicate with the central logic solver without the signal degradation associated with traditional copper cabling.

Utility-Scale Power GenerationExtending safety oversight to remote water treatment plants or coal handling facilities located kilometers away from the main control room. The fiber optic interface provides electrical isolation from ground loop potentials between distant buildings.

Upstream Oil and Gas ProductionConnecting decentralized wellhead control panels to a central offshore platform or gathering center. Its ruggedized design and redundant link capabilities ensure that safety logic is never compromised by the harsh environmental stressors of remote sites.

Mining and Mineral RefiningManaging safety interlocks across expansive conveyor networks and processing units. The 4200N enables the safety system to scale dynamically as the facility expands, adding remote chassis as new processing veins are opened.

Pipeline Pumping and Compression StationsDistributing safety logic across large pumping stations where the distance between sensors and the central control unit requires a high-bandwidth, noise-immune extension module.
