Product Overview

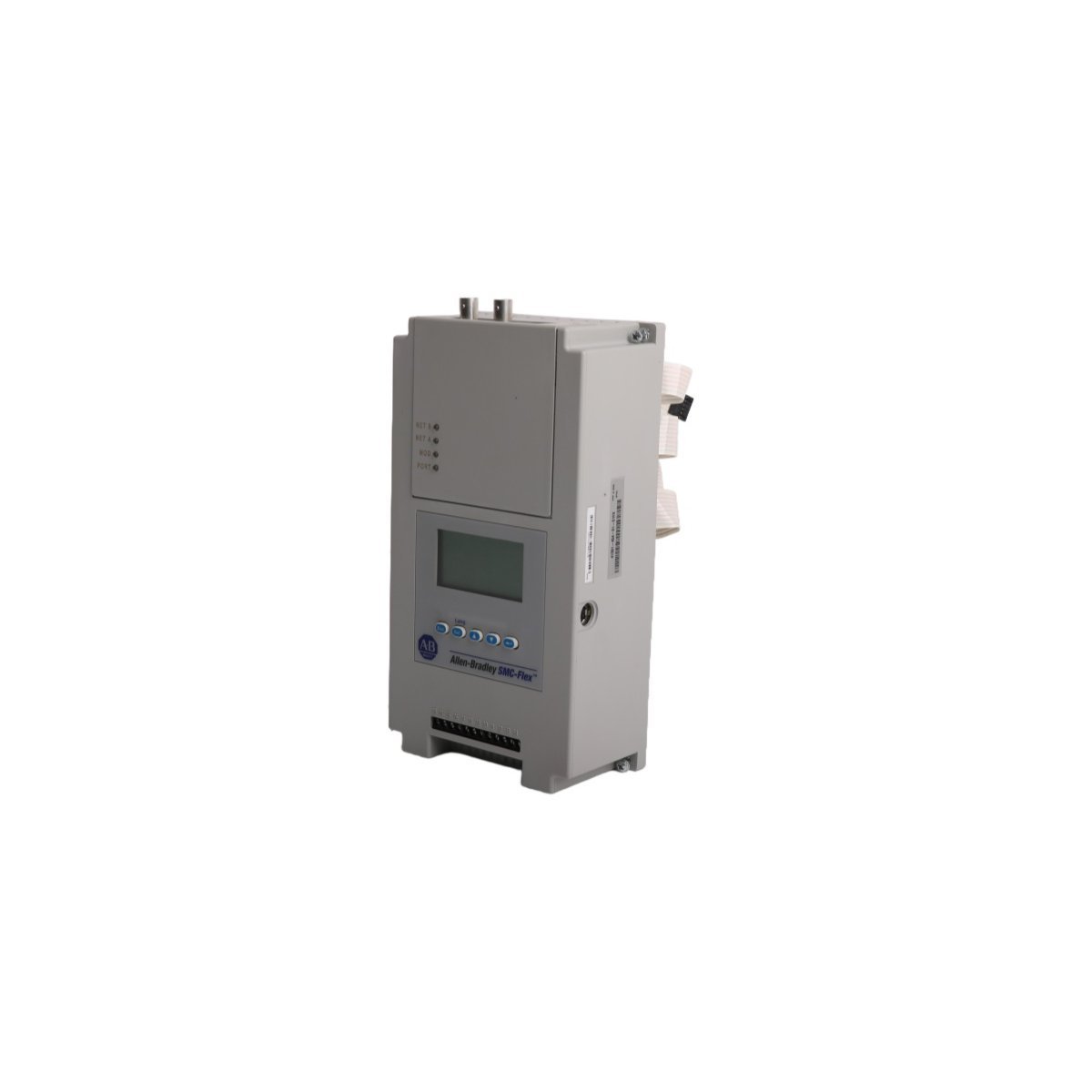

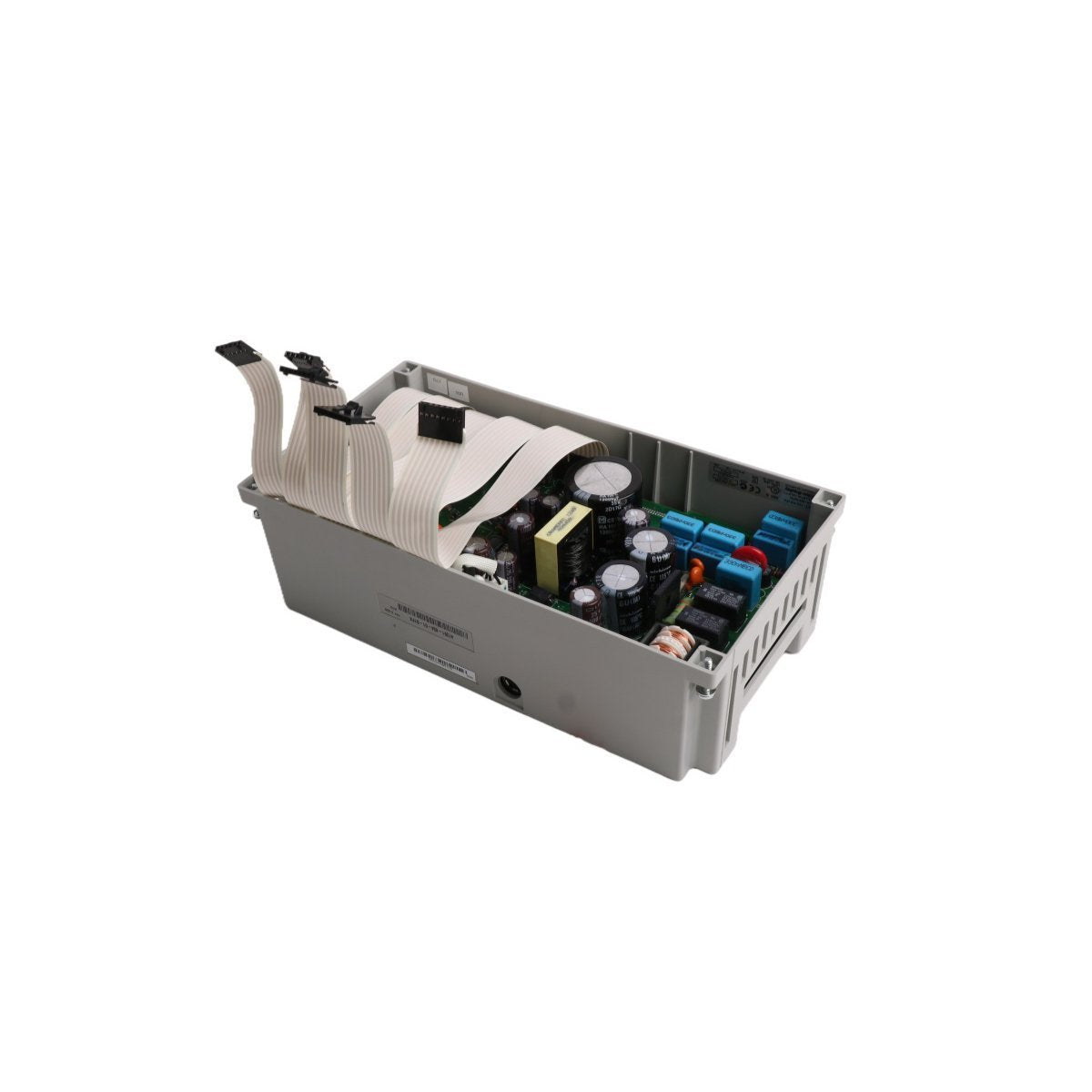

The Allen-Bradley 41391-701-51 is a specialized main control and driver board assembly designed specifically for the SMC™ Flex series of solid-state soft starters. This internal circuit board serves as the primary intelligence for the soft starter unit, managing the firing pulses of the Silicon Controlled Rectifiers (SCRs) to provide controlled, reduced-voltage starts for industrial three-phase motors. By regulating the acceleration and deceleration of heavy machinery, the 41391-701-51 significantly reduces mechanical wear and limits electrical inrush current.

As a core component of the drive architecture, this board processes real-time feedback from the power stage to execute advanced motor protection algorithms. It is engineered to maintain timing accuracy and signal integrity even in the presence of the high electromagnetic interference (EMI) typical of heavy-duty motor control centers.

Critical Control Functions and Hardware Design

The 41391-701-51 assembly is built to withstand the rigorous demands of industrial power electronics while providing precise motion feedback.

• Advanced Soft Start Modulation: Coordinates complex starting modes, including voltage ramp, current limit, and soft-stop, to ensure smooth transitions in material handling and fluid pumping applications.

• Integrated Drive Logic: Acts as the central driving board, translating low-voltage control signals into high-energy gate pulses for power-stage components.

• Environmental Resilience: Features a ruggedized PCB design with protective coatings and hardened components to resist the effects of dust, humidity, and thermal cycling in harsh factory environments.

• Comprehensive Protection Suite: Monitors for critical fault conditions such as phase loss, overtemperature, and SCR short-circuits, instantly triggering safety protocols to prevent motor damage.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model Number: 41391-701-51

• Component Type: Control & Driving Board Assembly

• Compatible Series: SMC Flex Solid-State Starters

• Function: SCR Gate Driver and Logic Control

• Input Supply: Derived from soft starter internal power architecture

• Signal Resolution: High-resolution digital feedback for speed and torque monitoring

• Operating Temperature: 0°C to 50°C (32°F to 122°F)

• Weight: 0.9 kg (1.98 lbs)

• Dimensions: 3.5 x 13.0 x 14.5 cm

• Mounting: Internal chassis-mount via dedicated standoffs

Industrial Applications and Integration

The 41391-701-51 control board is a vital spare part for maintaining uptime in facilities that rely on SMC Flex soft starters for mission-critical operations:

• Pumping and Water Treatment: Eliminating water hammer effects by providing smooth, linear torque ramps.

• Conveyor Systems: Protecting belts and mechanical couplings from the stress of high-torque, "across-the-line" starts.

• Centrifugal Fans: Managing the high-inertia starting requirements of large industrial blowers.

• Rock Crushers and Mills: Providing high-torque current limit starts for heavy-duty mining and aggregate machinery.
