Product Overview

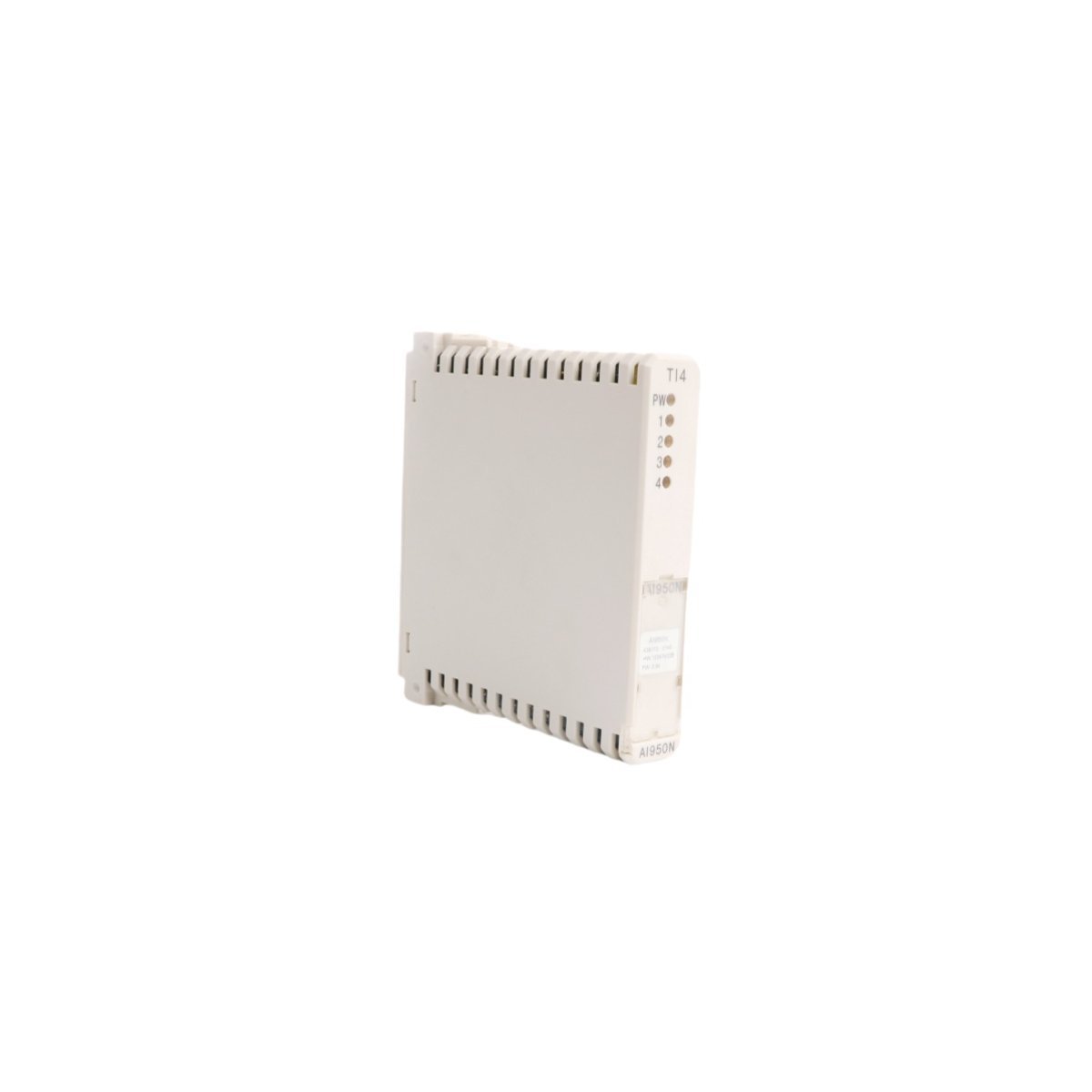

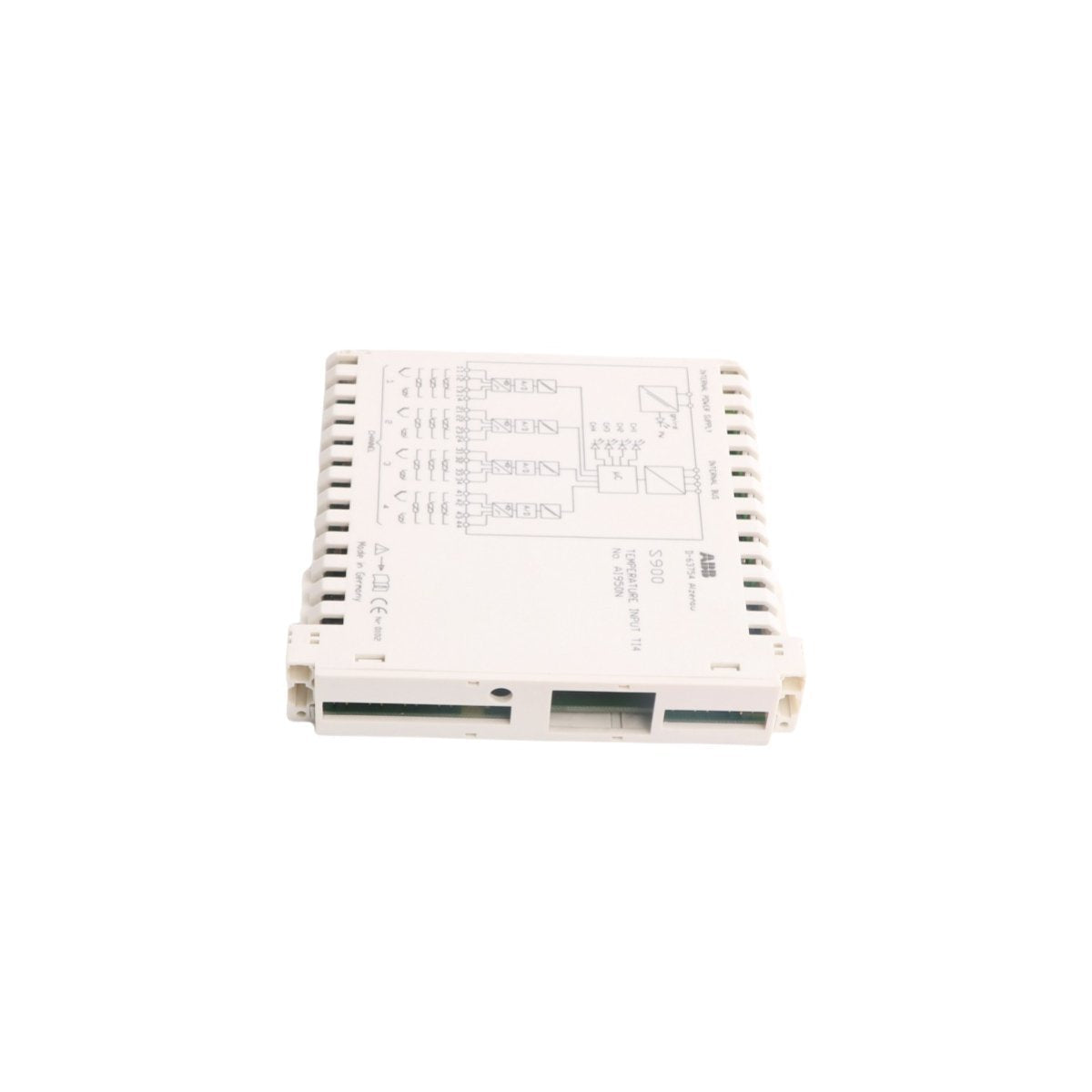

The ABB AI950N, cataloged under order reference 3KDE175523L9500, is a high-precision temperature acquisition module designed for the S900 Remote I/O system. This module is engineered to interface with various thermal sensors—including RTDs and thermocouples—translating low-level analog signals into digital data for a Distributed Control System (DCS). Built for hazardous and demanding industrial environments, the AI950N provides galvanically isolated signal processing to ensure high measurement integrity. Its Swedish-manufactured circuitry is optimized for process industries that require meticulous thermal monitoring to maintain safety and product quality standards.

Fundamental Hardware Specifications

The AI950N 3KDE175523L9500 is defined by its rigorous electronic tolerances and compact physical footprint:

• Measurement Precision: ±0.2% of reading (±2°C margin)

• Power Efficiency: Ultra-low current draw of ≤50 mA

• Thermal Operating Range: -20°C to +70°C

• Moisture Resistance: 5% to 95% relative humidity (non-condensing)

• Digital Interfacing: Multi-protocol support including Modbus RTU and CANopen

• Physical Mass: 0.12 kg

• Chassis Dimensions: 2 x 10.5 x 11 cm (65mm installation depth)

• System Series: S900 I/O

• Manufacturing Origin: Sweden

• Tariff Code: 8537101190

Industrial Deployment and Operational Use Cases

This S900 series temperature module is a critical component across diverse automation sectors:

• Chemical and Petrochemical Processing: Monitoring reactor core temperatures where high-resolution data is essential for maintaining exothermic stability.

• Refining and Volatile Environments: Utilizing the S900's robust isolation for safe temperature tracking in hazardous zones.

• Food and Beverage Pasteurization: Ensuring exact thermal setpoints are met and logged for regulatory compliance and food safety.

• Energy Management: Tracking bearing temperatures in rotating machinery and steam line heat levels within power generation facilities.

FAQ

Q: Which sensor types can the AI950N 3KDE175523L9500 support?

A: As a universal temperature input module for the S900 system, it typically supports standard Resistance Temperature Detectors (RTDs) like Pt100 and various Thermocouple types, though specific linearizations are managed via system software.

Q: How does the "compact depth" of this module benefit control cabinet design?

A: With an installation depth of only 65mm, the AI950N allows for the use of shallower enclosures or higher density mounting, significantly reducing the spatial footprint required for I/O racks in crowded control rooms.

Q: Is the AI950N suitable for use in tropical or high-humidity environments?

A: Yes, the module is designed to operate reliably in up to 95% non-condensing humidity, making it an excellent choice for offshore platforms or tropical industrial sites.

Q: Does this module require an external power supply for each channel?

A: No, the module is powered through the S900 bus and is designed for extreme efficiency with a current consumption of less than 50 mA, simplifying the overall wiring architecture.

Q: Can this module be integrated into a third-party PLC system?

A: While designed for the S900 I/O family, its support for industry-standard protocols like Modbus RTU and CANopen allows it to communicate with a wide variety of non-ABB controllers and DCS platforms.
