Product Overview

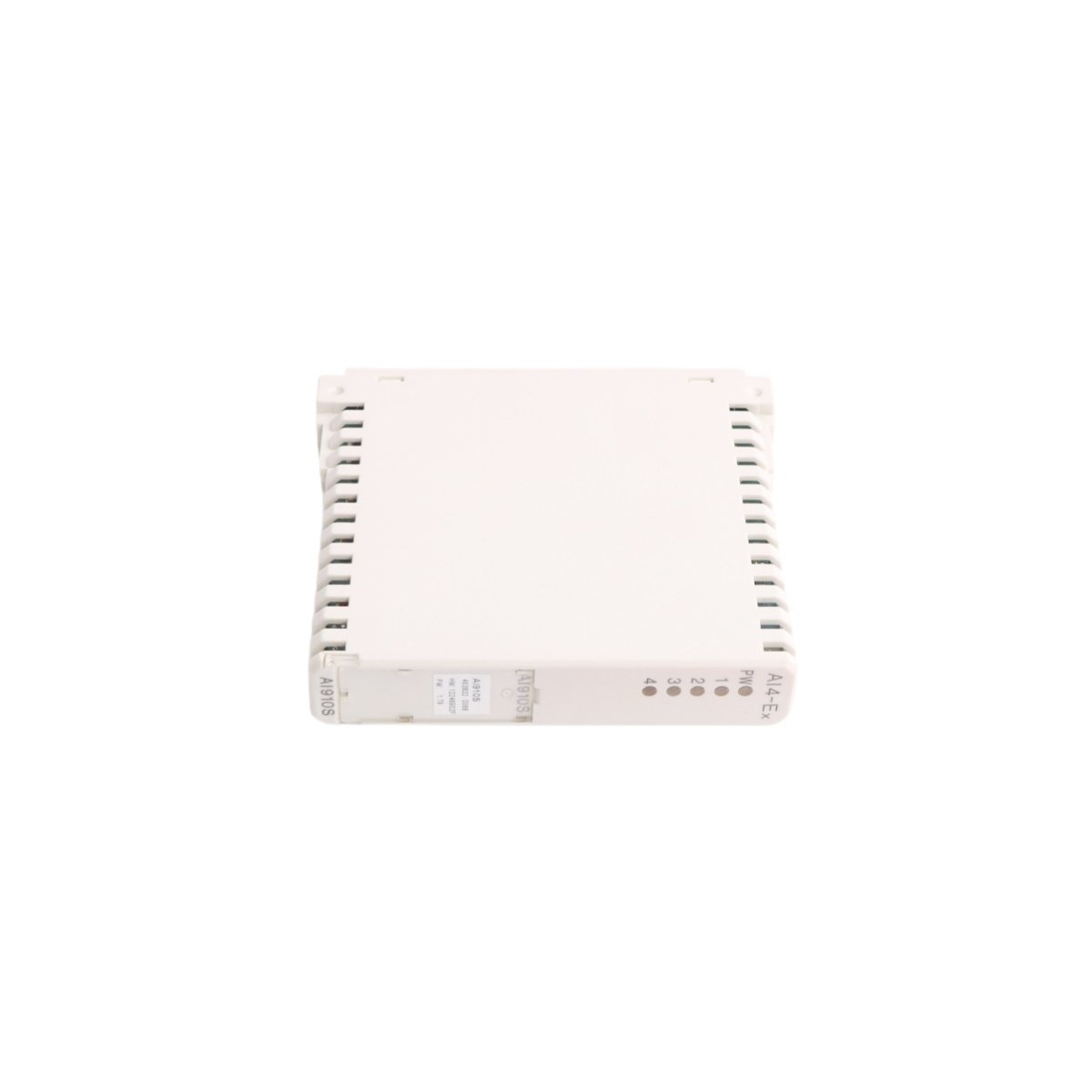

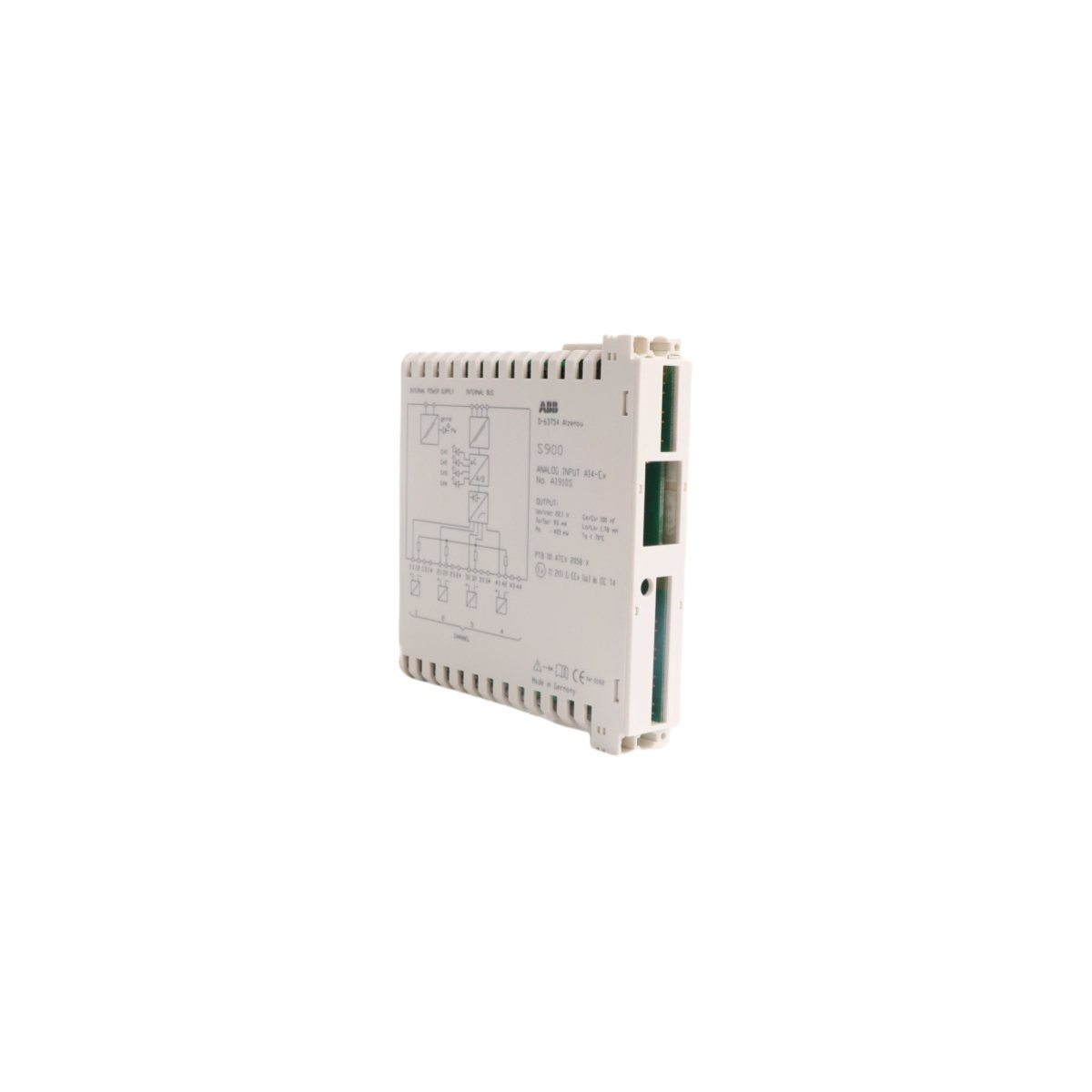

The AI910S (Order Code 3KDE175511L9100) is a specialized 4-channel analog input module from the ABB S900 I/O series, specifically engineered for deployment in hazardous areas. This "AI4-Ex" unit provides intrinsically safe interfaces for field devices such as 2-wire transmitters, converting 4-20 mA current signals into digital data for the control system. Designed for high-density mounting, the AI910S ensures safe and precise data acquisition in Zone 1 and Zone 2 environments. Its robust galvanic isolation protects the Distributed Control System (DCS) from field-side electrical faults, making it a cornerstone for safety-critical process automation.

Technical Configurations and Physical Profile

• Model NumberAI910S

• Order Number3KDE175511L9100

• Input Density4 Channels (Intrinsically Safe)

• Signal Range4 to 20 mA

• Module Weight0.1 kg

• Casing Dimensions2 x 10.5 x 11 cm

• Safety RatingAI4-Ex (Intrinsically Safe for Hazardous Locations)

• Product SeriesS900 I/O Remote System

• Country of ManufactureSweden

• Customs CodeHS 8537101190

The module features a streamlined, plug-and-play architecture that allows for rapid replacement in the field. Its corrosion-resistant housing and wide thermal operating range allow it to be installed in environments ranging from intense heat processing zones to sub-zero industrial storage.

Strategic Industrial Implementations

The AI910S 3KDE175511L9100 is predominantly utilized in sectors where explosive atmospheres require strict intrinsic safety (Ex) standards. Key applications include:

• Petrochemical Extraction: Monitoring pressure and flow transmitters on offshore platforms and refinery units.

• Chemical Synthesis: Collecting data from temperature and level sensors in reactor vessels where volatile gases are present.

• Pharmaceutical Manufacturing: Managing precise analog inputs in cleanroom environments with solvent-heavy processes.

• Gas Distribution: Interfacing with remote field instrumentation across pipeline networks utilizing Ethernet-routed DCS hubs.

FAQ

Q: Does the AI910S provide power to the field transmitters?

A: Yes, the AI910S is designed to supply power to 2-wire transmitters via its intrinsically safe current loop, simplifying field wiring in hazardous zones.

Q: Can this module be installed directly into Zone 1 hazardous areas?

A: The AI910S is an "Ex" rated module designed for the S900 I/O system, which supports installation in Zone 1 when mounted in a suitably protected enclosure or subrack.

Q: Is the 3KDE175511L9100 compatible with HART communication?

A: While the AI910S handles standard 4-20 mA signals, users requiring HART pass-through should verify the specific sub-model variant, as the S900 series includes dedicated HART-capable modules.

Q: What happens if a field wire is cut or shorted?

A: The module includes integrated diagnostics that detect wire breaks and short circuits, immediately reporting the fault status to the DCS to prevent inaccurate process readings.

Q: Is there a specific terminal block required for this module?

A: Yes, the AI910S is a plug-in module that must be seated into a compatible S900 I/O termination unit or backplane to establish power and communication links.
