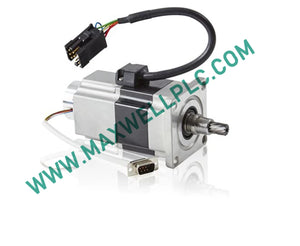

The ABB 3HAC058990-005, also cataloged as the 3HAC058990 Robot Motor, operates as a dedicated hardware component for closed-loop motion drive execution within ABB IRC5 Robot Control Systems.

Hardware Identification Matrix

• 3HAC058990-005: Full assembly servo motor unit designated for articulated robot arm axis actuation.
• 3HAC058990: Core electromagnetic motor frame reference housing standard winding and encoder interfaces.

Technical Performance Parameters

Drive System Integration and Bus Synchronization

This motor interfaces directly with drive units communicating across deterministic networks such as EtherNet/IP and Profinet. Real-time feedback integration relies on firmware flash compatibility between the motor encoder electronics and the host drive controller, ensuring low-latency velocity loops and accurate I/O density scaling during high-speed trajectory execution.

Shipping Package Contents

• 1 x ABB 3HAC058990-005 Servo Motor
• Factory anti-static terminal connector caps
• Polyurethane shock-absorptive packaging box

Physical Mounting and Wiring Rules

• Disconnect main power to the robot controller and implement lock-out/tag-out before servicing motor connections.
• Align shaft keyway precisely with the axis gearbox input coupling to prevent radial stress on bearings.
• Torque motor flange mounting bolts evenly to specified torque rating to maintain mechanical concentricity.
• Route motor power and feedback cables in separate shielded conduits to minimize electromagnetic interference.
• Connect motor frame earth terminal directly to the robot arm grounding stud with low-impedance bonding wire.

Technical FAQ

• What is the continuous power rating of this motor unit?

  The unit features a 5 kW rated power output when operating on a 400 VAC 3-phase power supply at 50 Hz.

• What insulation class applies to the stator windings?

  The windings are manufactured to Insulation Class F specs, permitting internal operating temperatures up to 155 deg C.

• Is hot-swapping allowed on the motor power cabling?

  Hot-swapping is prohibited. High voltage and residual energy will cause terminal arcing and encoder feedback fault codes.

• What torque factor is generated per unit of current?

  The electromagnetic design produces a torque constant rating of 15 Nm/A across its operating speed range.

• How should cable shielding be terminated at the junction box?

  360-degree metallic cable clamps must secure the braided shield directly to the grounded box housing entry.

• What is the maximum rated operational speed?

  The motor operates at a nominal rated speed of 3000 RPM under variable speed closed-loop drive control.

• What precautions prevent shaft bearing degradation during assembly?

  Avoid axial hammer impacts on the output shaft; always use puller tools during gear coupling installation.

• How does firmware affect motor parameter configuration?

  Drive controller firmware stores specific motor configuration files matching the encoder serial map for precise tuning.
