Product Overview

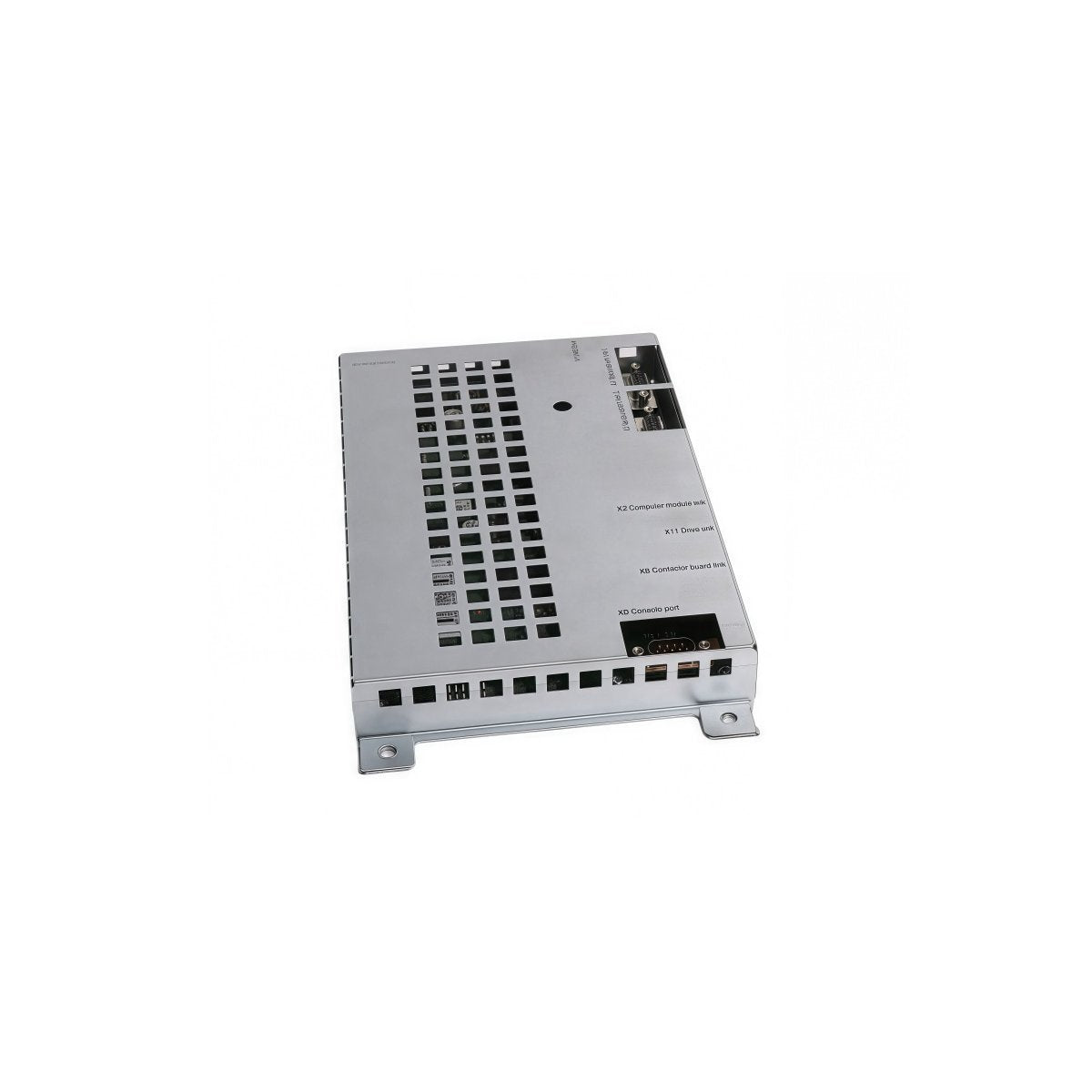

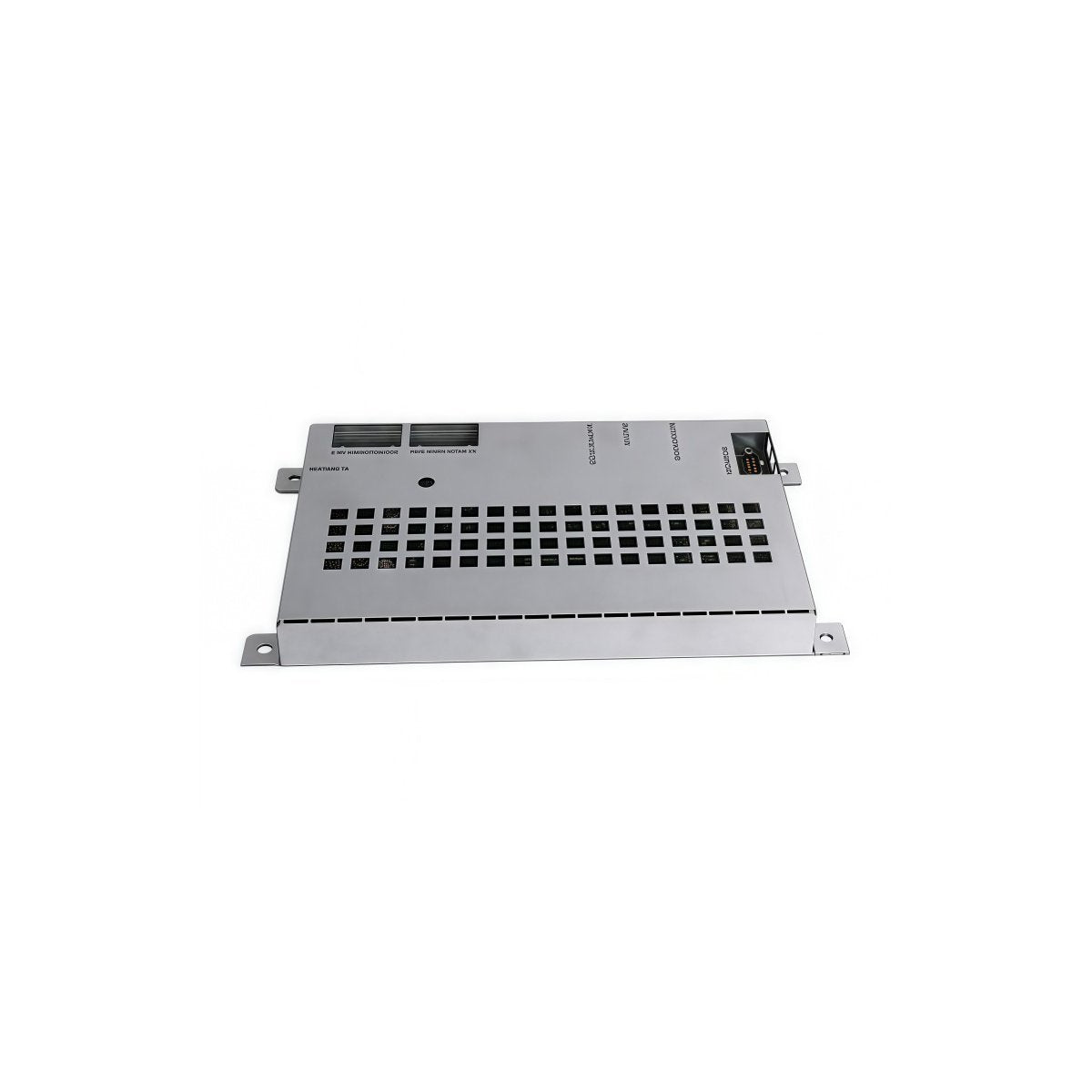

The DSQC668, identified by order number 3HAC029157-001, is a core computational module designed for the ABB IRC5 robot controller generation. This Axis Computer serves as the dedicated processing engine for motion control, calculating complex kinematic paths and ensuring synchronized movement across all robotic joints. Housed in a specialized aluminum alloy casing, the unit is engineered to manage the thermal loads generated during high-speed processing while offering superior protection against industrial contaminants. As a critical link in the IRC5 control architecture, the DSQC668 ensures that robotic manipulators maintain millimeter-level precision and fluid motion during high-duty cycle operations.

Physical Architecture and Hardware Constants

• Module Type: Axis Computer Unit

• Hardware ID: DSQC668

• Order Reference: 3HAC029157-001

• Chassis Material: High-grade heat-dissipating Aluminum Alloy

• System Environment: ABB IRC5 Controller Series

• Net Weight: 1.4 kg

• Module Dimensions: 26.8 x 14.8 x 2.8 cm

• Thermal Range: Optimized for stable operation in high-heat automated cells

• Protection Features: Integrated resistance to corrosion, friction wear, and impact

• Manufacturing Origin: Sweden

Robotic Systems Deployment

The DSQC668 Axis Computer is an essential component within the IRC5 ecosystem, typically utilized in high-speed, high-precision industrial sectors:

• Automotive Body-in-White: Providing the processing power for complex spot welding and laser cutting paths where timing between axes is critical.

• Precision Electronics Assembly: Managing small-part pick-and-place robots that require rapid acceleration and deceleration cycles.

• Heavy Payload Palletizing: Coordinating the high-torque movements of large industrial robots in logistics and food processing.

• Foundry and Casting: Maintaining reliable motion control in harsh, high-temperature environments where standard electronics would fail.

• Legacy System Support: Acting as the primary spare for IRC5 controllers transitioned to classic support phases, ensuring continued uptime for existing production lines.
