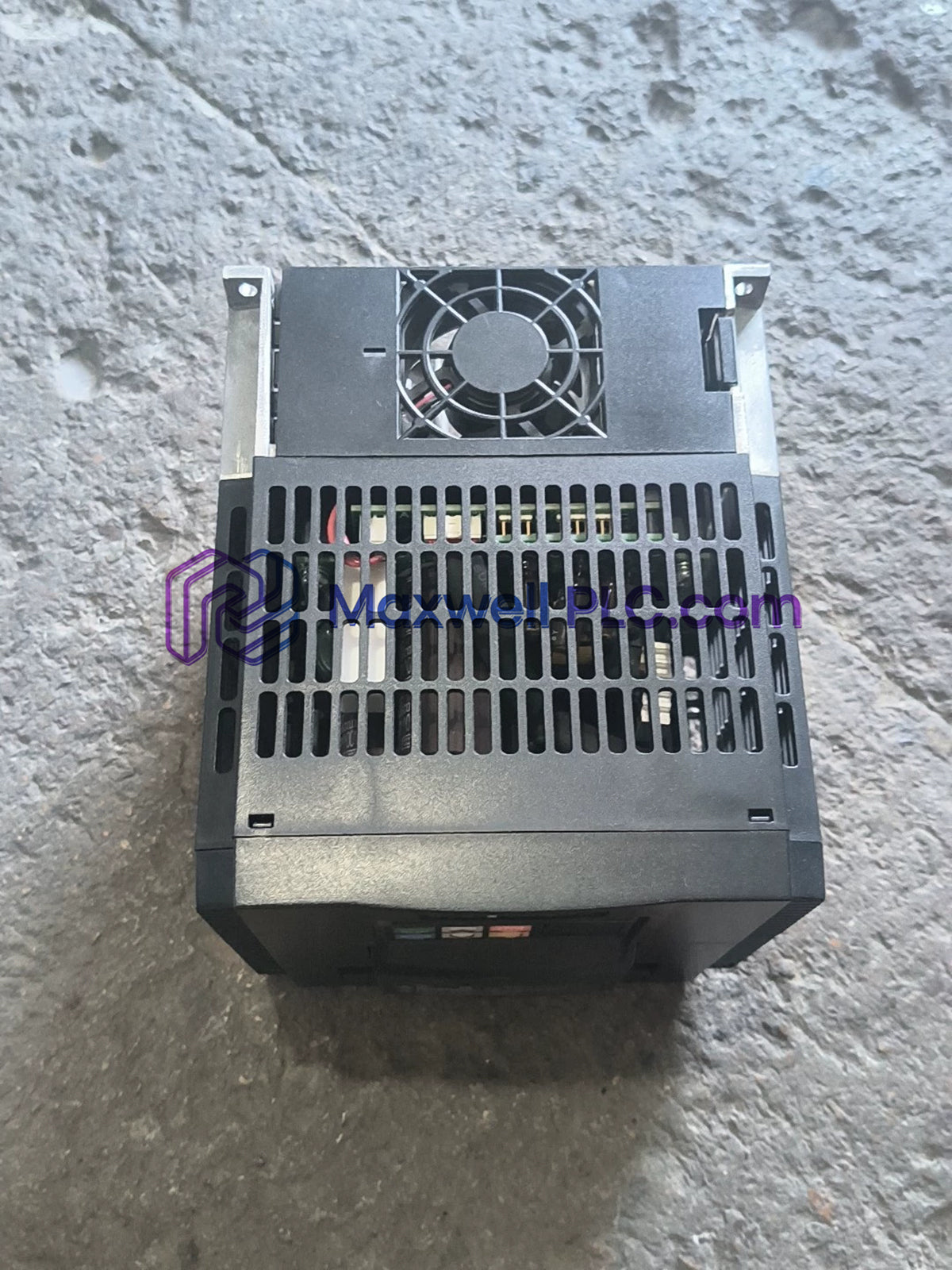

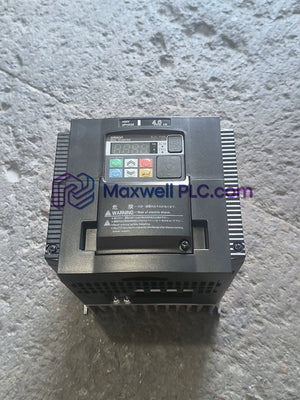

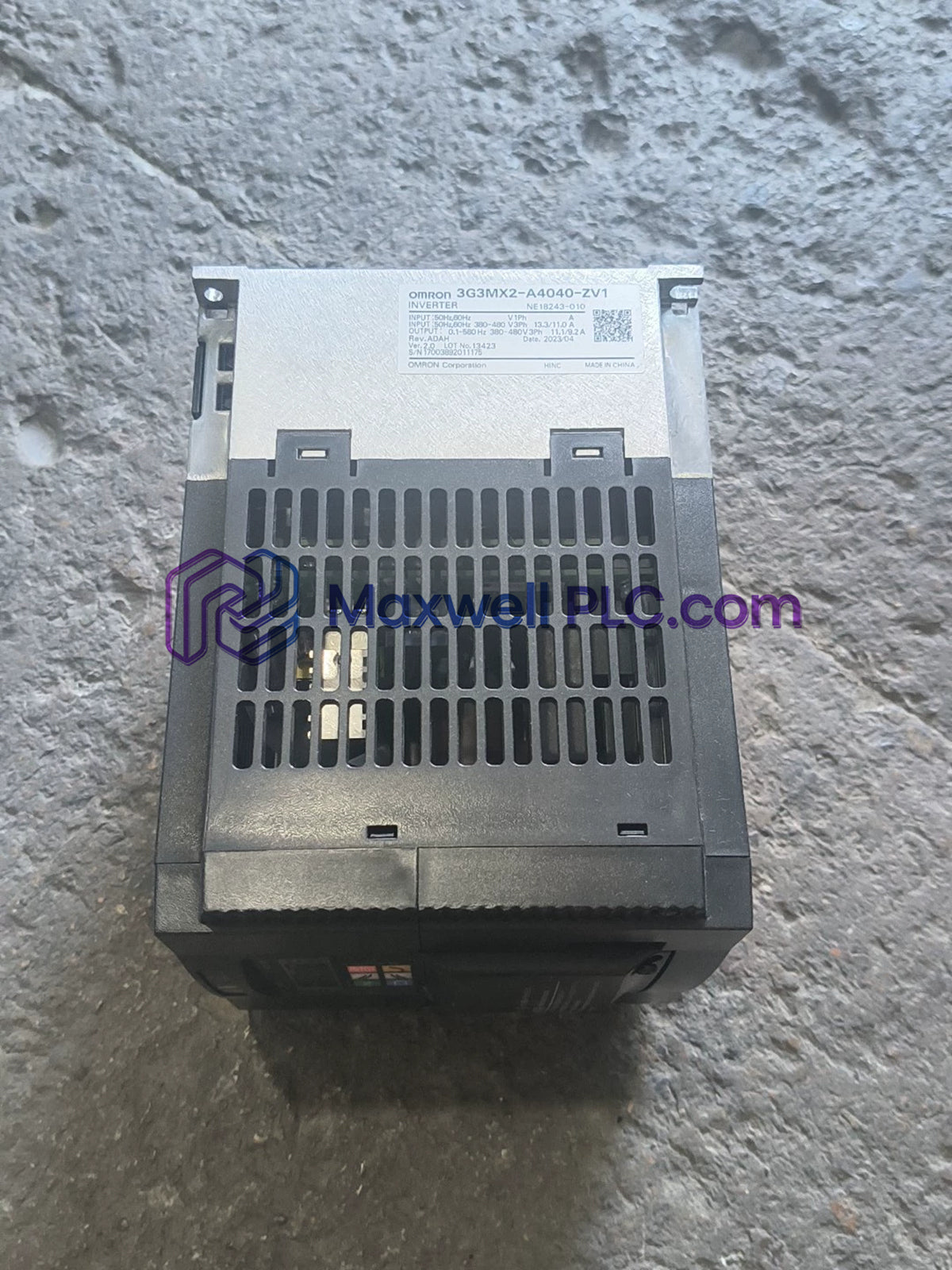

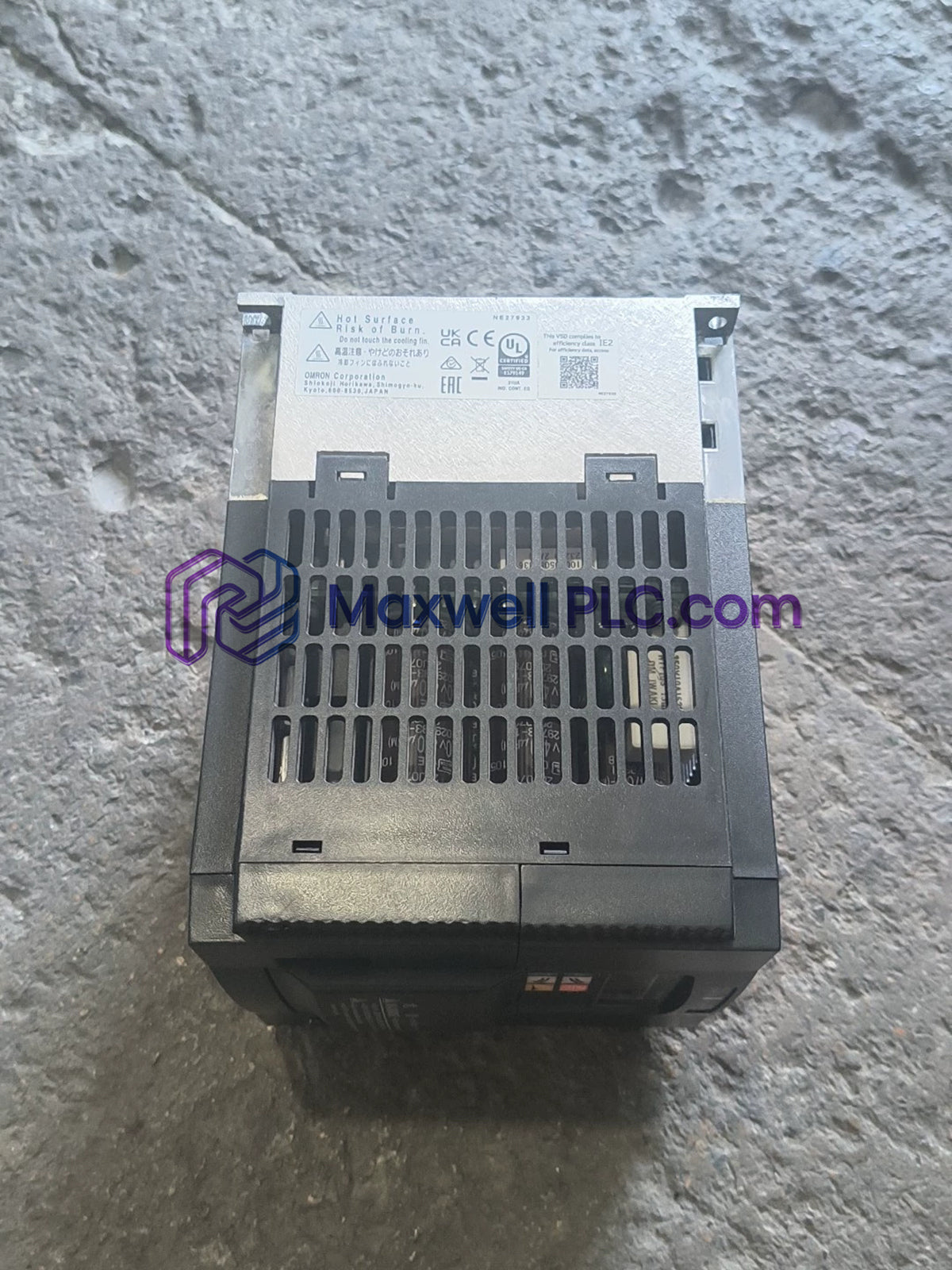

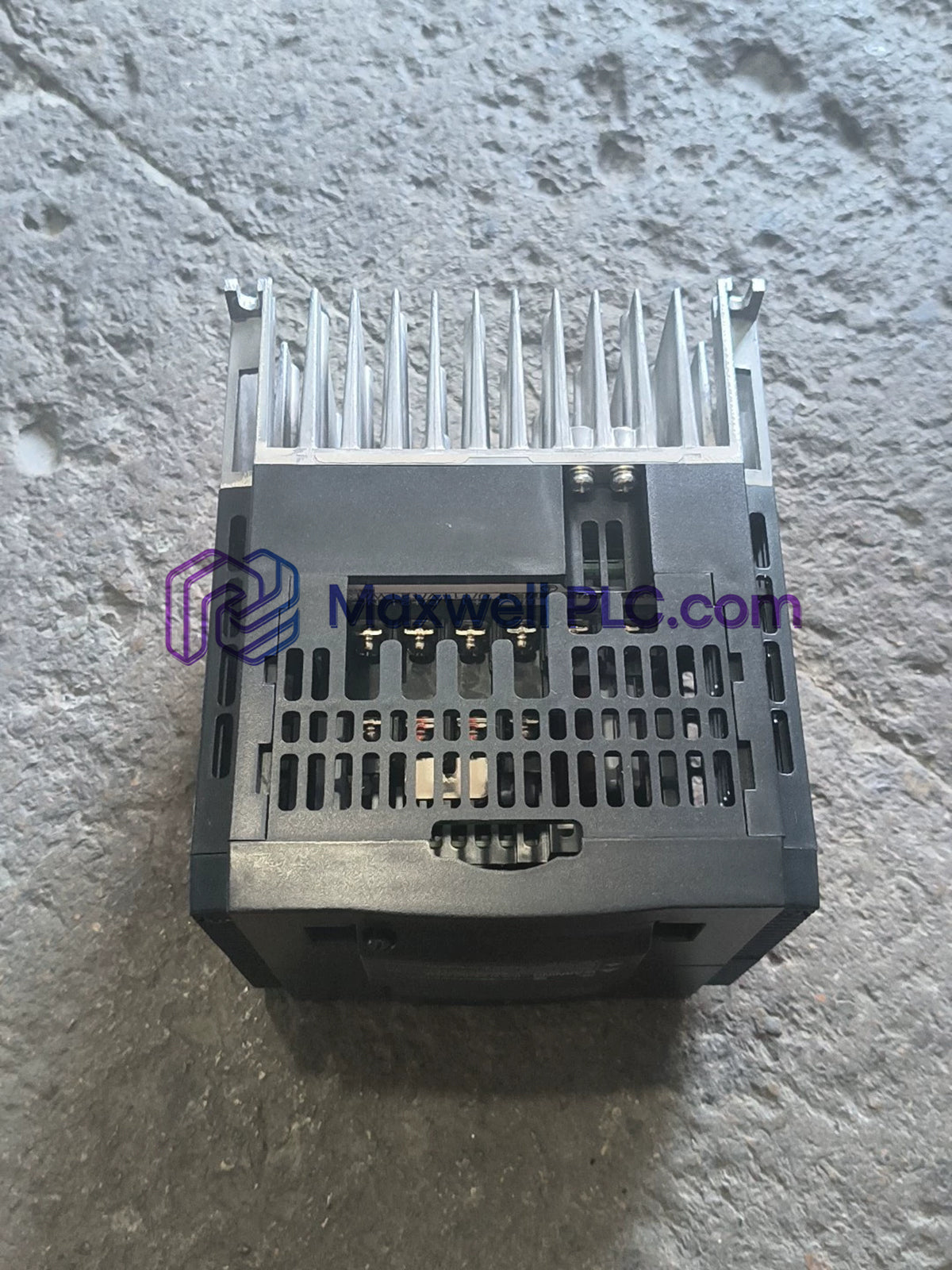

The Omron 3G3MX2-A4040-ZV1, also cataloged as the 3G3MX2 Multi-Function Compact Inverter, operates as a dedicated hardware component for 3-phase 400 V AC motor velocity and torque modulation within industrial drive network architectures.

Product Code Structure & Variant Identification

• 3G3MX2: MX2 Series base inverter architecture platform.
• A: Panel-mounting panel enclosure design (rated IP10 minimum) or closed wall-mounting configuration.
• 4: 3-phase 400 VAC voltage class supply rating (380 V to 480 V operating range).
• 040: Maximum applicable motor capacity of 4.0 kW under Heavy Duty (CT) rating.
• ZV1: Custom firmware feature build and region-specific functional specification variant.

Electrical & Physical Technical Data

Deterministic Network Bus & Firmware Flash Synchronization

The internal architecture leverages backplane bus communication velocity licences to guarantee real-time speed coordination over EtherNet/IP deterministic networks. High-density digital I/O expansion scales control topology across multi-axis configurations. Field updates preserve firmware flash compatibility to synchronize local acceleration profiles with host controller drive commands without latency degradation.

Package Dispatch Logistics

• 1 x Omron 3G3MX2-A4040-ZV1 Drive Unit
• 1 x Main Power Input Terminal Cover Shield
• 1 x Basic Technical Operations Guide

Mechanical Mounting & Cabling Guidelines

• Standard Enclosure Setup

  Mount vertically onto a flat, conductive metal backpanel to maintain low electrical impedance ground connections across the IP10 chassis frame.

• Conductor & Shield Routing

  Route 400 V three-phase power feed cables separate from low-voltage I/O control wires by a minimum distance of 100 mm to prevent inductive cross-talk.

• Protective Earthing Protocol

  Connect the protective earth terminal directly to the central panel earth busbar; avoid linking earth conductors sequentially across multiple inverter frames.

System Operations FAQ

• Is hot-swapping allowed on the main power wiring terminals during system operation?

  No. Input AC line power must be disconnected and the DC bus voltage checked to confirm complete discharge below 50 VDC prior to terminal servicing.

• What latency applies to internal safety circuit actuation upon drive shutdown signals?

  Integrated dual safety inputs execute immediate hardware gate suppression, terminating power stage output torque within 10 milliseconds of trigger.

• How does backplane communication handle transient voltage spikes on serial bus channels?

  Isolated serial communication interfaces suppress differential voltage transients, maintaining bus stability without inducing processor reset cycles.

• Can the drive execute high-frequency output control routines above nominal line frequencies?

  Yes. Configured firmware parameters allow output frequencies up to 1000 Hz, subject to thermal limits and motor insulation breakdown constraints.

• What external dynamic braking configuration is required for high-inertia deceleration cycles?

  High-inertia applications require an external braking resistor tied to the dedicated DC terminals when kinetic energy exceeds internal sink capacity.

• How does ambient temperature affect continuous load output ratings?

  Continuous output current must be linearly derated by 2.5% per deg C for ambient operation extending above 40 deg C up to 50 deg C max.

• Does non-volatile parameter memory require an auxiliary battery back-up module?

  No. Internal EEPROM structures store drive configuration parameters, logic commands, and operational fault logs permanently without external battery power.

• How should analog input signals be grounded to avoid control reference noise interference?

  Ground the shield wire of 0-10 VDC or 4-20 mA control loops at the drive side ground terminal only to prevent ground loop current generation.
