Product Overview

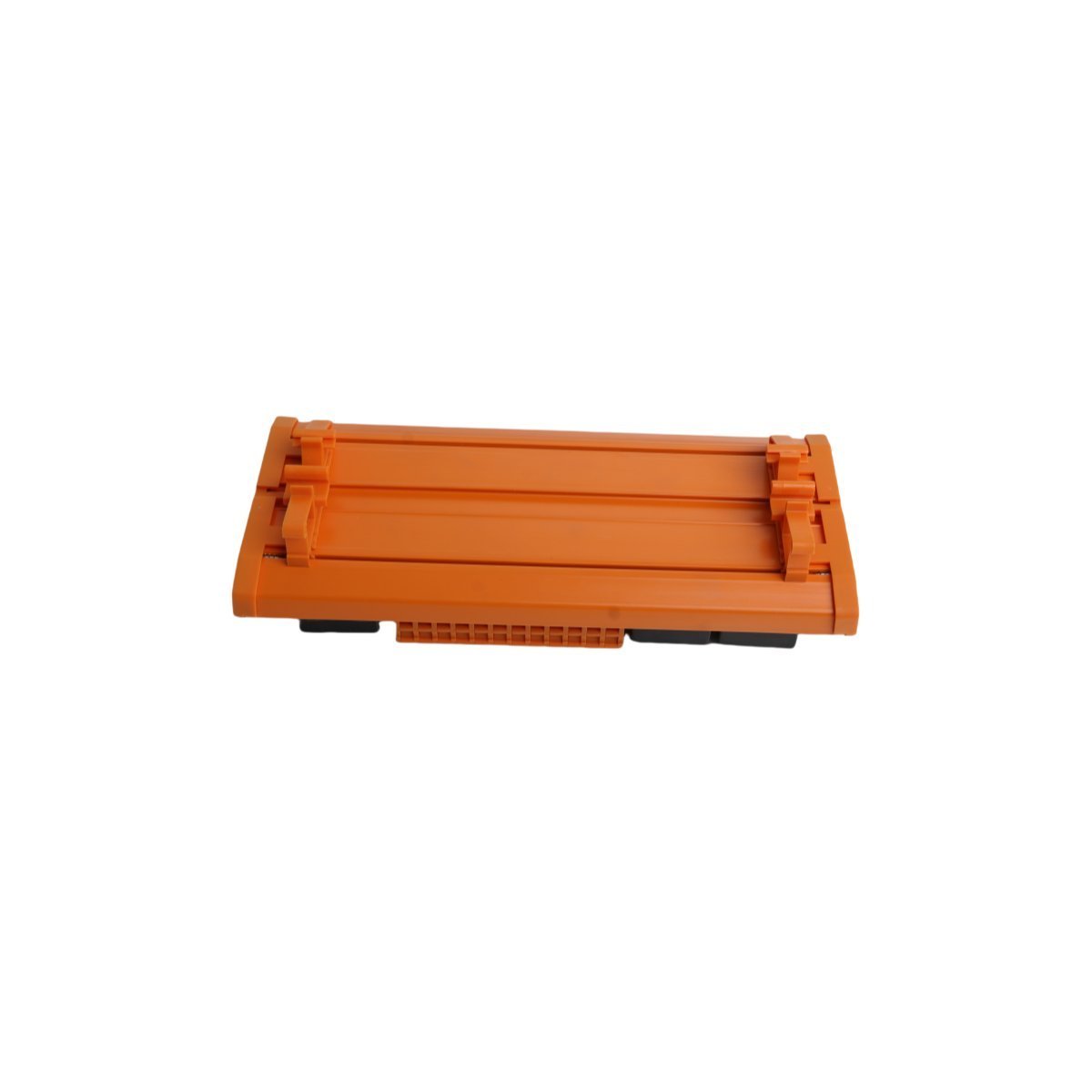

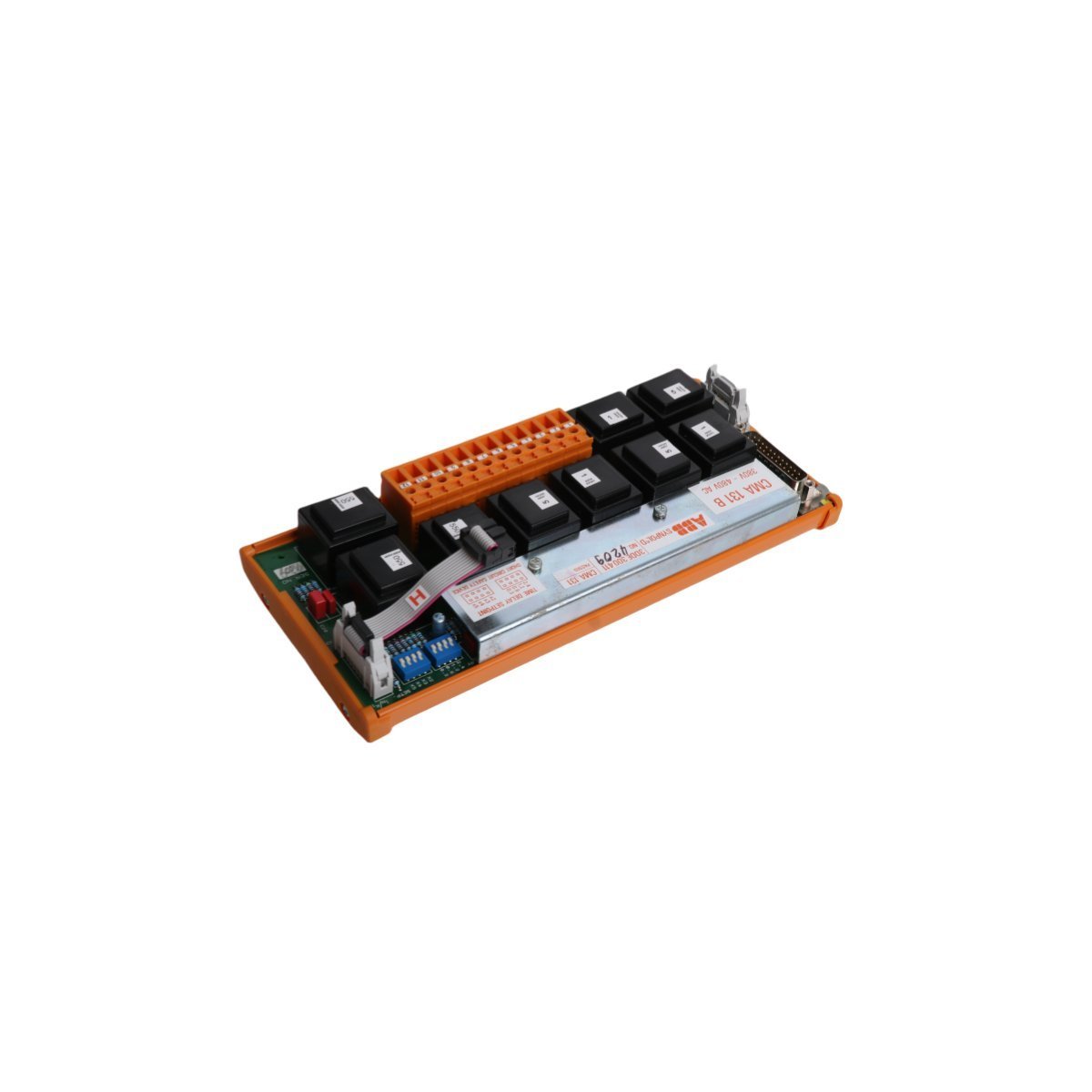

The CMA131, identified by part number 3DDE300411, is a precision-engineered Servo-motor Interface and Encoder Module developed for the ABB Synpol D control ecosystem. This module functions as a critical intermediary between the central processing unit and high-performance servo actuators, providing the high-speed feedback loop necessary for accurate motion control. By integrating encoder signal processing with drive command arbitration, the CMA131 ensures that motor position, velocity, and torque are managed with sub-millisecond responsiveness. It is a vital component for systems where mechanical synchronization and real-time data exchange are essential for operational safety and product quality.

Control Architecture and Hardware Benchmarks

The CMA131 is built on a compact hardware platform designed for high-density integration within Synpol D and AC500-level automation environments. It features specialized circuitry to maintain signal integrity over long-distance encoder runs.

• Module Designation: CMA131

• Order Reference: 3DDE300411

• Primary Function: Servo-motor Drive & Encoder Interface

• Control Hierarchy: Synpol D / DCS Integration

• Data Processing: Real-time position and velocity feedback synchronization

• Physical Mass: 0.35 kg

• Dimensions: 15.2 x 3.3 x 5.5 cm

• Diagnostics: Integrated fault detection and signal monitoring tools

• Protocol Support: Multi-protocol compatibility for ABB and third-party motion devices

• Manufacturing Origin: Sweden

• Standardization: Industrial-grade electromagnetic compatibility (EMC) hardening

Operational Use Cases and Field Deployment

This servo-motor drive module is predominantly utilized in sectors requiring complex mechanical motion and rigorous generator or motor control management.

• Generator Control Management: Regulates the precise positioning of control valves and actuators in power generation excitation systems.

• Synchronized Motion Control: Orchestrates multi-axis servo movements in automated manufacturing lines to ensure perfect mechanical alignment.

• High-Resolution Feedback: Processes encoder pulses from high-speed rotors to provide accurate RPM data for supervisory control systems.

• Synpol D System Maintenance: Serves as a primary replacement or expansion card for Synpol D architectures used in marine propulsion and heavy industrial drives.

• Machine Tooling Integration: Facilitates the communication between central PLC logic and specialized servo-actuated machinery in metalworking or textile production.
