Product Overview

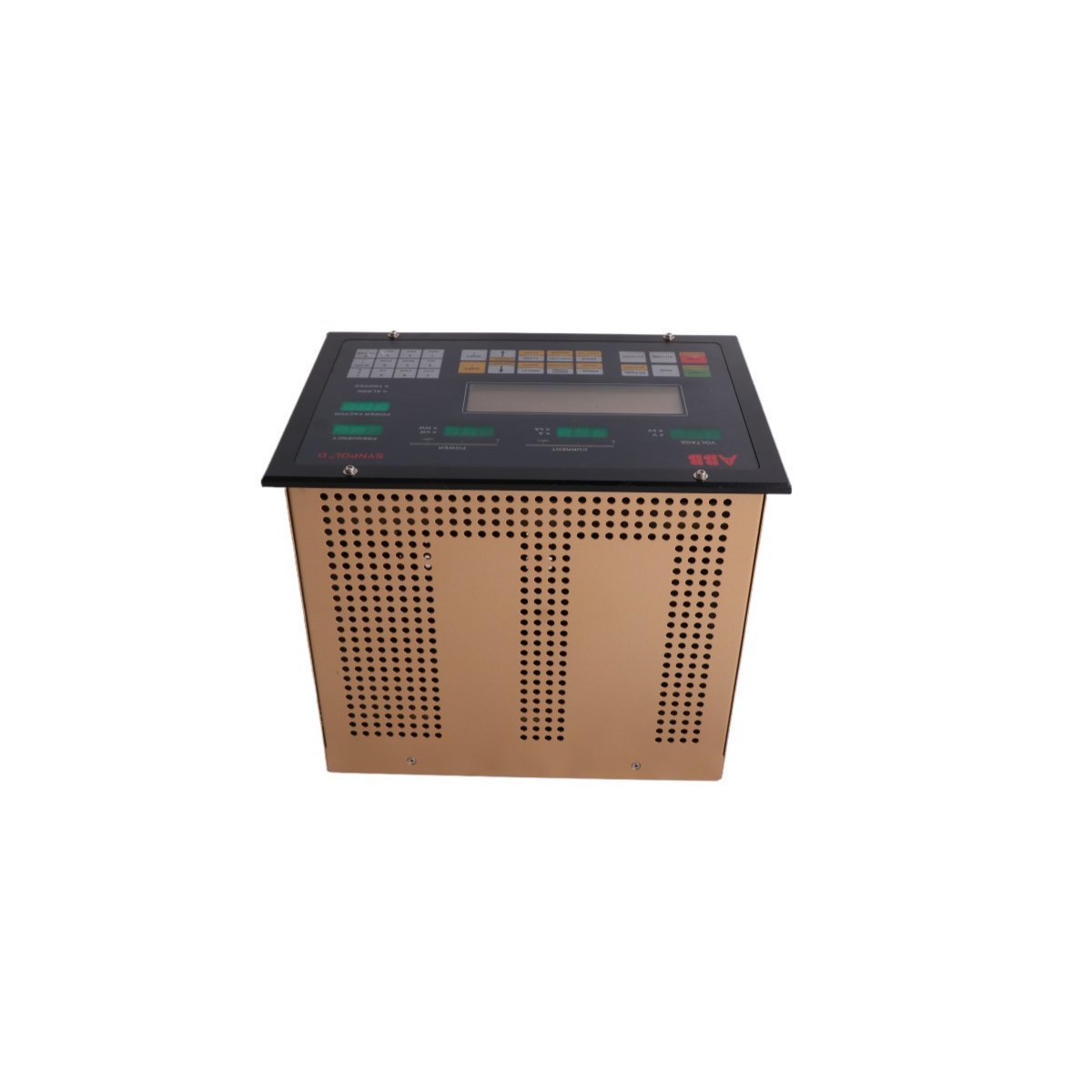

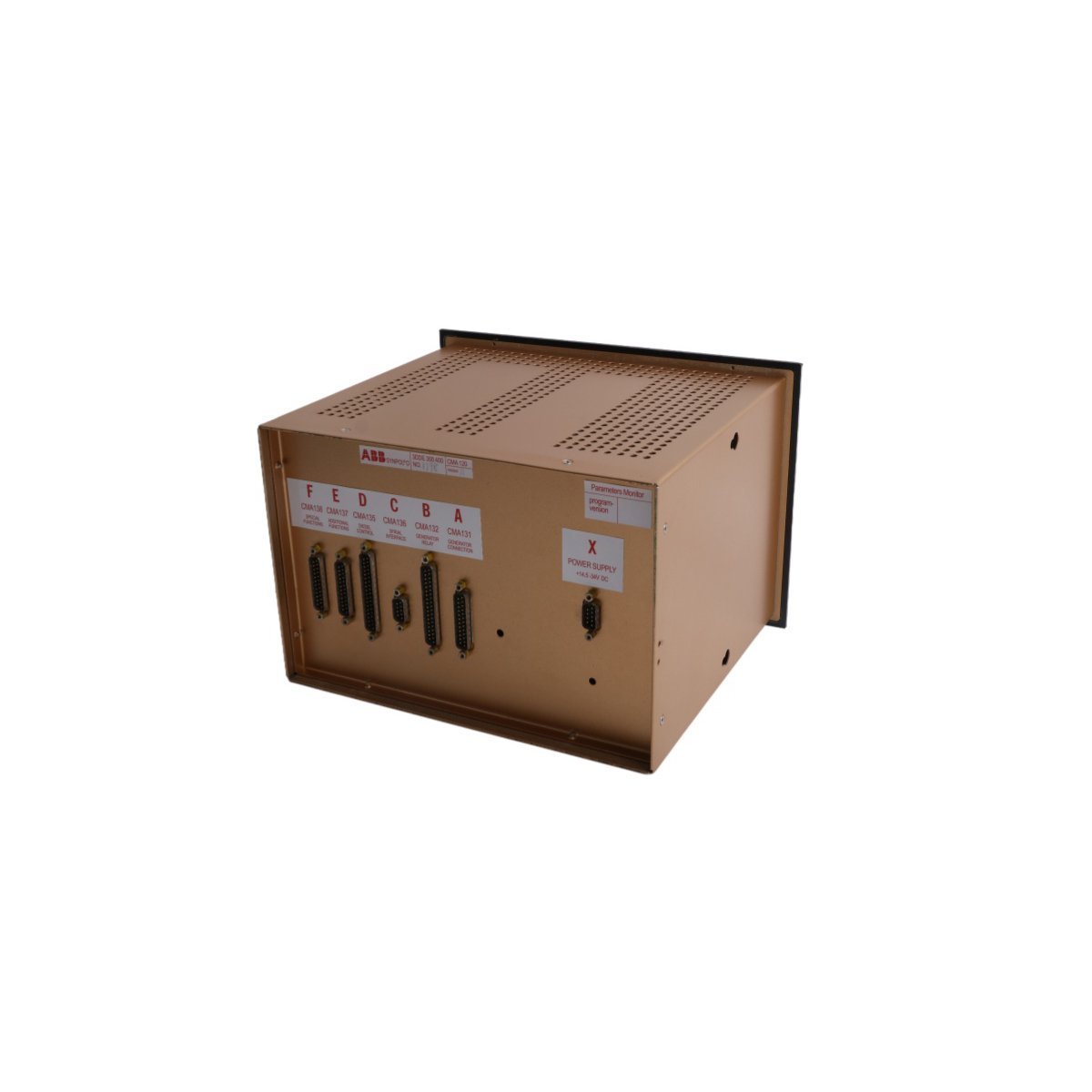

The ABB CMA120, cataloged under part number 3DDE300400, is a professional-grade controller interface panel designed specifically for the System 800xA and Advant Distributed Control System (DCS) environments. This hardware serves as a high-integrity bridge between human operators and complex automated logic, allowing for the localized supervision of critical plant assets. By providing a ruggedized point of interaction, the CMA120 ensures that technicians have real-time visibility into process variables, enabling rapid setpoint adjustments and loop tuning. Engineered to meet the strict data fidelity standards of modern B2B industrial operations, this panel facilitates stable, deterministic communication within a unified automation architecture.

Hardware Infrastructure and Technical Metrics

• Component Identification: Controller Interface Panel / HMI Unit

• Model Designation: CMA120

• Order Number: 3DDE300400

• Control Hierarchy: Advant-800xA / DCS Compatible

• Communication Support: High-speed Industrial Ethernet

• Monitoring Logic: Real-time telemetry with integrated alarm annunciation

• Chassis Construction: Industrial-grade ruggedized housing

• Net Weight: 1.08 kg

• Module Dimensions: 18.5cm x 8.5cm x 30.5cm

• Country of Origin: Sweden

• Tariff Code (HS): 8537101190

Industrial Deployment and Site Applications

The CMA120 3DDE300400 is optimized for sectors where process continuity is non-negotiable, including chemical batching, thermal power generation, and large-scale water treatment. In these settings, the panel acts as a decentralized monitoring station, synchronized with central I/O clusters to provide immediate feedback on system health. Its 1.08 kg Swedish-built frame is specifically designed to resist the electromagnetic interference and mechanical vibrations common in heavy manufacturing and grid distribution hubs. By utilizing the integrated alarm management system, maintenance teams can identify and address process deviations before they escalate into hardware failure, making it a vital asset for optimizing plant uptime and ensuring environmental safety compliance across infrastructure utilities.

FAQ

Q: What is the primary function of the CMA120 in a System 800xA network?

A: It functions as a specialized interface panel that provides operators with localized control and real-time data visibility over decentralized controller logic and process loops.

Q: Is the 3DDE300400 compatible with legacy Advant systems?

A: Yes, the CMA120 is designed to bridge the gap between traditional Advant architectures and modern System 800xA environments, supporting seamless integration across both DCS generations.

Q: Does this unit require a separate power supply for the display and Ethernet logic?

A: The unit typically draws power from the system backplane or a dedicated DC industrial supply; you should refer to your specific Advant-800xA rack documentation for precise voltage requirements.

Q: How does the integrated alarm system assist in facility management?

A: The panel provides immediate visual alerts for process deviations, allowing operators to react to sensor anomalies or communication drops instantly, which minimizes the risk of unscheduled downtime.

Q: Can the CMA120 be mounted directly on high-vibration machinery?

A: While the unit features a ruggedized industrial enclosure, it is recommended for installation in standard control cabinets or console cutouts to ensure optimal long-term reliability of its internal Ethernet components.
