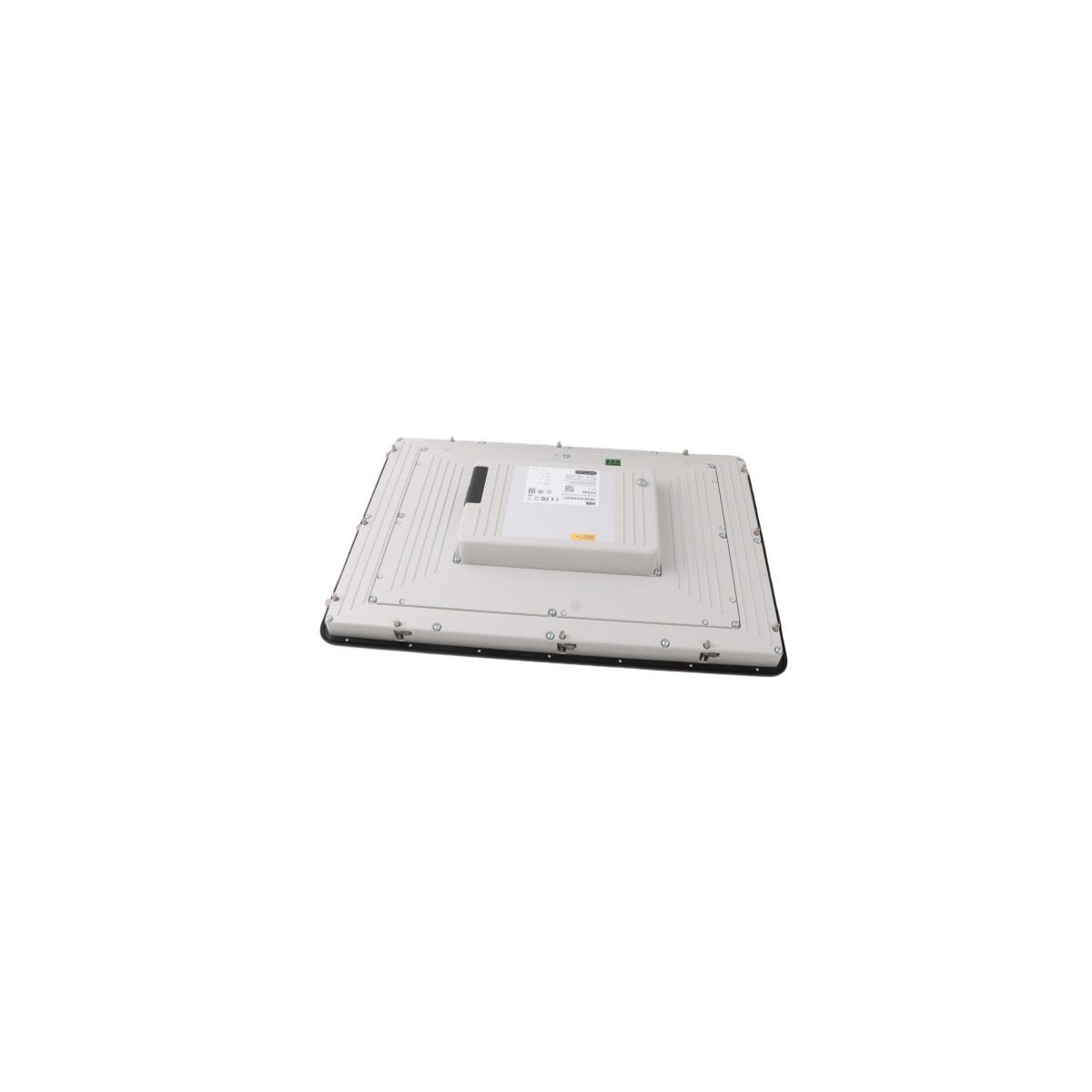

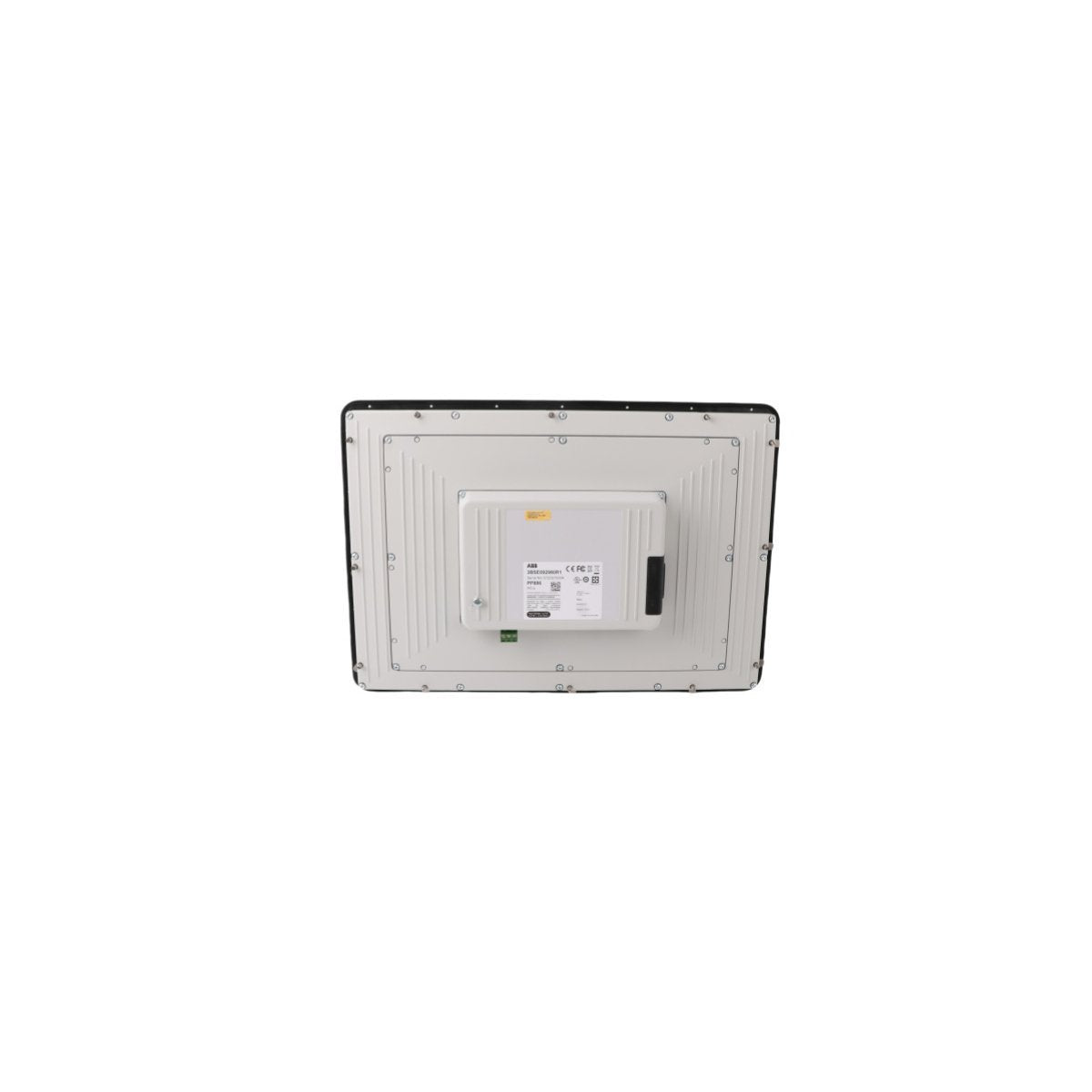

Product Overview

The PP886, part number 3BSE092980R1, represents the premium tier of ABB’s Panel 800 series, specifically optimized for the System 800xA and Compact Product Suite environments. This high-resolution Human Machine Interface (HMI) provides a sophisticated gateway for operators to interact with complex Distributed Control Systems (DCS). Beyond simple visualization, the PP886 functions as a multi-protocol communication hub, enabling simultaneous data processing from various fieldbus architectures. Its robust construction and widescreen display are engineered to provide crystal-clear diagnostic data and process graphics, ensuring that critical plant information is accessible and actionable in real-time.

Physical Architecture and Performance Benchmarks

The PP886 is built with an industrial-grade aluminum housing, providing superior thermal dissipation and structural rigidity. It features a high-performance processor capable of rendering complex vector graphics and managing high-speed data refreshes without latency.

• Display Type: Widescreen TFT-LCD with LED backlight

• Input Method: Industrial-grade touchscreen and 20 configurable tactile function keys

• Housing Material: Powder-coated aluminum alloy

• Protection Rating: IP65 front-side seal against moisture and particulates

• Communication Ports: Dual Ethernet ports (10/100/1000 Base-T) for network redundancy

• Peripheral Connectivity: Twin USB host ports and serial RS232/RS422/RS485 interfaces

• Network Protocols: Integrated support for Modbus TCP, EtherNet/IP, CANopen, and DeviceNet

• Net Weight: 3.58 kg

• Dimensions: 41.0 x 28.7 x 5.0 cm

Strategic Deployment and Operational Utility

This touch panel is the preferred interface for high-stakes industrial sectors where downtime is not an option. Its ability to bridge different communication standards makes it a versatile tool for integrated plant management.

• Centralized Plant Monitoring: Serves as the primary interaction point for System 800xA users to manage large-scale power generation or chemical processing facilities.

• Hazardous and Heavy Industrial Zones: The IP65-rated front panel allows for installation in areas prone to washdowns or high dust concentrations, such as food processing or cement manufacturing.

• Redundant Network Architectures: Utilizing its dual Ethernet ports, the PP886 can be integrated into high-availability networks to ensure the operator never loses visibility of the process.

• Multi-Device Orchestration: Acting as a protocol converter, the panel can simultaneously display data from a PLC via Modbus TCP while communicating with drive systems over CANopen.
