Product Overview

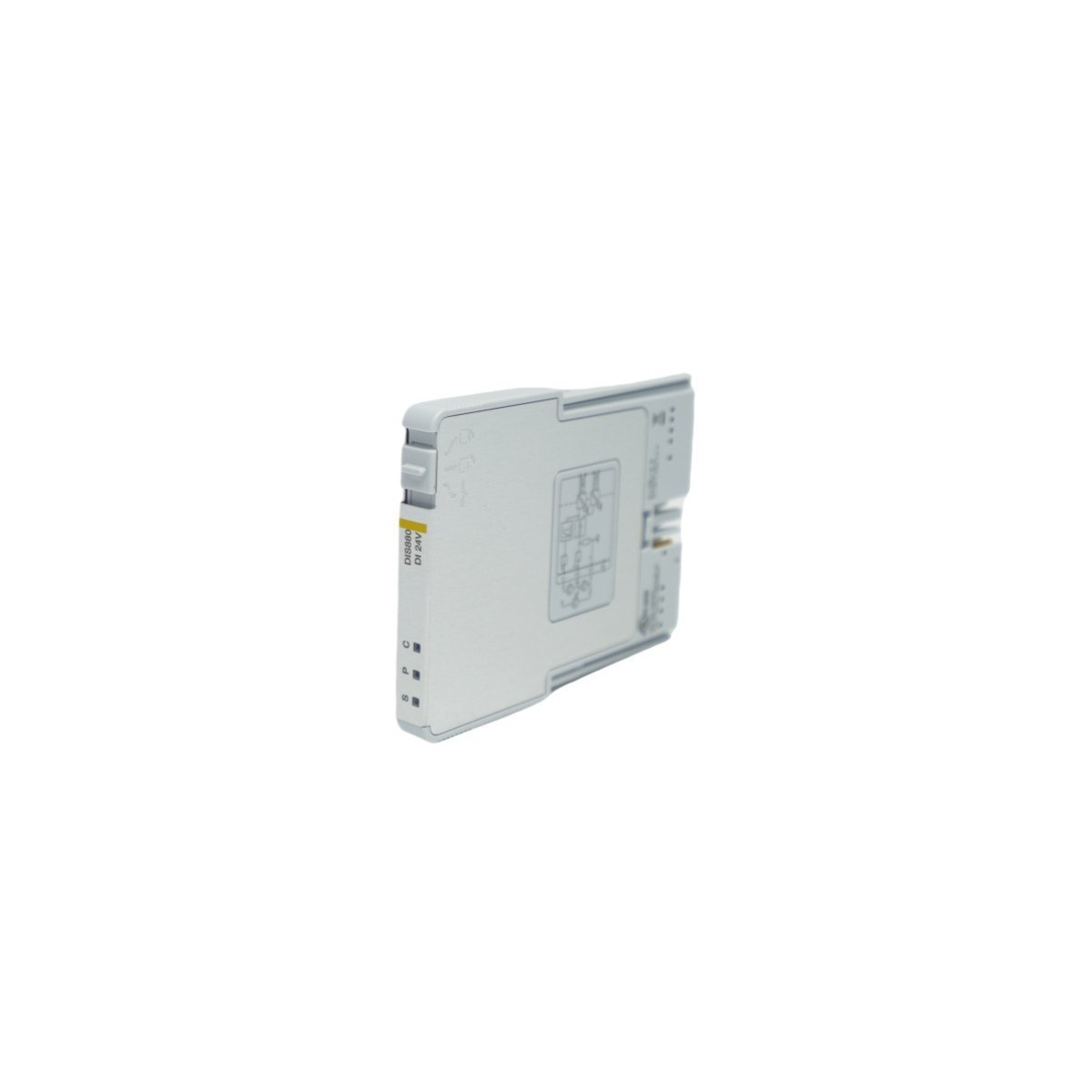

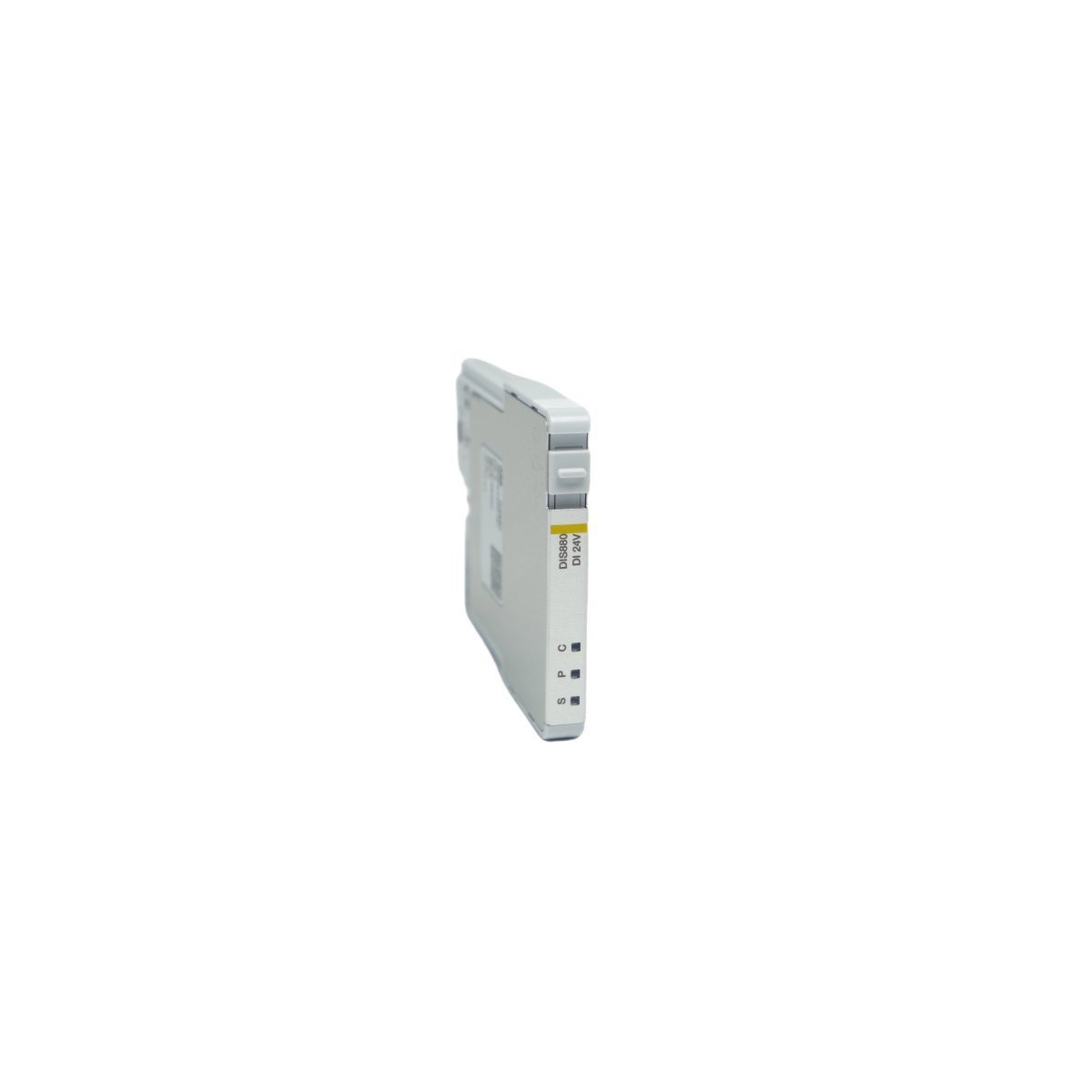

The DIS880, part number 3BSE074057R1, is a high-density digital input component belonging to the ABB Select I/O range for the Industrial IT System 800xA. Engineered to revolutionize traditional I/O marshaling, the DIS880 provides a "select" architecture where each channel can be independently configured and signal-conditioned. This module specifically handles 24V DC discrete signals, converting field-level switch and contact statuses into digital data for the controller. Its ultra-compact, signal-conditioned design is optimized for high-integrity applications, allowing for decentralized installation and significantly reducing the physical footprint and wiring complexity of modern Distributed Control System (DCS) cabinets.

Core Architecture and Hardware Benchmarks

The DIS880 is defined by its modular "plug-and-play" capability, ensuring that hardware can be replaced or upgraded without disturbing the field terminal wiring.

• Model Identification DIS880

• Order Number 3BSE074057R1

• Signal Type Digital Input (DI)

• Nominal Voltage 24 V DC

• Module Series S600 / Select I/O

• Isolation Galvanic isolation per channel

• Physical Mass 0.1 kg

• Chassis Dimensions 8.4 x 4.8 x 7.8 cm

• Diagnostic Features Channel-level status LEDs and comprehensive software supervision

• Protection Rating IP20

• Operational Range Industrial temperature hardened for critical environments

• Manufacturing Site Sweden

• HS Export Code 8537101190

Industrial Implementation and Deployment Scenarios

The DIS880 Select I/O module is ideal for large-scale automation projects where flexibility, space-saving, and rapid commissioning are prioritized.

• Smart Marshaling Solutions Replacing traditional cross-wiring cabinets with a software-configurable I/O structure, allowing for late-stage project changes without hardware rewiring.

• Safety and Process Interlocks Monitoring critical contact states for emergency shutdown (ESD) systems and process safety loops in oil, gas, and chemical facilities.

• Discrete Status Monitoring Verifying the position of limit switches, circuit breakers, and motor starter contacts in power generation and heavy manufacturing.

• Remote I/O Stations Deployed in field-mounted junction boxes to collect localized digital signals and transmit them back to the 800xA controller via Ethernet-based protocols.

• Energy Efficiency Optimization Utilizing low-power consumption circuitry to reduce the heat load within high-density control cabinets, extending the lifespan of neighboring electronics.
