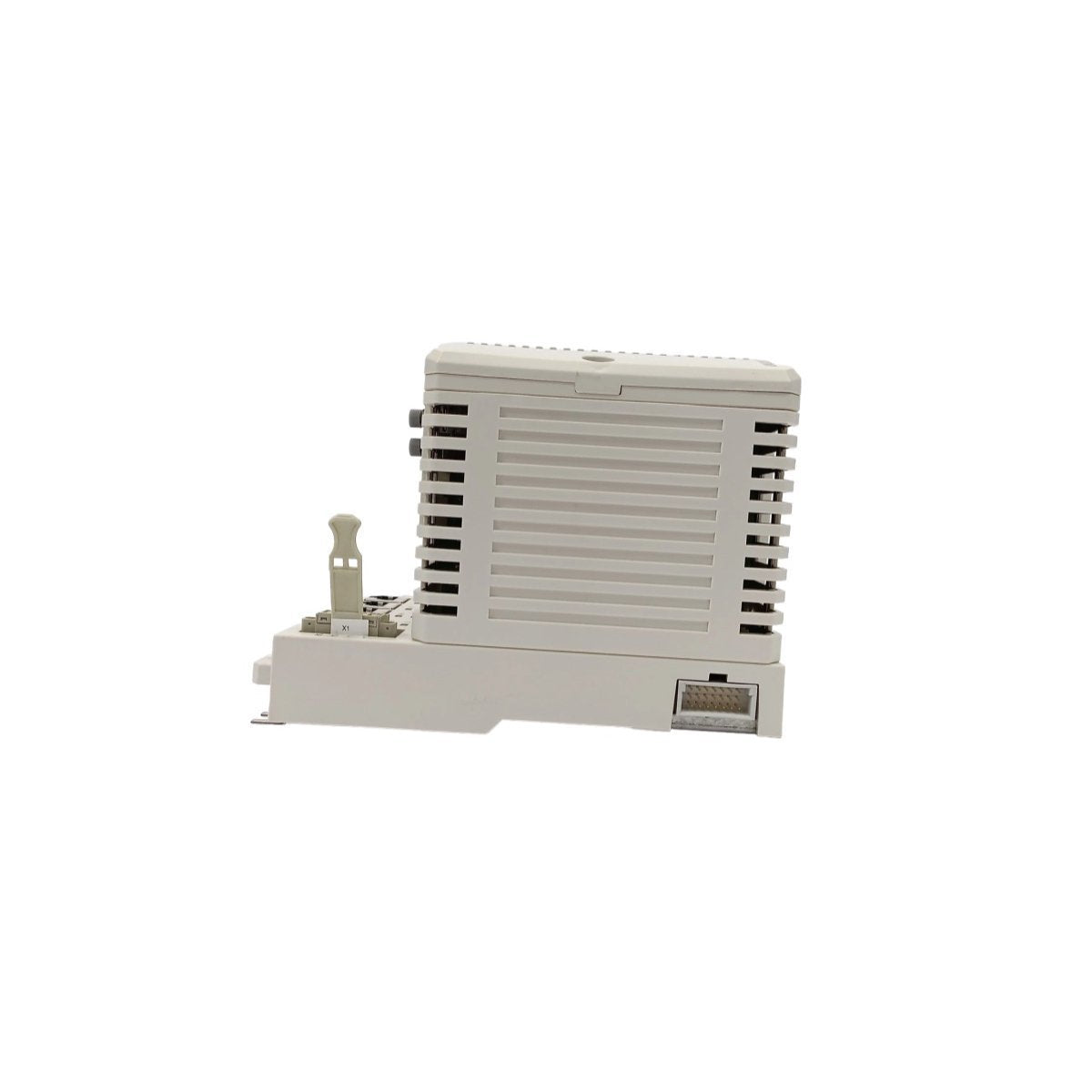

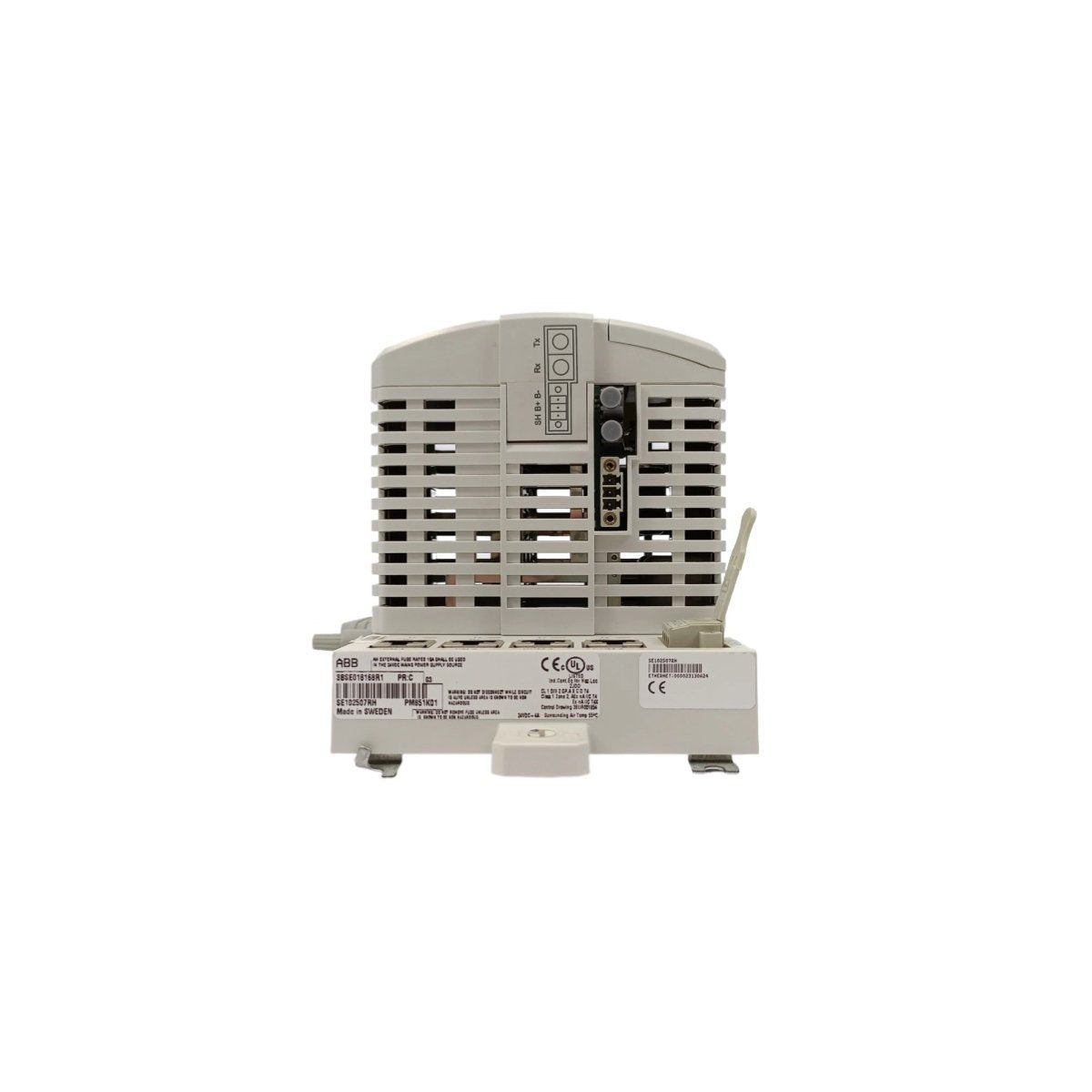

3BSE072270R1 ABB SM812K01 Safety CPU Module (AC 800M HI)
-
Dimensions: 18.5 × 8.5 × 30.5 cm
-
Country of origin: Sweden
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The ABB SM812K01 (order number 3BSE072270R1) is a Safety CPU module used in ABB Advant 800xA / AC 800M HI safety architectures. It is applied as the safety processing element in systems that require deterministic execution of safety logic and controlled interaction with standard control CPUs.
This item is typically supplied as a kit-level safety module package for integration or replacement in installed safety systems. It is commonly referenced for use alongside supported ABB controller platforms where a certified safety layer is required for shutdown functions, interlocks, and safe state handling.
Technical correction note
The header “Module Type: Module” is too generic; this is a safety CPU module. The source text contains inconsistent weight values (mentions 0.5 kg, while the datasheet header lists 1.08 kg). The logistics data below follows the header. “Ethernet router” is not a product function and has been removed.
Safety & Hardware Characteristics
| Item | Specification |
|---|---|
| Model / Order Code | SM812K01 / 3BSE072270R1 |
| Product Type | Safety CPU Module |
| Platform / Family | Advant 800xA / AC 800M HI |
| Typical Controller Compatibility | PM857, PM863, PM867 (system dependent) |
| Supply | 24 VDC |
| Typical Current Consumption | 0.8 A |
| Inrush Current (typical) | up to 2 A for 100 µs |
| Reinforced Isolation (typical) | 250 VAC |
| Digital Inputs (typical) | 3 × 24 VDC DI |
| Digital Outputs (typical) | 2 × 24 VDC DO |
| Installation Temperature (typical) | 0 to +55°C horizontal, 0 to +45°C vertical |
| Storage Temperature (typical) | -40 to +70°C |
| Humidity (typical) | 5–95% RH non-condensing |
Included items (as stated)
-
SM812 safety module
-
TP868 baseplate
-
TK852V10 synchronization link cable
Logistics data
-
Condition: Brand New
-
Availability: In Stock
-
Origin: Sweden
-
MOQ: 1
-
Status: Active
-
Approx. weight: 1.08 kg
-
Approx. dimensions: 18.5 × 8.5 × 30.5 cm
-
HS code: 8537101190
Engineering notes
-
Confirm firmware revision, baseplate type, and synchronization link requirements against the installed AC 800M HI configuration.
-
Safety system modifications must follow site MOC, functional safety procedures, and proof-test documentation.
Industrial Applications
Typical operational use cases include:
-
Emergency shutdown (ESD) logic execution and safe-state control in process plants
-
Burner management and critical permissive/interlock processing (system dependent)
-
Machinery and package unit safety functions where ABB AC 800M HI is used as the safety layer
-
Safety system lifecycle support, including spares for installed PM857/PM863/PM867-based architectures
Commissioning considerations
-
Validate I/O response, safety chain integrity, and synchronization status after installation
-
Execute site-required functional tests and proof tests before returning the process to service
-
Confirm any safety communication links and diagnostics in the engineering toolset
