Product Overview

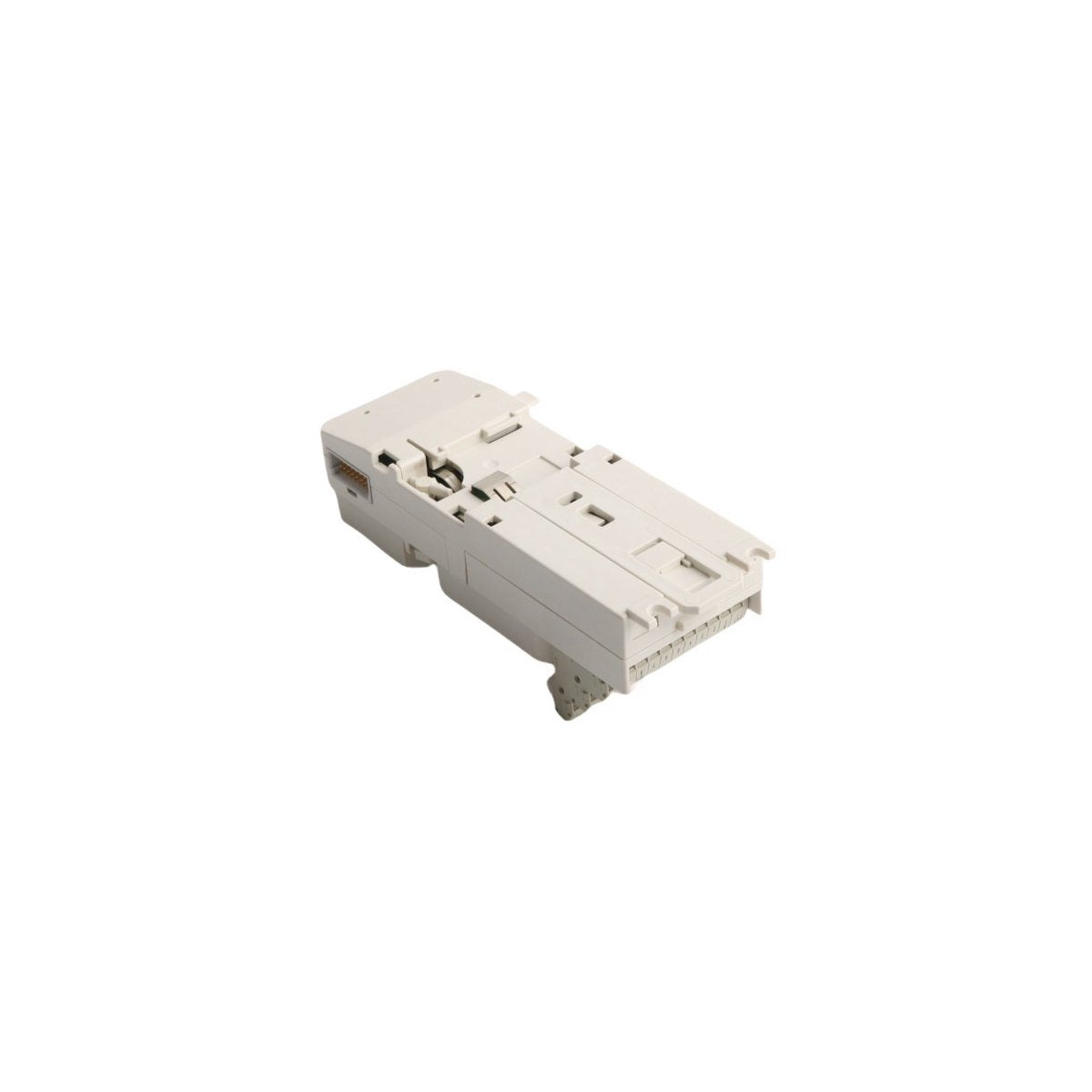

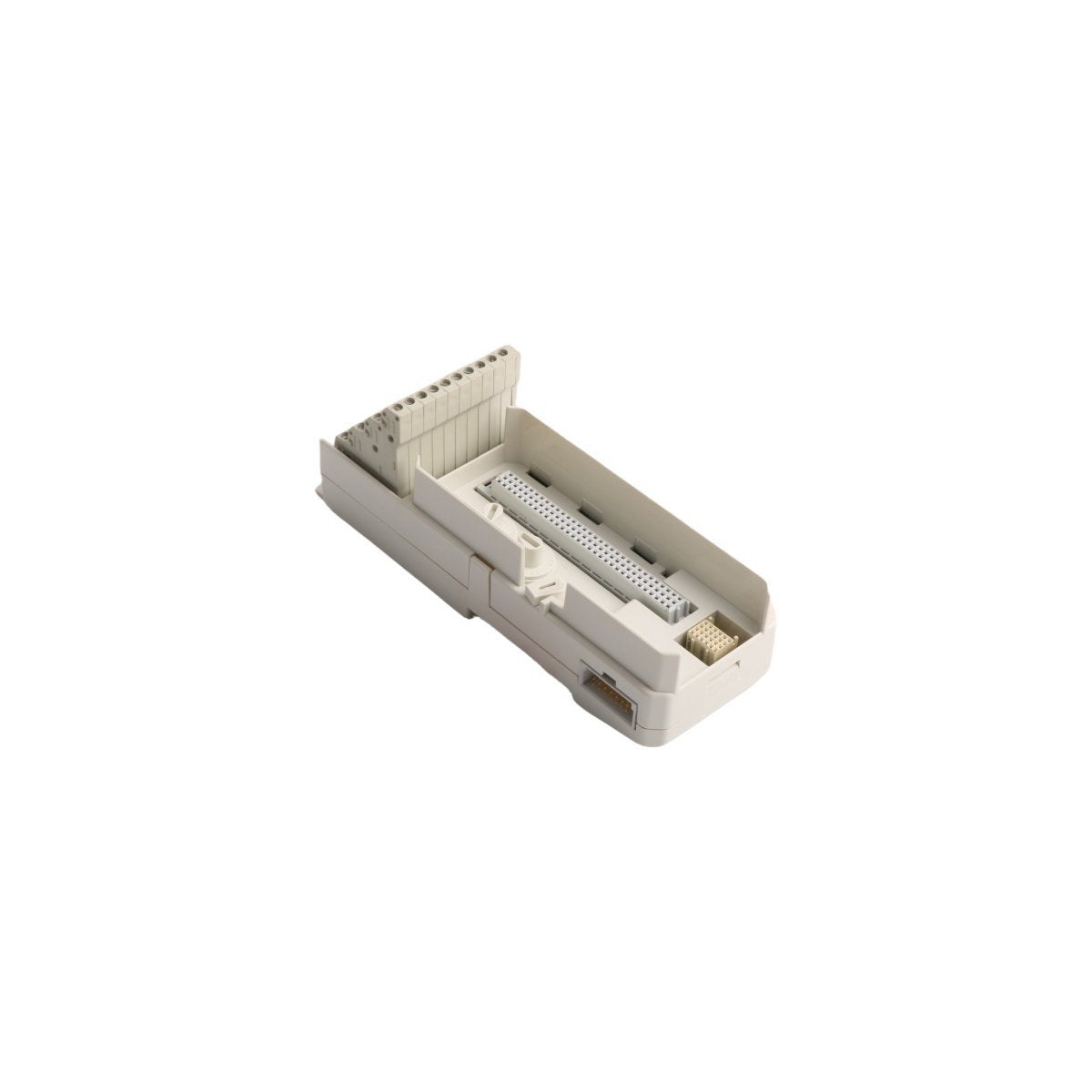

The TU818V1 3BSE069209R1 is a high-density, compact Module Termination Unit (MTU) designed as the primary mechanical and electrical interface for the ABB S800 I/O system. This unit functions as a passive mounting base that bridges field wiring with plug-in I/O modules while simultaneously extending the ModuleBus backbone. By integrating signal distribution and automated module addressing into a single small-footprint chassis, the TU818V1 enables efficient, high-speed communication across the Distributed Control System (DCS). It is specifically engineered to simplify cabinet assembly and enhance system reliability by reducing the complexity of point-to-point field connections.

Technical Architecture and Hardware Capabilities

The TU818V1 is optimized for maximum space efficiency within control enclosures, providing a ruggedized landing point for complex signal wiring and internal bus communication.

• Automated Addressing: Logic circuitry shifts position signals to generate unique addresses for each mounted I/O module.

• Mechanical Security: Dual 6-position mechanical keys provide 36 unique coding combinations to prevent the insertion of incorrect module types.

• ModuleBus Continuity: Ensures seamless data passthrough to adjacent termination units in a daisy-chain configuration.

• Wiring Versatility: Supports both one-wire and two-wire field connection schemes depending on the specific I/O module deployed.

• Grounding Integration: Features a robust DIN rail latching device that establishes an automatic functional ground connection.

• Durable Design: Lightweight 0.22kg chassis built for high-vibration industrial environments.

Operational Use Cases and System Integration

This termination unit is a fundamental component for large-scale automation projects where rack space is at a premium and high-speed data acquisition is required. In the chemical and pharmaceutical industries, the TU818V1 is utilized to organize dense digital and analog I/O clusters, providing a clean and maintainable interface for hundreds of field sensors. Within power generation and water treatment facilities, it serves as the backbone for the S800 I/O distributed architecture, allowing maintenance teams to hot-swap active modules without disturbing the permanent field wiring or the ModuleBus communication. Its 50V rating and 32-channel density make it an ideal choice for integrating auxiliary plant equipment into a centralized ABB Ability™ System 800xA environment.
