Product Overview

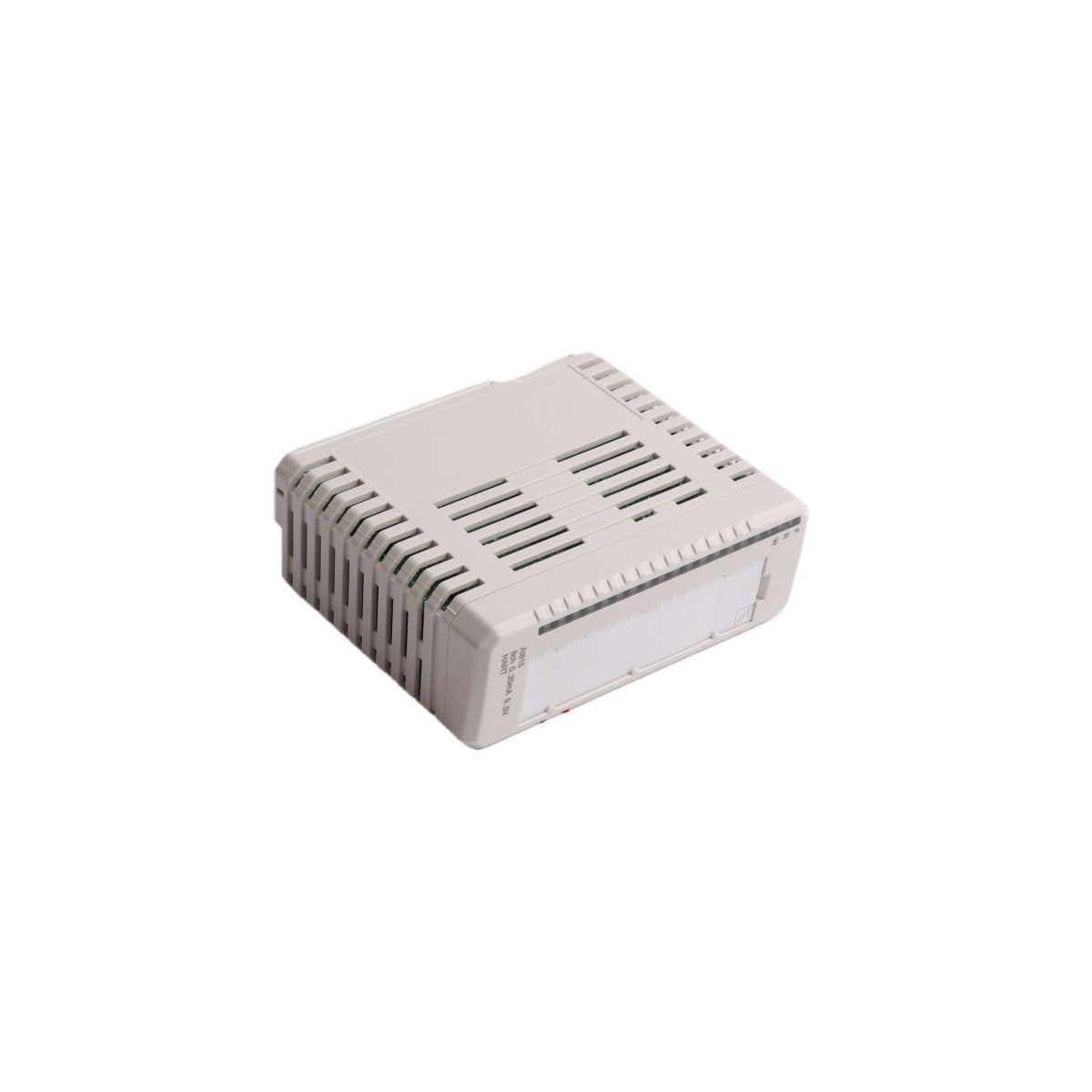

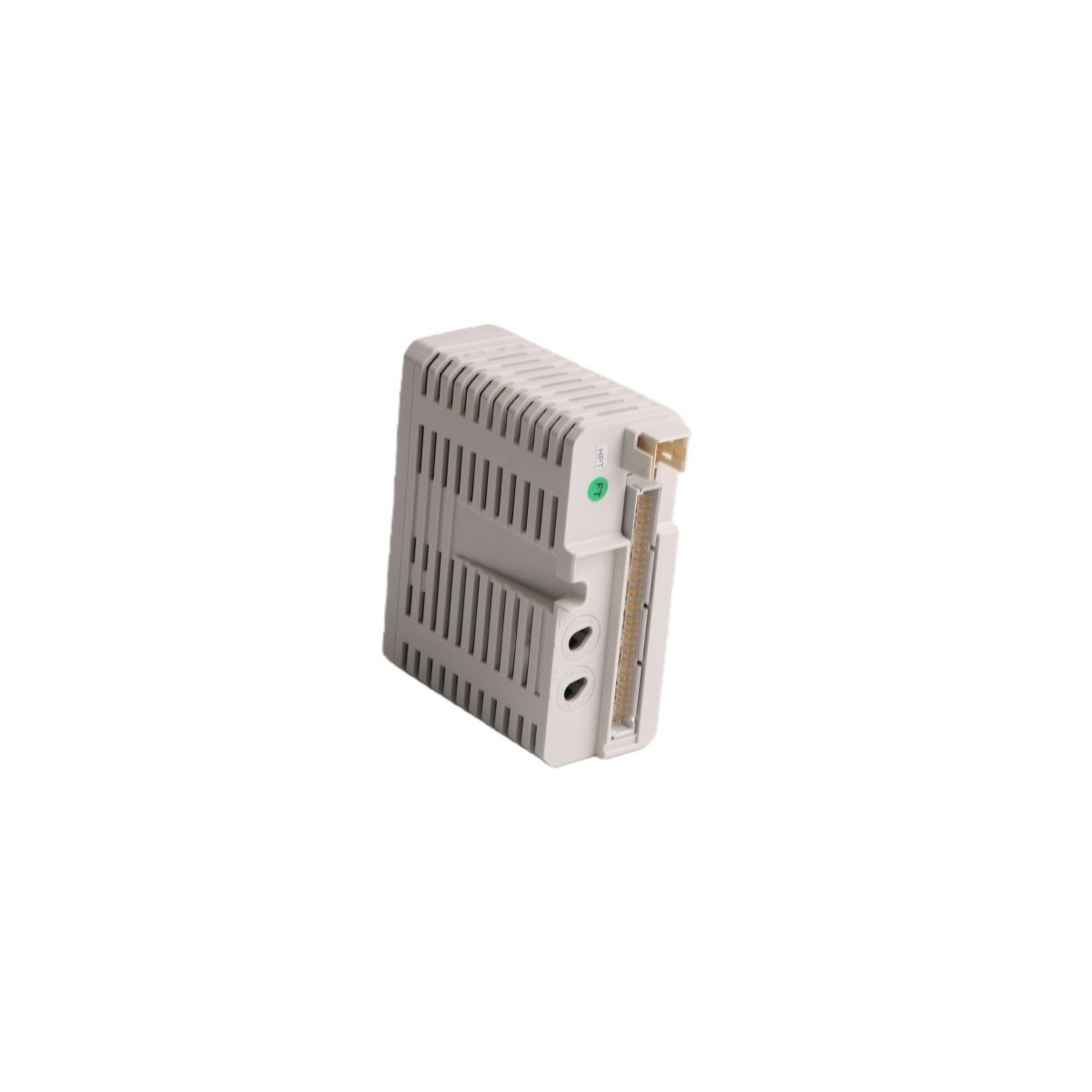

The ABB AI815, identified by order code 3BSE052604R1, is a high-performance 8-channel analog acquisition module engineered for the S800 I/O family. This unit serves as a critical interface for distributed control systems (DCS), specifically within the Advant OCS and 800xA environments. It is designed to convert diverse field signals into precise digital data, supporting advanced smart instrumentation through integrated HART protocol pass-through. By providing localized power to transmitters and maintaining strict signal isolation, the AI815 ensures that process variables—such as pressure, flow, and level—are monitored with high fidelity even in electrically turbulent industrial settings.

Core Technical Metrics and Hardware Specifications

The AI815 is constructed to meet rigorous Swedish engineering standards, offering a robust physical profile and a versatile electrical interface.

• Net Weight: 1.22 kg

• Dimensions: 24 x 19 x 5.3 cm

• Input Density: 8 Channels (Commonly isolated)

• Signal Range Support: 0 to 20 mA, 4 to 20 mA, 0 to 5 V, and 1 to 5 V

• A/D Resolution: 12-bit

• Power Distribution: Integrated current-limited transmitter power supply per channel

• Protocol Support: Transparent HART communication for smart device diagnostics

• Required Termination: Compatible with TU810, TU812, or TU814 MTUs

• Manufacturing Origin: Sweden

This module utilizes a grouped isolation architecture to prevent ground loop interference and enhance noise immunity. Its 12-bit resolution provides the granularity needed for sensitive process loops, while the built-in current limiting safeguards connected sensors against electrical faults.

Industrial Applications and Strategic Deployment

The versatility of the 3BSE052604R1 makes it a standard choice for sectors requiring continuous, high-precision data acquisition.

• Smart Instrumentation Management: Utilizing HART pass-through to perform remote configuration and health checks on field transmitters in large refineries.

• Petrochemical and Chemical Processing: Monitoring safety-critical pressure and temperature analog loops with high reliability.

• Power Generation Systems: Managing auxiliary process inputs and fuel flow monitoring in utility-scale plants.

• Water and Wastewater Treatment: Integrating distributed sensor networks for flow and level monitoring across vast geographical areas via S800 I/O clusters.

Q: What is the benefit of the HART pass-through feature in the AI815?

The HART pass-through allows the central 800xA system to communicate directly with "smart" field devices. This enables technicians to read secondary variables, calibrate transmitters, and view diagnostic data without traveling to the field.

Q: Can the AI815 power the sensors directly, or do I need an external supply?

Each of the eight channels includes a built-in, current-limited power supply specifically designed to power 2-wire transmitters, simplifying cabinet wiring and reducing the need for external power distribution blocks.

Q: Which termination units are compatible with this module?

The AI815 is designed to seat into the S800 I/O module termination units (MTUs), specifically the TU810, TU812, or TU814 series, depending on your wiring preference and redundancy requirements.

Q: How does the AI815 handle electrical noise in a factory environment?

The module features an isolation barrier that separates the input signal group from the system ground. Combined with advanced signal filtering, this significantly reduces the impact of EMI and prevents ground loop errors.

Q: Is this module suitable for high-accuracy PID control loops?

Yes, with its 12-bit resolution and stable signal conditioning, the AI815 provides the necessary accuracy and refresh rates required for modern PID control and high-speed process monitoring.
