Product Overview

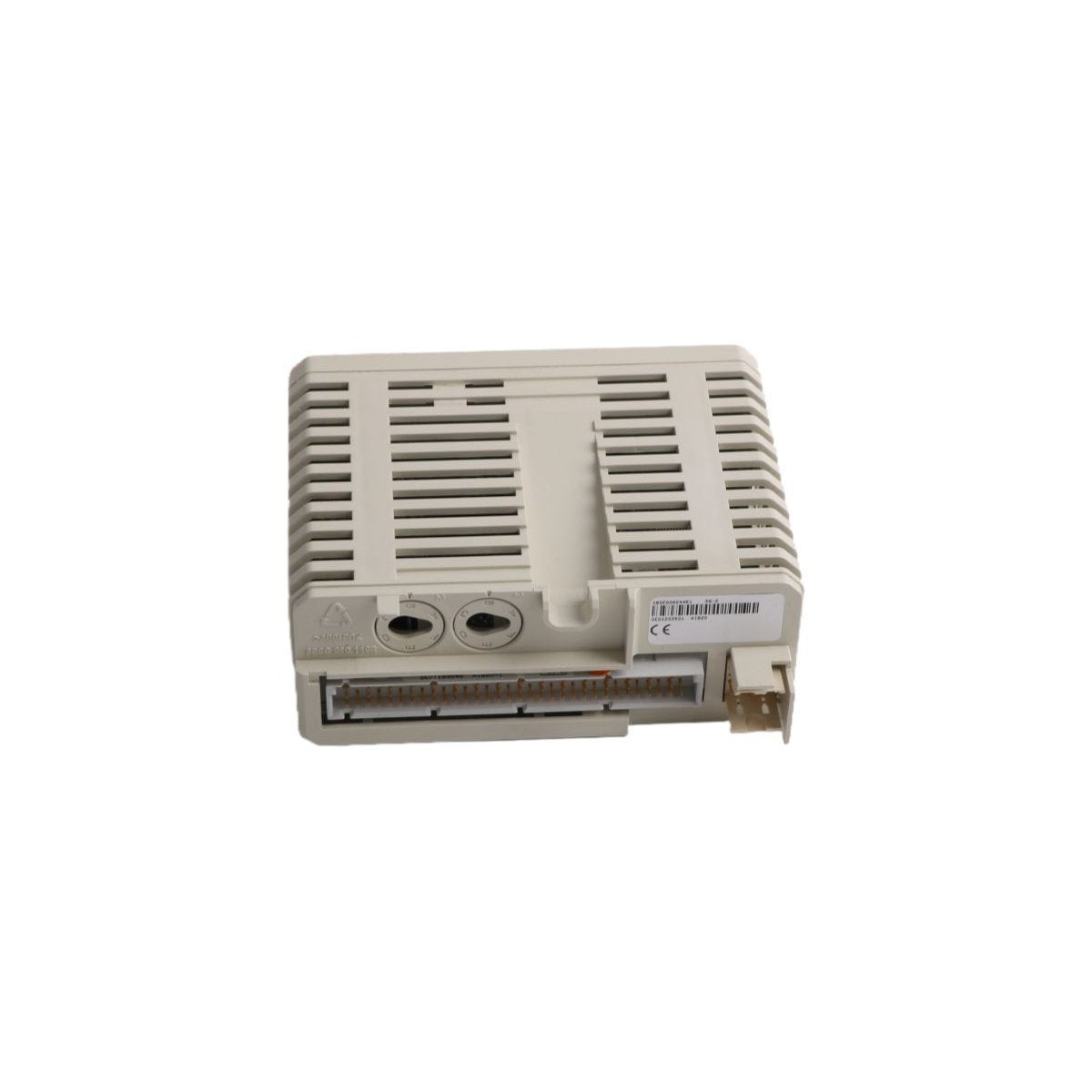

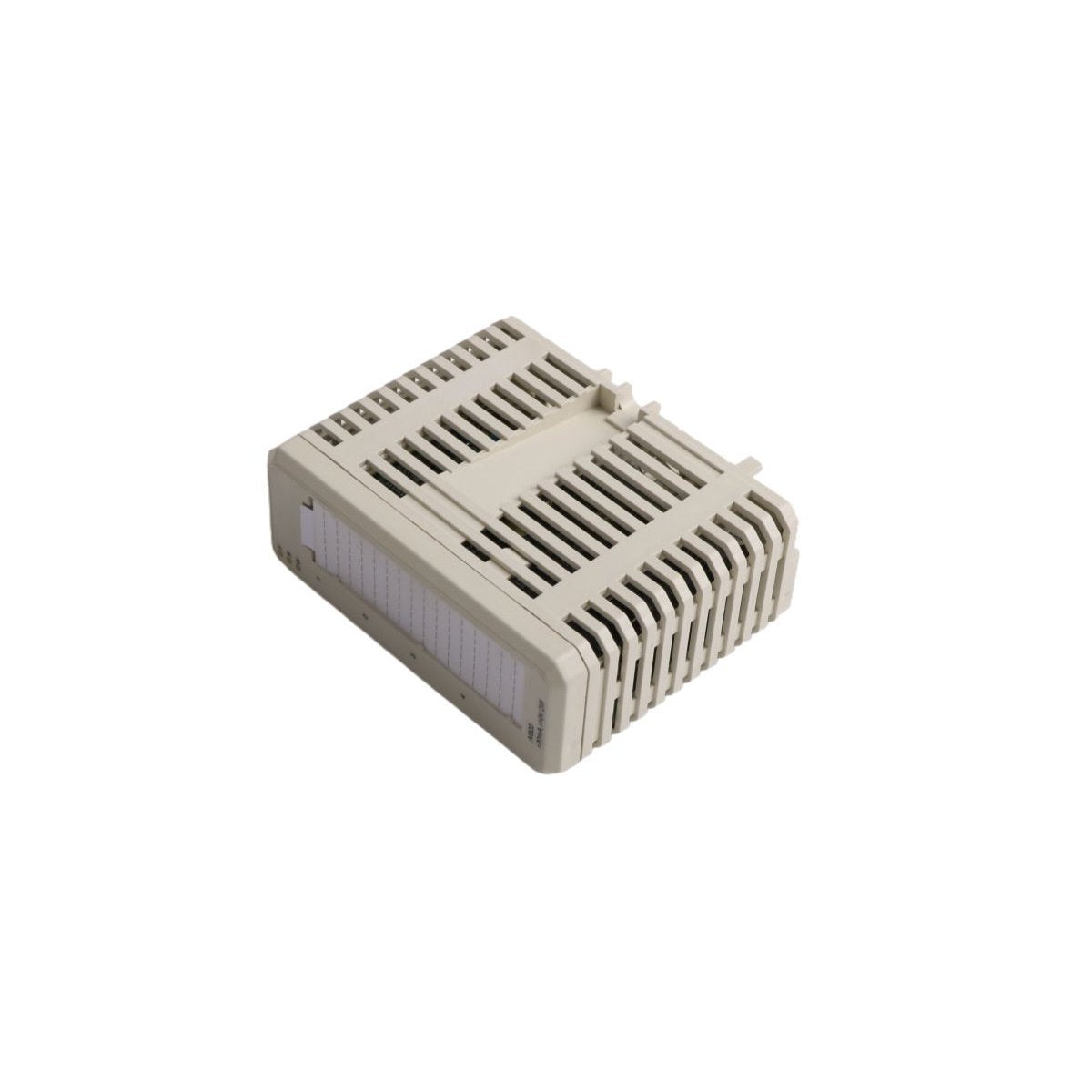

The ABB AI835A, part number 3BSE051306R1, is a high-density 8-channel analog interface board designed for the precise acquisition of low-level voltage signals from thermocouples and millivolt sources. This module is an integral component of the S800 I/O system, often utilized within Advant 800xA and AC 800M control architectures. By providing eight differential isolated channels, the AI835A allows for a centralized and highly accurate temperature monitoring solution. It is engineered to translate minute thermal EMF (Electromotive Force) into reliable digital data, featuring advanced noise filtering and stable signal processing to maintain measurement integrity in volatile industrial environments.

Technical Hardware Parameters

The AI835A 3BSE051306R1 is distinguished by its ultra-high resolution and comprehensive support for various thermoelectric sensor standards.

• Module Type Analog Input Module (8-Channel Differential)

• Order Number 3BSE051306R1

• Signal Ranges ±200 mV DC and all standard Thermocouple types

• Thermocouple Support Types B, C, E, J, K, N, R, S, and T

• Measurement Resolution 0.1 μV (High-resolution A/D conversion)

• Signal Accuracy ±0.1% of full scale with minimal thermal drift (<50 μV/°C)

• Isolation Integrity Galvanic isolation per channel for superior noise immunity

• Cold Junction Compensation (CJC) One channel configurable via 4-wire Pt100 RTD for localized compensation

• Diagnostic Functions Real-time wire-break detection and out-of-range alarming

• Operating Voltage 24 V DC nominal

• Environmental Range -20 °C to +70 °C operating temperature

• Physical Specifications 18.5 x 8.5 x 30.5 cm; 1.08 kg mass

Industrial Applications and Use Cases

The precision and reliability of the AI835A make it a foundational element for complex thermal management in high-stakes automation.

• Petrochemical Thermal Profiling Monitoring temperature gradients across reactor vessels and distillation columns using multi-type thermocouple arrays.

• Power Generation Boiler Management Real-time tracking of superheater and flue gas temperatures where high-voltage isolation is critical for signal safety.

• Metal Smelting and Heat Treatment Precise oversight of furnace zones in steel or aluminum processing, ensuring strict adherence to metallurgical temperature curves.

• Glass and Ceramics Manufacturing Controlling high-temperature melting tanks where Type R, S, or B thermocouples are required for extreme heat monitoring.

• DCS Infrastructure Retrofitting Serving as a robust I/O expansion for existing S800 I/O stations, providing easy DIN rail integration and low-energy consumption for remote control cabinets.
