Product Overview

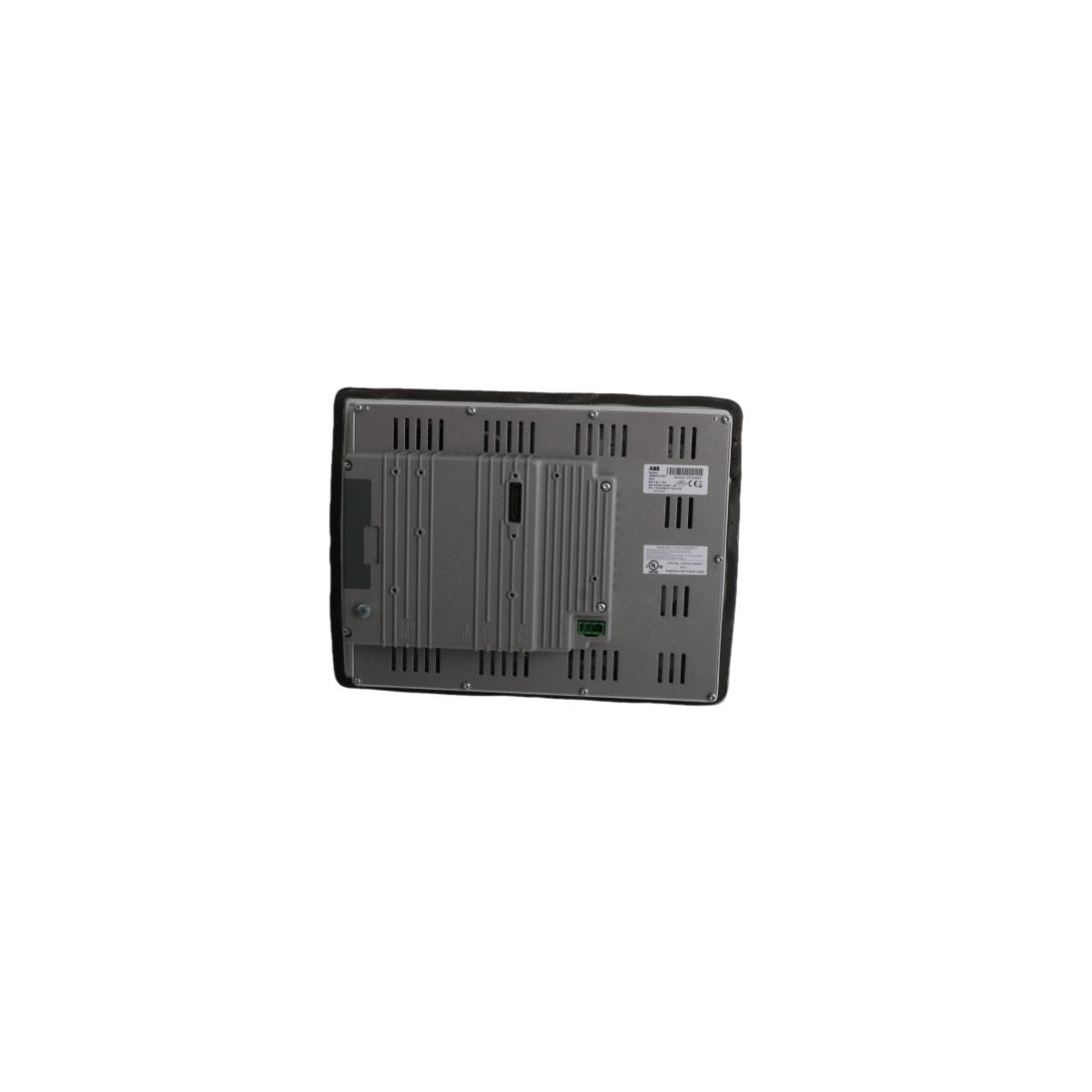

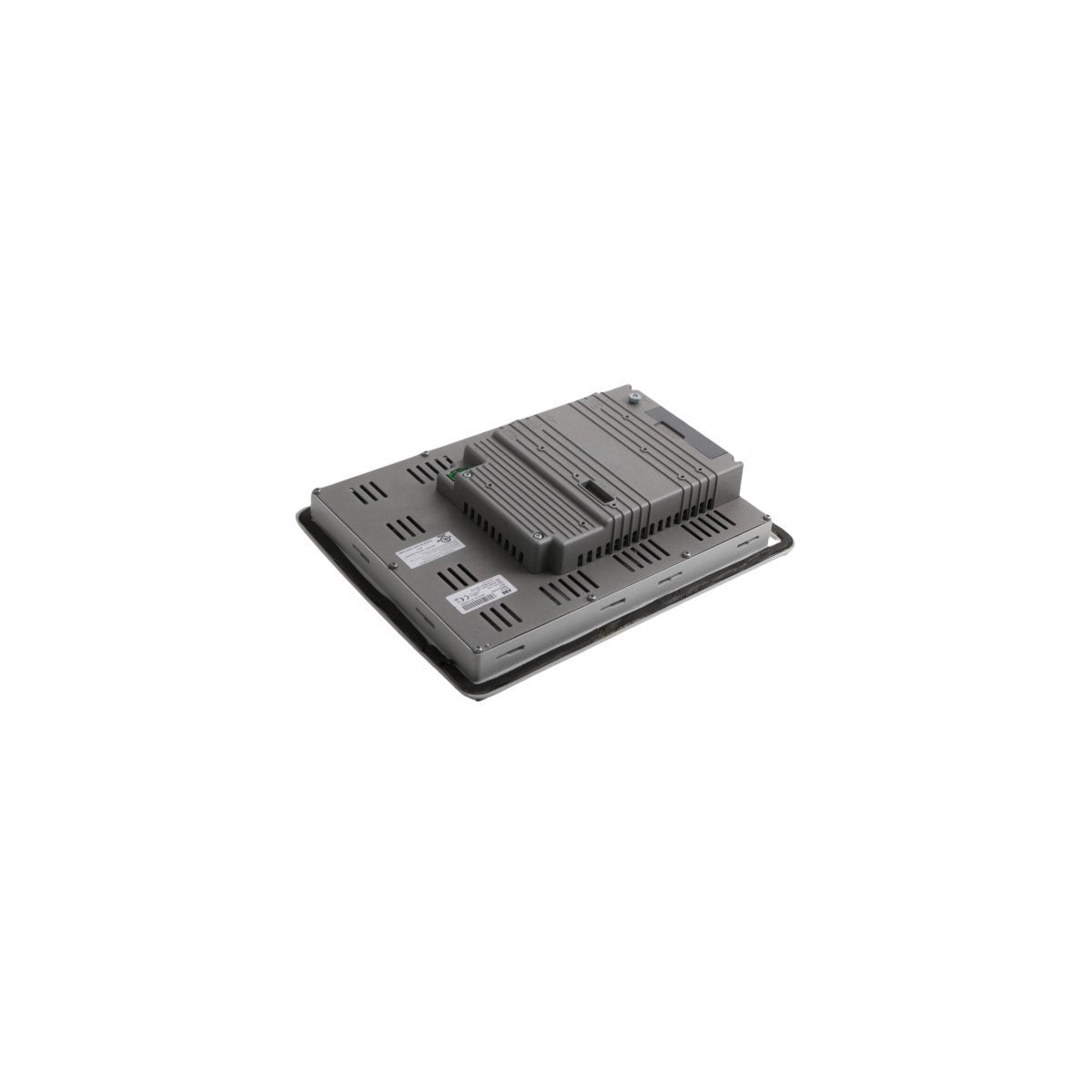

The ABB PP845A, identified by part number 3BSE042235R2, is a high-resolution touch-responsive operator interface designed for the System 800xA Distributed Control System (DCS). This Human Machine Interface (HMI) serves as a robust visualization hub, allowing operators to monitor real-time process data and adjust control variables with high precision. Engineered to replace complex manual consoles, the PP845A integrates seamlessly into modern industrial networks, providing a clear graphical window into automated plant operations. Its sophisticated processing power ensures smooth screen transitions and rapid response times, making it a critical component for maintaining situational awareness in high-stakes manufacturing and utility environments.

Technical Hardware Architecture

• Product Category: Professional Operator Interface / Touch Panel

• Model Designation: PP845A

• Order Reference: 3BSE042235R2

• System Environment: System 800xA / DCS

• Display Technology: High-resolution TFT touch-screen

• Ingress Protection: IP65 rated front-side for dust and moisture resistance

• Communication Interface: Dual Ethernet ports with router and serial protocol support

• Mass / Weight: 2.04 kg

• Physical Footprint: 30.2cm x 23cm x 6cm

• Manufacturing Origin: Sweden

• Tariff Code (HS): 8537101190

Industrial Deployment and Site Applications

The PP845A is specifically built for the rigors of heavy industry, including offshore oil platforms, chemical processing plants, and large-scale power generation facilities. Its 2.04 kg chassis is designed for flush mounting in control cabinet doors, where its IP65 rating protects internal electronics from washdown procedures and airborne contaminants. Within a System 800xA architecture, the panel functions as a decentralized control point, capable of communicating with multiple controllers over an Ethernet backbone. This allows for localized equipment management, such as supervising a specific turbine or boiler unit, while maintaining full data synchronization with the central control room. The ruggedized construction ensures consistent performance under thermal stress, providing a long-service-life solution for mission-critical HMI applications.

FAQ

Q: Does the PP845A 3BSE042235R2 support multi-vendor PLC communication?

A: Yes. While optimized for ABB System 800xA, the PP845A is equipped with a versatile driver library that supports various industrial protocols, allowing it to interface with a wide range of third-party controllers and automation hardware.

Q: Is the touch screen sensitive enough for use with industrial gloves?

A: The industrial-grade resistive touch technology used in the PP845A is specifically designed to respond to pressure, making it fully operational for technicians wearing standard safety or chemical-resistant gloves.

Q: How does the IP65 rating benefit my facility's maintenance routine?

A: The IP65 front-panel rating means the screen is completely dust-tight and protected against low-pressure water jets. This allows for easy cleaning in environments where hygiene or particulate management is a priority.

Q: Can I backup and restore HMI project files via external storage?

A: Absolutely. The panel typically includes USB or SD card slots that facilitate quick project transfers, firmware updates, and historical data logging, which simplifies the replacement of units in the field.

Q: What is the primary difference between the PP845A and standard consumer tablets?

A: Unlike consumer electronics, the PP845A features a fanless industrial design, long-term component availability, and specialized EMI shielding to prevent interference from nearby high-voltage industrial equipment.
