Product Overview

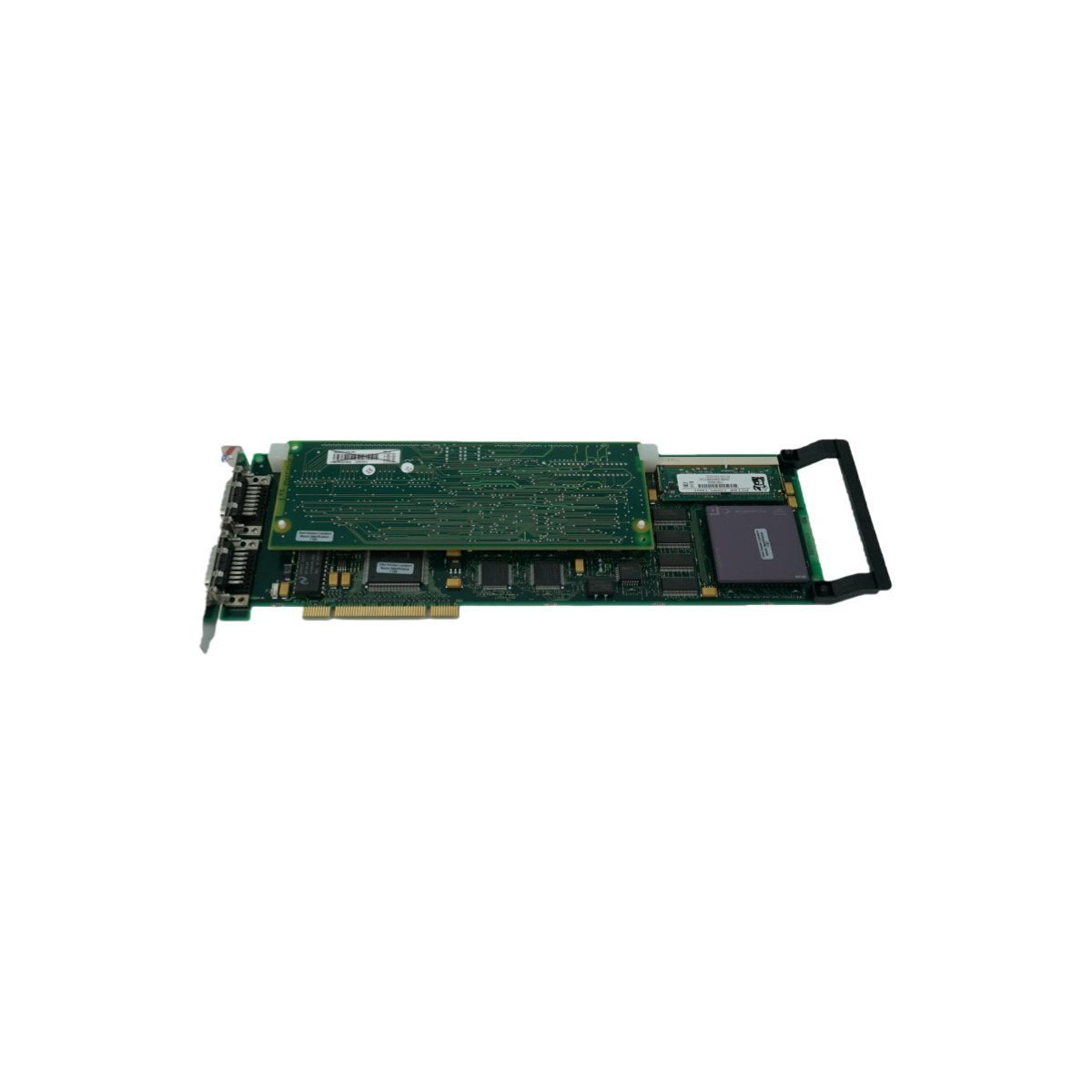

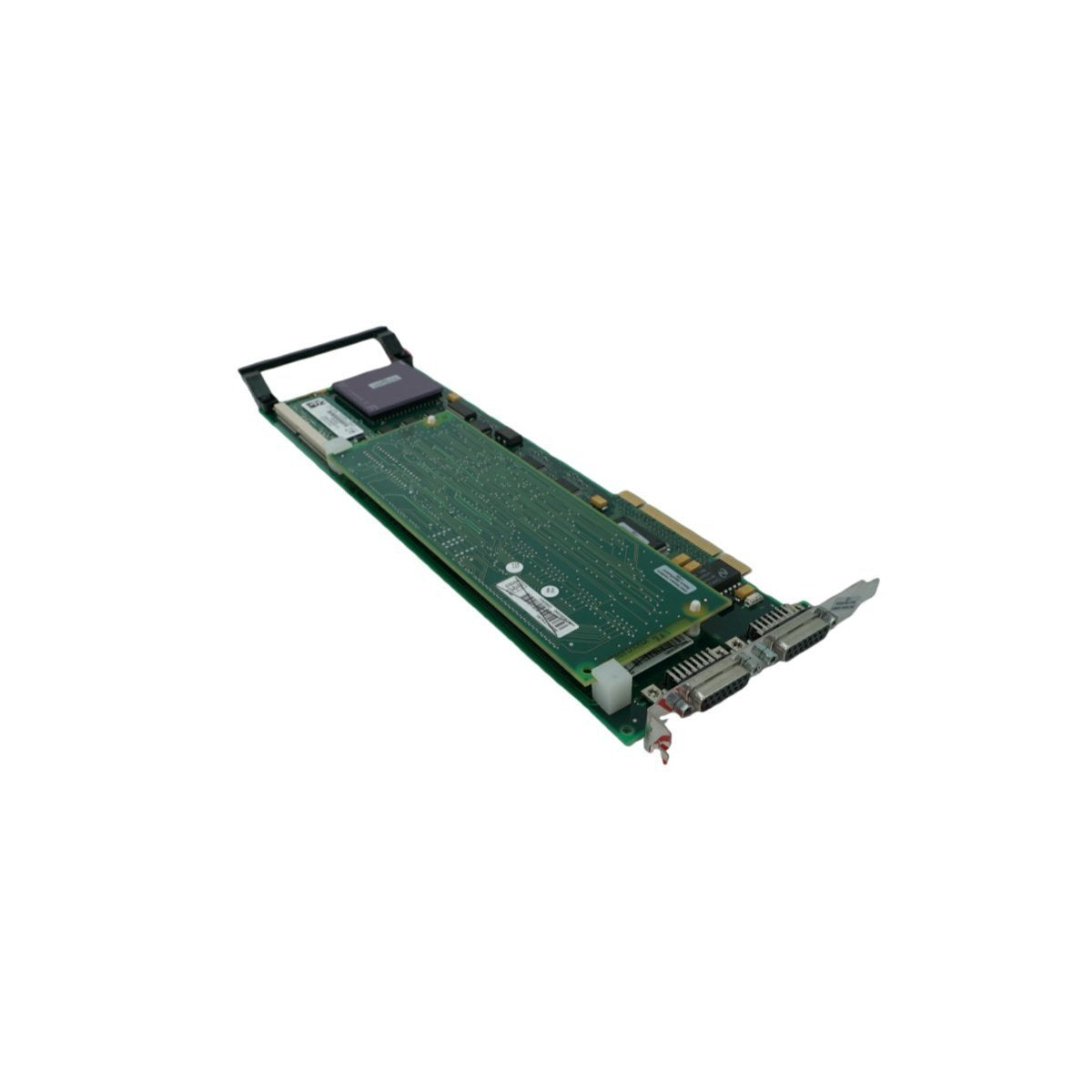

The ABB PU515A, identified by part number 3BSE032401R1, is a high-performance Real-Time Accelerator (RTA) hardware interface designed for standard PCI bus slots. This board serves as the critical communication link between Unix-based operator workstations and the Distributed Control System (DCS) backbone. It is specifically engineered to handle the high-speed, deterministic data traffic required for the Advant OCS and System 800xA platforms. By facilitating a dedicated connection to the proprietary MB300 Ethernet bus, the PU515A ensures that process data, alarms, and control commands are synchronized in real-time. This module is a hardware-dependent requirement for OS500 application software; without this specific RTA card, the operator station cannot initialize its communication sub-systems, making it a foundational element for system-wide visibility and control.

Key Technical Characteristics and Hardware Parameters

The PU515A 3BSE032401R1 is built to provide low-latency throughput and serves as a modernized successor to legacy RTA interface models.

• Module Type Real-Time Accelerator (RTA) Communication Board

• Hardware Interface Standard PCI Local Bus (32-bit)

• Part Number 3BSE032401R1

• Network Protocol Supports MB300 proprietary Ethernet communication

• System Compatibility Advant OCS, Advant-800xA, and AC 800M series

• Software Requirement Mandated for the execution of OS500 and associated Unix workstation applications

• Backward Compatibility Direct replacement and upgrade path for PU515, PU518, and PU519 modules

• Diagnostics Integrated hardware health monitoring via system-level drivers

• Physical Weight 1.22 kg

• Standard Dimensions 24 x 19 x 5.3 cm

• Manufacturing Origin Sweden

Industrial Applications and Operational Use Cases

The robust real-time processing capabilities of the 3BSE032401R1 PU515A make it essential for high-availability control room environments.

• Workstation Communication Enabling Unix-based operator stations to interface directly with AC450 and AC410 controllers for real-time process monitoring.

• DCS Infrastructure Modernization Providing a stable migration path for facilities upgrading from legacy PU500 series cards to newer PCI-based server hardware.

• Data Logging and Historian Sync Ensuring high-speed data transfer from the controller subsystem to the information management level without packet loss or latency.

• Refinery and Power Plant Control Maintaining the mission-critical link between the control room floor and the field instrumentation in environments where 24/7 uptime is mandatory.

• Redundant Operator Interfaces Implementing secondary or tertiary operator stations that require a dedicated hardware RTA to maintain independent communication paths with the MasterBus.
