Product Overview

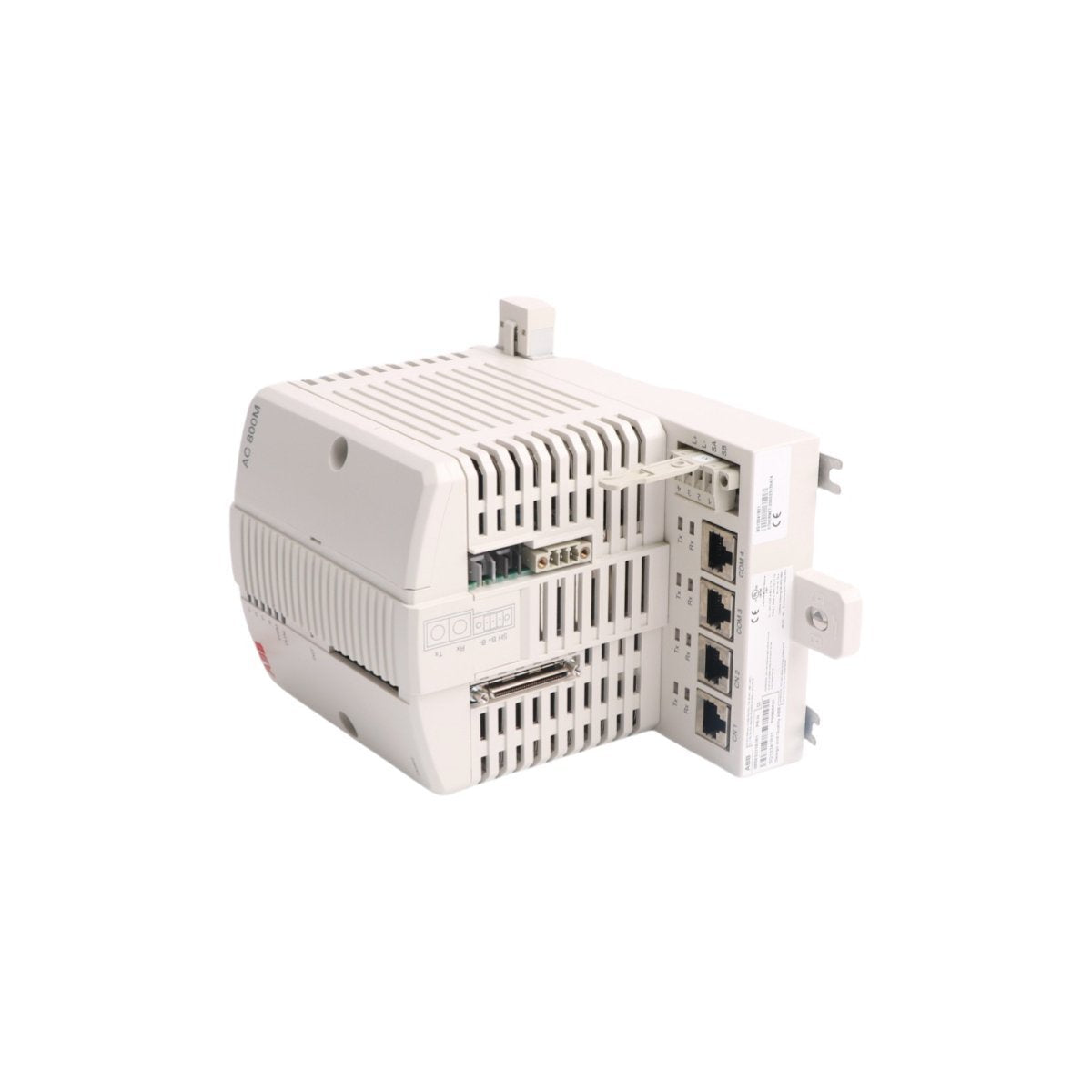

The ABB PM865K01 (3BSE031151R1) is a specialized, SIL3-certified safety CPU designed for the AC800M controller family within the 800xA distributed control system. This high-integrity processor is engineered to manage critical process safety functions, providing a secure execution environment for emergency shutdown (ESD) and fire and gas (F&G) logic. Operating at a 96MHz clock frequency with 32MB of integrated memory, the PM865K01 ensures rapid and deterministic processing of safety-related tasks. As a non-RoHS compliant component, this module is specifically designated for the maintenance, repair, and expansion of legacy safety systems installed prior to July 2017, ensuring long-term operational continuity for established industrial infrastructures.

Hardware Specifications and Technical Parameters

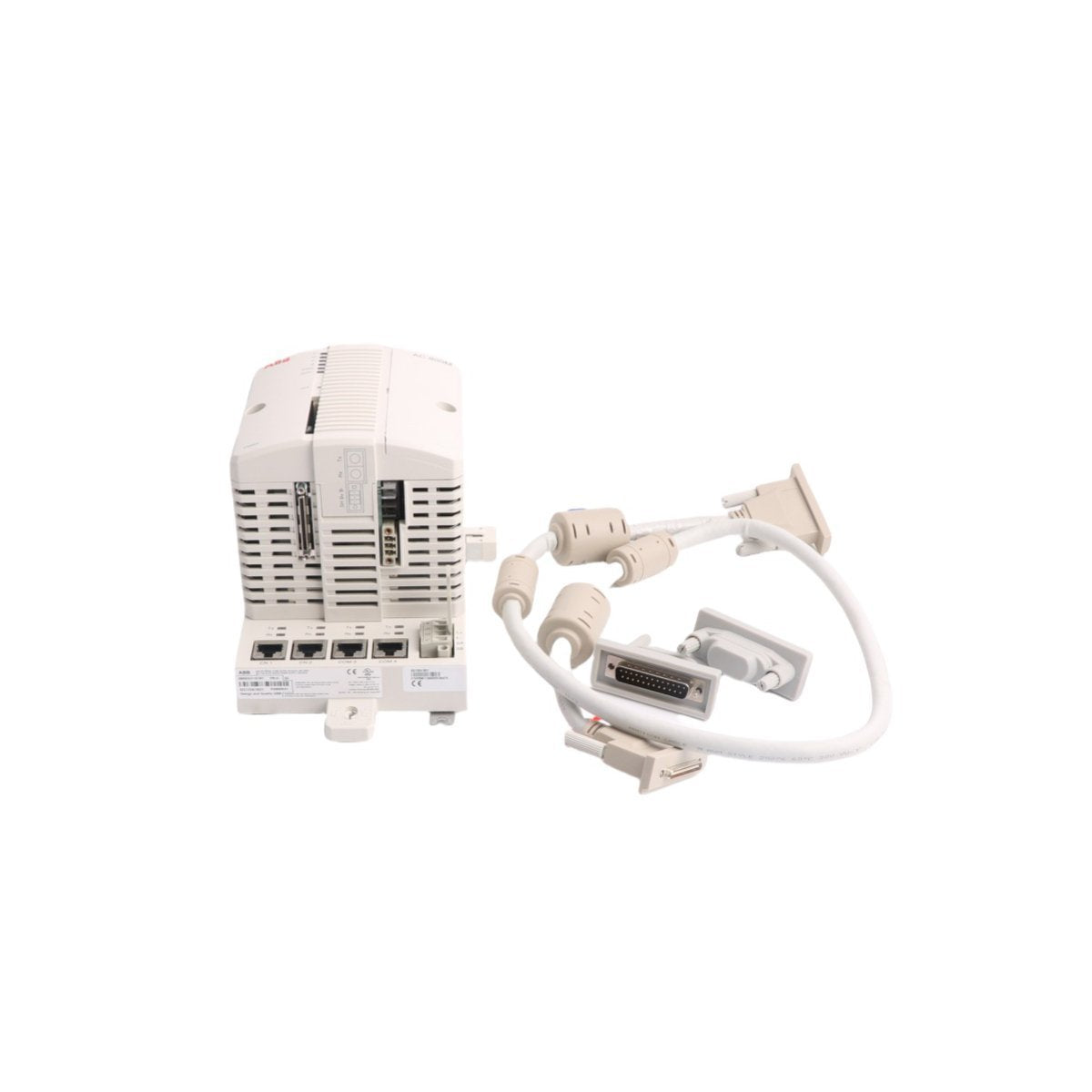

The PM865K01 kit is a comprehensive processing solution that includes the CPU module along with the necessary baseplates and termination units for rapid field deployment.

• Order Code / Model 3BSE031151R1 / PM865K01

• Safety Certification SIL3 (Safety Integrity Level 3) according to IEC 61508

• Processing Power 96 MHz clock speed with 32 MB RAM

• Included Components PM865 CPU, TP830 Baseplate, TB850/TB807/TB852 Termination Units, and 4943013-6 Battery

• Communication Interfaces Dual 10/100 Mbps Ethernet ports; supports Modbus RTU/TCP and PROFIBUS DP (via expansion)

• Supply Voltage 24 V DC (Power consumption 10–20 W)

• Environmental Limits 0°C to +60°C operating; -40°C to +70°C storage

• Physical Profile 1.0 kg mass; 19 x 13.8 x 13.5 cm dimensions

• System Compliance Specifically for maintenance of pre-2017 Advant DCS/800xA installations

Industrial Applications and Sector Implementations

Due to its high integrity and SIL3 rating, the PM865K01 is the primary processing choice for hazardous environments where safety failure is not an option.

• Emergency Shutdown Systems (ESD) Executing critical safety logic in oil refineries and offshore platforms to isolate equipment during process deviations or equipment failures.

• Fire and Gas Monitoring Managing complex detection and suppression sequences in chemical storage facilities, ensuring rapid response to combustible or toxic leaks.

• Burner Management Systems (BMS) Controlling the safe start-up, operation, and shutdown of large-scale industrial furnaces and utility boilers in power plants.

• Critical Process Interlocks Providing hardware-enforced interlock logic for high-pressure reactors and volatile chemical processing units where standard PLC logic is insufficient.

• Legacy System Support Serving as a direct replacement unit for older AC800M safety installations, allowing facilities to maintain their SIL certification without requiring a full system redesign.
