Product Overview

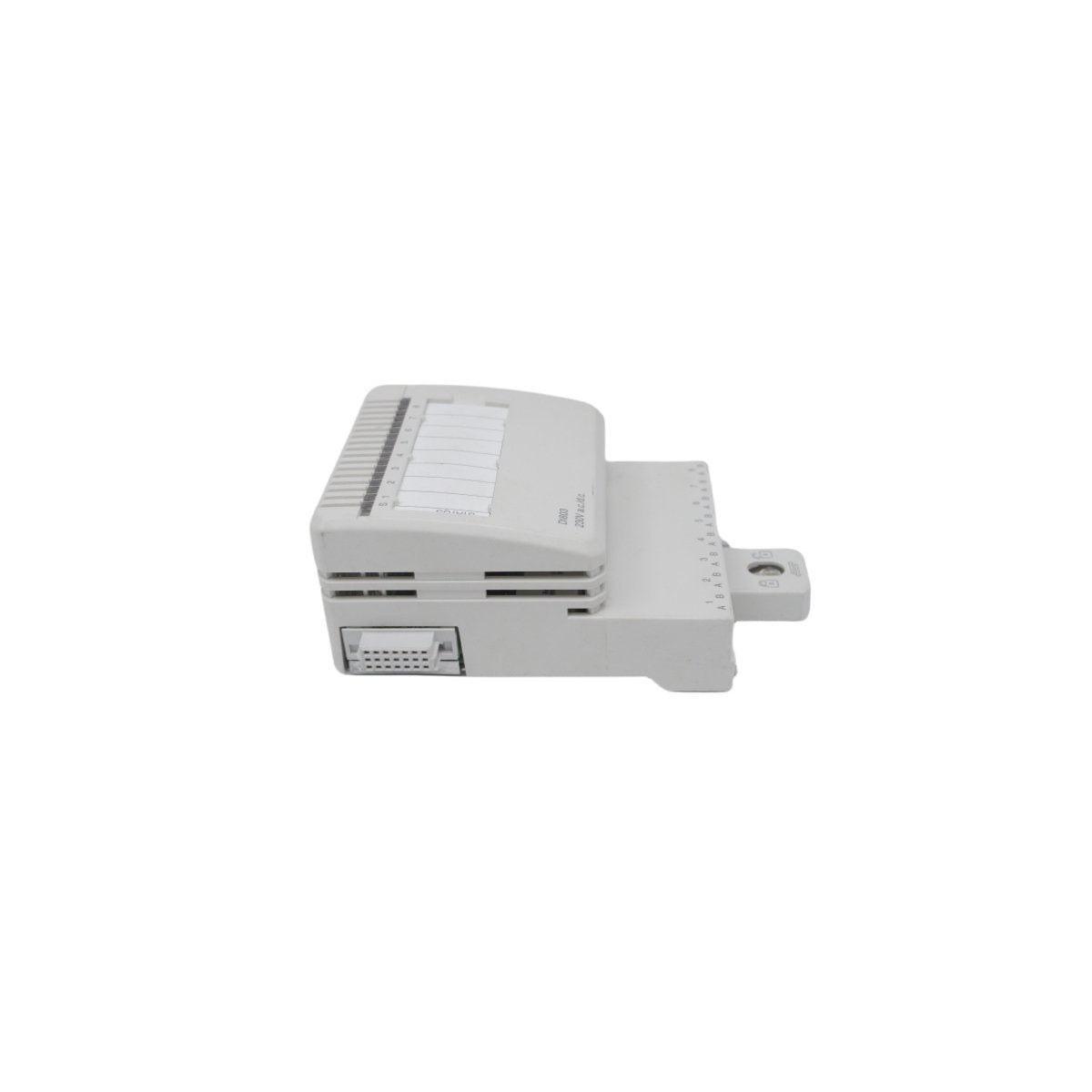

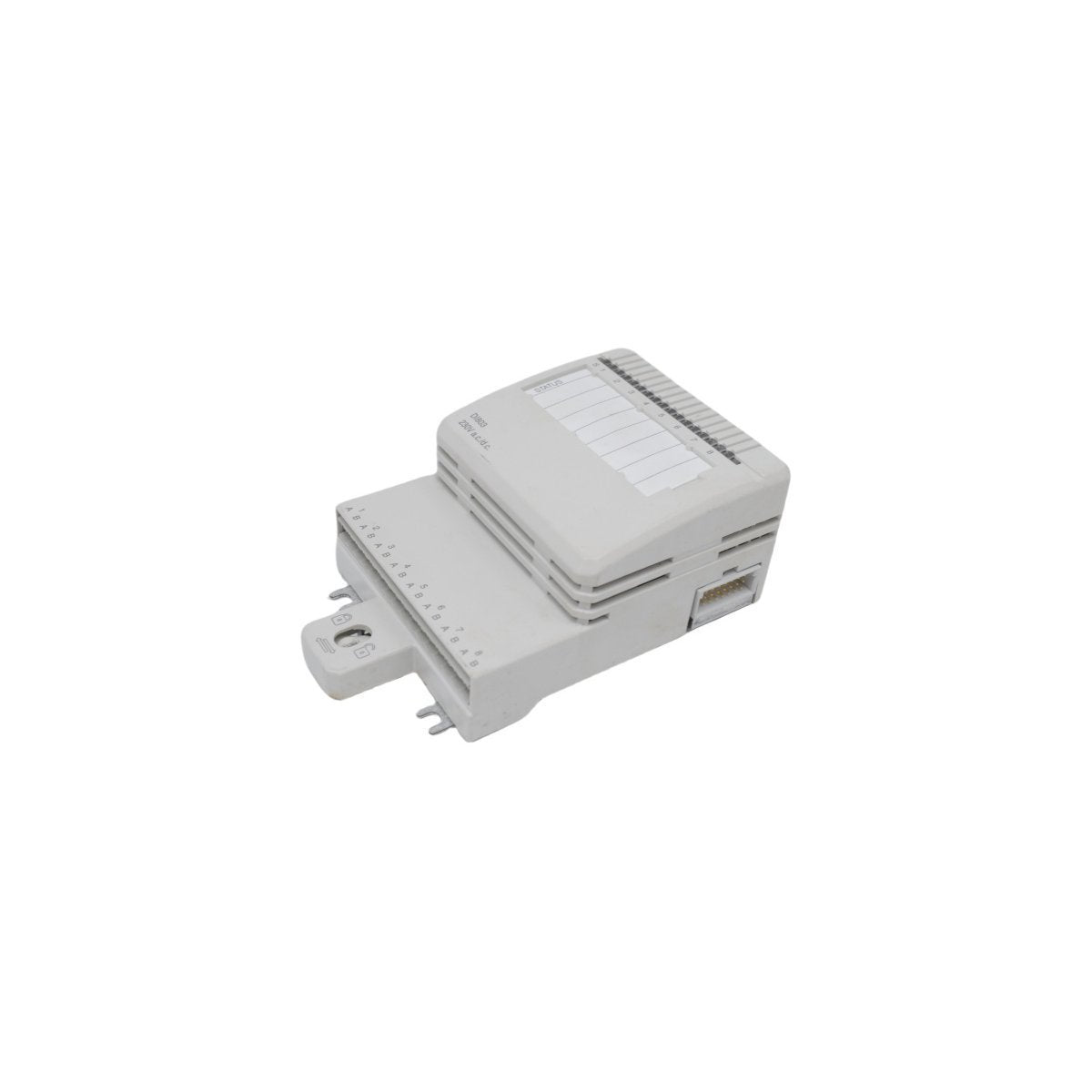

The ABB DI803 (Part Number 3BSE022362R1) is a specialized 8-channel digital input component designed for the S800 I/O distributed system architecture. This module acts as a vital interface for capturing discrete binary signals from field equipment, such as limit switches, pushbuttons, and proximity sensors. Engineered for high-speed logic processing within a Distributed Control System (DCS), the DI803 converts incoming electrical states into digital data for the controller. Its robust electrical isolation and integrated signal filtering ensure that high-frequency noise and industrial interference do not compromise the integrity of the process data.

Technical Hardware Attributes

• Model Designation: DI803

• Identification Number: 3BSE022362R1

• Input Density: 8 Isolated Digital Channels

• Mass / Weight: 0.24 kg

• Physical Volume: 9.3 x 13.6 x 5.7 cm

• Input Voltage Range: 24 V DC (Typical for S800 series)

• Thermal Tolerance: Operational from -25°C to +55°C

• Safety Compliance: CE marked and ISO 9001 certified housing

• Housing Material: High-grade industrial thermoplastic

• Origin of Manufacture: Sweden

• Tariff Code: 8537101190

Industrial Implementation and Deployment

The DI803 3BSE022362R1 is primarily deployed in automated environments requiring high-density I/O points with minimal footprint. Common applications include:

• Manufacturing Line Monitoring: Tracking the status of conveyor positions and safety interlocks in real-time.

• Logistics & Sorting: Interfacing with optical sensors to manage automated warehousing and distribution workflows.

• Process Regulation: Monitoring valve feedback and motor state indicators in chemical or water treatment facilities.

• Remote I/O Stations: Serving as an edge-level data collection point within an Ethernet-routed DCS network.

FAQ

Q: Does the DI803 3BSE022362R1 support hot-swapping within the S800 rack?

A: Yes, as part of the S800 I/O family, the module supports Hot Configuration In Run (HCIR) features, provided the corresponding terminal base is configured for such operations.

Q: What is the primary difference between this and high-density 16-channel modules?

A: The DI803 focus is on 8-channel isolation and reliability in specific signal groups, making it ideal for smaller distributed clusters or where electrical separation between groups is required.

Q: Can this module operate in unheated outdoor cabinets?

A: With an operating floor of -25°C, it is well-suited for colder environments; however, the cabinet must remain dry and protected from condensation to maintain the IP rating.

Q: Is a specific terminal base required for the 3BSE022362R1?

A: Yes, it must be paired with a compatible S800 MTU (Module Termination Unit) to facilitate field wiring and connection to the ModuleBus.

Q: How are the input status signals displayed on the unit?

A: The module features front-facing LED indicators that provide immediate visual confirmation of the electrical state for each of the 8 input channels.
