Product Overview

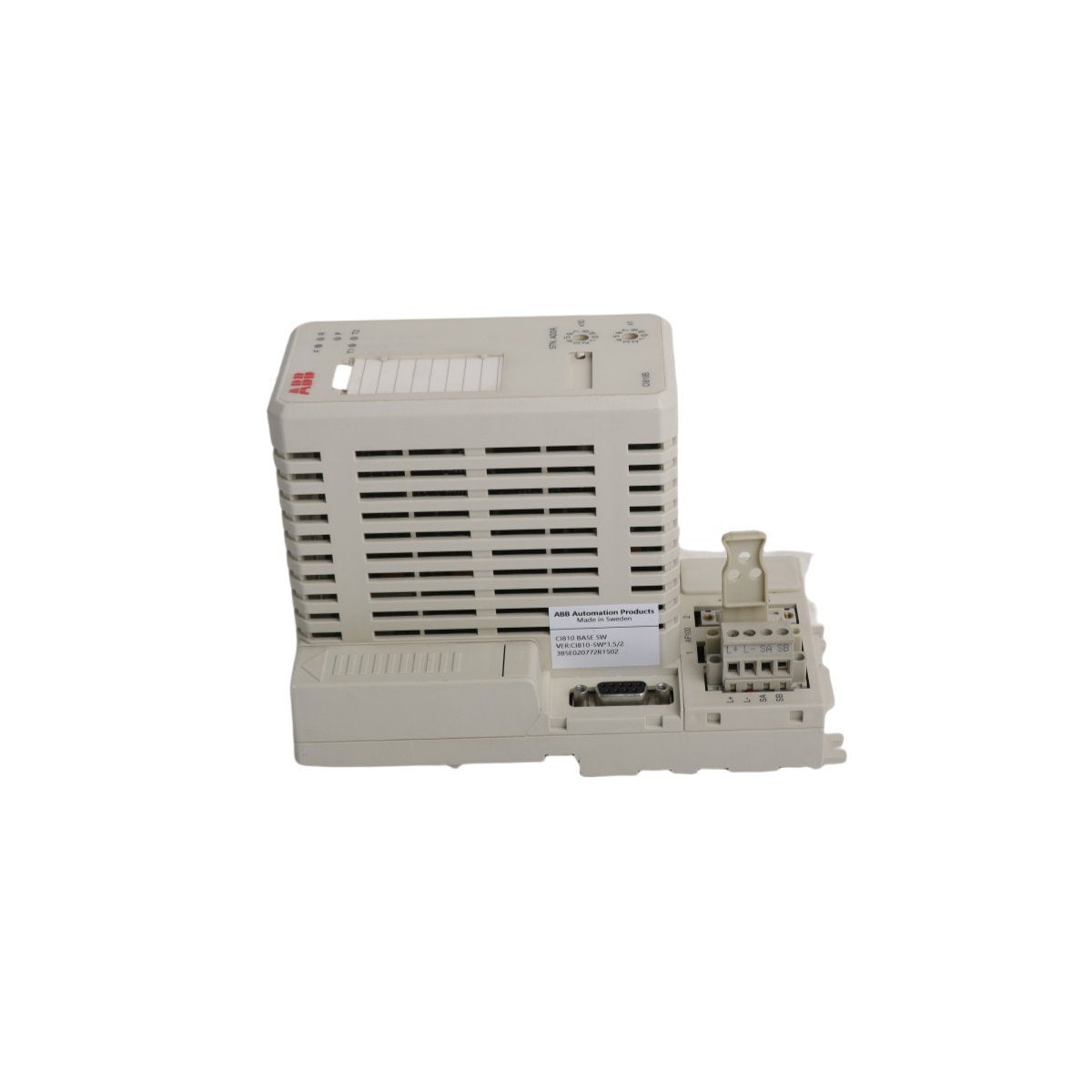

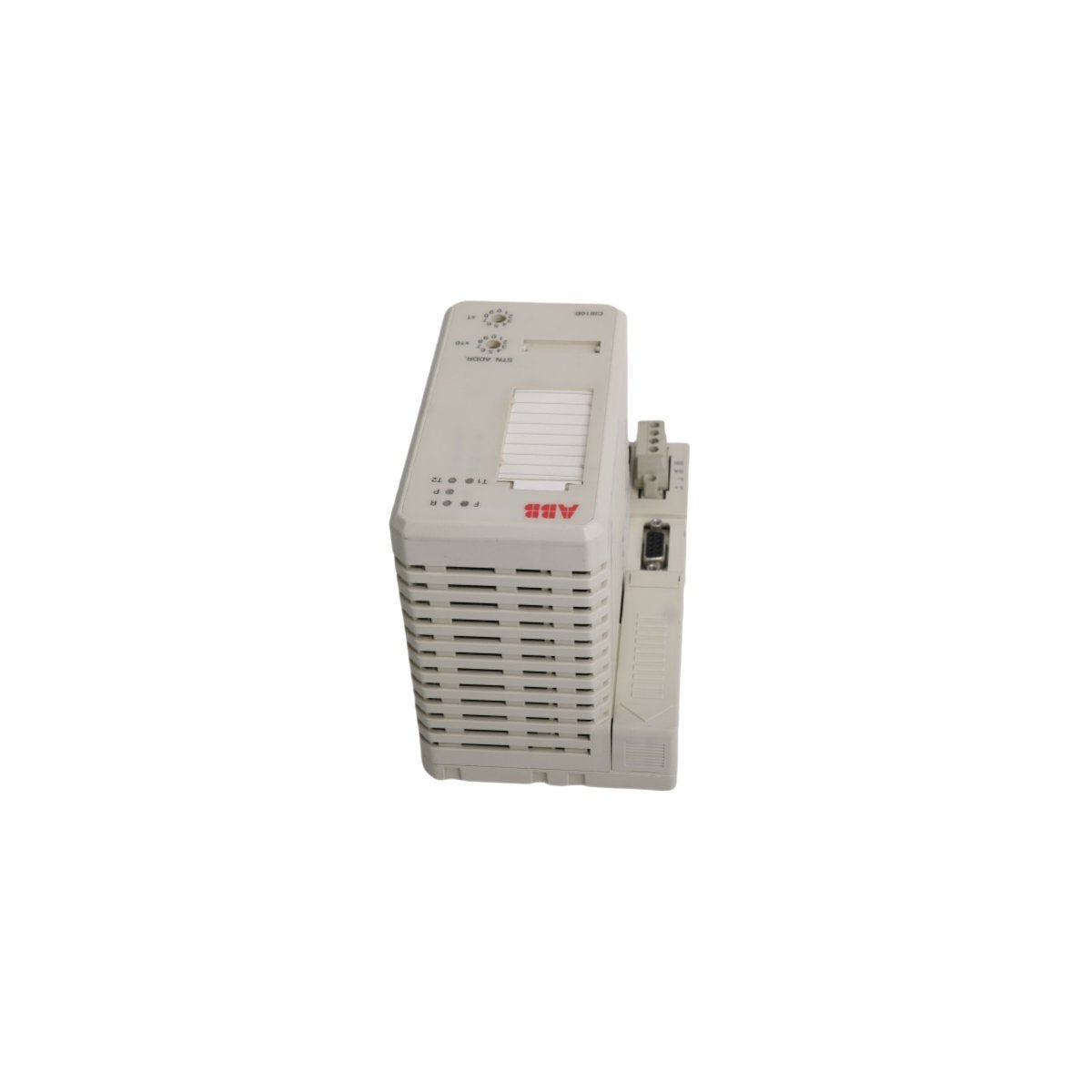

The ABB CI810B, part number 3BSE020520R1, is a high-performance Fieldbus Communication Interface (FCI) designed specifically for the System 800xA automation architecture. This module acts as a specialized gateway that integrates PROFIBUS DP field networks into the 800xA control environment. By providing a transparent link between the controller and distributed I/O stations, the CI810B facilitates high-speed data exchange at rates of up to 12 Mbps, ensuring deterministic performance for time-sensitive process control tasks.

The CI810B is essential for managing intelligent field devices and S800 I/O clusters. It utilizes ABB’s "Aspect Object" technology to ensure that all connected field hardware is represented as an integrated object within the system software. This allows for centralized engineering, asset optimization, and comprehensive lifecycle management across the industrial plant.

System Connectivity and High Availability

Designed for critical infrastructure, the 3BSE020520R1 supports redundant configurations. In high-availability setups, two FCI modules work in tandem to eliminate single points of failure, which is a prerequisite for continuous processes like batch chemical production or power generation. The module is housed in a compact, DIN-rail mountable enclosure, making it suitable for high-density control cabinet installations.

Advanced diagnostic features are embedded within the CI810B, providing real-time telemetry on communication health, bus traffic, and hardware status. These metrics are fed directly into the 800xA Operator Workplace, enabling maintenance teams to proactively manage assets and minimize unscheduled downtime.

Technical Specifications

• Model Identification: CI810B

• Order Number: 3BSE020520R1

• Communication Protocol: PROFIBUS DP-V1

• Maximum Data Rate: 12 Mbps

• System Platform: ABB System 800xA

• I/O Support: S800 I/O Stations

• Redundancy: Supports redundant FCI pair configuration

• Mounting Type: 35mm DIN Rail

• Isolation: Galvanic isolation between fieldbus and internal electronics

• Net Weight: 0.36 kg

• Unit Dimensions: 17 x 8.5 x 12 cm

• Manufacturing Origin: Sweden

• HS Code: 8537101190

Industrial Application Areas

• Device Management: Integrating intelligent transmitters, motor starters, and drives into a unified control strategy.

• Process Automation: Managing remote I/O clusters in pharmaceutical, food and beverage, and water treatment facilities.

• Asset Optimization: Providing detailed hardware health data for predictive maintenance programs within the 800xA platform.

• Legacy Migration: Bridging existing PROFIBUS DP field segments with modern 800xA controllers to modernize plant operations without full rewiring.
