Product Overview

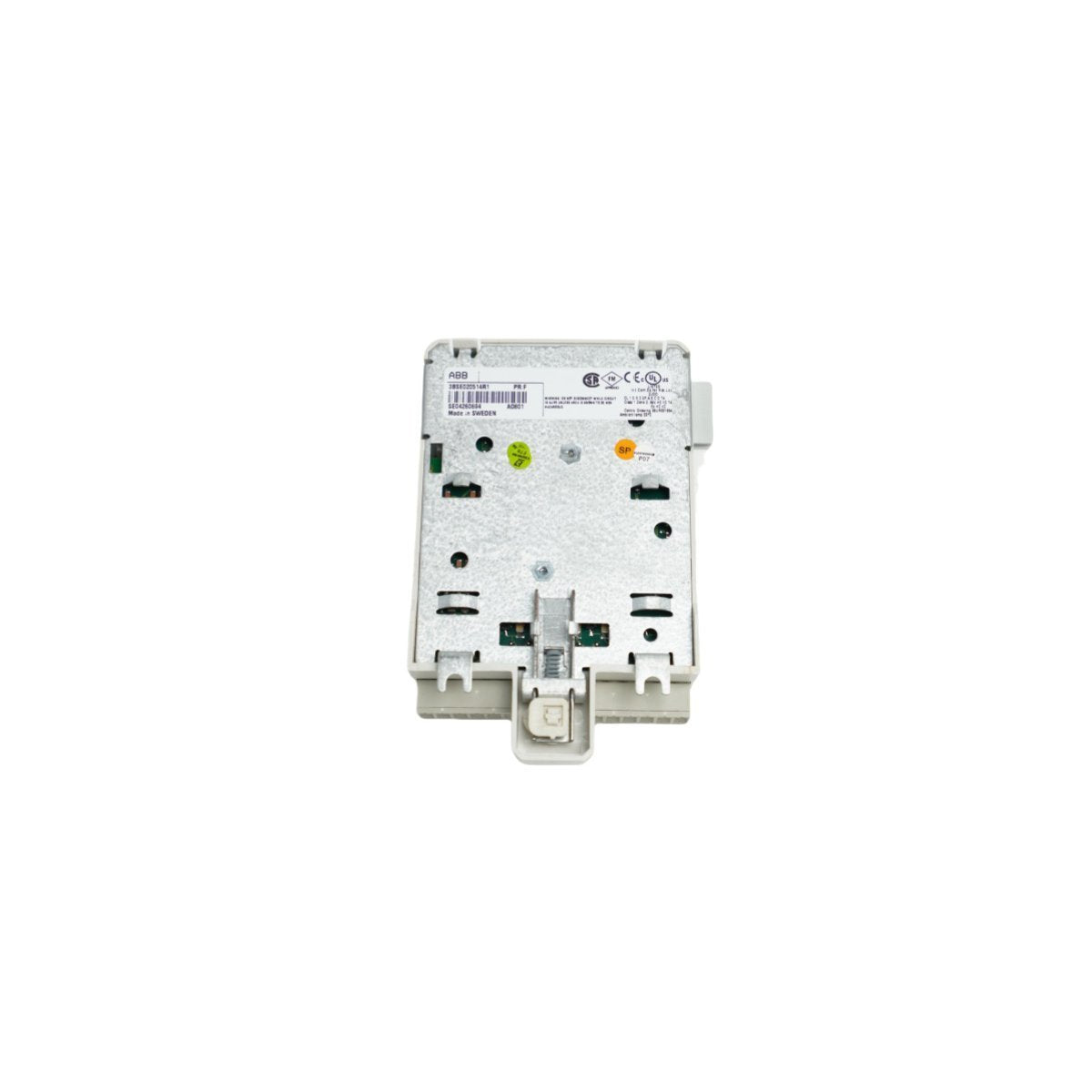

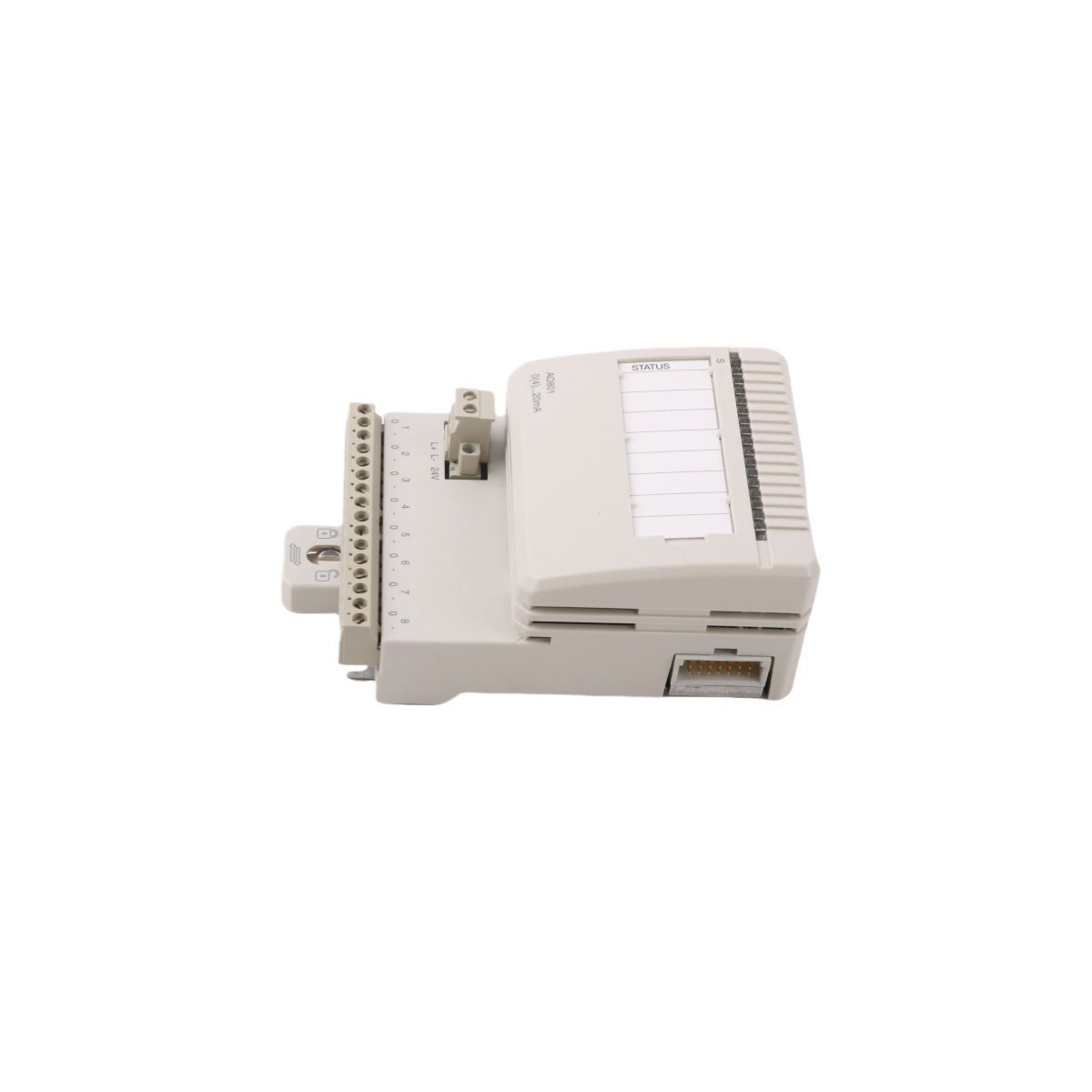

The AO801, identified by part number 3BSE020514R1, is a high-precision analog output component within the ABB S800 I/O system family. Designed for seamless integration with AC 800M controllers, this module provides eight independent channels for the precise regulation of field-level actuators. The AO801 converts digital control signals into 0/4 to 20 mA current outputs, enabling the proportional control of control valves, motor speed controllers, and variable frequency drives. Engineered for mission-critical Distributed Control System (DCS) architectures, it ensures high-fidelity signal transmission and robust galvanic isolation between the system backplane and the harsh electrical environment of the industrial field.

Hardware Architecture and Design Parameters

Built for high-density cabinet mounting, the AO801 features a compact form factor and advanced thermal management to maintain accuracy across its entire operating range.

• Module Type: Analog Output (AO)

• Part Number: 3BSE020514R1

• Channel Density: 8 isolated output channels

• Signal Range: 0 to 20 mA or 4 to 20 mA (Software configurable)

• Resolution: 12-bit digital-to-analog conversion

• Protection Class: IP20 (Ingress Protection)

• Thermal Endurance: Rated for operation between -25°C and +60°C

• Physical Profile: 9.3 x 13.5 x 6 cm

• Net Weight: 0.24 kg

• Load Impedance: Capable of driving loads up to 850 ohms at 20 mA

• Compliance: Hardened for EMI/EMC industrial environments

• Origin: Sweden

Strategic Industrial Utility and Deployments

The AO801 is a fundamental building block for automated systems where the exact positioning of mechanical assets directly impacts production quality and safety.

• Flow and Pressure Regulation: Governing the position of proportional control valves in chemical processing and oil refineries.

• Motor Speed Arbitration: Providing setpoint signals to Variable Frequency Drives (VFDs) for fans, pumps, and conveyor systems.

• Power Plant Governance: Managing steam valve actuators and fuel feed systems in thermal and hydroelectric generation facilities.

• Remote I/O Expansion: Extending the reach of AC 800M controllers via ModuleBus or Profibus, allowing for decentralized signal management.

• Redundant Control Loops: Deployed in high-availability configurations where continuous signal output is required to prevent process shutdowns or equipment damage.
