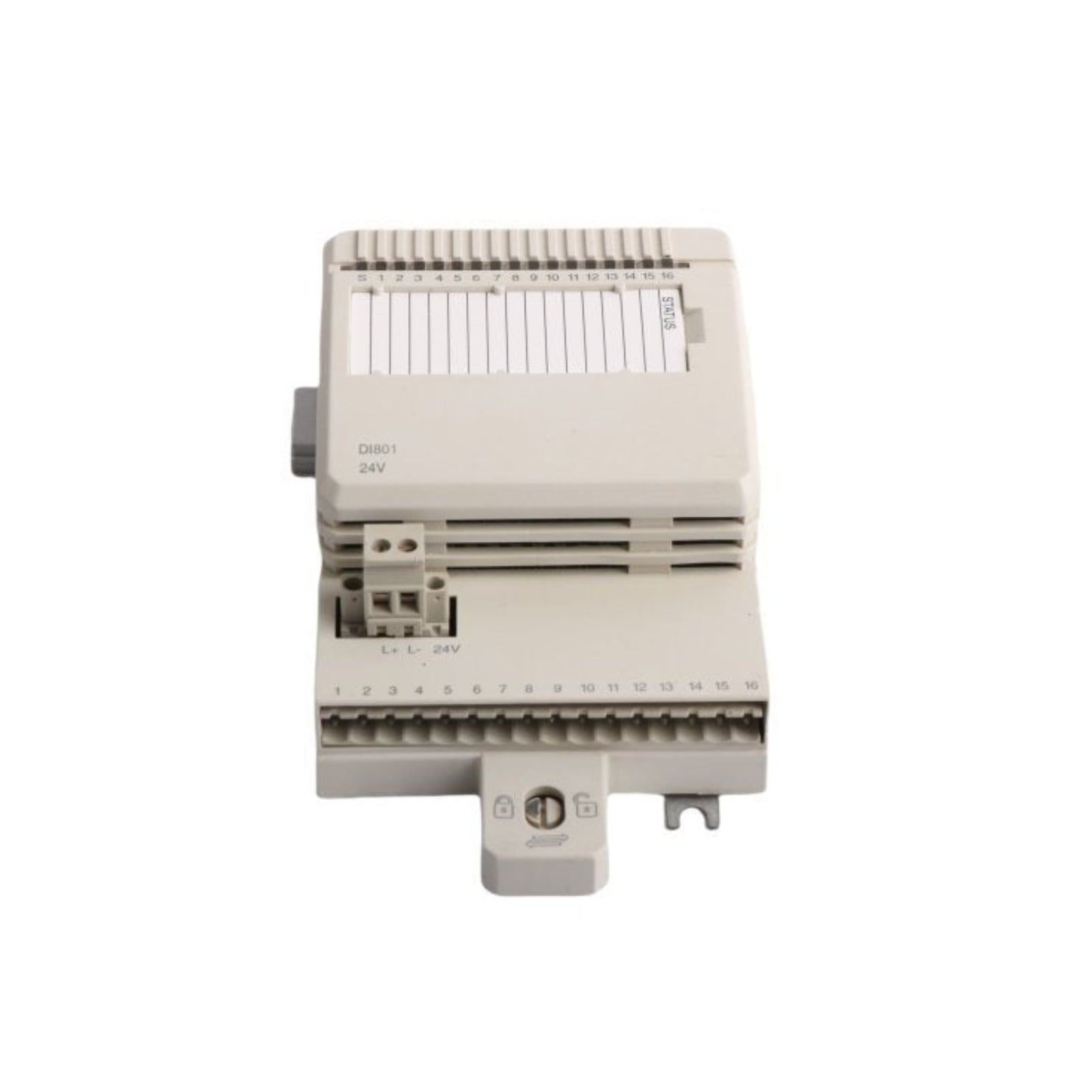

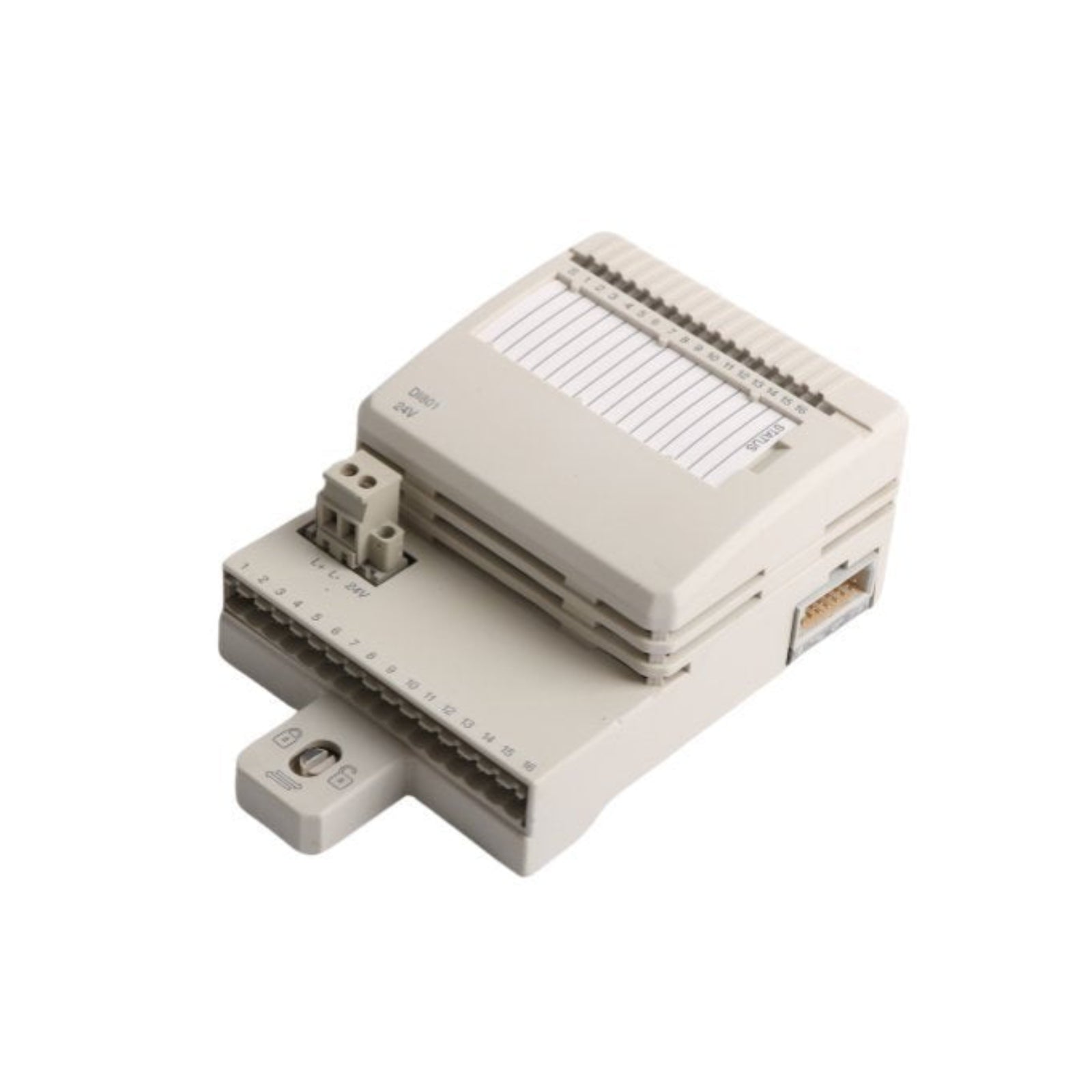

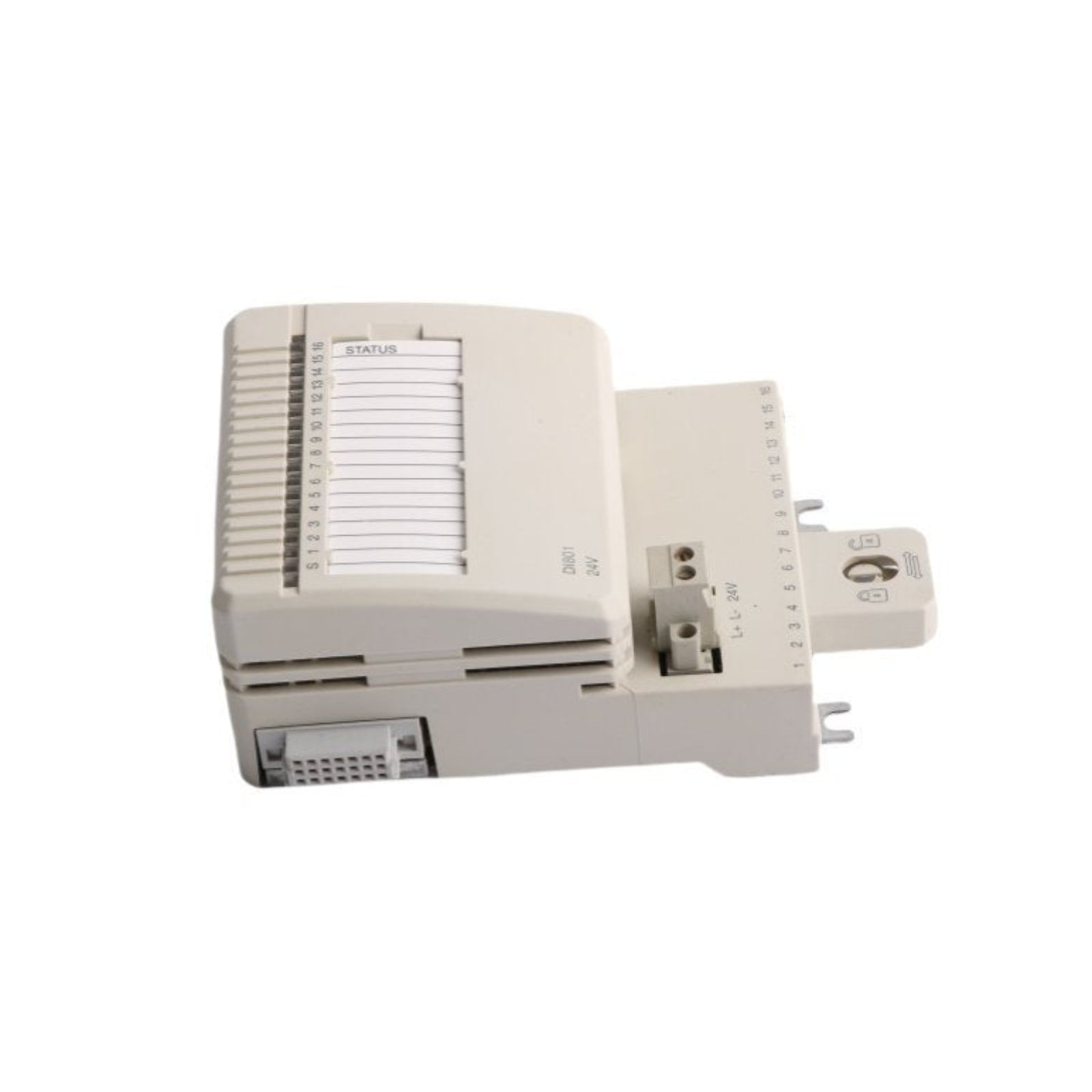

Configured for high-density digital signal acquisition in ABB Ability System 800xA platforms, the ABB 3BSE020508R1 (DI801 Digital Input Module) provides direct physical and electrical execution of 24 V DC binary input processing across 16 channels.

Model Suffix & Configuration

• DI801: Base model identifier for 16-channel digital input functionality.

• 3BSE020508R1: Order reference for standardized manufacturing release.

• I/O Architecture: Integrated 16-channel binary acquisition with common optical isolation.

Hardware Specifications

Controller Integration & Firmware Compatibility

The DI801 module functions within the AC 800M controller ecosystem, utilizing the S800 I/O bus to facilitate deterministic data exchange. Firmware flash compatibility allows for version synchronization with the Control Builder M software environment. High-speed backplane bus communication velocity ensures that state changes are reported to the CPU with minimal latency, supporting real-time logic execution. The module architecture supports I/O density scaling, allowing for multiple DI801 units to be addressed within a single cluster configuration without bus contention.

Ordering Information

• 1 x 3BSE020508R1 DI801 Input Module

• 1 x Technical data sheet documentation

Field Installation Procedures

• Terminal Base Mounting: Seat the module onto a compatible S800 I/O terminal base (e.g., TU810 or TU814) to establish physical bus connection.

• Field Wiring: Terminate 24 V DC binary signals to the corresponding terminal base contact points.

• Grounding: Ensure the terminal base is properly bonded to the cabinet ground bus to maintain EMC integrity.

• Hot-Swap Sequence: Use module locking latches for removal and insertion; verify system configuration before re-initiating the I/O channel scan.

Frequently Asked Questions

• Is the DI801 compatible with AC signals? No, it is strictly designed for 24 V DC signals; AC input will cause permanent optical isolation damage.

• What happens if the internal power supply fails? The 16th channel can be configured to supervise the external power group health.

• Does the module support hot-swapping? Yes, the module supports hot-insertion and removal when mounted on an active S800 terminal base.

• Are the inputs isolated? Yes, the module utilizes optical galvanic isolation between the field inputs and the system logic.

• What is the primary function of the onboard LEDs? The front-panel LED matrix provides status indication for individual input channels and module health.

• Can this module be used with older controller versions? Yes, firmware and hardware compatibility are maintained within the ABB AC 800M ecosystem.

• Does it require external signal filtering? No, each channel includes hardware-based EMC noise filtration and debouncing logic.

• How are input states processed? The module converts mechanical or sensor states into digital logic readable by the controller backplane bus.
