Product Overview

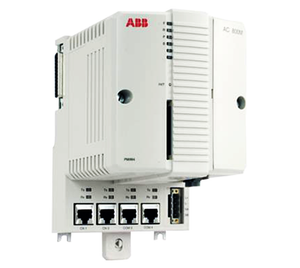

The PM864AK01, designated by the global article number 3BSE018161R1, is a high-capacity processing unit designed for the ABB AC 800M controller platform. Serving as the primary logic engine within the 800xA automation architecture, this module is engineered to manage complex, multi-layered control applications across both continuous process and high-speed discrete manufacturing environments. It provides the computational throughput necessary to synchronize up to 32 simultaneous applications per controller. By utilizing a modular design, the PM864AK01 allows for scalable automation strategies, providing a stable and high-performance foundation for Distributed Control Systems (DCS) requiring rapid logic execution and extensive I/O management.

Essential Hardware Architecture and Specs

• Processing Core: MPC862 CPU operating at a 96 MHz clock speed

• Memory Resources: 32 MB Onboard RAM (with 23.5 MB allocated for user applications) and 2 MB Flash PROM for firmware

• Logical Throughput: Boolean execution speed of 0.15 ms per 1000 instructions

• Network Interfaces: Two integrated IEEE 802.3 Ethernet channels (10 Mbit/s) for control network redundancy

• Peripheral Connectivity: One RS-232C (COM3) port and one isolated (COM4) serial port

• System Expansion: Supports the CEX-Bus for up to 12 communication modules and the ModuleBus for local S800 I/O

• I/O Capacity: Capable of managing 96 I/O modules (Simplex) or 84 I/O modules (Redundant)

• Electrical Input: 24 V DC (operational range 19.2 to 30 V DC) with a typical power draw of 6.9W

• Memory Security: Includes a 3.6V lithium backup battery for non-volatile data retention during power cycles

• Mechanical Profile: 11.9 cm x 19.6 cm x 13.5 cm | Weight: 1.2 kg

Professional Deployment Scenarios

The PM864AK01 processor unit is typically implemented in large-scale industrial infrastructures where high availability and fast cycle times (as low as 1 ms) are critical:

• Chemical and Petrochemical Processing: Managing complex batch logic and continuous PID loops for temperature and pressure regulation.

• Power Generation and Grid Control: Executing high-speed protection logic and coordinating auxiliary system data via redundant Ethernet paths.

• Metals and Mining Automation: Coordinating heavy-duty conveyor systems and crushing circuits that require high-density I/O integration.

• Pharmaceutical Manufacturing: Facilitating 21 CFR Part 11 compliant batch processes with extensive data-intensive application management.

• Water and Wastewater Management: Providing a centralized processing node for regional pump stations and treatment facility logic.
