Product Overview

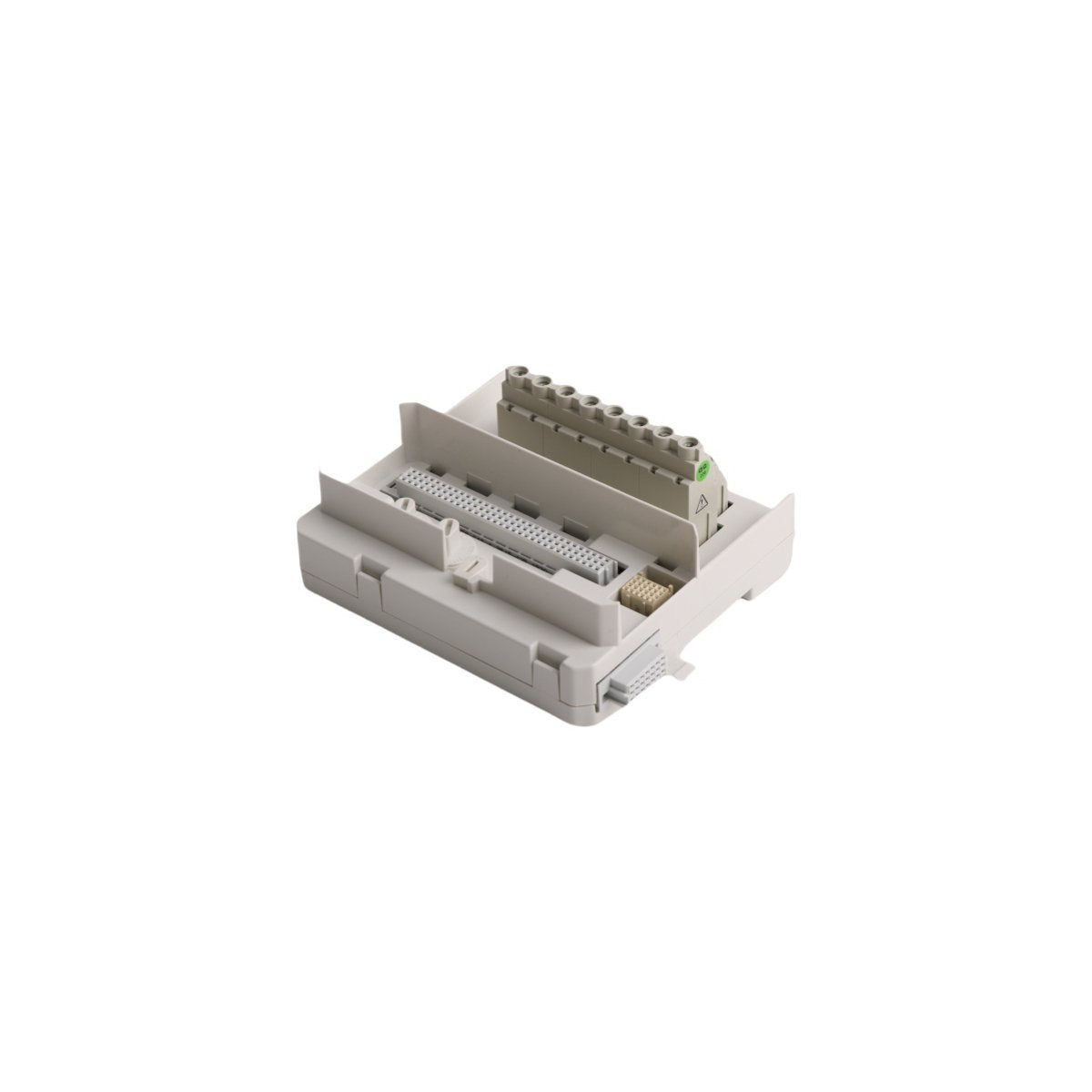

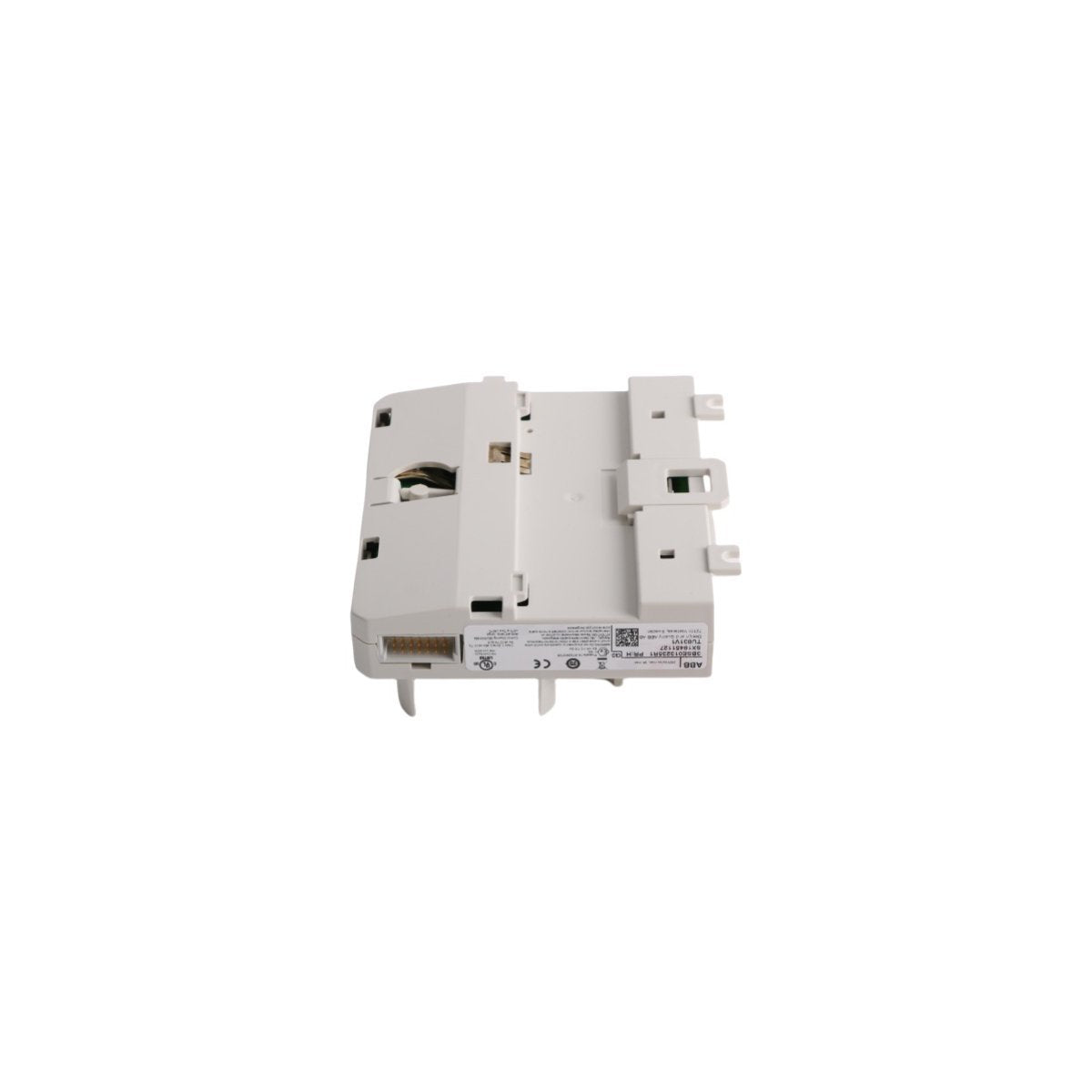

The ABB TU831V1, identified by part number 3BSE013235R1, serves as a high-capacity Extended Module Termination Unit (MTU) within the S800 I/O family. Engineered for Distributed Control Systems (DCS), this unit acts as the physical and electrical interface between field wiring and I/O modules. It is specifically designed to accommodate high-power applications, providing a robust termination point for up to eight isolated channels. By managing the distribution of the ModuleBus and ensuring precise signal routing, the TU831V1 maintains network integrity across complex automation architectures.

Core Specifications and Technical Attributes

The TU831V1 is built to handle significant electrical loads while maintaining a compact footprint on the DIN rail. Its design prioritizes safety through mechanical coding and integrated grounding.

• Channel Capacity: 8 isolated field signal channels.

• Voltage Rating: Maximum 250 V.

• Current Capacity: Up to 3 A per channel.

• Module Compatibility: Designed for S800 I/O modules.

• Bus Management: Automatic address generation via outgoing position signal shifting.

• Connectivity: Enhanced termination area allows for larger gauge wiring.

• Safety Features: Mechanical keying prevents the installation of incorrect module types; integrated latching mechanism provides secure DIN rail mounting and grounding.

• Physical Metrics: Weight of 0.22kg with dimensions of 12.6 x 11.6 x 5.8 cm.

Industrial Deployment and Sector Applications

The TU831V1 is utilized in environments where high-voltage switching or high-current field signals are required to interface with a DCS. Its rugged construction and Swedish engineering make it a standard choice for several heavy industries:

• Power Generation: Managing high-voltage feedback and control signals in turbine and boiler control systems.

• Chemical Processing: Providing isolated terminations for field instruments in hazardous or electrically noisy environments.

• Water and Wastewater: Integration into distributed pump station controls requiring reliable S800 I/O expansion.

• Manufacturing: Serving as a scalable I/O node for Ethernet-routed industrial networks.
