Product Overview

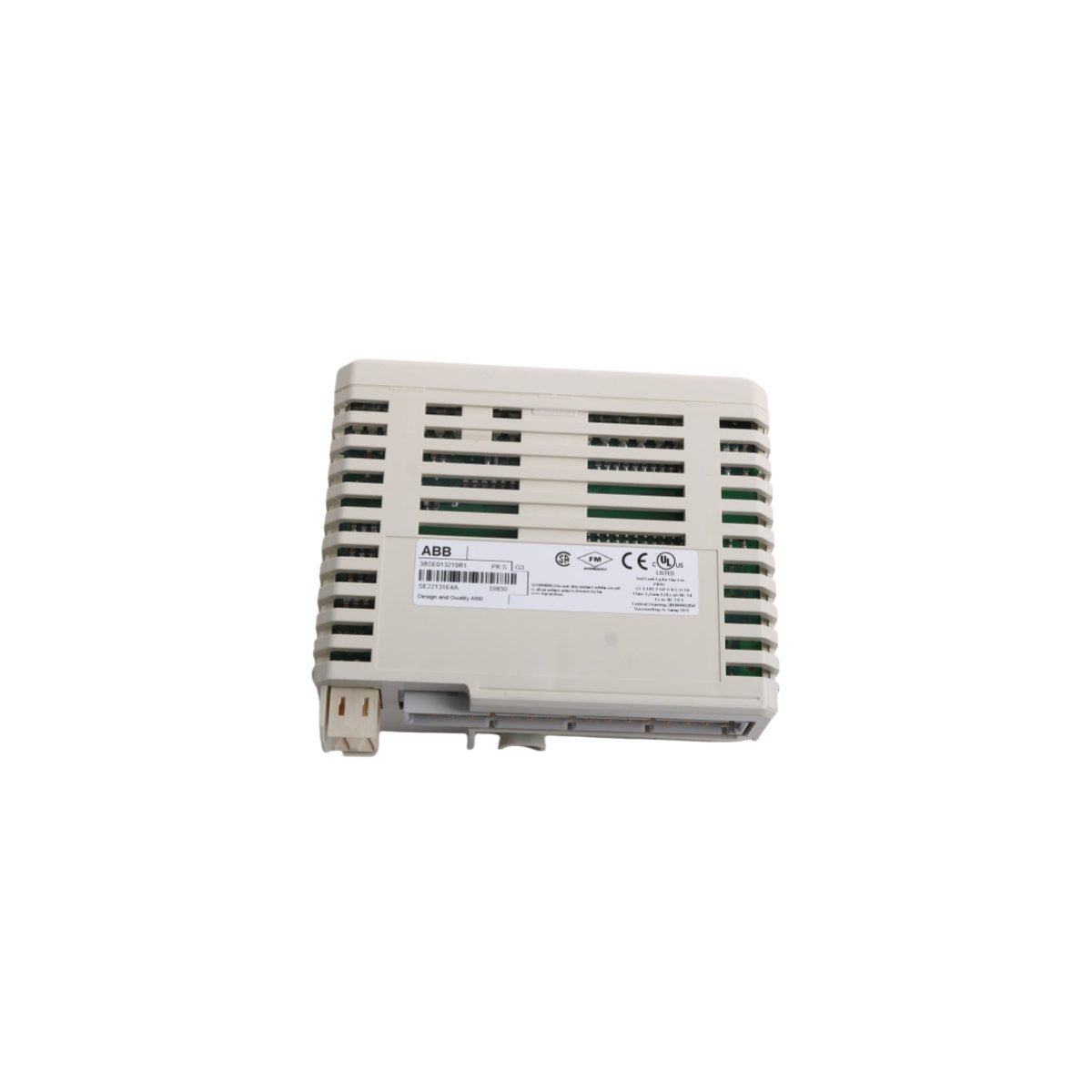

The ABB DI830, identified by engineering code 3BSE013210R1, is a specialized digital input module featuring Sequence of Events (SOE) recording capabilities for the S800 I/O system. This 16-channel module (often configured for high-precision 24V DC sensing) is engineered to capture signal transitions with millisecond-level accuracy. Unlike standard digital inputs, the DI830 timestamps events at the source, making it an indispensable tool for root-cause analysis in complex Distributed Control System (DCS) environments. By logging the exact order of status changes, the DI830 allows engineers to reconstruct the timeline of system trips or mechanical failures, ensuring maximum transparency in high-speed industrial processes.

Hardware Configuration and Technical Specifications

• Module Net Mass: 0.18 kg

• Casing Dimensions: 4.5 x 10.5 x 12 cm

• Input Capacity: 16 Channels (Digital)

• SOE Resolution: High-speed event local timestamping

• Operating Voltage: 24V DC

• Thermal Endurance: -25°C to +60°C

• Network Integration: Ethernet router and Modbus RTU connectivity

• Ecosystem Compatibility: S800 I/O Series

• Manufacturing Origin: Sweden

• Global Customs Code: 8537101190

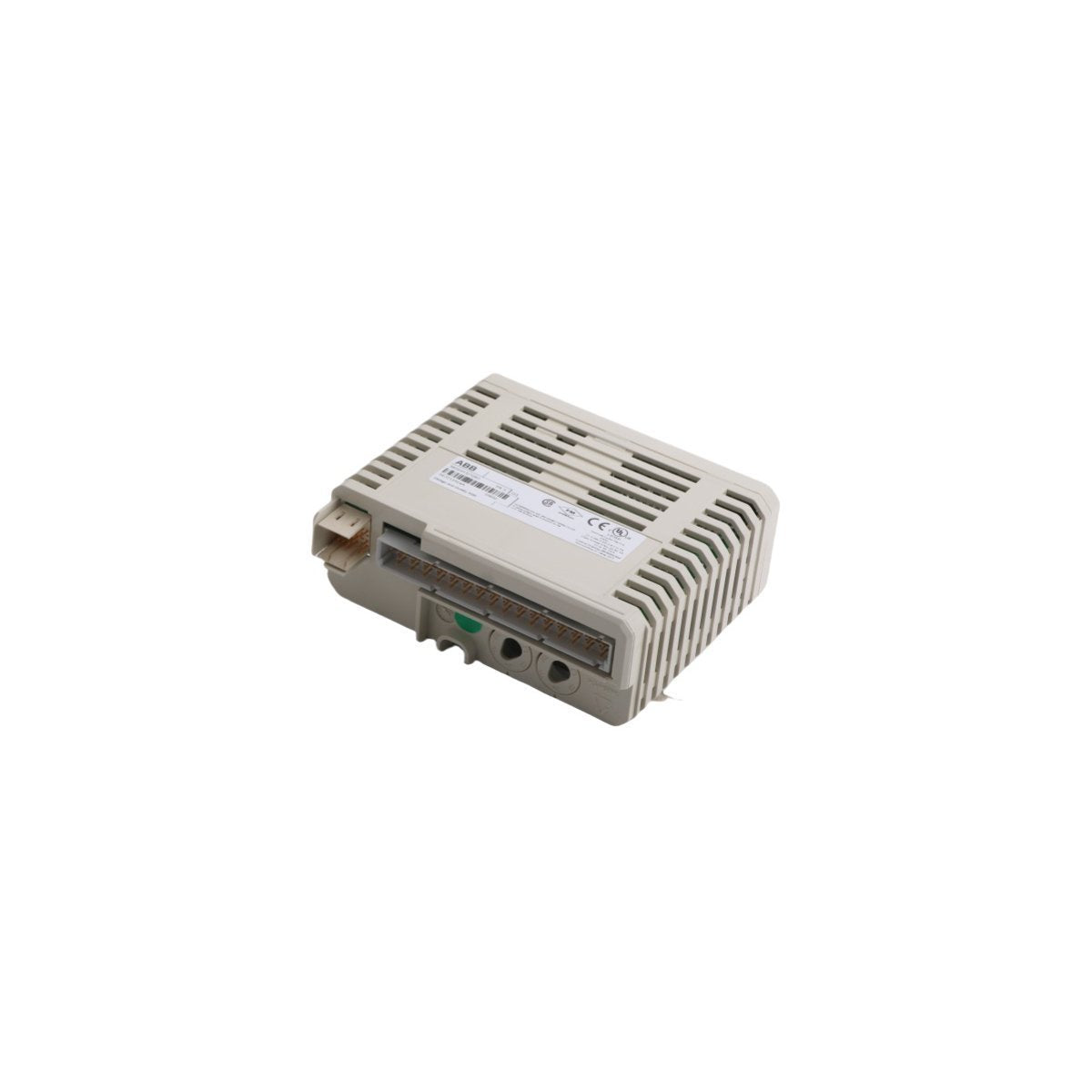

This lightweight 0.18 kg unit is designed for high-density DIN rail mounting, featuring a narrow 4.5 cm width to maximize cabinet space. The DI830 3BSE013210R1 utilizes advanced internal circuitry to suppress contact bounce and electrical noise, ensuring that only valid process transitions are recorded. Its robust Sweden-manufactured chassis is optimized for longevity in unconditioned control rooms, maintaining high-speed capture performance even in varying thermal environments.

Industrial Applications and Strategic Deployment

The DI830 SOE module is a critical layer for industries requiring forensic-level data logging and rapid response times. Key usage scenarios include:

• Power Plant Trip Analysis: Recording the sequence of protective relay activations and breaker positions to determine the initiating cause of a turbine or generator trip.

• Synchronized Machine Monitoring: Capturing high-speed status changes in high-volume manufacturing lines to optimize timing and prevent mechanical collisions.

• Safety System Auditing: Maintaining an accurate log of emergency stop and safety interlock activations for regulatory compliance and safety forensics.

• Remote Substation Telemetry: Providing detailed event logs to supervisory layers via Modbus RTU or Ethernet router links for off-site diagnostic assessments.

FAQ

Q: What is the primary advantage of a Sequence of Events (SOE) module over a standard digital input?

A: Standard modules are limited by the controller's scan cycle, while the DI830 timestamps events locally on the board with much higher resolution. This allows you to see the exact micro-chronology of events that happen within a single controller scan.

Q: Does the DI830 3BSE013210R1 require a specific terminal base?

A: Yes, the module must be seated in a compatible S800 I/O terminal base (such as the TU810 or TU812) to facilitate field wiring and power distribution.

Q: Can this module operate in freezing conditions?

A: The DI830 is rated for operation down to -25°C, making it suitable for unheated industrial enclosures or facilities located in colder climates.

Q: How are the timestamps synchronized across multiple DI830 modules?

A: In a DCS environment, the modules are synchronized via the communication bus (such as AF100 or PROFIBUS) to a master clock, ensuring that SOE data from different racks can be correlated accurately.

Q: What is the typical input voltage for the signal channels?

A: The DI830 is typically used for 24V DC logic, which is the standard for most modern industrial sensors, proximity switches, and auxiliary contacts.
