Product Overview

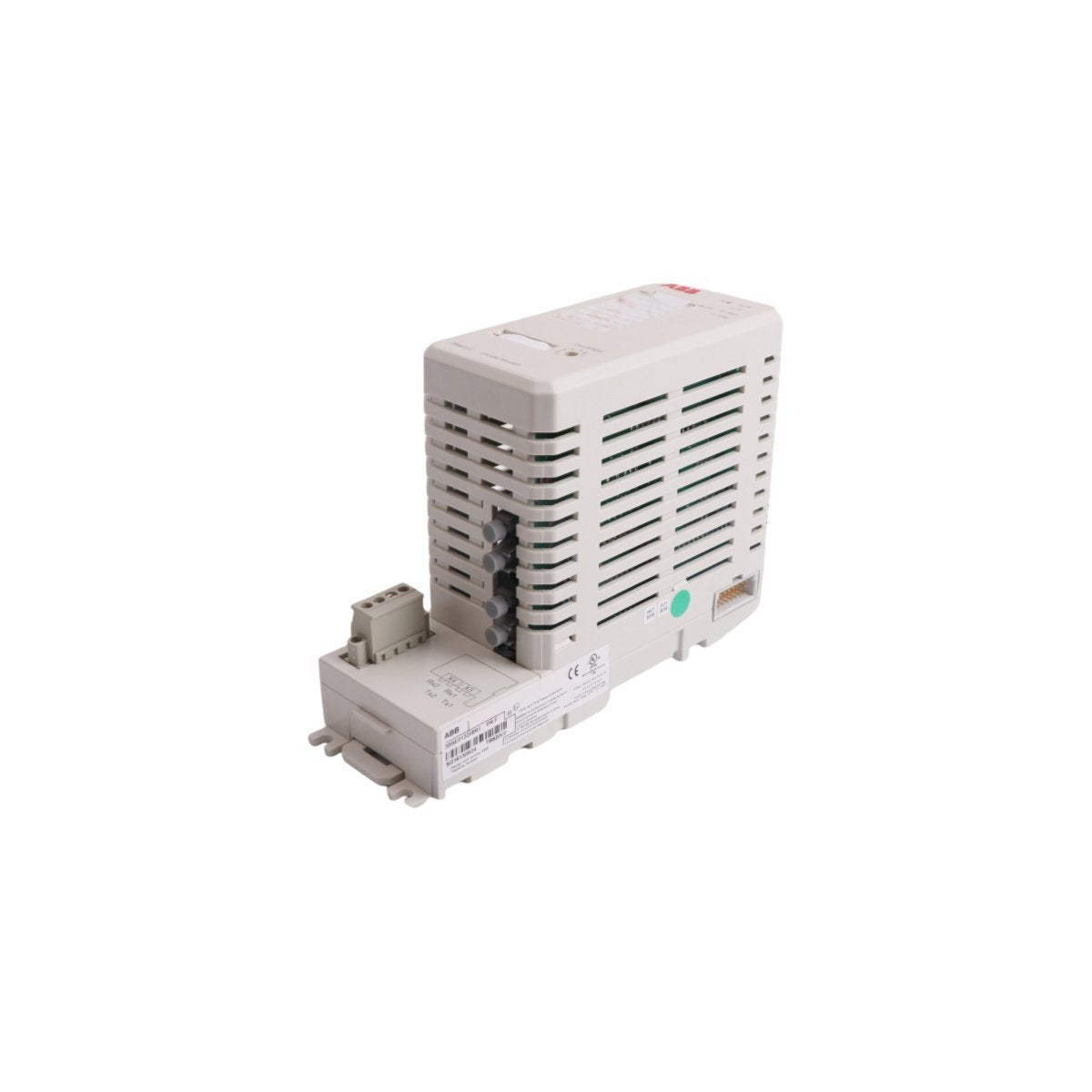

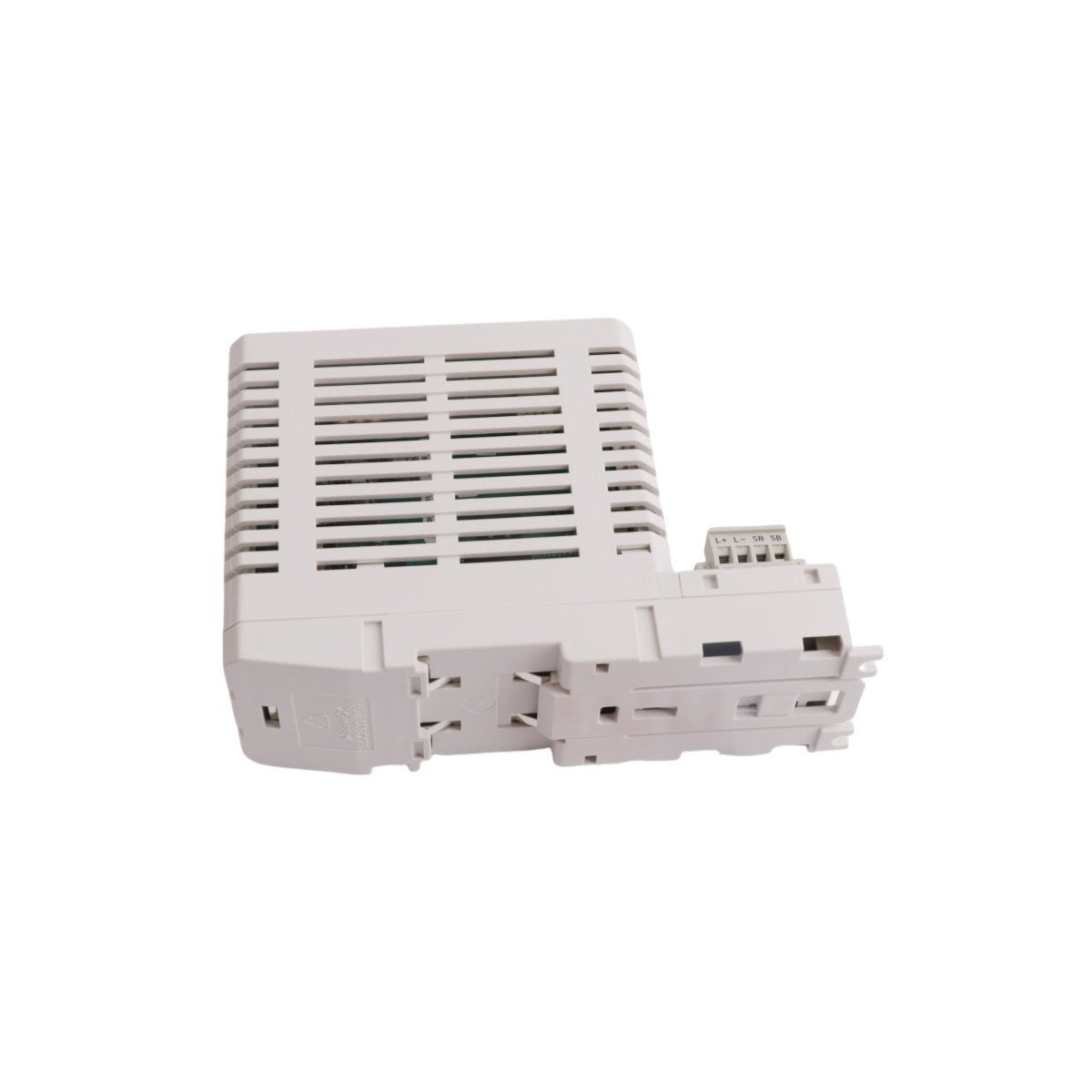

The ABB TB820V2, identified by part number 3BSE013208R1, is a high-speed fiber optic communication interface designed to extend the reach of the S800 I/O system. This module serves as a critical optical bridge, converting the electrical signals of the Modulebus into optical pulses for long-distance data transmission. By utilizing fiber optic technology, the TB820V2 provides total galvanic isolation between I/O clusters, effectively neutralizing the risks associated with ground loops and electromagnetic interference (EMI). It is an essential component for distributed control architectures, such as System 800xA and Advant OCS, where remote I/O stations must maintain deterministic performance across expansive industrial sites.

Physical Architecture and Network Capabilities

The TB820V2 3BSE013208R1 is engineered to facilitate secure, high-integrity data paths with the following technical profile:

• Hardware Designation: TB820V2

• Order Reference: 3BSE013208R1

• Communication Interface: Optical Modulebus (Standard S800 I/O protocol)

• Fiber Media Compatibility: Supports Plastic Optical Fiber (POF) and Hard Clad Silica (HCS)

• Transmission Range: Up to 15m using POF or up to 200m using HCS fiber

• Operational Voltage: 24V DC (Logic powered via the backplane)

• Physical Mass: 0.34 kg

• Dimensions: 17 x 5.8 x 12 cm

• Thermal Performance: Rated for operation between -20°C and +70°C

• Housing Quality: Industrial-grade vibration-resistant casing with protective coating

• Standards Compliance: CE and UL certified for global industrial safety

• Manufacturing Origin: Sweden

Strategic Field Deployment Scenarios

In Heavy-Duty Power Generation and Distribution, the TB820V2 is used to link central controllers with remote I/O stations located in harsh electrical environments like turbine halls. The fiber optic link ensures that massive electromagnetic surges and high-frequency noise do not corrupt process data. This ensures the safety and stability of critical parameters such as voltage regulation and emergency shutdown signals, where electrical isolation is a mandatory safety requirement.

Within Metals Processing and Mining Operations, this optical modem enables the decentralization of I/O modules along vast conveyor systems and smelting lines. By converting the bus to fiber, the 3BSE013208R1 allows I/O clusters to be placed hundreds of meters away from the central processor without signal degradation. This reduces expensive copper cabling runs and protects the DCS from potential lightning strikes or power surges that could otherwise propagate through metal-based communication wires.

For Water Treatment and Chemical Manufacturing, the TB820V2 facilitates the management of distributed pump stations and processing units. Its wide operating temperature range makes it suitable for outdoor control cabinets. The optical interface provides a reliable "firewall" against ground potential differences between remote sections of the plant, ensuring that the Advant OCS or 800xA control system receives clean, error-free data for real-time monitoring of flow rates, tank levels, and chemical dosing.
