Product Overview

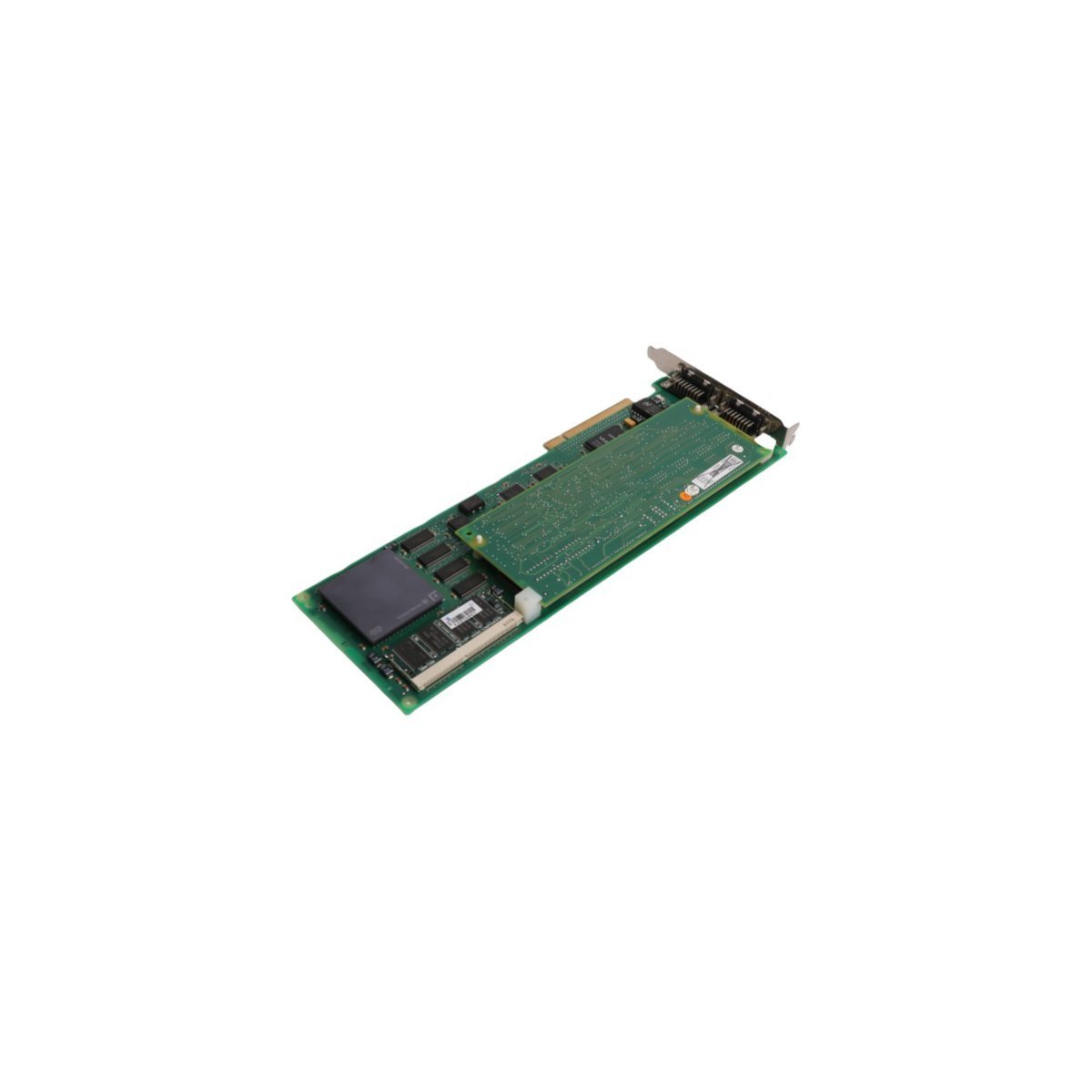

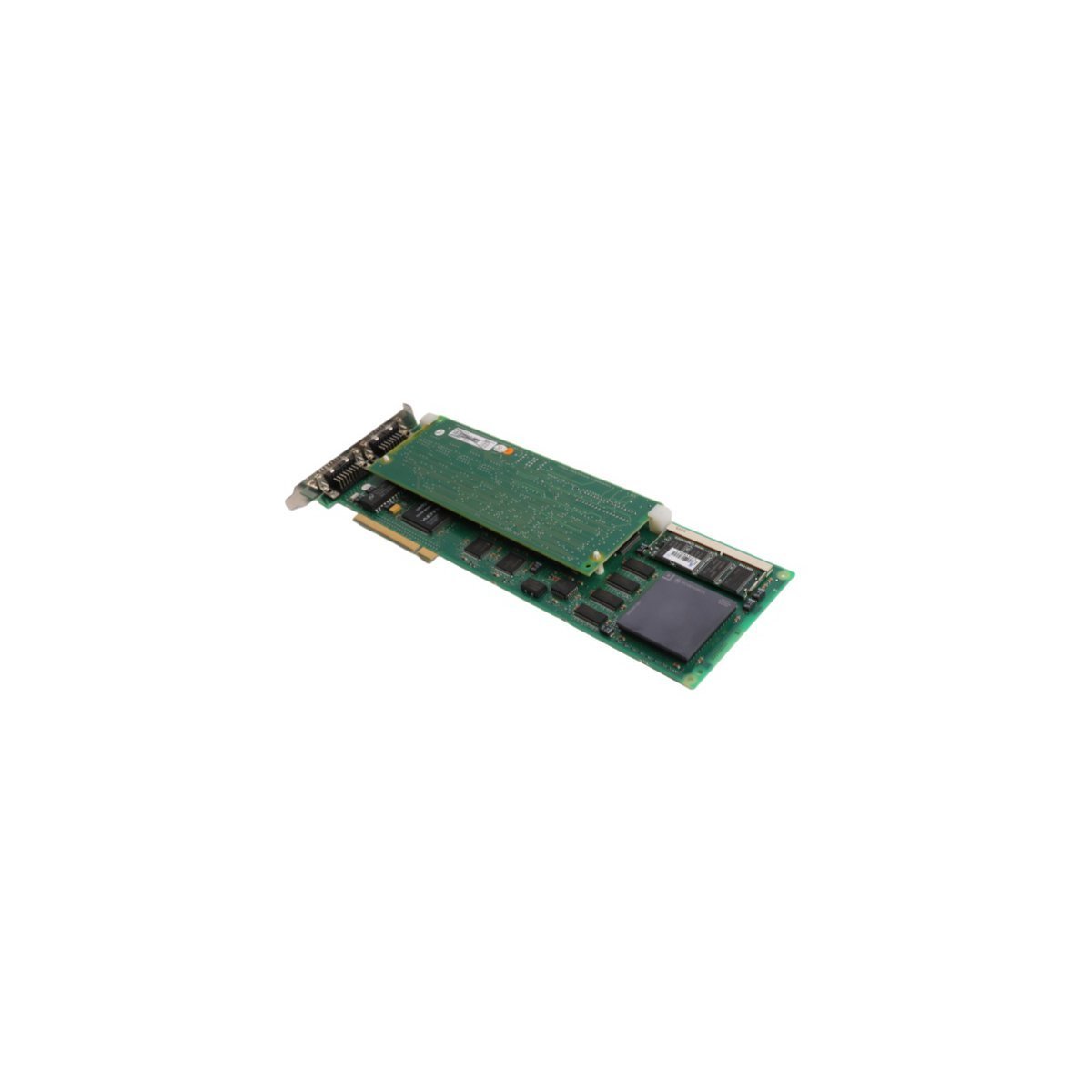

The ABB PU515, part number 3BSE013063R1, is a specialized Real-Time Accelerator (RTA) board designed for the System 800xA distributed control architecture. This high-speed communication interface is engineered to offload time-critical tasks from the host workstation's CPU, ensuring deterministic and low-latency data exchange between the operator station and the Advant Fieldbus 100 (AF100) network. By acting as a dedicated processing bridge, the PU515 ensures that process values, alarms, and control commands are synchronized in true real-time, preventing network jitter and enhancing the overall stability of the human-machine interface (HMI) in complex industrial environments.

System Architecture & Functional Specifications

• Module Function: Real-Time Accelerator (RTA) for AF100 Network Communication

• Part Number: 3BSE013063R1

• Product Series: System 800xA / Advant OCS

• Interface Protocol: Advant Fieldbus 100 (AF100)

• Processing Capability: High-speed deterministic data throughput for real-time DCS synchronization

• Physical Dimension Profile: 2.1cm x 32.6cm x 12.6cm

• Net Weight: 0.35kg

• Communication Support: Integrated Ethernet router service compatibility

• Hardware Origin: Sweden

• Environmental Tolerance: Designed for continuous duty in climate-controlled server/DCS cabinets

Strategic Industrial Implementations

The PU515 3BSE013063R1 is a critical component for large-scale automation where communication latency can impact process safety and efficiency. Primary applications include:

• Centralized Control Rooms: Facilitating high-speed updates for operator graphics and alarm lists in large-scale System 800xA deployments.

• Network Redundancy: Serving as the backbone interface for redundant AF100 bus configurations to ensure zero-fail data paths.

• Process Virtualization: Bridging virtualized control environments with physical AF100 fieldbus hardware for modern DCS upgrades.

• Utility Power Management: Managing high-speed telemetry and command execution in electrical substation automation.

• Petrochemical Safety: Ensuring the rapid delivery of critical process variables to safety instrumented systems and emergency shutdown interfaces.
