Product Overview

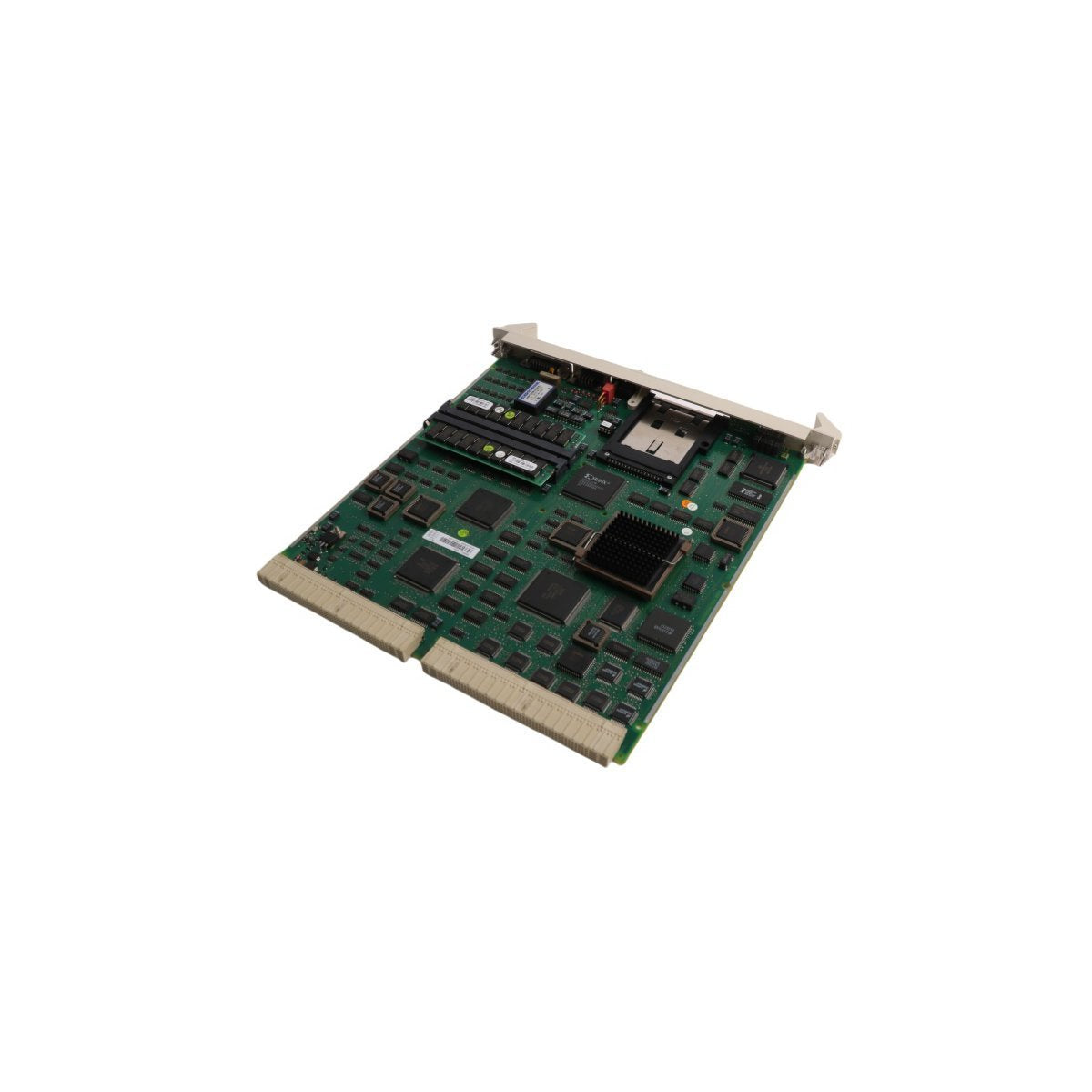

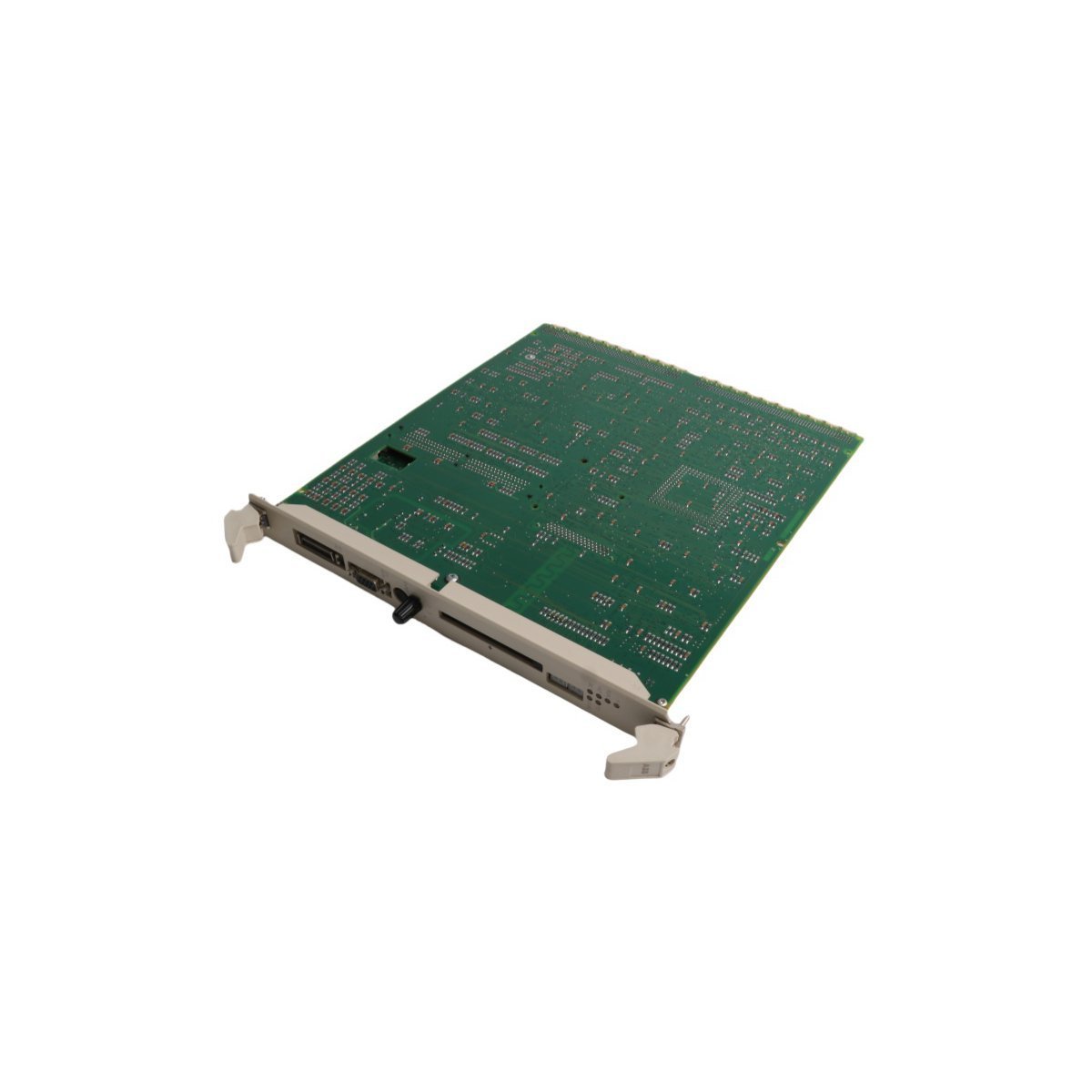

The ABB PM511V08, designated by part number 3BSE011180R1, is a high-performance central processing unit engineered for the Advant OCS and 800xA distributed control systems. Utilizing a sophisticated PowerPC architecture, this processor is designed to execute high-speed control logic and manage complex data processing for large-scale industrial operations. It provides a robust foundation for automation networks that require millisecond precision, high memory capacity, and reliable communication across diverse fieldbus protocols. Built with a focus on longevity and system integrity, the PM511V08 ensures consistent uptime in mission-critical environments.

Key Technical Characteristics and Hardware Parameters

The PM511V08 is optimized for speed and resilience, featuring advanced memory management and high-speed execution cycles.

• Model/Order Number PM511V08 / 3BSE011180R1

• Processor Architecture PowerPC-based high-speed computing

• Onboard Memory 128MB RAM and 64MB Flash memory

• Execution Speed Ultra-fast cycle times as low as 0.1ms

• Network Connectivity Dual integrated Ethernet ports for redundant system communication

• Operating Voltage 24V DC nominal power input

• Environmental Range Rated for operation between -25°C and +60°C

• Humidity Tolerance 5% to 95% non-condensing relative humidity

• Physical Weight 0.75 kg

• Chassis Dimensions 3 x 33.3 x 29.7 cm

• Security Features Enhanced cybersecurity protocols and advanced system diagnostics

Industrial Applications and Operational Use Cases

This processor module is a staple in industries where process complexity and safety requirements are highest.

• Oil and Gas Refining Manages intricate logic for distillation, pressure regulation, and emergency shutdown systems where ultra-fast response times are mandatory.

• Power Generation Facilities Coordinates synchronous operations between turbines, boilers, and electrical grids in thermal and hydroelectric plants.

• Chemical Processing Handles complex batch control and continuous flow monitoring, ensuring precise chemical ratios and thermal stability.

• Redundant System Architectures Perfectly suited for 800xA configurations where dual-processor redundancy is required to prevent single points of failure.

• Network Routing Functions as a vital communication hub between the control network and field-level I/O devices, facilitating seamless data flow in decentralized architectures.
