Product Overview

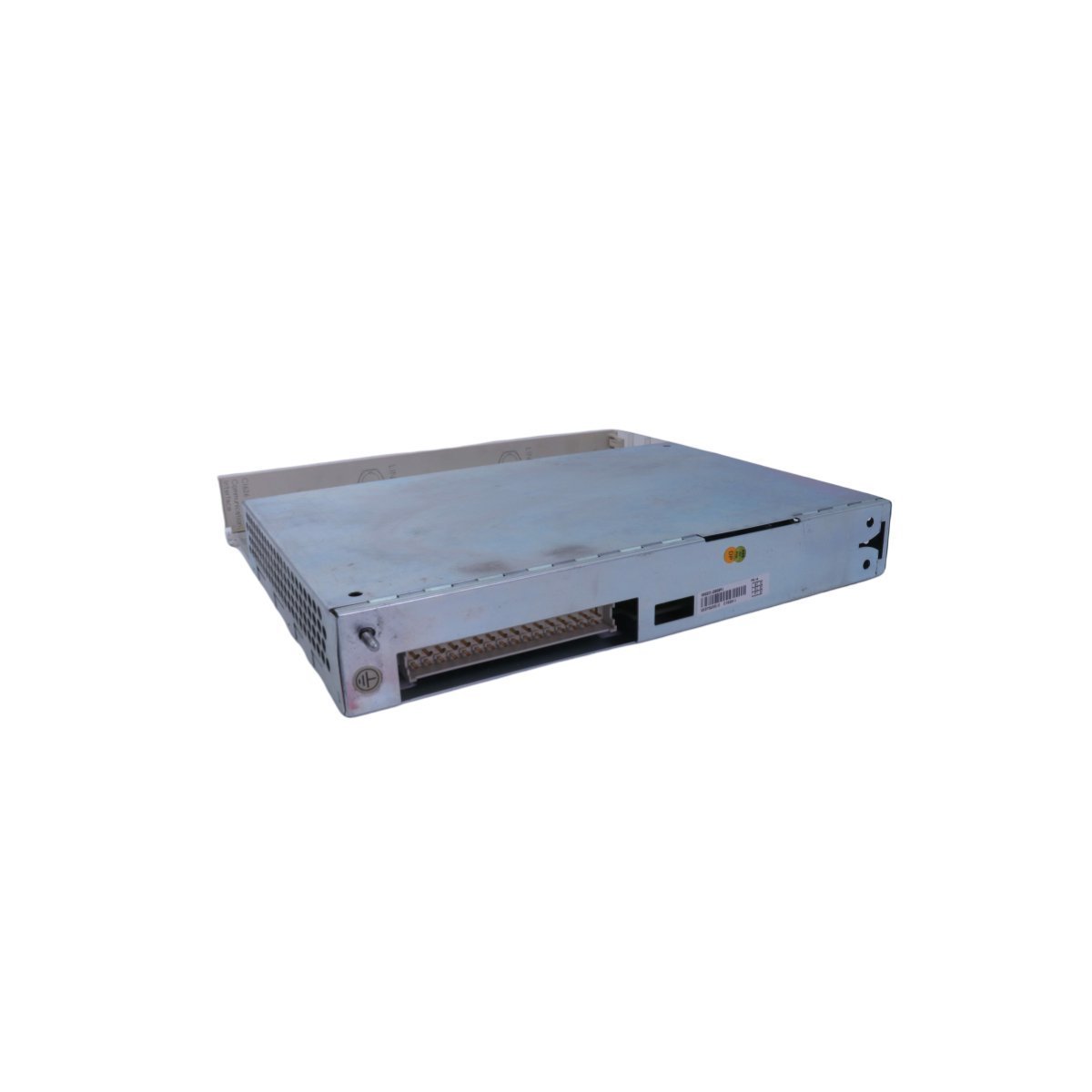

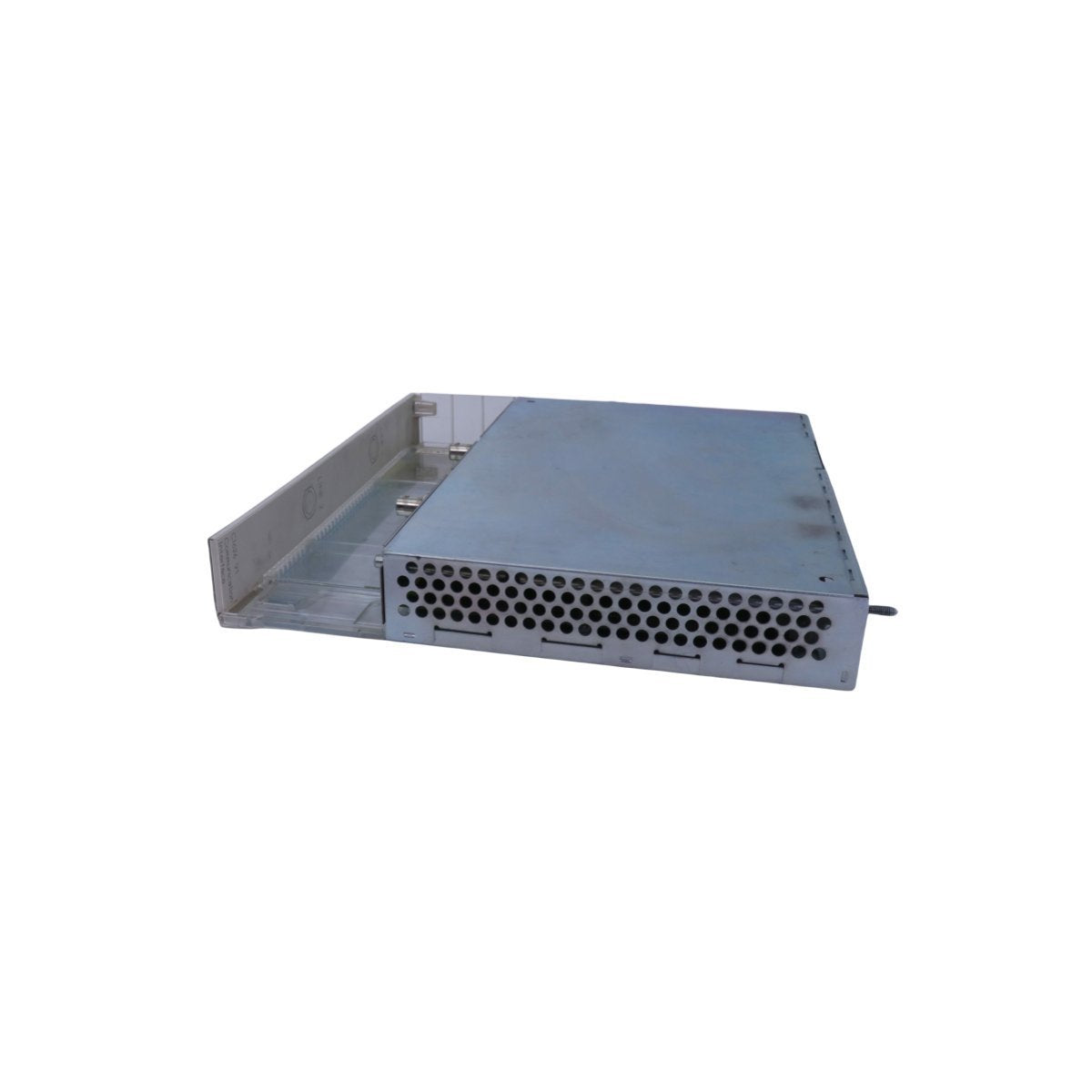

The ABB CI630, part number 3BSE011000R1, is a robust Advant Fieldbus 100 (AF100) communication interface designed to expand the connectivity and reach of Distributed Control Systems. This extension kit module facilitates high-speed, deterministic data exchange between controller racks and remote I/O stations. By serving as a critical bridge in the Advant OCS and AC500-level architectures, the CI630 ensures that process data, alarms, and configuration parameters move across the industrial network with zero jitter and high reliability. Its primary purpose is to maintain system-wide synchronization while allowing for the physical expansion of control hardware across larger facility footprints.

Hardware Architecture & Networking Parameters

• Part Identification: 3BSE011000R1

• Model Designation: CI630

• Functional Class: DCS Bus Extension / AF100 Communication Interface

• Network Protocol: Advant Fieldbus 100 (AF100)

• Physical Mass: 1.4 kg

• External Dimensions: 4.0cm x 25.3cm x 27.4cm

• System Compatibility: Advant OCS, AC800M, and AC500 Series

• Integration Support: Compatible with Ethernet router services for centralized diagnostic access

• Manufacturing Origin: Sweden

• Maintenance Features: Integrated status LEDs and advanced self-diagnostic sub-routines

Industrial Infrastructure Applications

The CI630 3BSE011000R1 is predominantly utilized in large-scale utility and manufacturing sectors where centralized control must be extended over vast distances, such as in petrochemical refineries, water treatment facilities, and thermal power plants. In these environments, it enables the integration of decentralized control clusters, ensuring that field sensors and actuators located in remote process areas remain in constant communication with the main CPU. Its hardened circuitry is specifically designed to resist electromagnetic interference (EMI) commonly found in heavy-industrial motor control centers and power distribution rooms. By providing a stable bus extension, it allows plant engineers to scale up their automation capacity without compromising the real-time performance or safety interlocking protocols of the overarching DCS.
