Product Overview

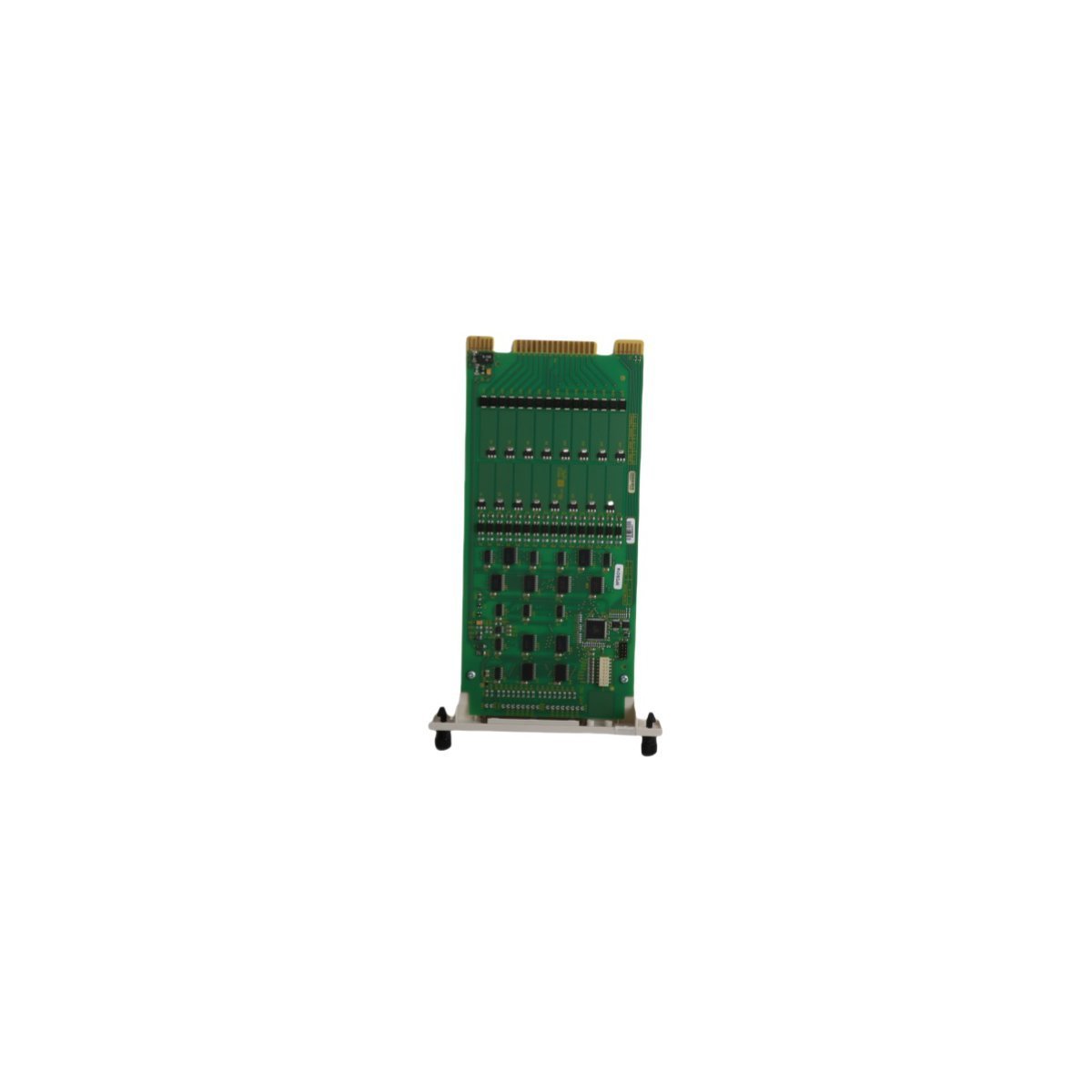

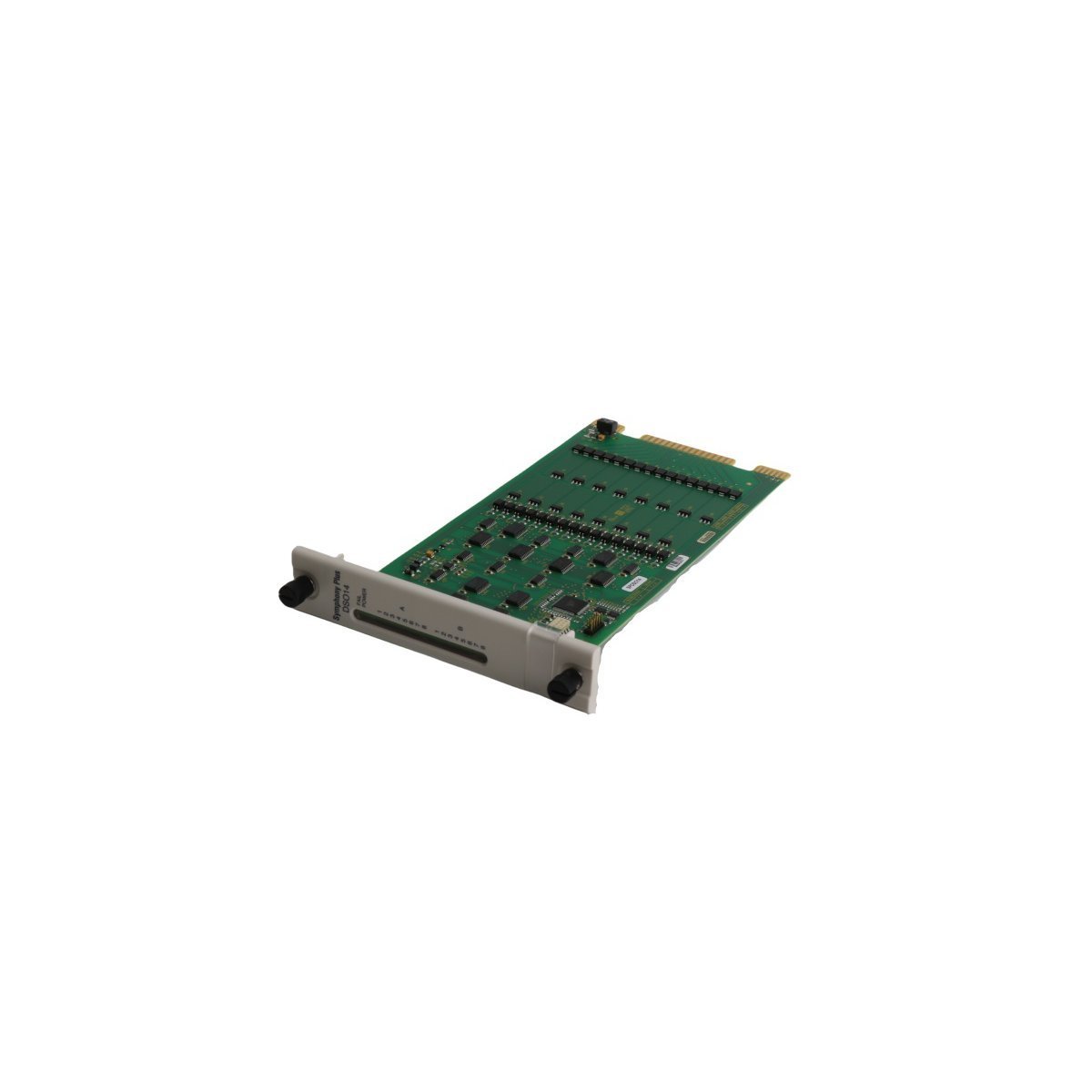

The ABB SPDSO14 is a high-density Digital Output Module engineered for the Symphony Plus and Bailey Infi 90 control architectures. Operating as a remote slave unit within a Distributed Control System (DCS), this module converts logical control commands into discrete electrical signals to drive field equipment. Its slim-line profile is specifically designed to maximize cabinet density without compromising thermal performance. By providing reliable binary switching, the SPDSO14 acts as the critical execution layer for automated sequences, safety interlocks, and machine control, ensuring precise response times in high-speed industrial environments.

Technical Hardware Specifications

• Module Type Digital Output Slave

• Product Series Symphony Plus / Harmony Rack

• Environmental Range Rated for extreme operation from -40°C to +70°C

• Physical Mass 0.20 kg

• Dimensions 3.7 cm x 31.3 cm x 17.7 cm

• Certification CE Mark compliant and ISO 9001 quality assured

• Isolation Galvanic protection between system logic and field side

• Manufacturing Origin Sweden

• System Lifecycle Active production status

• Energy Profile Low power consumption for optimized heat dissipation

Functional Engineering Scenarios

The SPDSO14 module is a versatile component found in numerous heavy-industry control frameworks:

Discrete Actuator Management Controlling the open/close state of solenoid valves and motor starters in automated chemical batching and fluid transport systems.

Status and Alarm Signaling Driving localized annunciator panels and stack lights to provide real-time visual feedback of system health and process alerts.

Interlock and Safety Logic Executing binary safety commands within power generation facilities to trigger mechanical trips or engage emergency shutdown sequences.

Material Handling and Conveying Coordinating the start/stop sequences of variable speed drives and diverters in large-scale logistics and mining facilities.

Water Treatment Control Managing the cyclic operation of pumps and filtration backwash valves through deterministic digital signal output.
