Product Overview

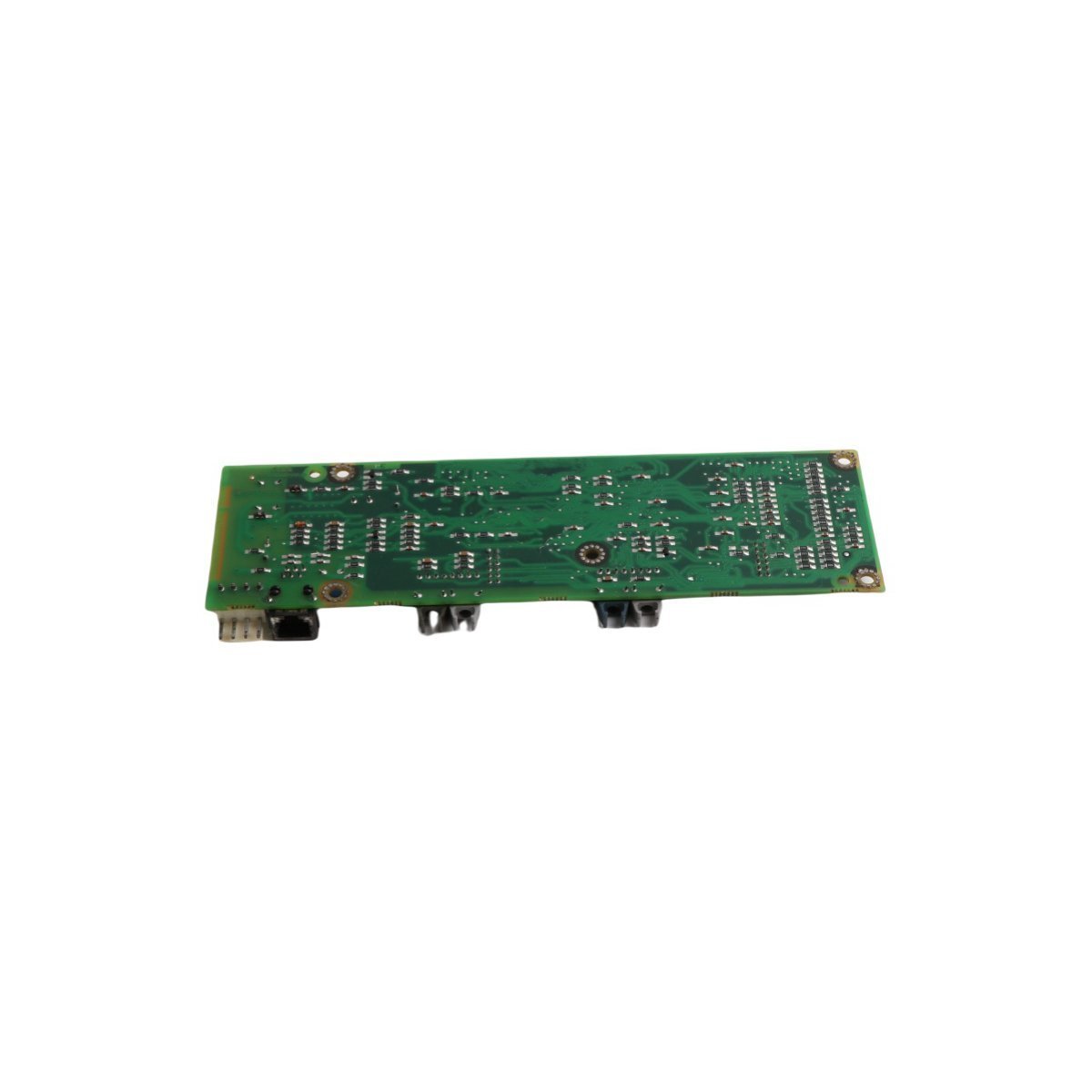

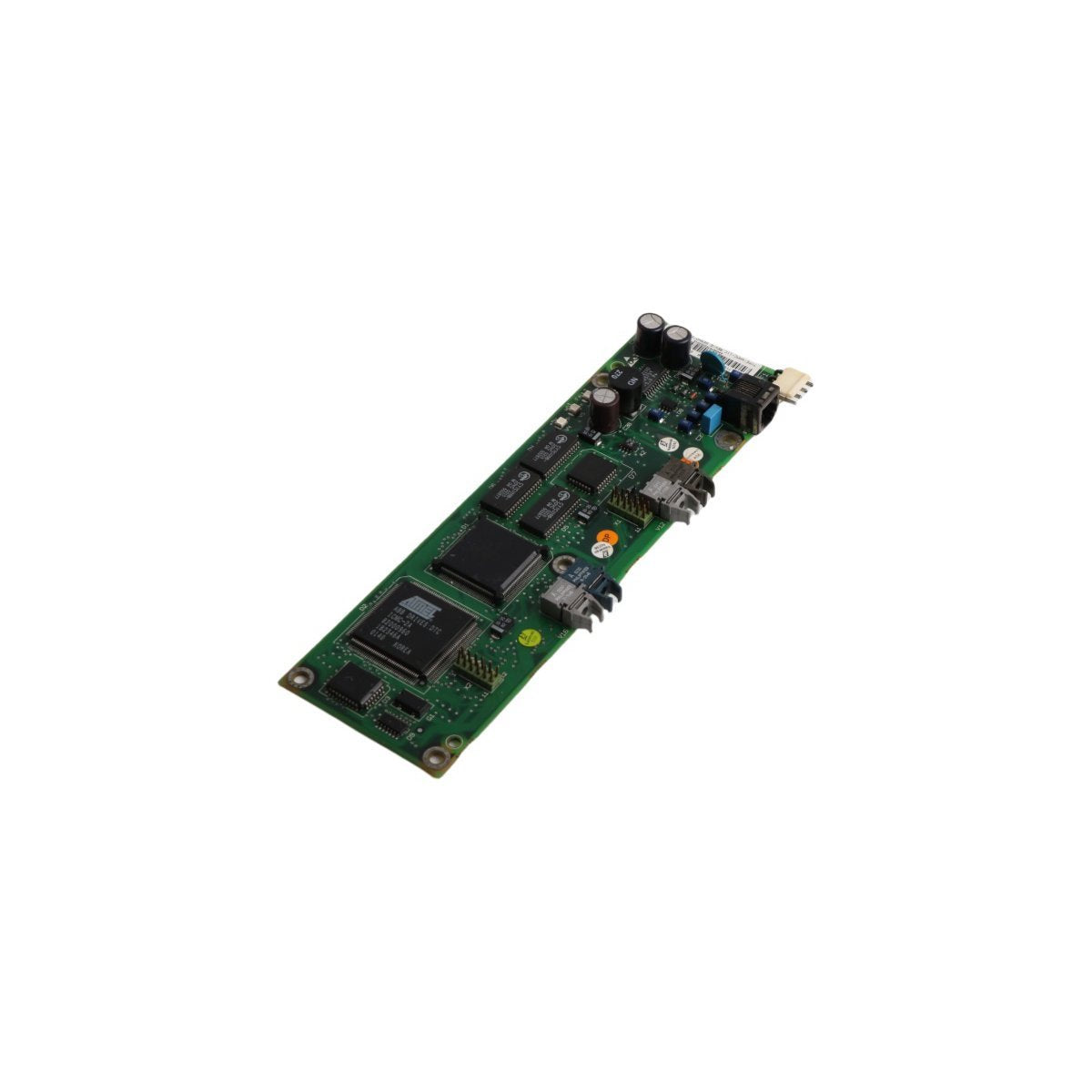

The ABB NAMC-03C, cataloged under order reference 3BSE009859R1, is a high-velocity processing unit and central control board engineered for the AC 800M automation platform. This module serves as the primary computational engine for decentralized control architectures, facilitating complex logic execution and real-time data management. Designed for high-availability environments, the NAMC-03C supports sophisticated redundancy protocols and PROFIBUS-DP communication, ensuring that critical process data remains synchronized across the Distributed Control System (DCS). Its architecture is specifically tailored to handle safety-instrumented functions and high-density I/O interfacing within the Advant OCS and 800xA ecosystems.

Vital Hardware Metrics and Environmental Ratings

The NAMC-03C is built to sustain performance in volatile industrial settings, featuring a low-profile PCB design with high thermal resilience.

• Module Mass: 0.1 kg

• Physical Dimensions: 21 x 6.7 x 2 cm

• Operating Voltage: 24V DC

• Thermal Range: -25°C to +70°C

• Communication Logic: PROFIBUS-DP and high-speed internal bus synchronization

• System Heritage: AC 800M / Advant OCS / 800xA

• Resilience Standards: Industrial-grade EMI shielding and vibration resistance

• Origin: Sweden

• Product Status: Active

The board's dual-processor layout allows for parallel tasking, which significantly reduces cycle times for complex PID loops and interlocking logic. Its compact 2cm depth allows for high-density installation in standard AC 800M controller subracks.

Strategic Industrial Implementations

The 3BSE009859R1 is a preferred solution for sectors where process interruption translates to significant safety or financial risk.

• Oil and Gas Upstream: Managing emergency shutdown (ESD) logic and fire and gas (F&G) monitoring systems on offshore platforms.

• Petrochemical Refining: Coordinating high-speed control loops for distillation columns and reactor temperature management.

• Power Generation: Acting as a localized controller for turbine auxiliary systems and burner management sequences.

• Global Manufacturing: Providing a reliable CPU foundation for large-scale decentralized automation networks in automotive or pulp and paper industries.

Q: What is the primary role of the NAMC-03C in an AC 800M system?

A: It functions as the central intelligence of the controller, executing user-defined logic, managing communication across the PROFIBUS-DP network, and ensuring data consistency between redundant pairs.

Q: How does the dual-processor design impact system reliability?

A: The architecture allows for task separation and fault-tolerant execution. If one process encounters a diagnostic error, the module can trigger safety protocols or hand over control to a redundant unit without losing process state.

Q: Can this board operate in unconditioned outdoor cabinets?

A: With an operating range down to -25°C and up to +70°C, the NAMC-03C is highly suited for field-mounted enclosures, provided they meet standard IP ratings for moisture and dust protection.

Q: Is the 3BSE009859R1 compatible with legacy Advant OCS systems?

A: Yes, it is designed to integrate seamlessly into the Advant OCS and 800xA environments, providing a modern, high-performance upgrade path for older control hardware.

Q: Does the module require specialized cooling due to its CPU power?

A: The board is engineered for efficient heat dissipation within its specified temperature range; however, maintaining standard airflow within the AC 800M rack is recommended for optimal longevity.
