Product Overview

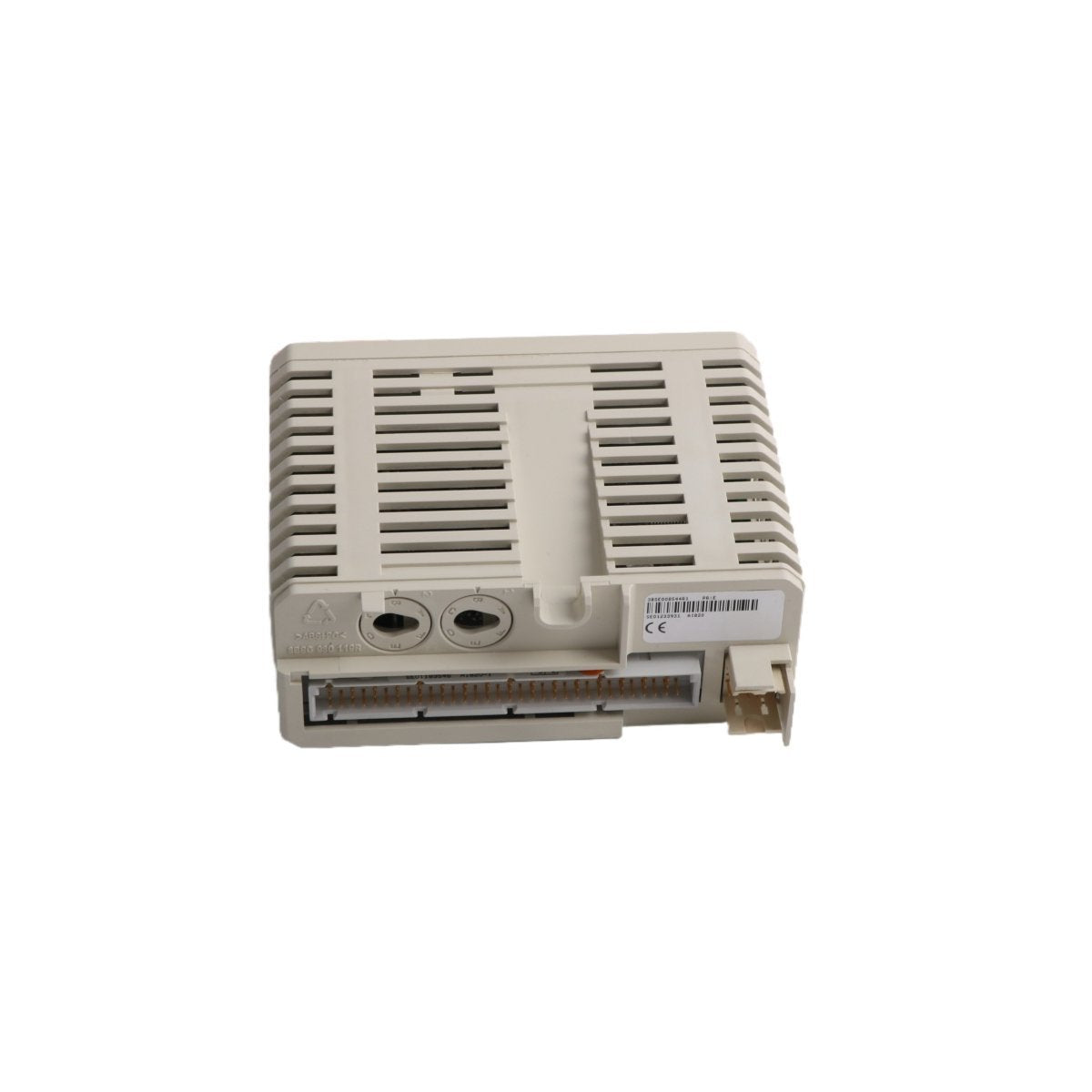

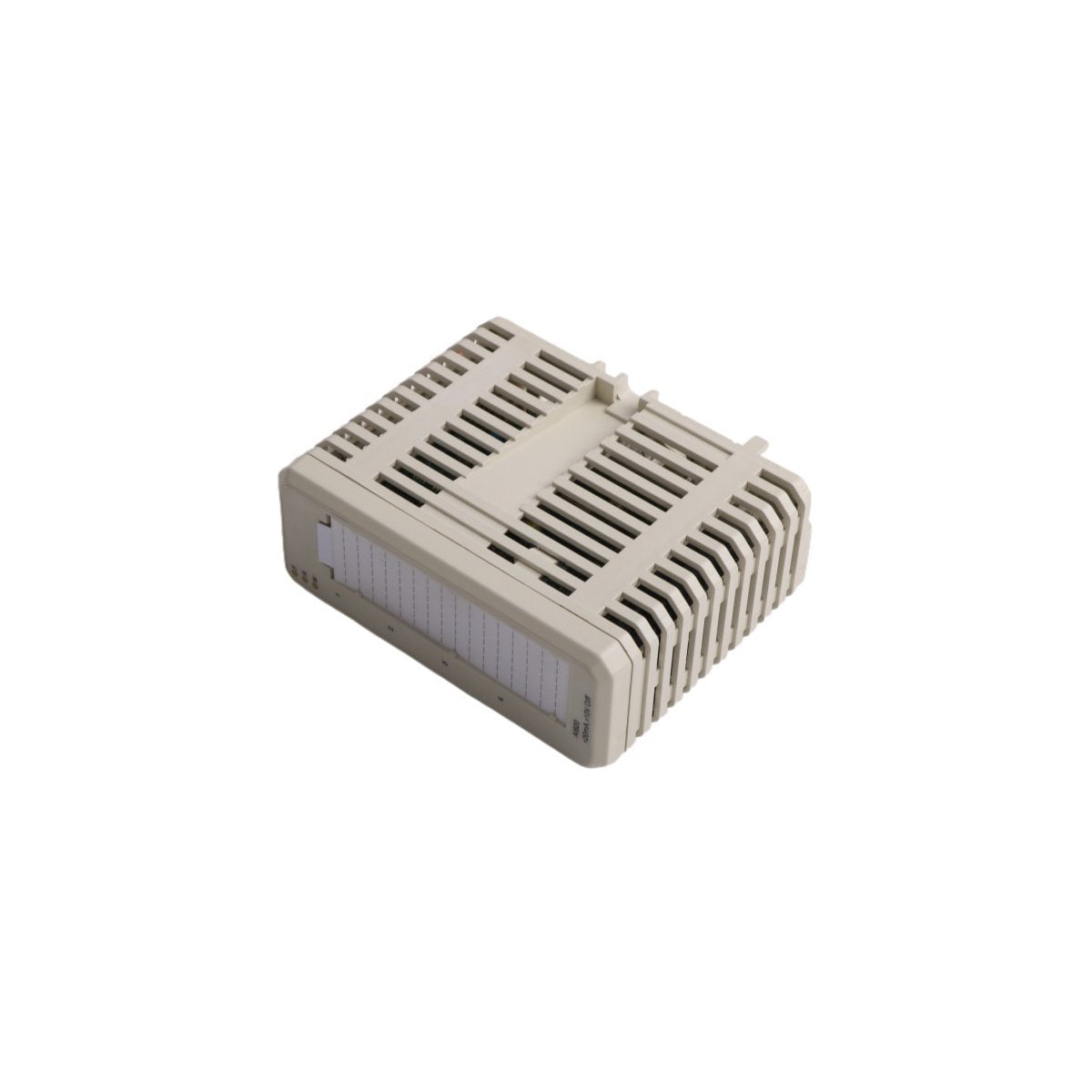

The ABB AI820, identified by part number 3BSE008544R1, is a high-performance analog input unit designed for the S800 I/O family within the Advant 800xA and AC 800M automation platforms. This module features four bipolar, differential input channels that are individually software-configurable for either voltage or current signals. A standout feature of the AI820 is its robust electrical protection; the current shunt resistors are engineered to withstand accidental 30V DC connections, and the module provides integrated power distribution for external 2-wire transmitters. By utilizing group isolation and a 14-bit plus sign resolution, the AI820 ensures high-fidelity data acquisition even in electrically noisy industrial environments, supporting complex control loops that require both precision and hardware resilience.

Hardware Parameters and Key Technical Characteristics

The AI820 is characterized by its versatile input range and advanced diagnostic capabilities, providing a reliable interface between field instrumentation and the DCS.

• Model Identification: AI820 / 3BSE008544R1

• Input Channels: 4 Differential, Bipolar channels

• Signal Resolution: 14 bits plus sign

• Voltage Input Ranges: ±10 V, 0..10 V, 2..10 V, ±5 V, 0..5 V, 1..5 V DC

• Current Input Ranges: ±20 mA, 0..20 mA, 4..20 mA

• Input Impedance: 250 Ω (Current mode) / >1 MΩ (Voltage mode)

• Protection: Shunt resistors protected up to 30 V DC; 5W temporary overload capacity

• Isolation: Group isolation from ModuleBus (50V continuous)

• Transmitter Power: External supply distribution to field devices (no current limiting)

• System Compatibility: AC 800M and Advant OCS via S800 I/O Station

• Physical Mass: 1.08 kg

• Dimensions: 18.5 x 8.5 x 30.5 cm

• Manufacturing Origin: Sweden

Operational Use Cases and Industrial Applications

The AI820 is specifically designed for mission-critical processes where signal accuracy and equipment protection are paramount.

• High-Precision Flow Control: Interfacing with differential pressure transmitters in oil and gas pipelines to monitor flow rates with bipolar signal accuracy.

• Chemical Reactor Monitoring: Acquiring data from 2-wire pH or conductivity transmitters where the module's power distribution simplifies field wiring.

• Renewable Energy Management: Monitoring voltage fluctuations in wind turbine pitch control systems requiring high-resolution bipolar (±10V) feedback.

• BMS and HVAC Systems: Integrating temperature and humidity sensors in large-scale industrial facilities using 4-20mA loops with high noise immunity.

• Smart Field Device Integration: Utilizing the module's stable analog path to support HART-compatible smart transmitters for remote diagnostics and asset management.
