Product Overview

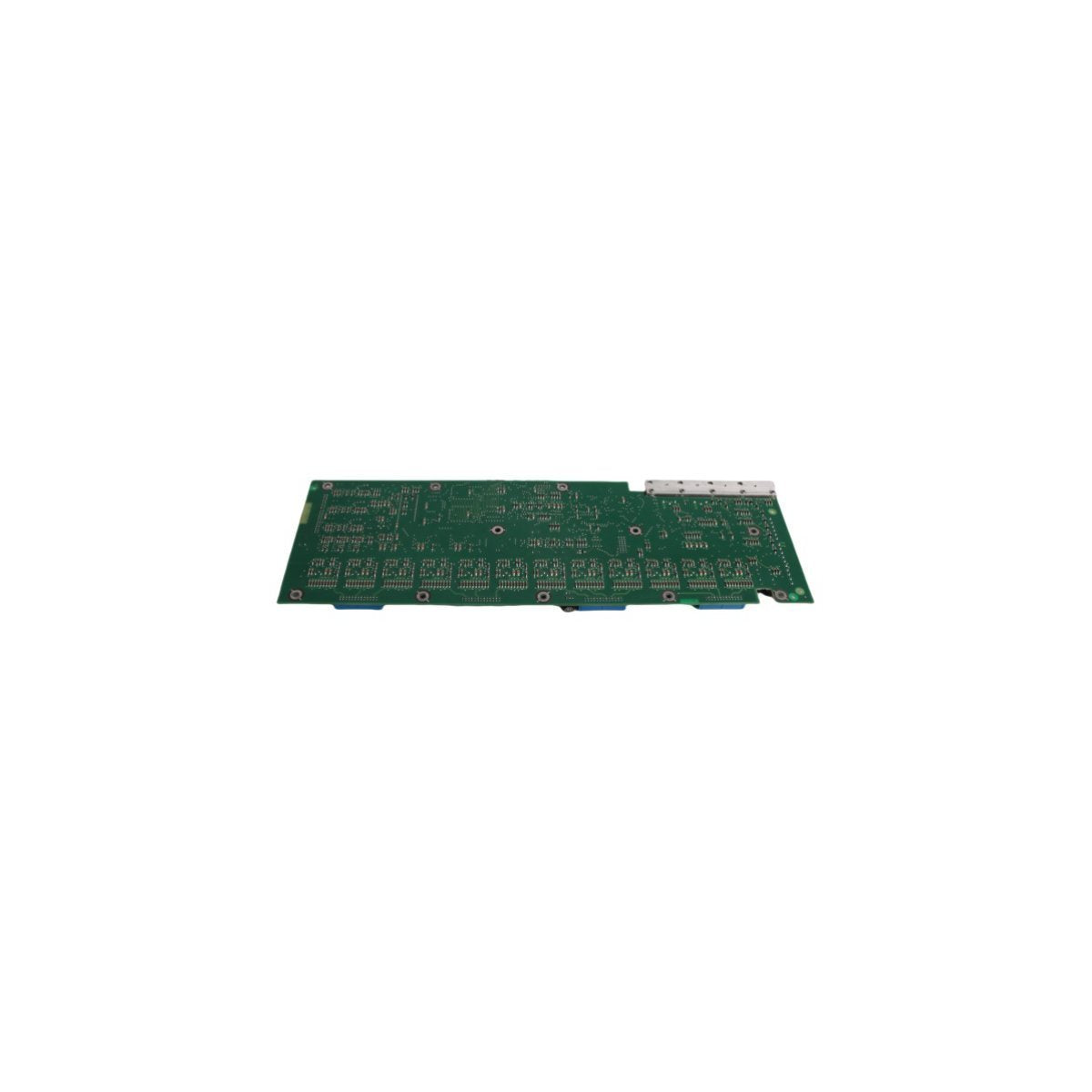

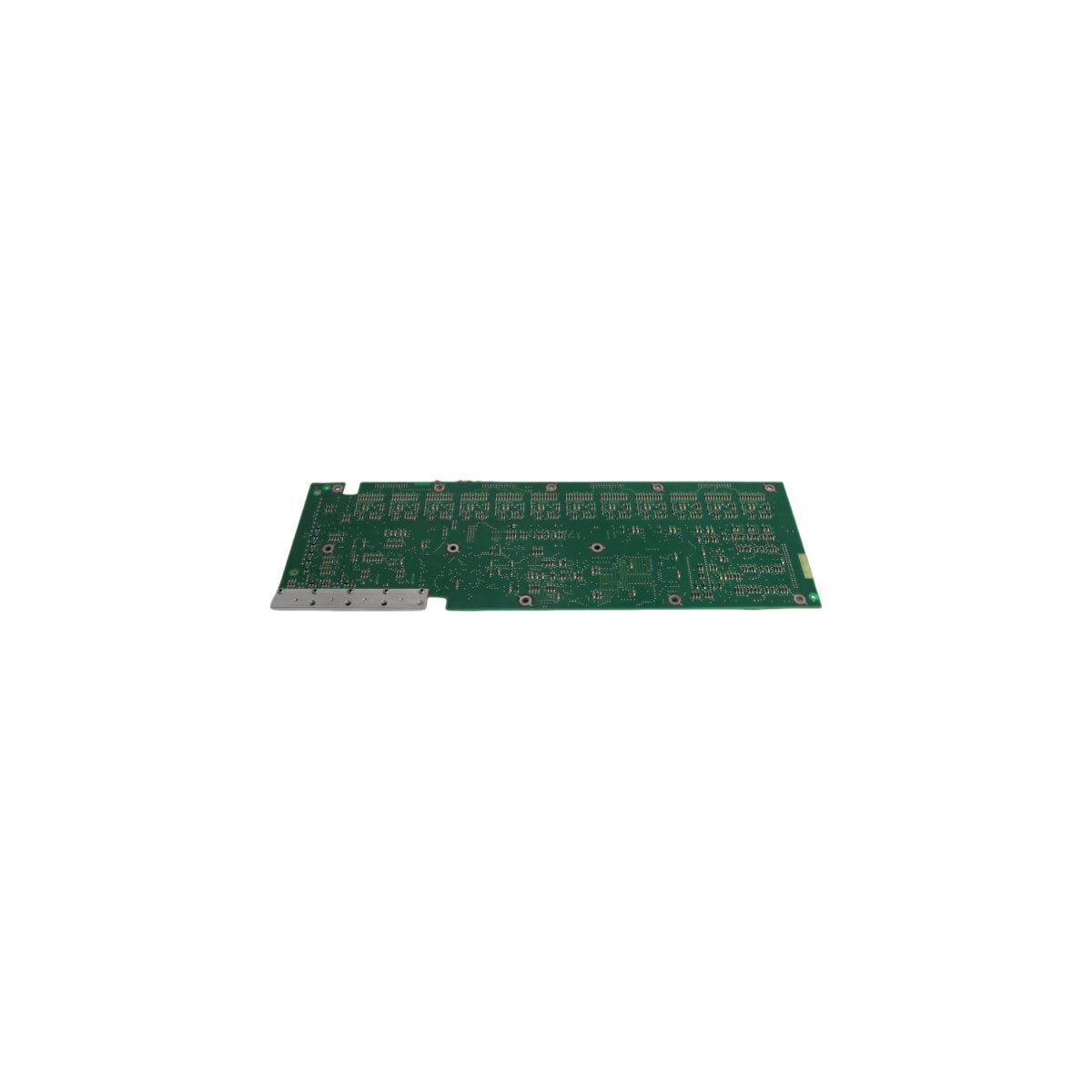

The ABB PMSK106A, identified by the order reference 3BSE005676R1, is a high-performance transducer interface board engineered for the AC 800F controller family. This precision component acts as a specialized signal conditioner, bridging the gap between field-side sensing elements and the digital processing environment of a Distributed Control System (DCS). Designed to maintain signal integrity in electrically noisy industrial settings, the PMSK106A ensures that critical physical measurements are converted with extreme fidelity. Its Swedish-built architecture is optimized for high-reliability applications where deterministic data acquisition is essential for process safety and operational efficiency.

Hardware Specifications and Environmental Metrics

The PMSK106A 3BSE005676R1 is defined by the following technical parameters:

• Measurement Accuracy: ±0.1% full scale for ultra-precise signal acquisition

• Protection Rating: IP67-rated enclosure (when correctly housed) for dust and water resistance

• Physical Mass: 0.42 kg

• Board Dimensions: 45.4 x 15 x 2 cm

• Series Compatibility: AC 800F Field Controller System

• Signal Processing: Advanced I/O filtering to minimize interference

• Communication Support: Seamless integration with Ethernet-based DCS routers

• Manufacturing Origin: Sweden

• Customs Classification: 8537101190 (HS Code)

Industrial Deployment and System Utility

This transducer board is a critical asset in sectors requiring rigorous automation standards:

• Process Industry Monitoring: Capturing high-precision data from flow, pressure, and level transmitters in chemical and pharmaceutical plants.

• Heavy Industrial Automation: Serving as a reliable interface for sensors in dusty or moisture-prone environments, such as mining and cement production.

• Energy and Utility Management: Orchestrating signal feedback in power distribution networks where 0.1% accuracy is vital for load balancing.

• System Modernization: Providing a robust replacement or expansion path for AC 800F racks to improve overall system responsiveness and data resolution.

FAQ

Q: What is the primary benefit of the ±0.1% accuracy on the PMSK106A?

A: This high level of precision ensures that the control system receives nearly perfect data from the field, reducing process variability and allowing for much tighter control tolerances in sensitive manufacturing environments.

Q: Is the 3BSE005676R1 board protected against harsh environmental factors?

A: Yes, the board is designed with an IP67 protection standard in mind, providing high resistance to dust ingress and water exposure, which is ideal for outdoor or wash-down industrial areas.

Q: How does this board integrate with the AC 800F controller?

A: The PMSK106A is designed for direct bus integration within the AC 800F framework, facilitating high-speed data transmission to the central processor via the internal system backplane.

Q: Why is the board length significantly larger (45.4 cm) than standard I/O cards?

A: The elongated form factor is designed to accommodate specialized transducer conditioning circuitry and high-grade isolation components, ensuring maximum signal separation and stability.

Q: Does the PMSK106A require specific configuration software?

A: Configuration is typically handled through ABB’s standard engineering toolset for the AC 800F series, allowing for easy calibration and scaling of the transducer signals.
