Product Overview

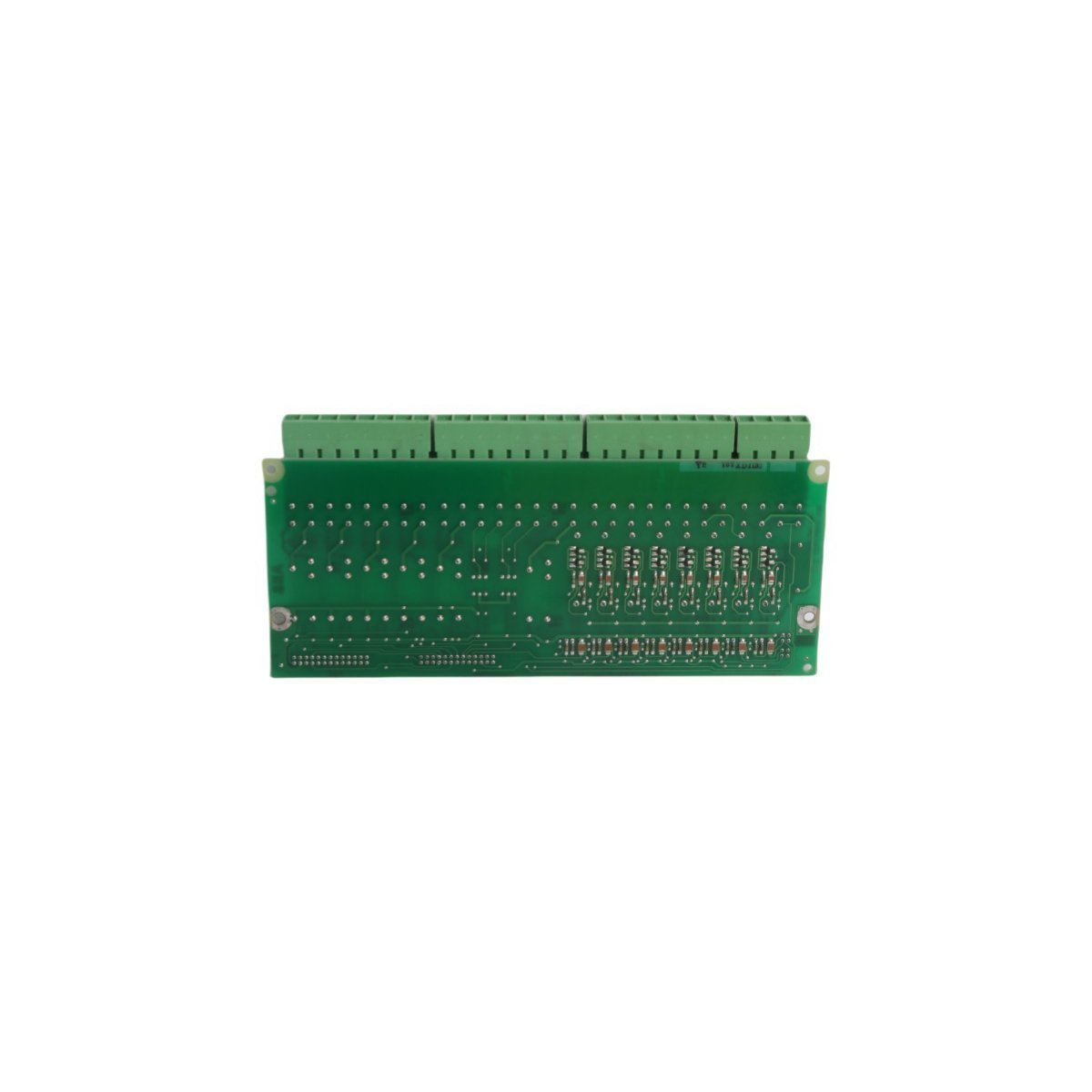

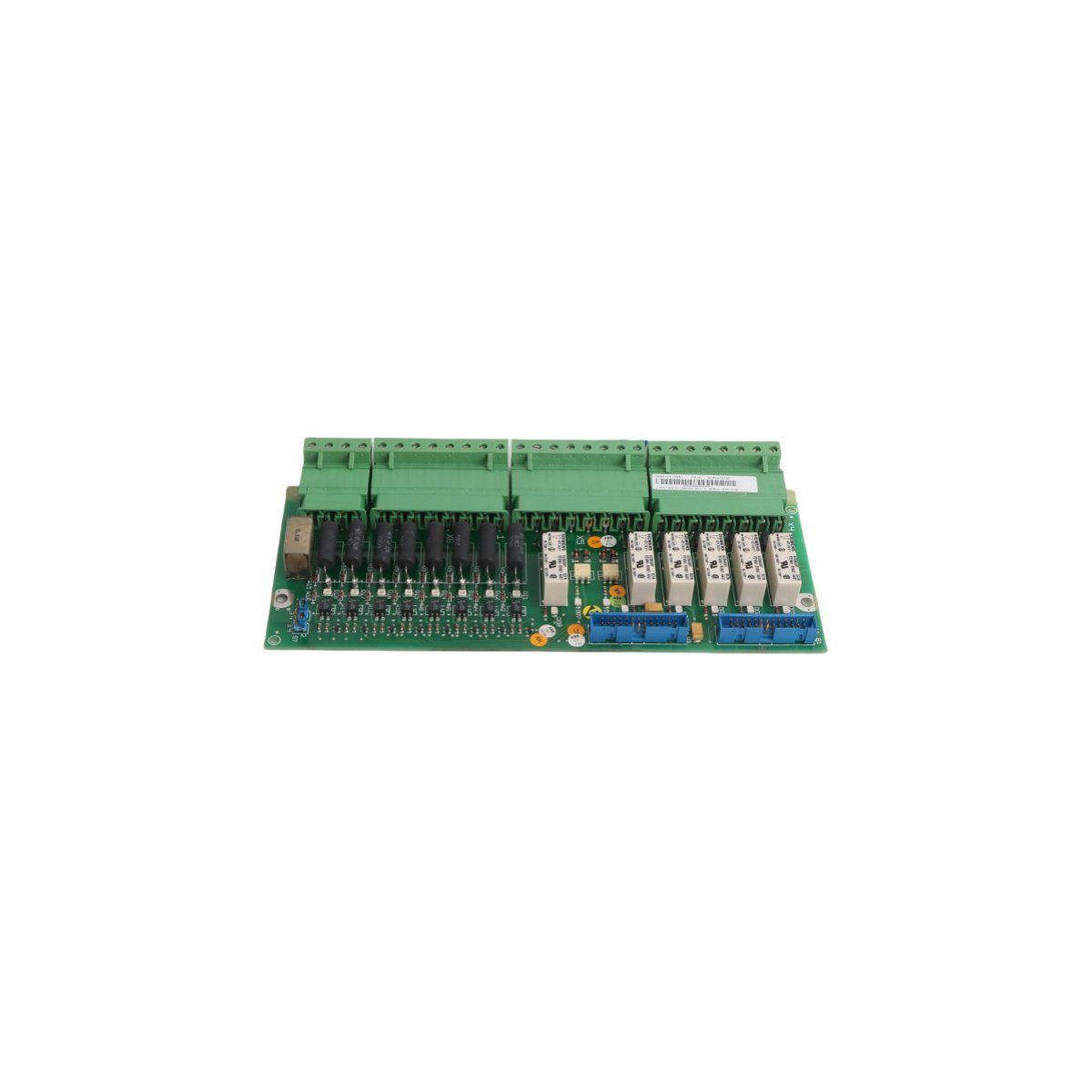

The 3BSE005178R1, designated as the SDCS-IOB-23, is a specialized digital connection board developed by ABB for high-precision signal interfacing within the DCS800 industrial drive ecosystem. This module serves as a critical junction for digital signal distribution, allowing for the organized expansion and management of input/output data streams. By bridging the gap between field devices and the drive's control unit, the SDCS-IOB-23 ensures that logic signals are transmitted with minimal noise interference and high integrity. Its modular architecture is designed to enhance the scalability of automation systems, providing a reliable foundation for complex digital logic and state monitoring.

Technical Specifications and System Parameters

The SDCS-IOB-23 is engineered for high-density connectivity and environmental resilience. It integrates seamlessly with various communication backplanes to provide real-time data accessibility.

• Order Designation: 3BSE005178R1

• Model Identifier: SDCS-IOB-23

• Signal Density: Supports high-channel count configurations for digital I/O

• Protocol Compatibility: Optimized for CANopen and Modbus RTU environments

• Operating Temperature: -20°C to +70°C for extreme industrial stability

• Mass: 0.36 kg

• Physical Footprint: 23.3 cm x 11.2 cm x 2.0 cm

• Origin of Manufacture: Sweden

• Tariff Code (HS): 8537101190

Industrial Deployment and Automation Utility

As a core component of the DCS800 drive series, this digital connect board is utilized in sectors where high-speed switching and status feedback are vital for operational safety and performance.

• DC Drive Control: Acts as the primary digital interface for DCS800 converters, managing emergency stops, start/stop logic, and fault signals.

• Metals and Mining: Employed in rolling mills and hoist systems where high-density I/O is required to monitor dozens of limit switches and safety sensors.

• Pulp and Paper Industry: Facilitates the complex sequencing required for sectional drives in continuous production lines.

• Retrofitting and Upgrades: Ideal for modernizing older DC drive installations, providing a path to integrate legacy field signals into modern DCS or Ethernet-based architectures.
