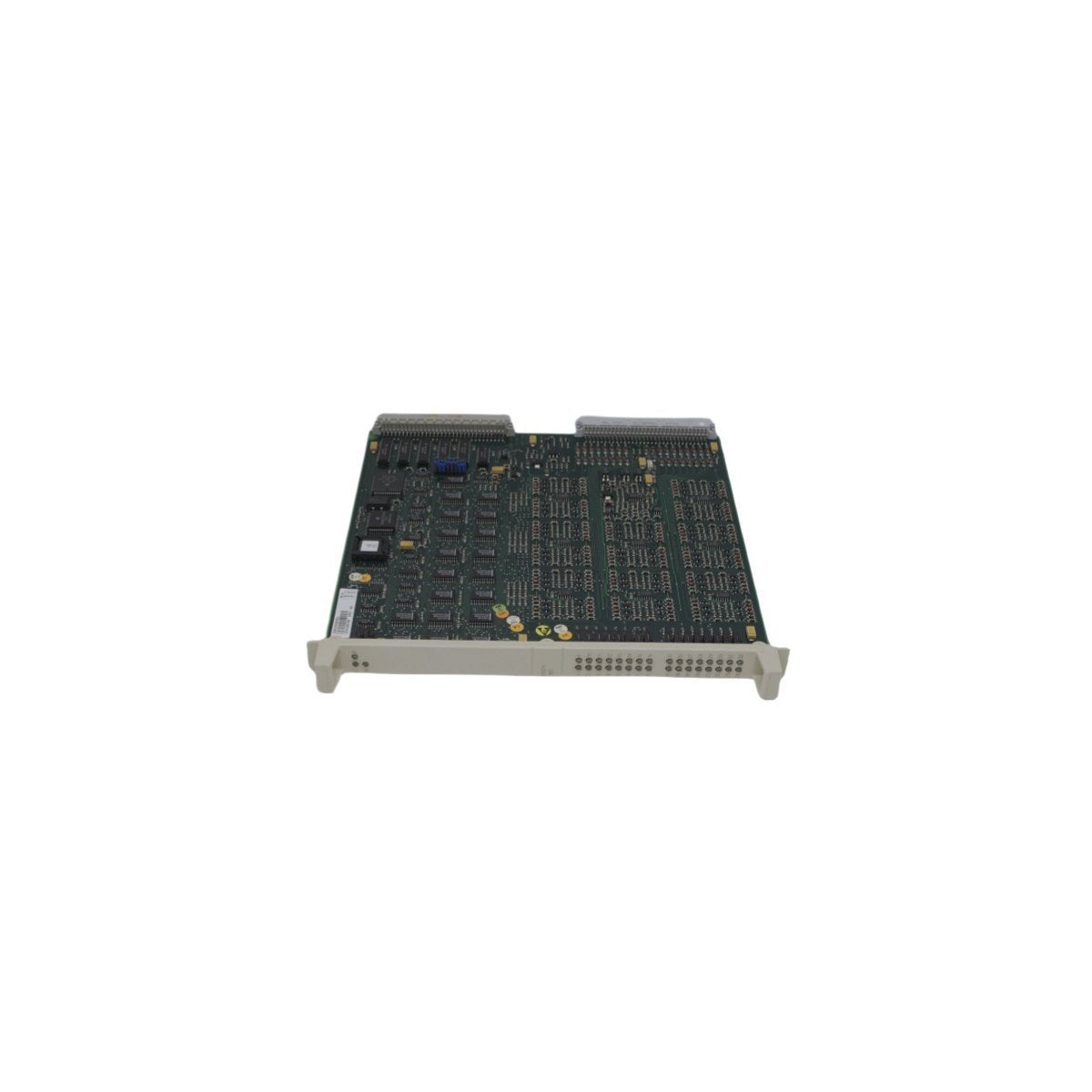

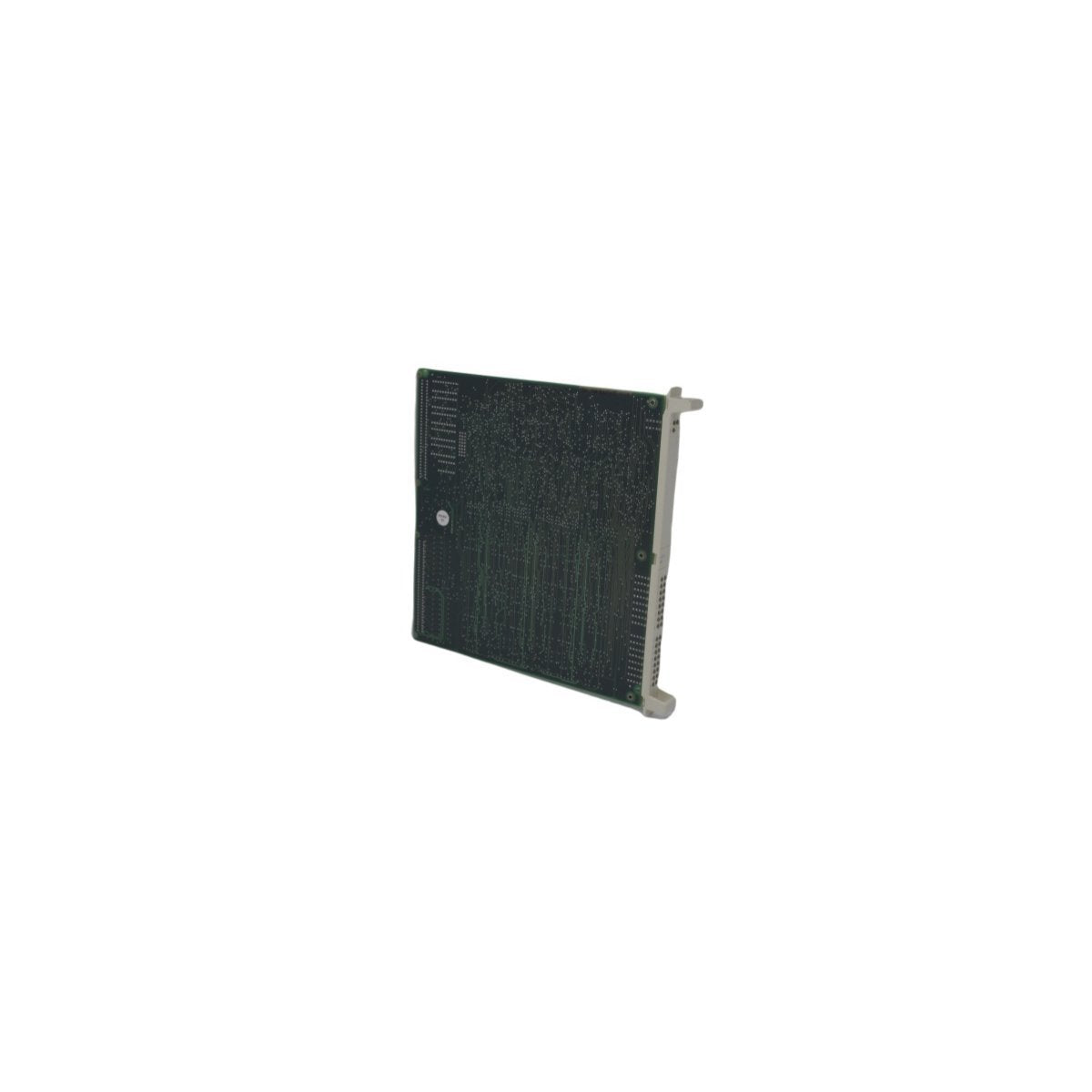

The ABB DSDX 180 3BSE003859R1, also cataloged as the DSDX 180 Digital Input/Output Module, provides 32 digital I/O channels for ABB S100 I/O systems. ABB documentation identifies the unit as an S100 I/O module for Advant OCS platforms, including MasterPiece controller environments.

Model and System Identification

The DSDX 180 is specified by ABB as a Digital Input/Output module within the S100 I/O product structure. The board provides 32 channels and interfaces with the field through DSTX 180 or DSTX 180P connection units and associated cabling.

Hardware Specifications

ABB product documentation lists the net weight as 0.33 kg and identifies the DSDX 180 under S100 I/O modules. The 34 x 26 x 3.8 cm shipping dimension is a reported packing dimension rather than an ABB-published logistics specification.

I/O Architecture and Backplane Integration

The DSDX 180 provides 32 digital channels. The S100 I/O architecture uses connection units to terminate and condition field signals before connection to the board. For DSDX 180 installations, two DSTX 180 or DSTX 180P units are used to interface the 32 channels to the process.

The board can also be installed in redundant configurations where supported by the associated S100 I/O architecture. The ABB S100 documentation identifies optional redundant cabling between the DSDX board and a backup DSDX board.

Ordering Information

• 1 x ABB DSDX 180 Digital Input/Output Module
• 1 x Part Number 3BSE003859R1
• DSTX 180 or DSTX 180P connection units are separate components
• DSTK 152 or DSTK 222 interface cables are separate components
• Field conditioning modules are selected according to the required signal type
• Redundant installations require the corresponding additional board, connection hardware, and cabling

Field Installation Guidelines

Connection Hardware

• Use the specified DSTX 180 or DSTX 180P connection unit for field termination.
• Verify the connection-unit configuration before applying field power.
• Use the designated DSTK interface cable between the board and connection unit.

Signal Wiring

• Keep digital signal wiring separated from high-energy power conductors.
• Route signal pairs consistently to minimize induced electrical noise.
• Maintain correct polarity for 24 VDC field circuits.
• Verify terminal assignments against the system wiring documentation before energizing the circuit.

Grounding and Shielding

• Connect cable shields according to the installed S100 cabinet grounding design.
• Avoid creating multiple unintended shield-to-ground paths.
• Keep shield termination physically close to the designated cabinet grounding point.

Replacement Checks

• Confirm the complete part number and board identification before replacement.
• Verify the installed S100 rack, connection unit, cable type, and channel assignment.
• Perform channel-by-channel I/O verification after installation.

Frequently Asked Questions

• What is the channel capacity of the DSDX 180?

  The DSDX 180 provides 32 digital I/O channels. The channels interface with field circuits through the associated S100 connection units.

• What field voltage is associated with the DSDX 180?

  The S100 DSDX 180 architecture is based on 24 VDC digital field signaling. Actual conditioning hardware must match the installed field circuit.

• Which connection unit is used with the DSDX 180?

  The DSDX 180 interfaces with DSTX 180 or DSTX 180P connection units. Two connection units are required for all 32 channels.

• Can the DSDX 180 be installed redundantly?

  The S100 architecture supports optional redundant DSDX configurations. Redundant operation requires the corresponding backup board and specified connection cabling.

• What cable connects the DSDX 180 to the connection unit?

  ABB documentation identifies DSTK 152 and DSTK 222 cables for DSDX 180 interconnection. Cable selection must match the installed system configuration.

• Is the DSDX 180 a standalone field termination device?

  No. Field termination is performed through the appropriate DSTX connection unit and conditioning hardware rather than directly on the board.

• What is the documented net weight of the module?

  The ABB product data identifies a product net weight of 0.33 kg. This value refers to the module itself rather than the complete shipping package.

• Is the board hot-swappable?

  Do not assume hot-swap capability. Replacement should follow the installed S100 system maintenance procedure and be performed with the applicable power isolation requirements.
