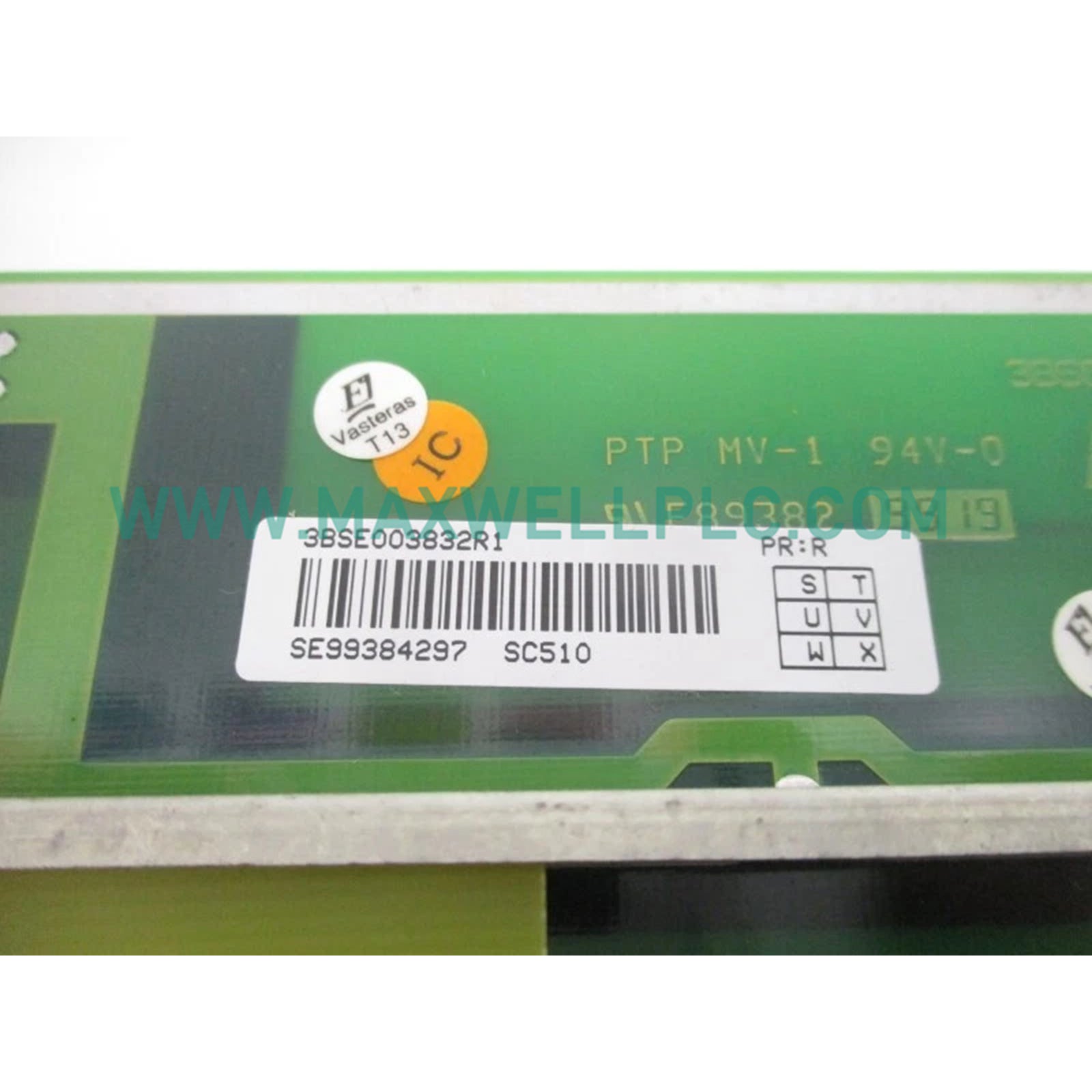

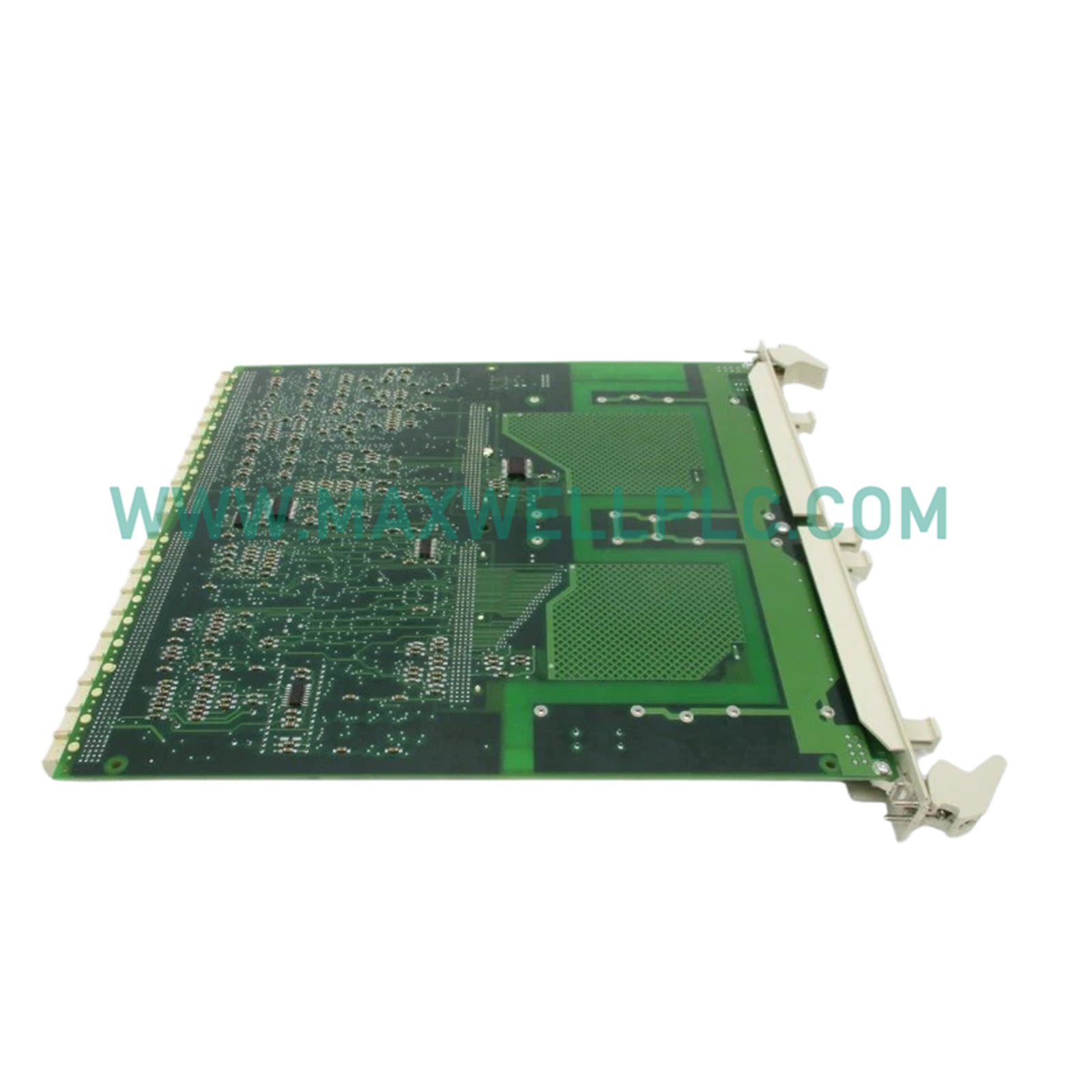

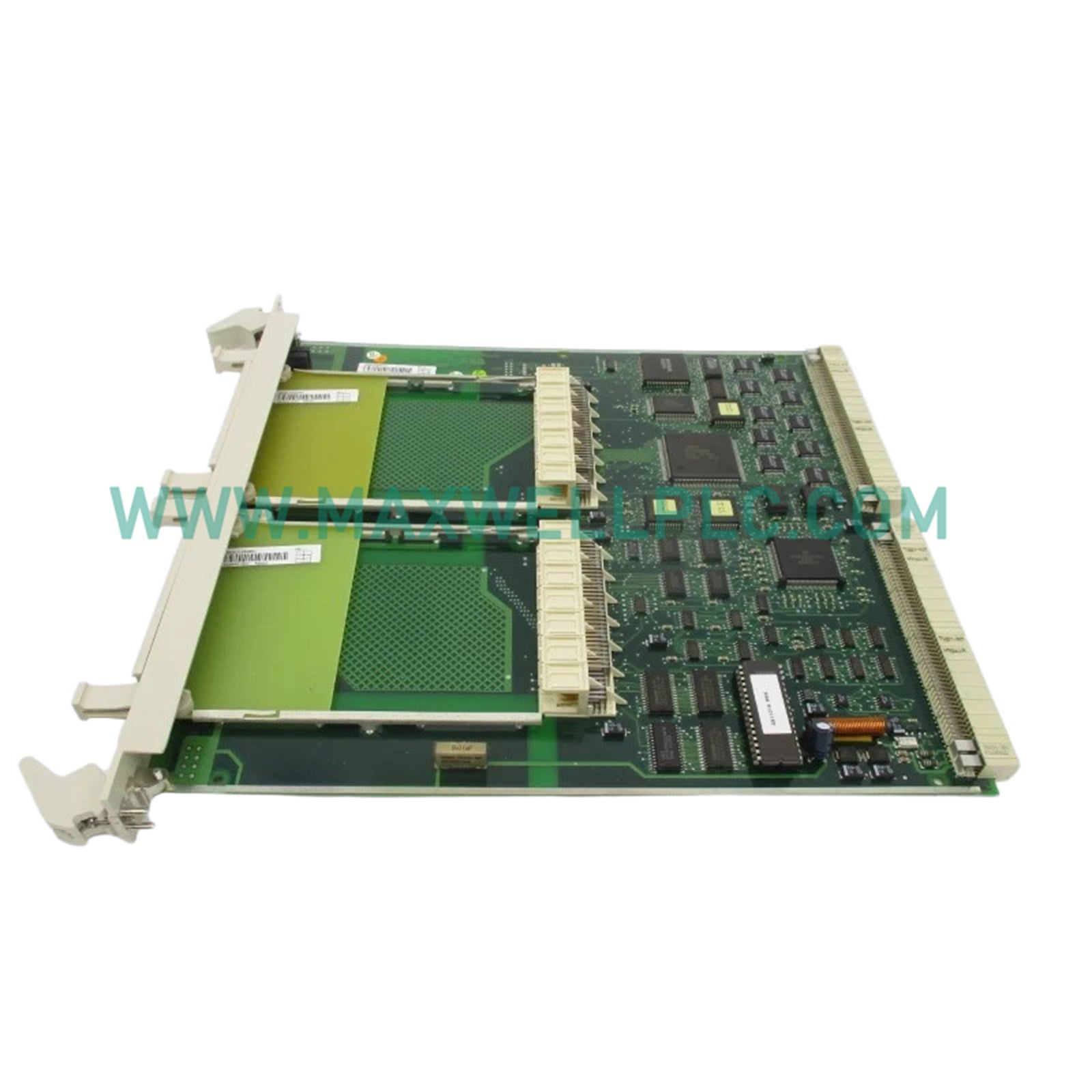

The ABB 3BSE003832R1, also cataloged as the SC510 Submodule Carrier, operates as a dedicated hardware component for backplane signal routing and module mounting within Advant Controller systems.

Submodule Carrier Model Breakdown

• SC510 (Base Designation): Standard communication submodule carrier frame designed for Advant Controller host chassis.

• 3BSE003832R1 (Part Number): Passive execution unit configured without an onboard CPU, dedicated to bus signal routing and mechanical mounting.

Architecture & System Hardware Specifications

Backplane Communication Velocity & Bus Characteristics

The SC510 carrier provides high-integrity backplane bus communication velocity and power propagation across all target slots. By eliminating active processing elements, the passive layout optimizes I/O density scaling while preserving deterministic signal latencies between host controller buses and external communication submodules. The internal trace routing enforces cross-talk isolation and electromagnetic compatibility (EMC) in high-density rack configurations.

Delivery Package Overview

• 1 x ABB SC510 Submodule Carrier Base (Part Number: 3BSE003832R1)

• Protective ESD shielding packaging

• Mechanical mounting clip hardware

Mechanical & Field Installation Protocol

• Rack Mounting & Mechanical Clearance

  • Mount vertically inside standard enclosures, allowing 50 mm clearance above and below for ambient airflow.

  • Torque panel retention screws to manufacturer limits (0.8 Nm) to verify vibration resistance.

• Electrical Grounding & Shielding

  • Establish direct metal-to-metal contact with the cabinet earthing rail via the chassis ground lug.

  • Keep signal lines isolated from high-voltage motor cables with a minimum spacing of 200 mm.

• Submodule Insertion

  • Verify power supply isolation prior to sliding submodules into carrier guide slots.

  • Ensure full keyway alignment before applying insertion pressure to avoid pin deformation.

Technical FAQ

1. Does the SC510 carrier require firmware flash updates?

No. The SC510 3BSE003832R1 is a passive carrier without CPU or active flash memory.

2. Can submodules mounted on the SC510 be hot-swapped during execution?

Hot-swapping depends on the main controller rack capabilities; however, passive bus pins require careful straight-line extraction to avoid transient signal disruptions.

3. What is the power consumption of the SC510 carrier itself?

The carrier operates as a passive backplane extension and consumes zero nominal logic power, acting strictly as a electrical conductor for attached submodules.

4. How does the SC510 handle signal isolation between slots?

Signal isolation is maintained via dedicated trace layout ground planes on the internal multi-layer PCB assembly.

5. Is a CPU module required directly on the SC510?

No. The "without CPU" variant connects back to a master controller via standard backplane extension cabling.

6. What grounding precautions are mandatory during installation?

An ESD wrist strap connected to cabinet ground must be worn during submodule handling, and the carrier shield ground terminal must bond directly to PE rail.

7. How does mechanical vibration impact the carrier assembly?

The rigid structural chassis and high-retention slot connectors resist standard industrial vibration profiles when all retention fasteners are torqued.

8. Can fieldbus expansion interfaces be mounted directly on this carrier?

Yes. The carrier accepts compatible Advant Controller series communication submodules and protocol fieldbus interface units.
