Product Overview

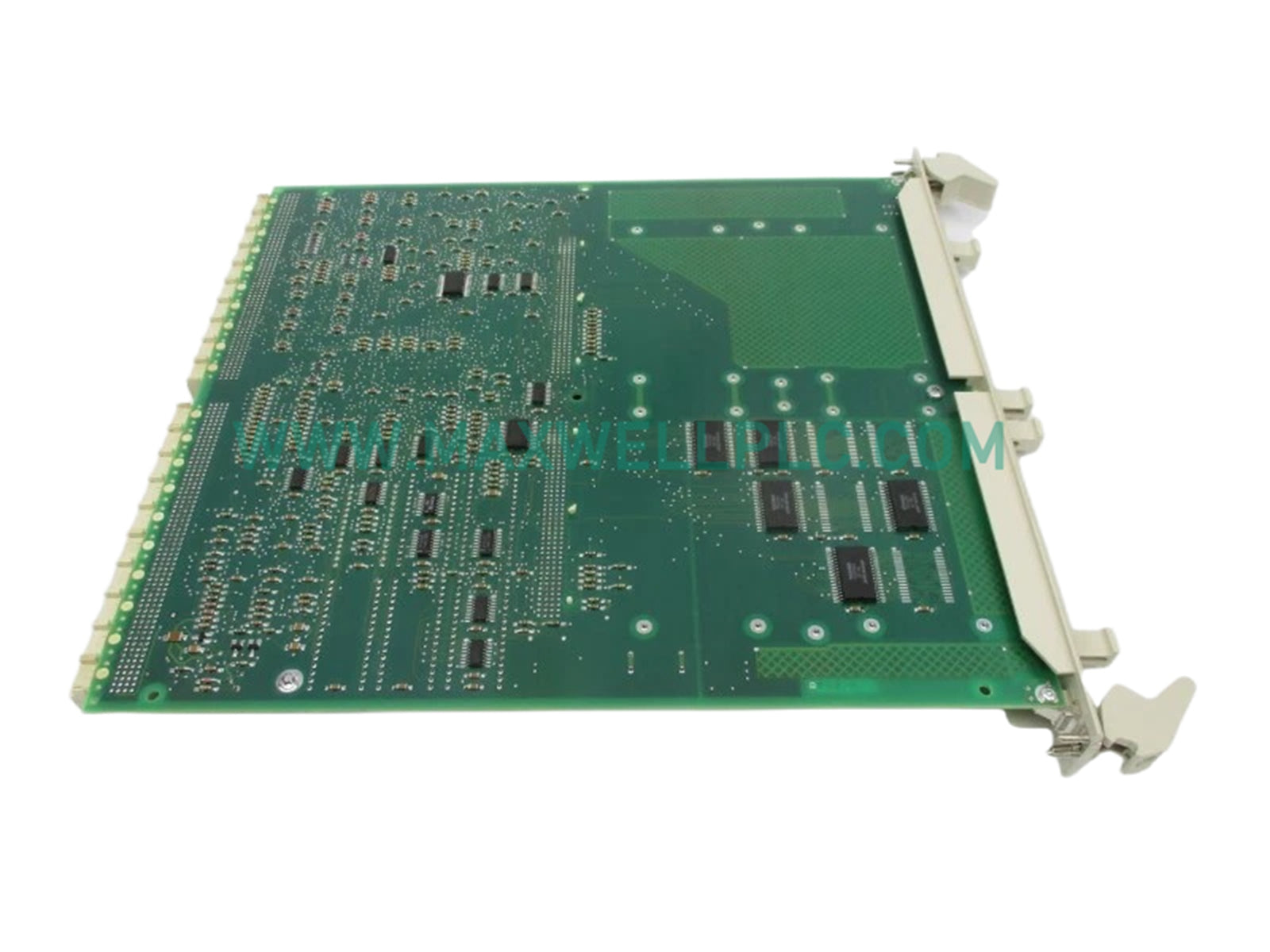

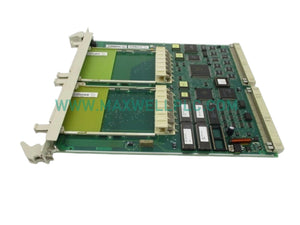

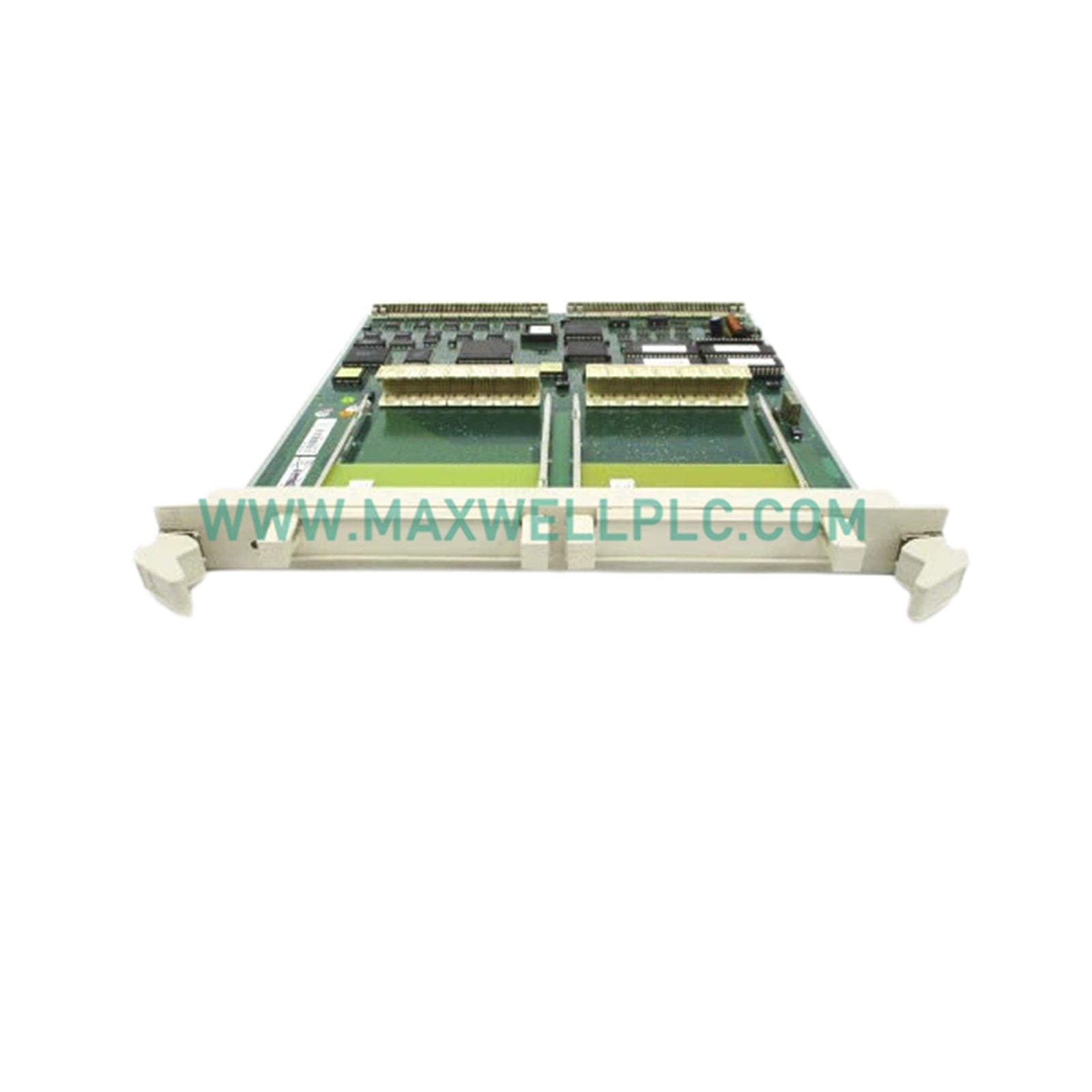

The ABB SC520, part number 3BSE003816R1, is a high-performance submodule carrier designed specifically for the Advant Master Process Control System. Unlike standard passive carriers, the SC520 features an integrated local CPU, providing dedicated processing power for communication tasks and offloading the primary controller’s workload. This module serves as a critical interface in Distributed Control Systems (DCS), facilitating robust data exchange across industrial networks.

This module is primarily utilized to support specialized communication protocols, including MasterBus 300 (MB300) and MasterBus 300E (MB300E). By providing a localized intelligence layer, the SC520 ensures deterministic signal processing and high-speed telemetry between controller nodes and peripheral submodules. Its architecture is engineered for the 24/7 reliability required in heavy process industries such as chemical manufacturing, power generation, and pulp and paper production.

Communication Capabilities and System Context

The SC520 3BSE003816R1 is the standard industrial version of the carrier interface. For environments involving high humidity or salt-spray exposure, a coated marine-classified variant (SC520M) is available under a separate part number. The SC520 operates within the Advant Master framework, managing the physical and logical layers of the submodule bus. It effectively bridges the gap between field-level communication submodules and the high-level control logic executed by the main AC400 series processors.

The integrated CPU allows for localized diagnostics and autonomous management of the submodule communication cycle. This helps in maintaining network integrity even during periods of heavy data traffic, preventing latency and ensuring that critical process values are updated in real-time. The unit is designed for compact cabinet installation, featuring a narrow width of 30 mm to maximize rack density.

Technical Specifications

• Manufacturer: ABB

• Model Designation: SC520

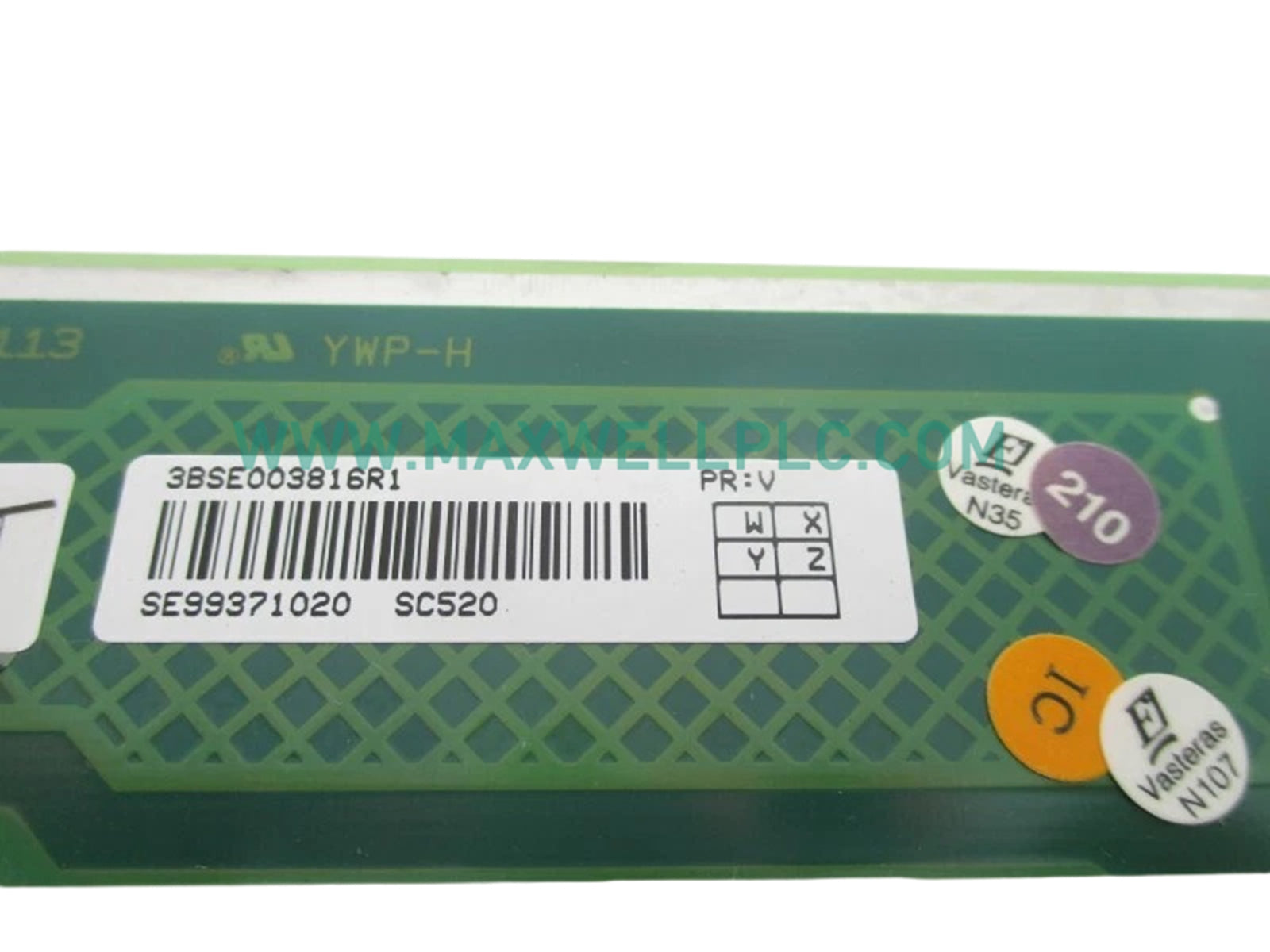

• Order Code: 3BSE003816R1

• Module Type: Communication Submodule Carrier with Local CPU

• Network Support: MasterBus 300 (MB300), MasterBus 300E (MB300E)

• System Family: Advant Master DCS

• Net Dimensions (H x W x D):  30cm x 3cm x 29 cm

• Net Weight: 0.742 kg

• HS Code: 85389091

• Manufacturing Origin: Sweden

• RoHS Status: Exempt as per Article 2(4) for industrial installations

• WEEE Category: Small Equipment (No dimension > 50 cm)

Engineering and Integration Benefits

• Onboard Intelligence: Integrated local CPU manages communication submodules autonomously, reducing load on the main system processor.

• Deterministic Messaging: Optimized for MB300/MB300E protocols to ensure consistent data delivery for critical control loops.

• High-Density Design: Slim 30mm form factor allows for efficient use of rail space within Advant Master controller racks.

• Ruggedized Swedish Engineering: Built for long-term stability in high-demand industrial automation environments.
