Product Overview

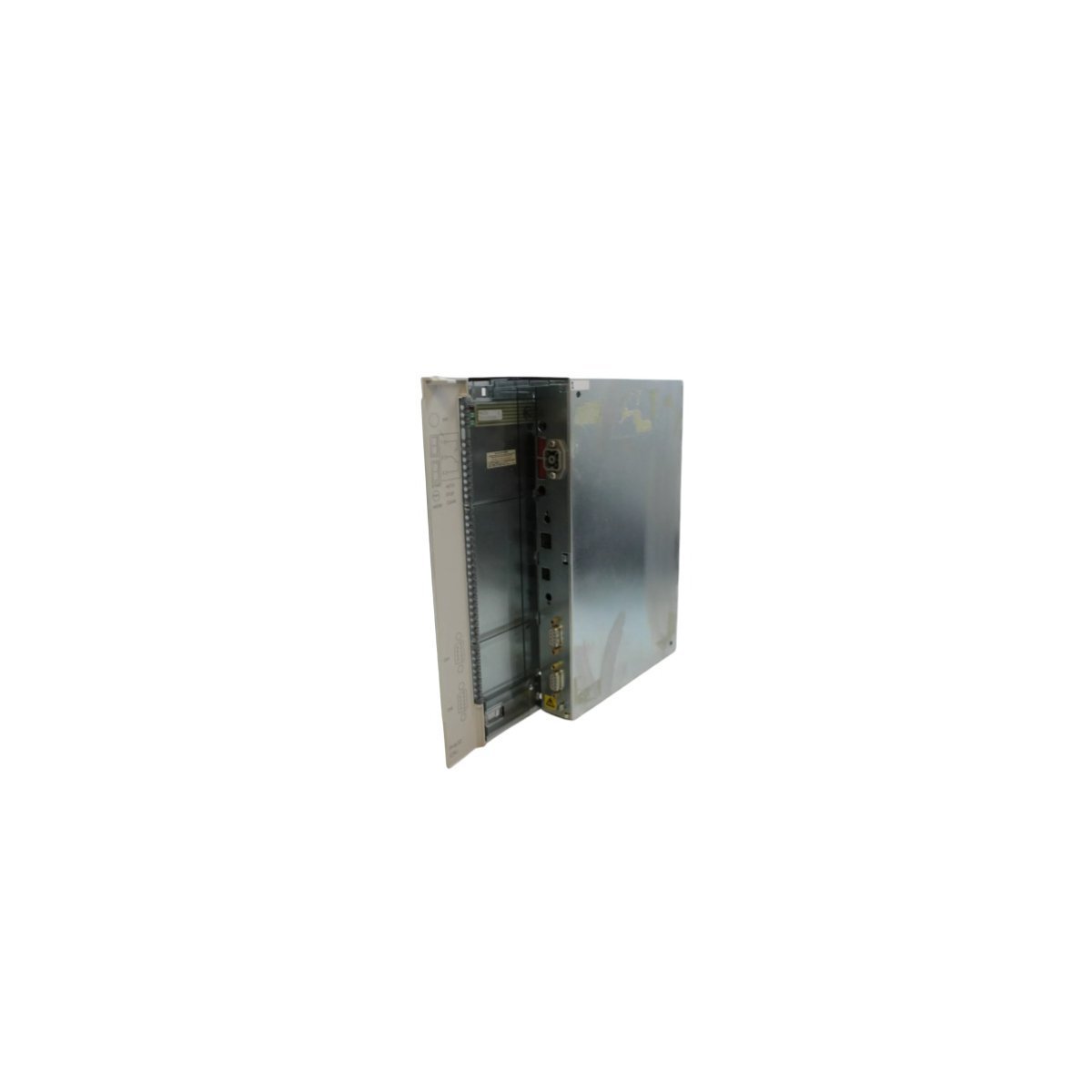

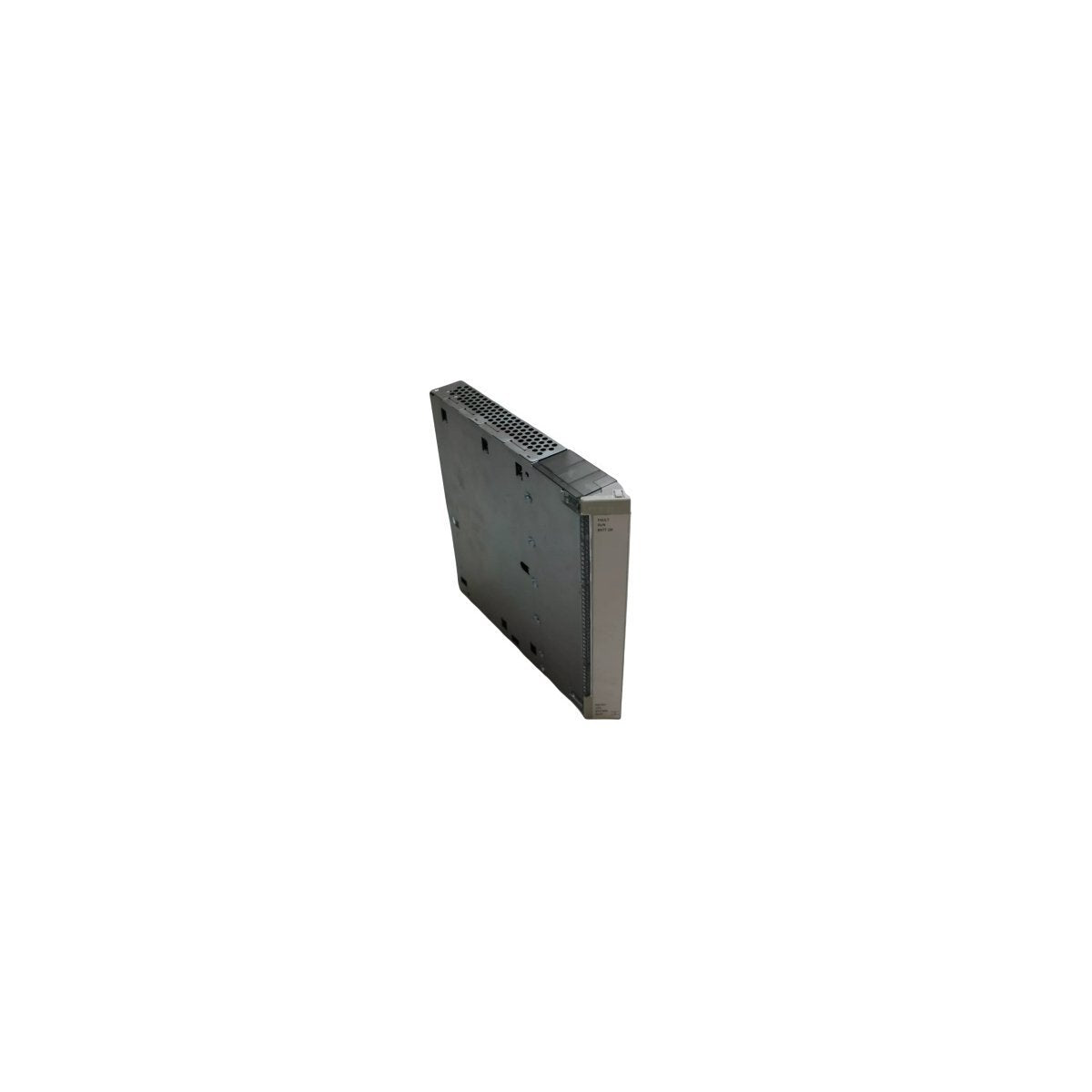

The PM630 3BSE000434R1 serves as the computational core for the ABB Advant Controller 110 (AC110) system. This high-performance processor module is engineered to execute complex control loops and manage large-scale data acquisition tasks within a Distributed Control System (DCS) environment. Designed to provide high-availability logic execution, the PM630 balances rapid instruction processing with extreme system stability. By utilizing a robust architecture that integrates high-speed memory and multi-layered communication ports, this CPU ensures that industrial processes are managed with deterministic precision, reducing latency and enhancing the overall responsiveness of the automation framework.

System Infrastructure and Computing Profile

The PM630 is built for durability and high-speed throughput, providing a reliable platform for sophisticated automation routines and real-time monitoring.

• Deterministic Execution: Optimized for rapid response times in time-critical control applications.

• Redundant Communication: Dual Ethernet ports allow for fail-safe networking within the plant infrastructure.

• OS Environment: Linux-based firmware platform for secure and flexible logic management.

• Mechanical Integrity: Robust Swedish engineering designed to resist high-vibration industrial settings.

• Mass: 1.24kg net weight.

• Heat Management: Passive cooling design tailored for continuous service in enclosed control cabinets.

Industrial Deployment and Process Utility

As a foundational component of the Advant OCS family, the PM630 3BSE000434R1 is widely deployed in sectors requiring high-reliability logic controllers. In the oil and gas industry, it is frequently utilized for compressor control and wellhead monitoring, where its wide temperature tolerance ensures uptime in varying climates. Within the chemical and pharmaceutical sectors, the PM630 provides the necessary processing power for precise batch management and complex thermal regulation. Its ability to integrate seamlessly with modern Ethernet routers also makes it a preferred choice for facility retrofits, allowing older Advant Controller 110 installations to bridge into contemporary digital networks without sacrificing the proven reliability of the original hardware architecture.
