Product Overview

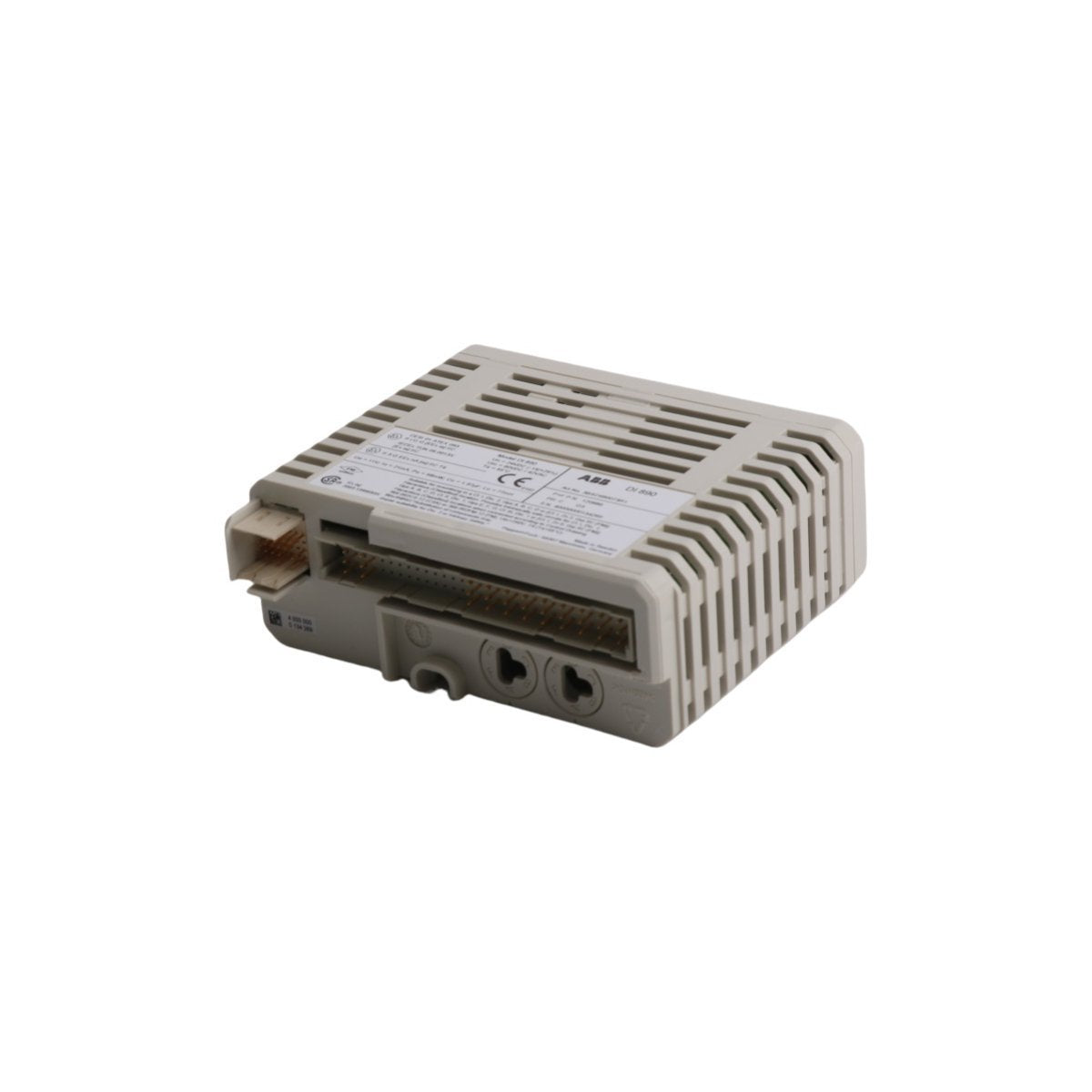

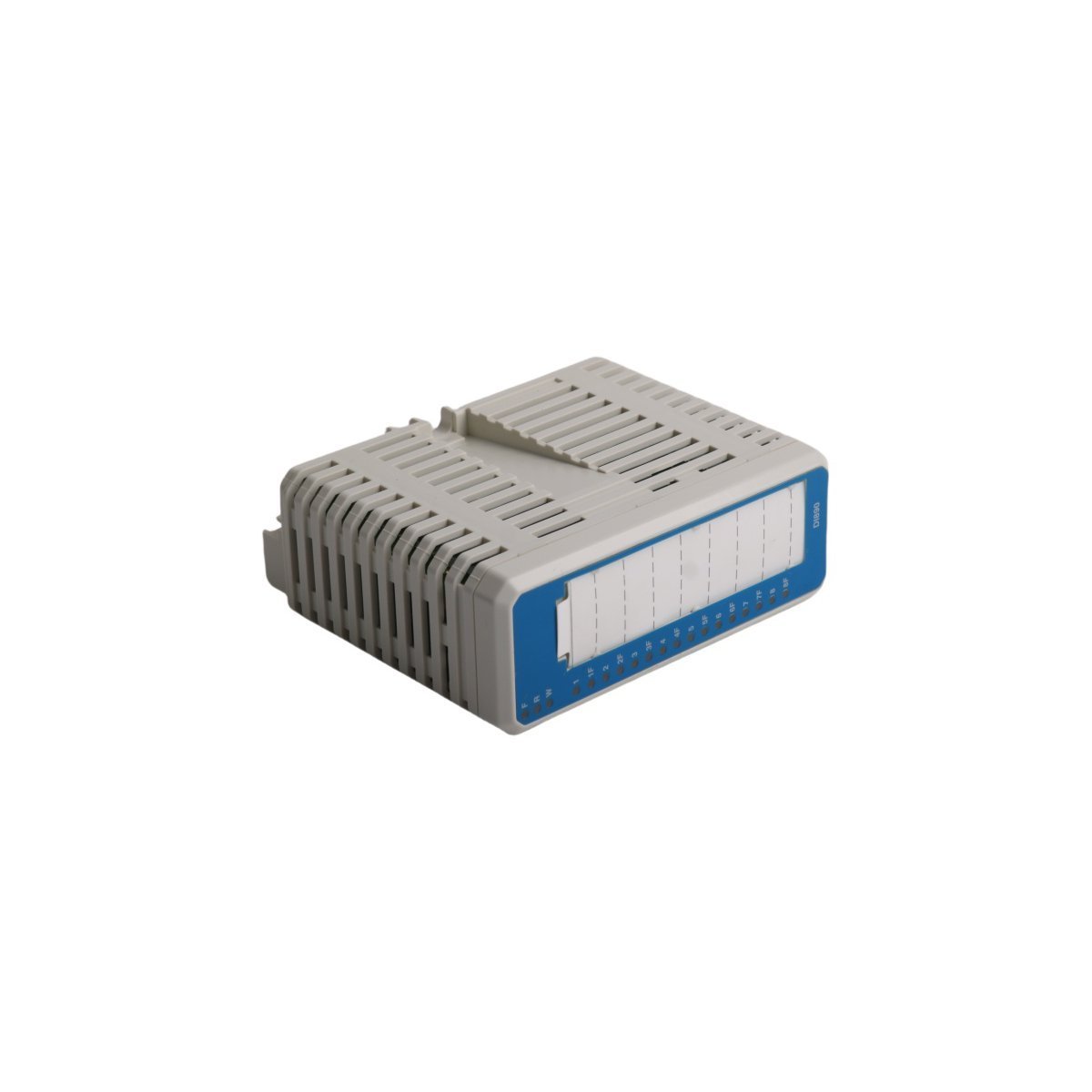

The DI890, identified by part number 3BSC690073R1, is a specialized 8-channel digital input module within the ABB S800 I/O family, engineered specifically for hazardous area deployments. This module distinguishes itself by integrating intrinsic safety (IS) protection directly into each channel, allowing for direct connection to NAMUR proximity sensors or volt-free contacts located in explosive atmospheres without the requirement for external safety barriers. By combining signal acquisition and safety isolation into a single compact footprint, the DI890 reduces cabinet space requirements and simplifies the overall system architecture. Each input is galvanically isolated from the other channels, the power supply, and the ModuleBus, ensuring that field-side transients or faults do not compromise the integrity of the central control system.

Hardware Parameters and Key Technical Characteristics

The DI890 module is designed for precision monitoring in volatile environments, providing integrated diagnostics and robust power management.

• Manufacturer ABB

• Model Designation DI890

• Order Code 3BSC690073R1

• Product Series S800 I/O System

• Input Capacity 8 Digital Input Channels

• Protection Type Intrinsic Safety (Ex i) for hazardous zones

• Isolation Strategy Full galvanic isolation between channels, power, and bus

• Sensor Compatibility Supports NAMUR sensors and dry contacts (with external resistors for fault detection)

• Diagnostic Indicators Triple LED array: Fault (Red), Run (Green), and Warning (Yellow)

• Mounting Integration Compatible with TU890 (Ex) and TU891 (Non-Ex) Module Termination Units (MTUs)

• Power Requirements 24 V DC supply with internal conversion for IS loops

• Physical Profile 4.4 cm x 12.1 cm x 10.8 cm

• Unit Mass 0.2 kg

• Country of Origin Sweden

Industrial Applications and Operational Use Cases

The ABB DI890 is a preferred solution for process industries where electronic components must interface with field devices in Zone 0, 1, or 2 hazardous locations.

• Oil and Gas Upstream/Downstream Monitoring valve positions and tank level switches in environments where flammable vapors are present.

• Chemical and Petrochemical Processing Interfacing with proximity sensors on agitators and flow meters within explosive process cells.

• Pharmaceutical Manufacturing Managing digital feedback from cleanroom equipment where intrinsic safety is required for solvent-rich atmospheres.

• Refinery Asset Monitoring Providing reliable input processing for emergency shutdown (ESD) initiators and safety interlocks.

• Hazardous Material Handling Coordinating the status of safety switches on conveyor systems and loading arms in volatile environments.

By utilizing the DI890 with a compact MTU, engineers can achieve a high-density, two-wire connection to the field, significantly reducing wiring complexity and installation labor while maintaining the highest levels of functional safety and diagnostic transparency.
