Product Overview

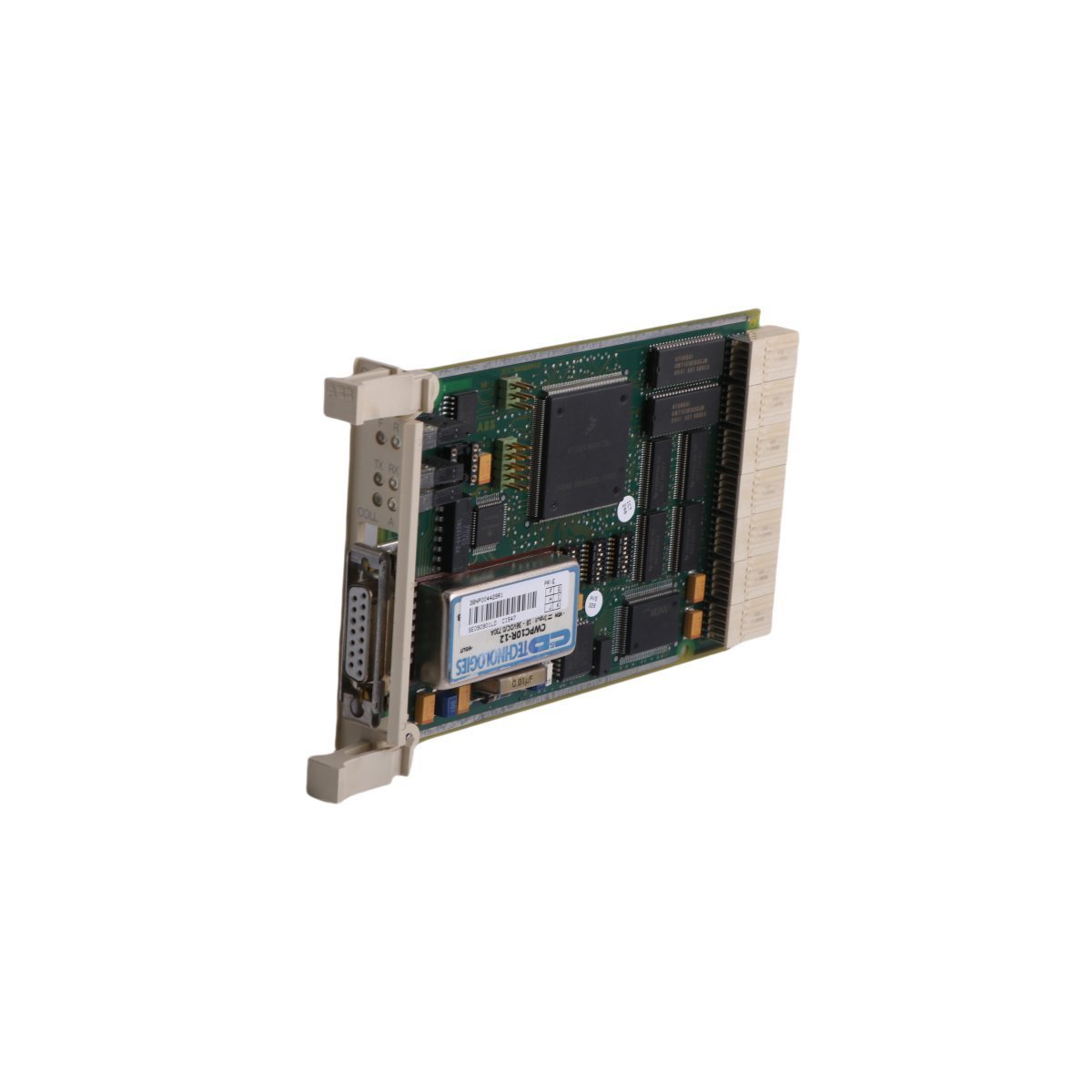

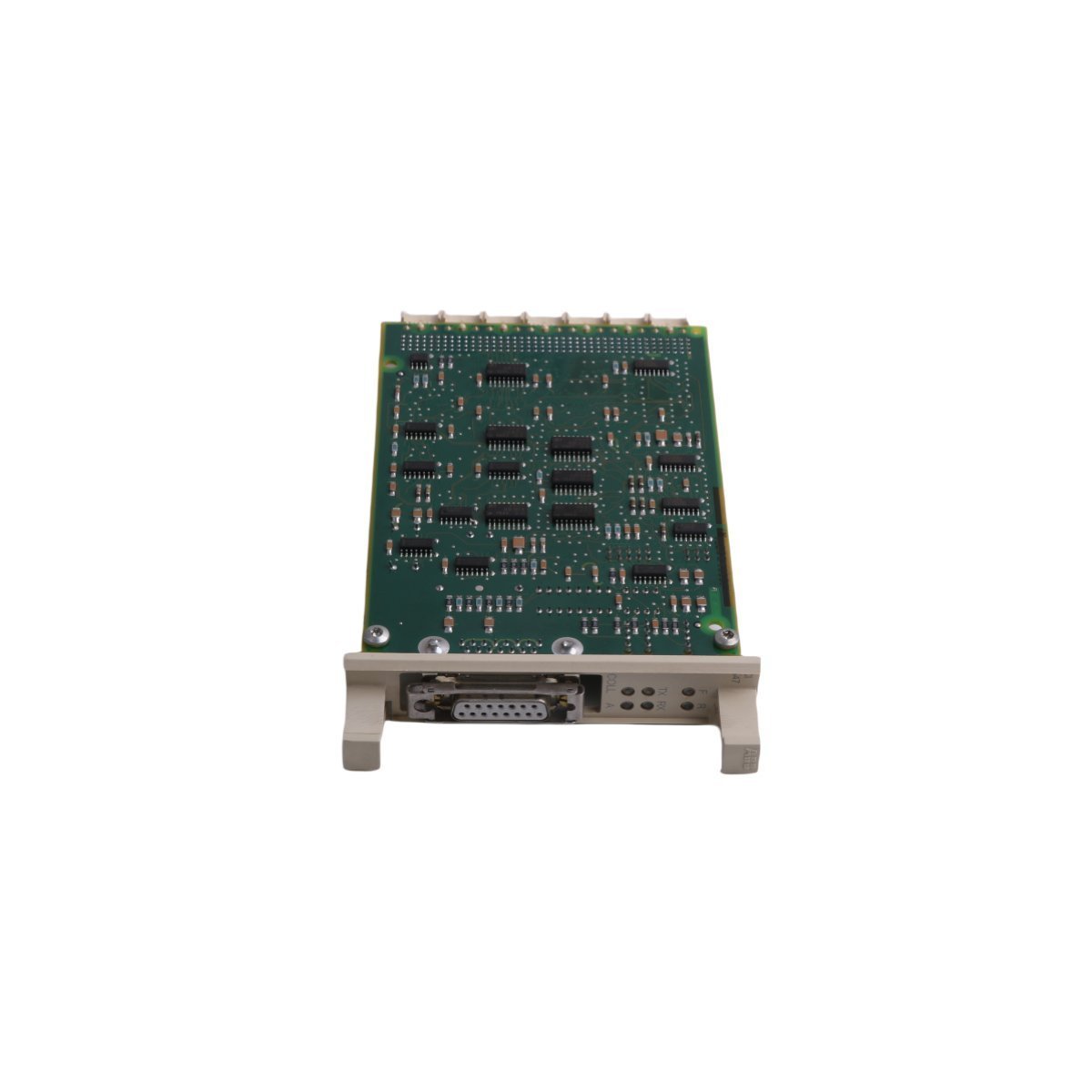

The ABB 3BNP004429R1, known as the CI547 communication interface, is a high-speed networking module purpose-built for the AC500 PLC platform. This board serves as a critical gateway for multi-protocol data exchange, allowing localized controllers to interact seamlessly with broader Distributed Control Systems (DCS) and industrial Ethernet architectures. By facilitating real-time bidirectional data flow, the CI547 minimizes latency in complex automation loops. Its specialized circuitry is designed to manage high-traffic communication tasks, ensuring that vital process variables are transmitted with absolute integrity across the plant floor.

Technical Performance Metrics

• Order Designation: 3BNP004429R1

• Hardware Model: CI547

• Primary Function: High-speed Communication Interface

• Platform Compatibility: AC500 Series PLC

• Networking Roles: Ethernet Routing and Bus Interfacing

• Physical Form Factor: 2.1cm x 17cm x 10.1cm

• Net Mass: 0.16kg

• Manufacturing Origin: Sweden

• Integration Support: Plug-and-play capability for modular PLC racks

Industrial Strategic Applications

The CI547 3BNP004429R1 is a versatile networking solution utilized in sectors where uptime and data transparency are mandatory:

Networked Machine Control: Synchronizing multiple PLC nodes in high-speed manufacturing lines to ensure perfect timing across distributed actuators.

Infrastructure Telemetry: Serving as a data bridge for Ethernet-based routers in remote utility stations, providing centralized visibility of localized automation.

System Expansion: Integrating new AC500 controller groups into existing DCS environments without requiring extensive network reconfiguration.

Data-Intensive Monitoring: Facilitating the transfer of large diagnostic datasets from the field level to supervisory HMI systems for predictive maintenance analysis.
