Product Overview

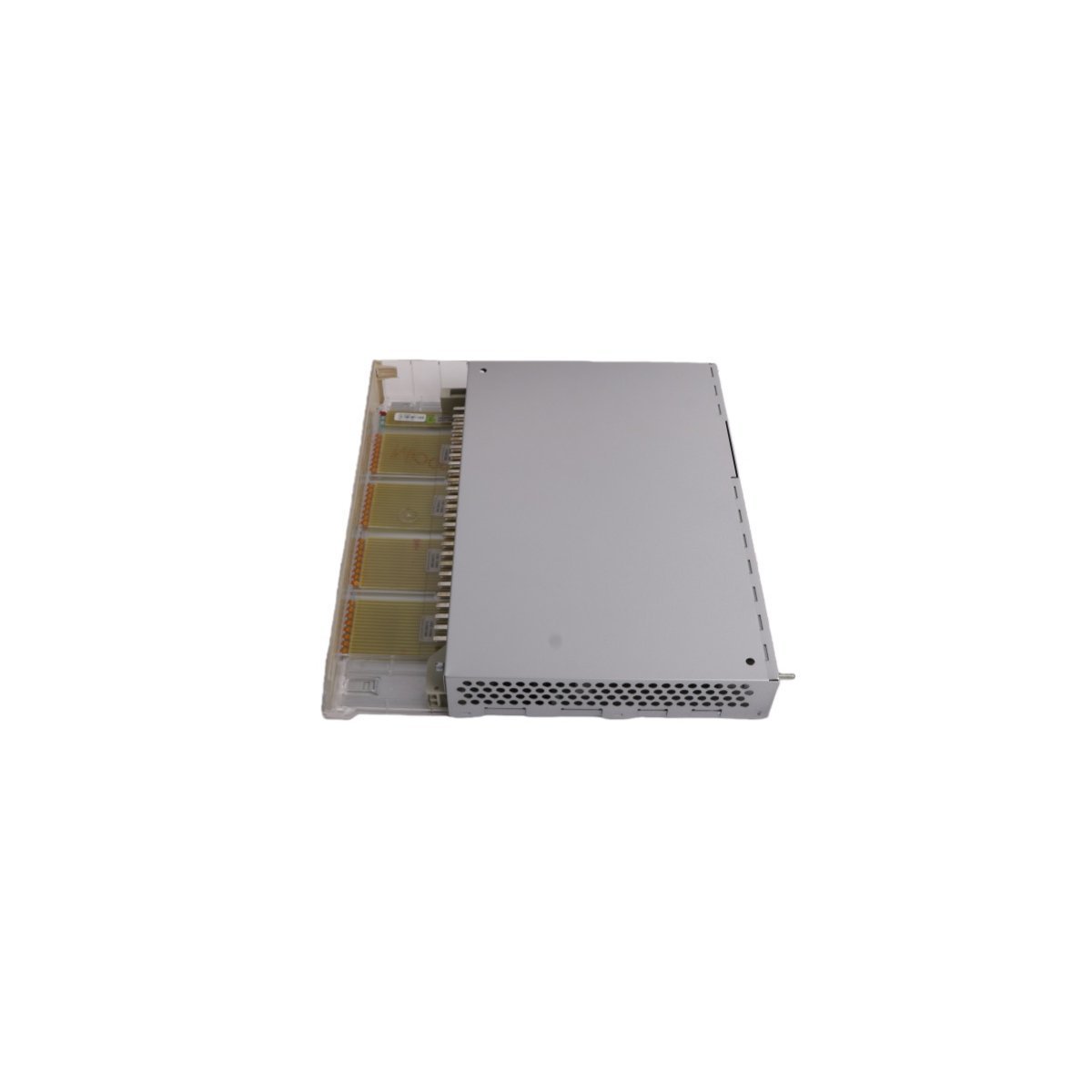

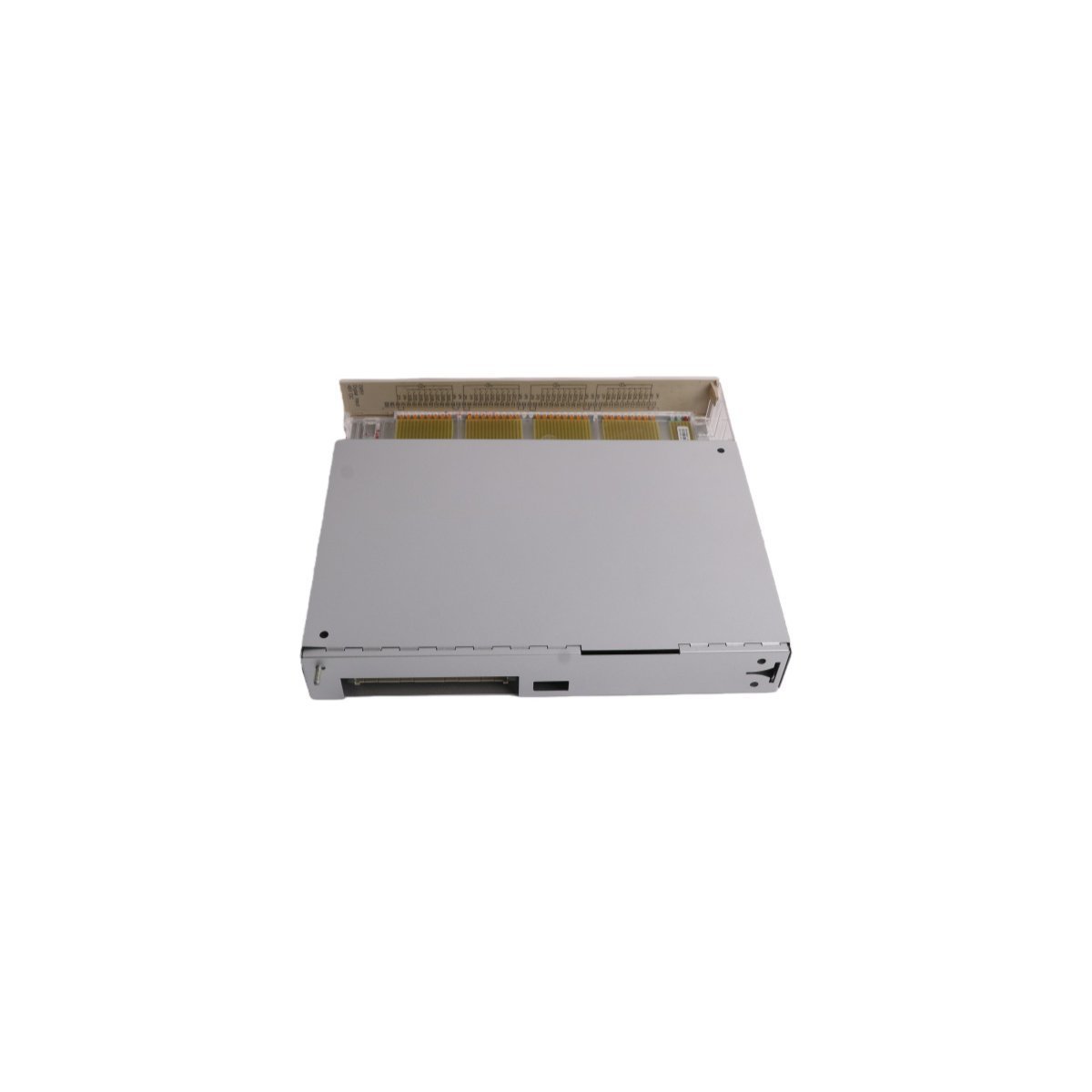

The ABB DI651, categorized under the order code 3BHT300026R1, is a high-density signal acquisition interface designed for the Advant OCS and 800xA distributed control architectures. This module provides 32 independent, isolated digital input channels, enabling centralized monitoring of binary field devices such as switches, sensors, and contactors. Engineered to thrive in high-interference industrial environments, the DI651 acts as a rugged gateway for field data, converting 24V DC signals into actionable logic for the controller. Its high channel count allows for efficient use of cabinet space, making it a cornerstone for expansive automation projects requiring precise and reliable state detection.

Technical Hardware Specifications and Physical Data

Field Deployment and Operational Contexts

The 3BHT300026R1 DI651 module is a versatile component found in mission-critical automation infrastructures across multiple sectors:

• Manufacturing Production Lines Monitoring the binary status of 32 separate proximity sensors or safety interlocks on a single card.

• Process Control Systems Interfacing with limit switches on valves and pumps in chemical processing or water treatment plants.

• Energy Infrastructure Tracking the "Open/Closed" status of breakers and disconnectors in high-voltage substations.

• Material Handling Coordinating high-density inputs from conveyor diverters, level detectors, and emergency stop buttons.

• Legacy System Expansion Providing a reliable direct replacement or expansion unit for existing Advant OCS 800xA DCS installations.

Q: Does the DI651 3BHT300026R1 support hot-swapping within the 800xA rack?

A: Yes, as part of the S800 series family, the DI651 supports removal and insertion under power, provided the associated terminal base and system configuration permit it, ensuring minimal process downtime.

Q: How does the module prevent ground loops from affecting signal accuracy?

A: The module features robust galvanic isolation (1500V AC field-to-system), which electrically separates the field wiring from the sensitive logic circuitry, preventing potential differences from creating interference or damage.

Q: Is this module compatible with sensors that operate at 12V DC?

A: Yes, the DI651 has a wide operating input range of 10V to 30V DC, making it fully compatible with both 12V and 24V DC industrial sensor types.

Q: What diagnostics are available for the 32 input channels?

A: The DI651 communicates with the controller to provide status indication, allowing the DCS to identify channel health and ensuring that any wiring faults or signal losses are reported to the HMI via the Ethernet router service.

Q: Can the DI651 withstand high-temperature environments in remote cabinets?

A: Absolutely. It is rated for operation in temperatures as high as +70°C, making it suitable for unventilated cabinets or outdoor enclosures in harsh climates.
