Product Overview

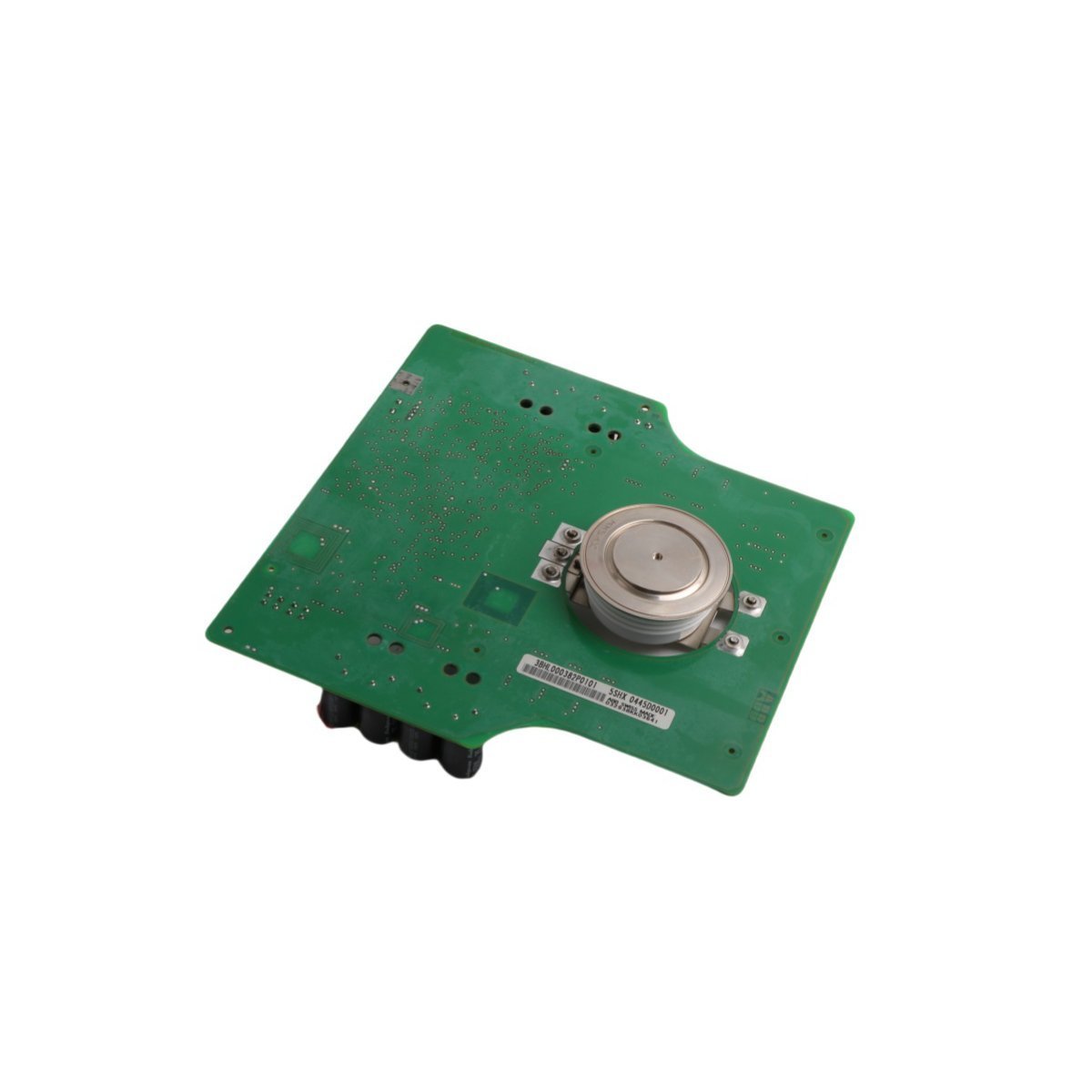

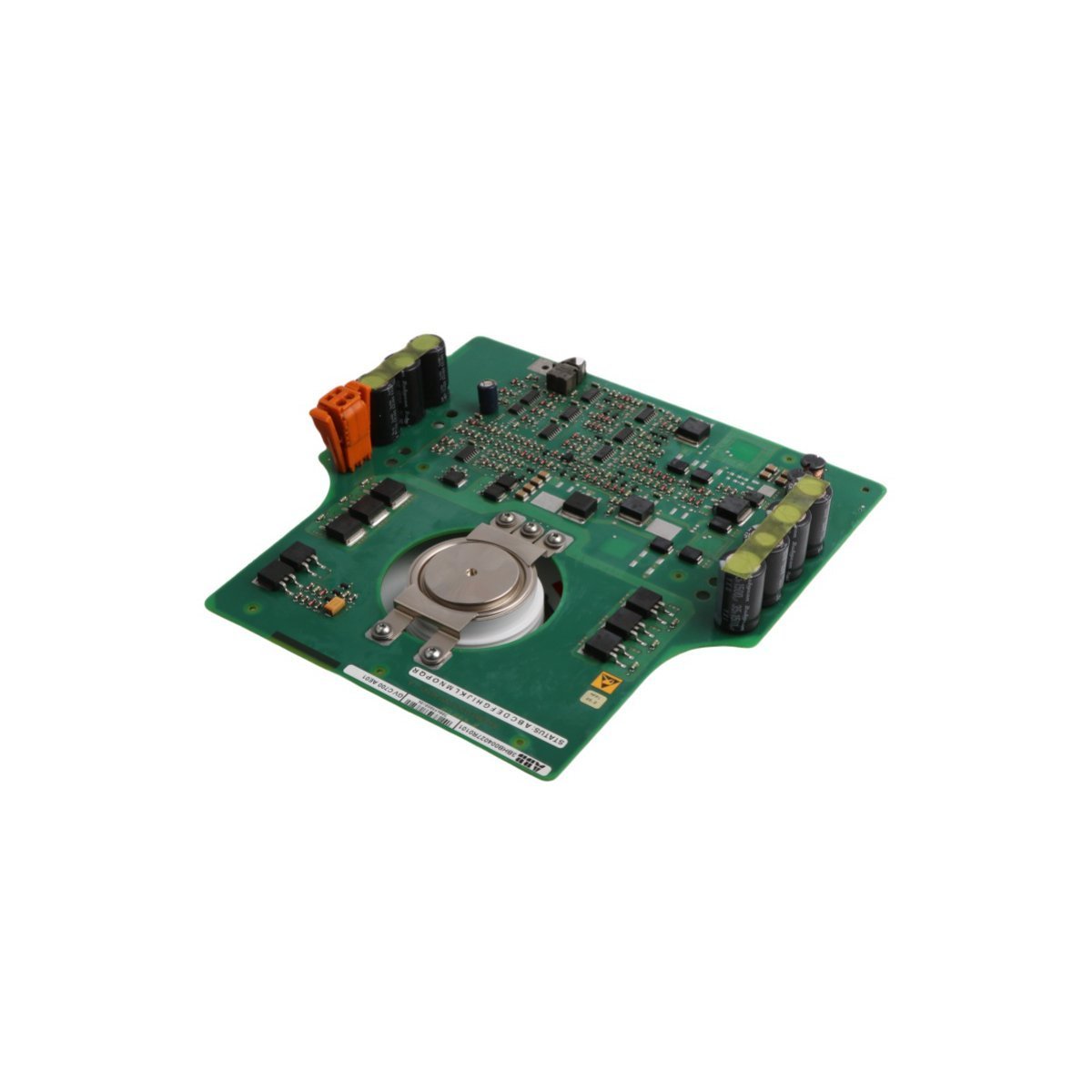

The ABB 3BHL000986P3012 (5SDD2545L0001) is a high-capacity Integrated Gate-Commutated Thyristor (IGCT) module engineered for high-power semiconductor applications. This component combines the rapid switching speed of a transistor with the high-voltage, high-current conduction capabilities of a thyristor. Specifically designed for the ACS6000 drive series and Advant OCS/800xA power infrastructure, it provides a low-loss solution for controlling massive electrical loads. The integrated gate drive unit ensures precise timing and enhanced protection, making it a critical semiconductor element for medium-voltage power conversion and grid-scale stability.

Key Technical Characteristics and Power Parameters

The 5SDD2545L0001 is built to manage extreme electrical stress while maintaining high thermal efficiency and minimal energy dissipation.

• Order Code / Model 3BHL000986P3012 / 5SDD2545L0001

• Repetitive Peak Blocking Voltage 4500V ($V_{DRM}$/$V_{RRM}$)

• On-State Current Capacity 2500A (Nominal)

• Surge Current Rating 25kA (for 1ms peaks)

• Switching Performance 1.5μs turn-on and turn-off speed

• Rate of Current Rise (di/dt) 800A/μs

• On-State Voltage Drop 2.5V (optimized for low conduction loss)

• Operating Temperature Range –40°C to +125°C

• Physical Mass 2.56 kg

• Module Dimensions 35 x 29 x 6.5 cm

• Gate Trigger Voltage 1.5V to 2.5V

Industrial Applications and Operational Use Cases

This IGCT module is a fundamental building block in heavy-duty power electronics where high-voltage DC or AC conversion is required.

• Medium-Voltage Industrial Drives Primarily utilized within the ABB ACS6000 drive system to control large industrial motors in mining, marine propulsion, and rolling mills.

• Renewable Energy Integration Acts as a high-efficiency switch in large-scale wind and solar power inverters, converting variable DC/AC sources for grid injection.

• HVDC and FACTS Systems Employed in High-Voltage Direct Current transmission and Flexible AC Transmission Systems (FACTS) for long-distance power transport and voltage regulation.

• Grid Stabilization Projects Used in static synchronous compensators (STATCOMs) to manage reactive power and maintain grid frequency during transient events.

• Electrification Infrastructure Ideal for traction power substations in rail networks requiring robust semiconductor switching under variable load conditions.
