Product Overview

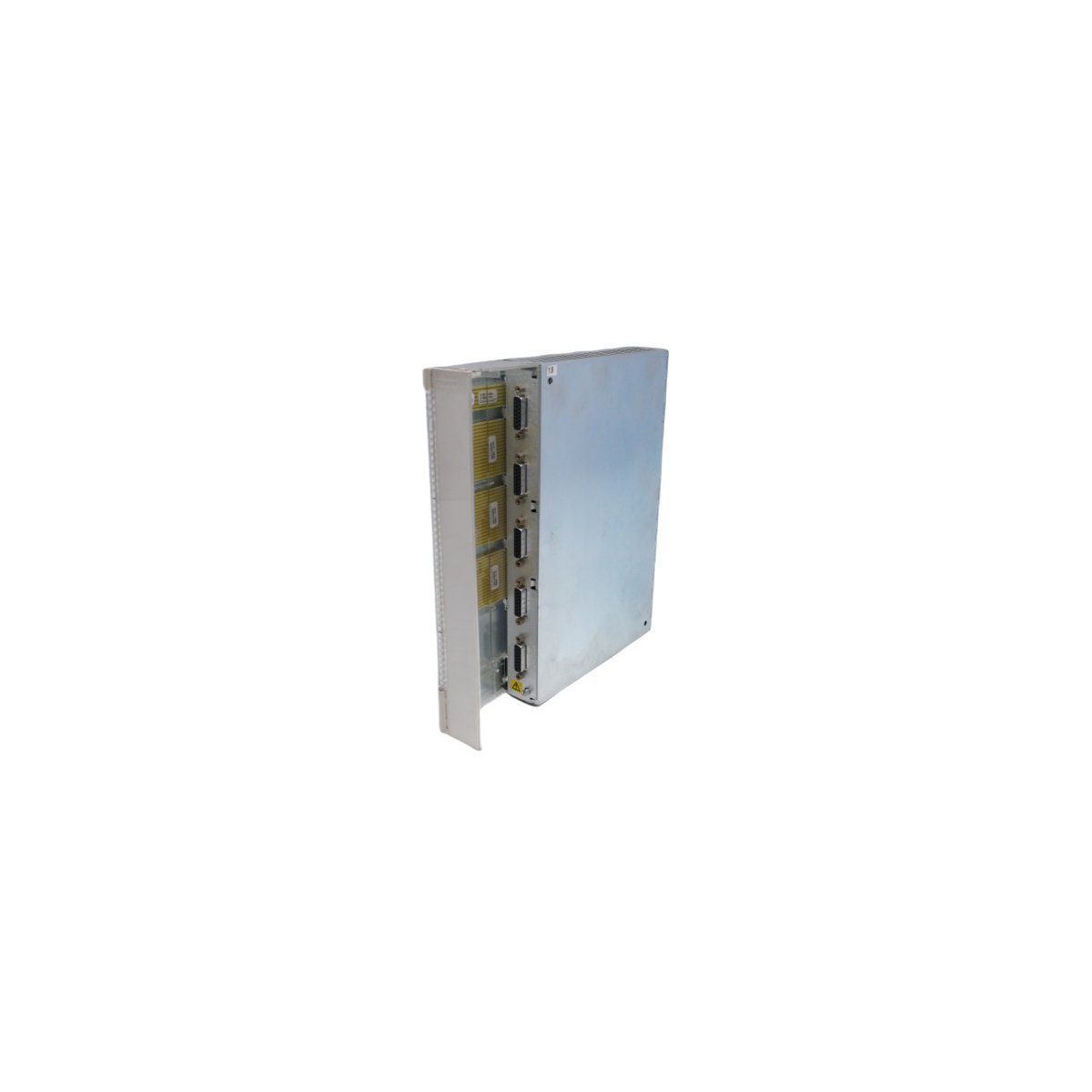

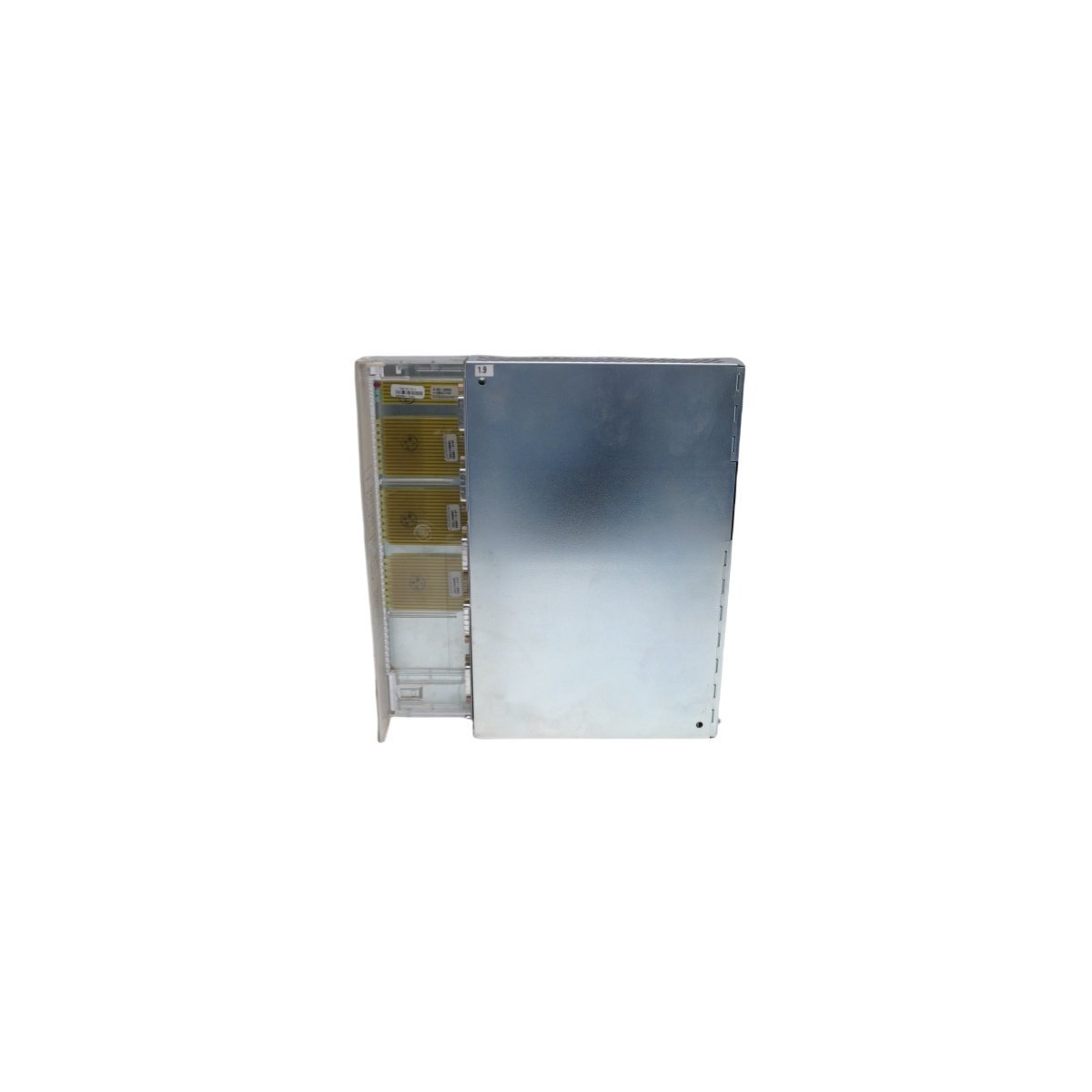

The ABB DP620 (3BHE300016R1) is a specialized high-speed pulse counting module designed for the S800 I/O system. This unit is engineered to capture and process rapid frequency signals that standard digital input modules cannot resolve. By providing precise accumulation and frequency measurement of incoming pulses from encoders, flow meters, or tachometers, the DP620 enables real-time velocity and position tracking within a Distributed Control System (DCS). Manufactured in Sweden, this module is built for mission-critical industrial environments where high temporal resolution and signal integrity are essential for accurate process synchronization.

Hardware Parameters and Performance Data

• Input Channels Dual-channel high-speed counting

• Frequency Range Up to 10 MHz processing capability

• Temporal Resolution 1-microsecond precision

• Operating Voltage 24 V DC (supports 5V and 24V signal levels)

• Measurement Accuracy Typical deviation within +/- 0.01%

• Thermal Endurance Operational from -20°C to +70°C

• Storage Resilience Rated for -40°C to +85°C

• Mechanical Profile 4.3 cm x 10.5 cm x 11.8 cm

• Net Mass 0.16 kg

• Lifecycle Rating Active support status

Strategic Industrial Implementation

The DP620 3BHE300016R1 is primarily utilized in sectors requiring high-frequency data acquisition:

Motion and Position Control Interfacing with incremental encoders to monitor the exact position of robotic arms, CNC axis movements, or automated guided vehicles (AGVs).

Turbine and Motor Speed Monitoring Providing high-resolution RPM data for steam or gas turbines in power generation plants to ensure safe operational limits.

Flow Measurement Integration Processing pulse-output signals from turbine flow meters in the oil and gas industry to calculate precise volumetric throughput.

Material Handling and Sorting Tracking high-speed conveyor belt movement to synchronize divert gates and sorting mechanisms in large-scale logistics hubs.

Web Tension and Winding Monitoring spindle speeds in paper mills or textile manufacturing to maintain constant material tension and prevent breakage.
