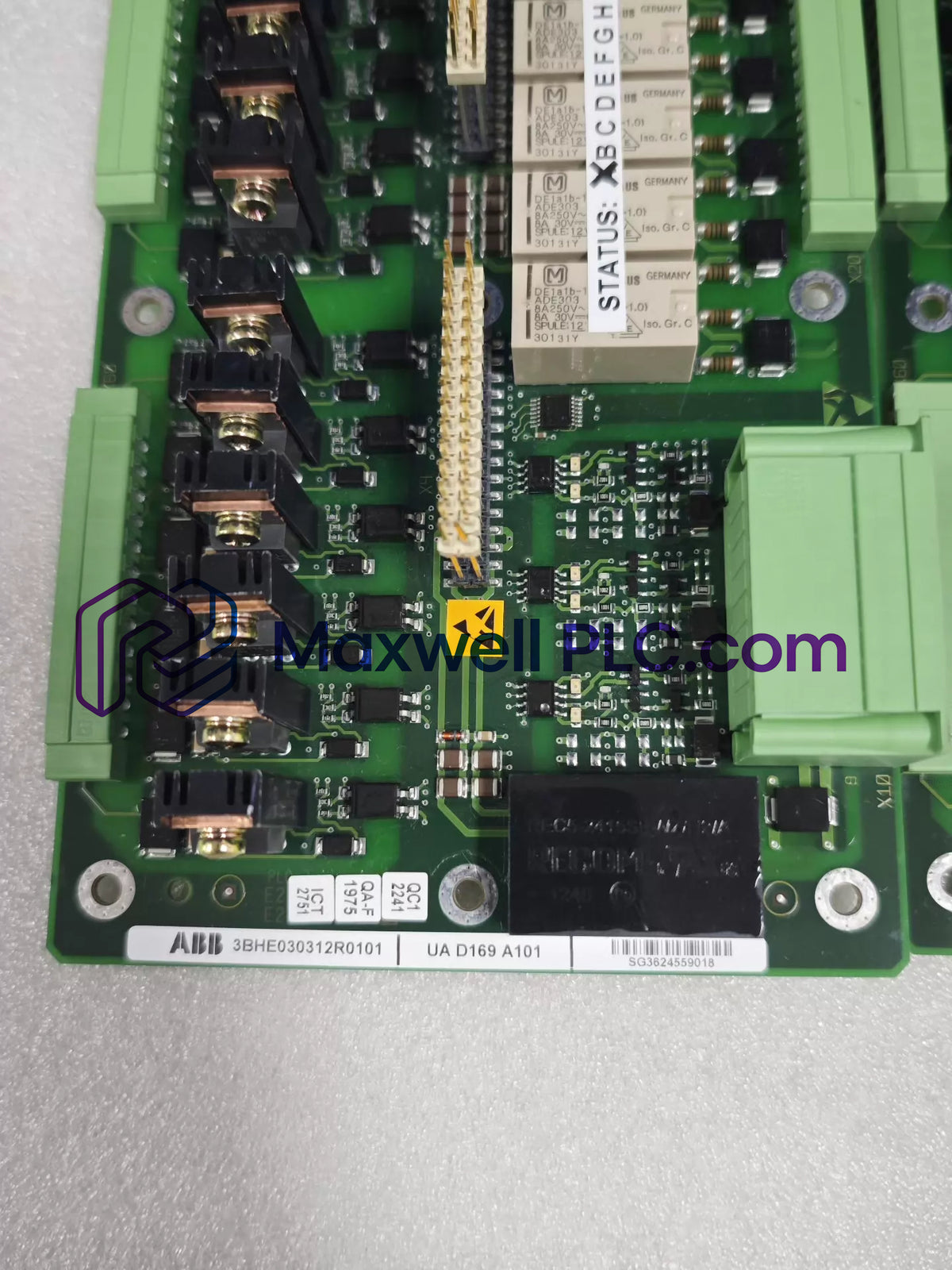

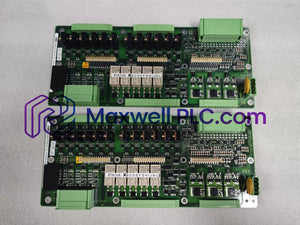

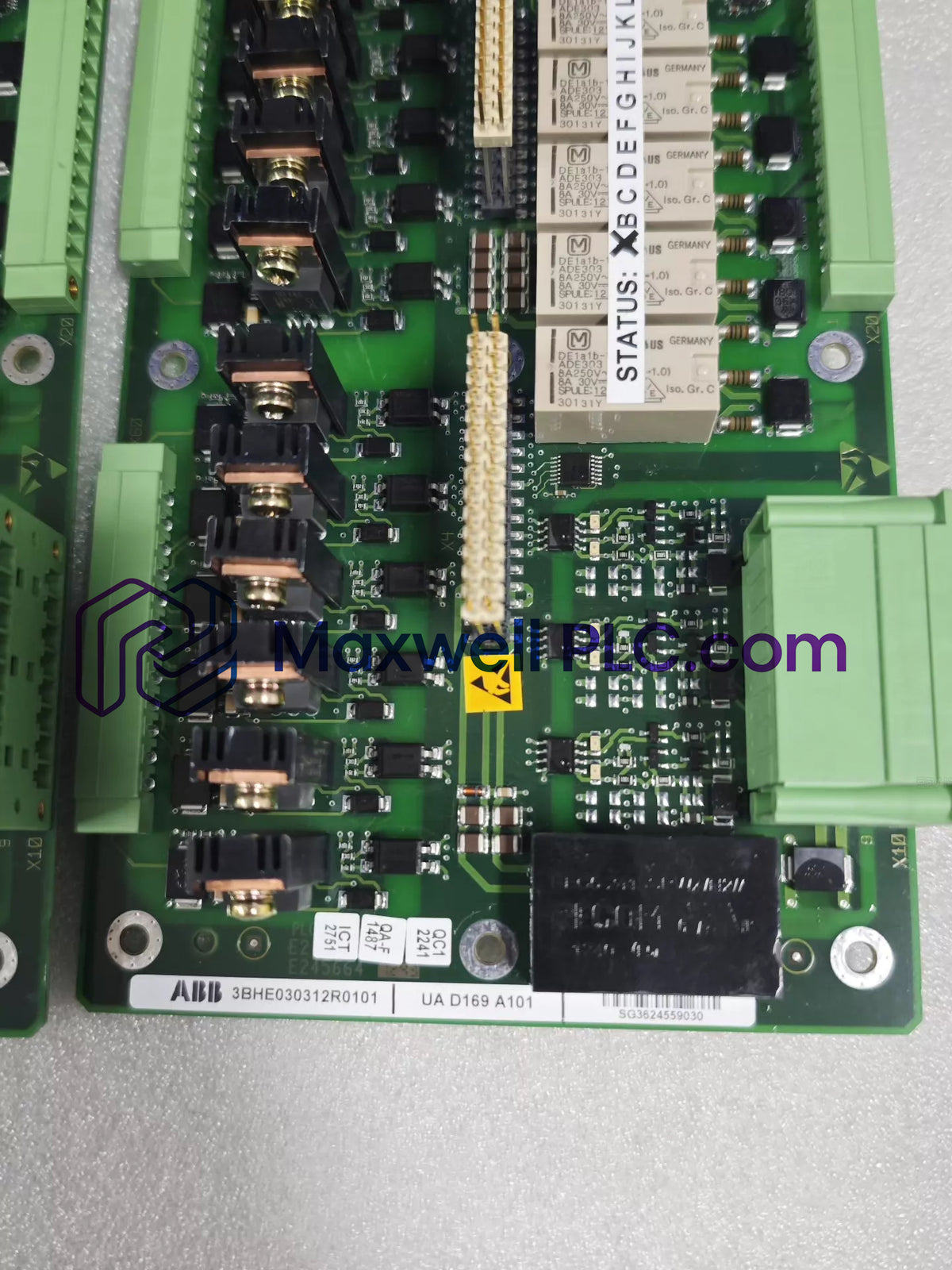

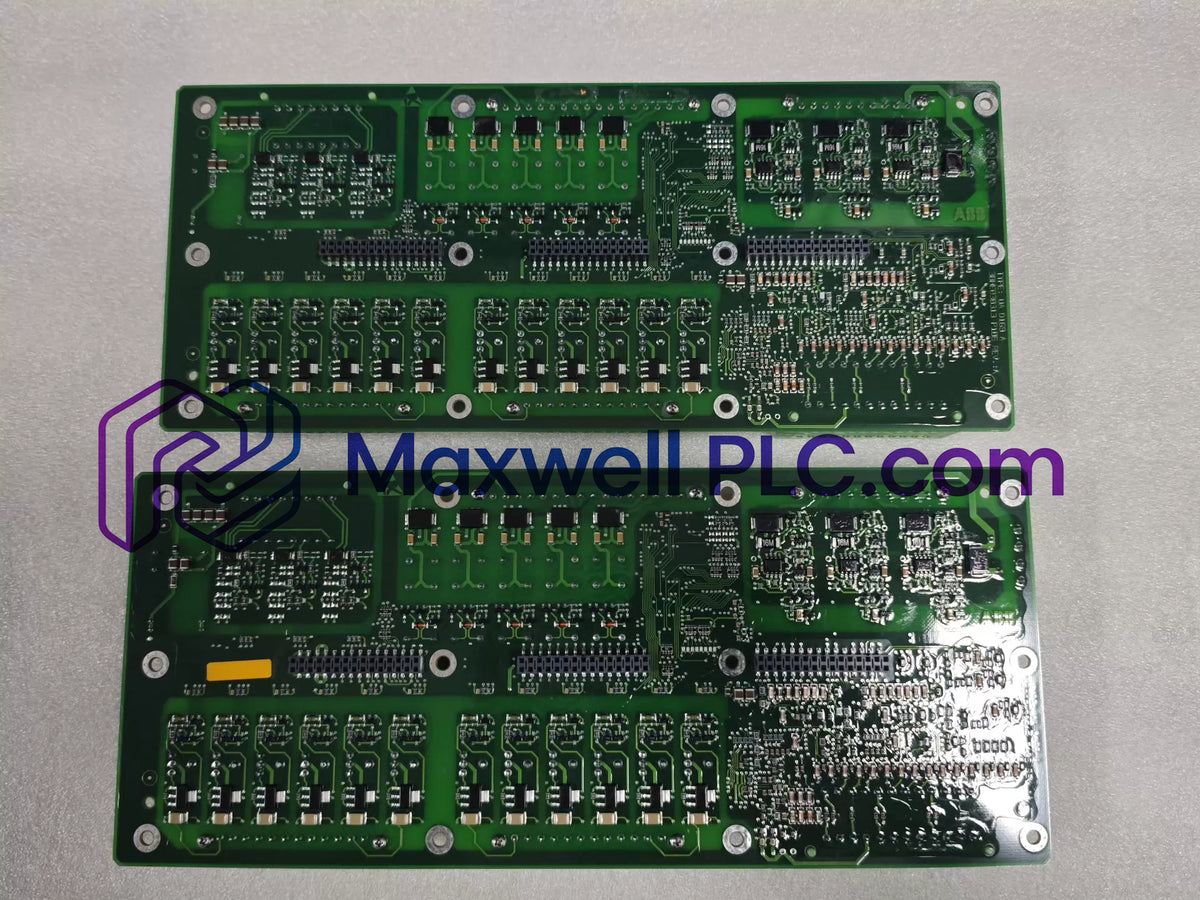

Configured for high-speed processor execution and real-time control task processing in ABB AC800M networks, the ABB 3BHE030312R0101 UAD169 A101 (UAD169 A101 Control Board) provides direct physical/electrical execution.

Component Designators & Structural Variant

The UAD169 A101 control board operates as a main processing card within the AC800M platform ecosystem. Hardware identifiers comprise:

• Full Model Identifier: 3BHE030312R0101 UAD169 A101

• Spare Part Catalog Number: UAD169 A101

• Physical Architecture: PCI-104 Bus Expansion Circuit Board

Hardware Specifications

Industrial System Integration & Deterministic Execution

Driven by an 800 MHz core processor, the control board interfaces directly through a PCI-104 backplane to deliver continuous real-time execution. The onboard 128 MB NOR Flash memory maintains firmware flash compatibility across AC800M controller revisions, ensuring deterministic networks coordination and stable task timing across Profinet and EtherNet/IP field bus topologies under severe 5g vibration levels.

Kit Packaging Checklist

• 1 x ABB 3BHE030312R0101 UAD169 A101 Control Board

• 1 x PCI-104 Standoff Hardware Kit

• 1 x Anti-Static ESD Conductive Shield Envelope

Field Mounting & Connection Protocol

• Main Power Shutdown

  • Isolate the primary 5 VDC power rails and disconnect cabinet DC supplies before inserting or unseating the board.

• Electrostatic Protection

  • Handle the card exclusively by its non-conductive edges while wearing an anti-static wrist strap grounded to the panel.

• PCI-104 Standoff Attachment

  • Secure board corner standoffs to the base chassis using calibrated torque settings to prevent substrate flex under 5g vibration.

• Field Cable Separation

  • Maintain a minimum 200 mm physical gap between board signal routing channels and high-voltage AC power conductors.

Frequently Asked Questions

• Q: What power supply parameters are required to operate the UAD169 A101 control board?

  A: The board operates on a regulated 5 VDC power supply drawing a nominal current of 3.5 A, resulting in a total power consumption of 17.5 W.

• Q: What processor speed and non-volatile memory assets are onboard?

  A: The module contains an 800 MHz processor core accompanied by 128 MB of NOR Flash memory for operating system code execution.

• Q: What backplane bus interface is utilized for internal module communications?

  A: Internal backplane data transfer is managed via a dedicated PCI-104 bus interconnect running directly through the board stack.

• Q: Is hot-swapping supported when servicing this PCI-104 card?

  A: No, hot-swapping is prohibited; system power must be completely de-energized prior to installing or extracting the module.

• Q: What environmental temperature and vibration extremes can the board withstand?

  A: The board operates reliably from -40 deg C to +70 deg C and withstands continuous mechanical vibration levels of 5g from 10 to 500 Hz.

• Q: How does firmware flash compatibility affect replacement installation?

  A: Retaining matched NOR Flash firmware revisions guarantees identical backplane task scheduling and memory offset mapping.

• Q: What physical transport dimensions and weight apply to this control card?

  A: The physical board package weighs 0.36 kg with packaged shipping dimensions measuring 25.5 cm by 24.0 cm by 3.5 cm.

• Q: How should signal line noise suppression be implemented in noisy panels?

  A: Connect all communication line shielding 360 degrees to the enclosure earth terminal before connecting to PCI-104 option headers.
