Product Overview

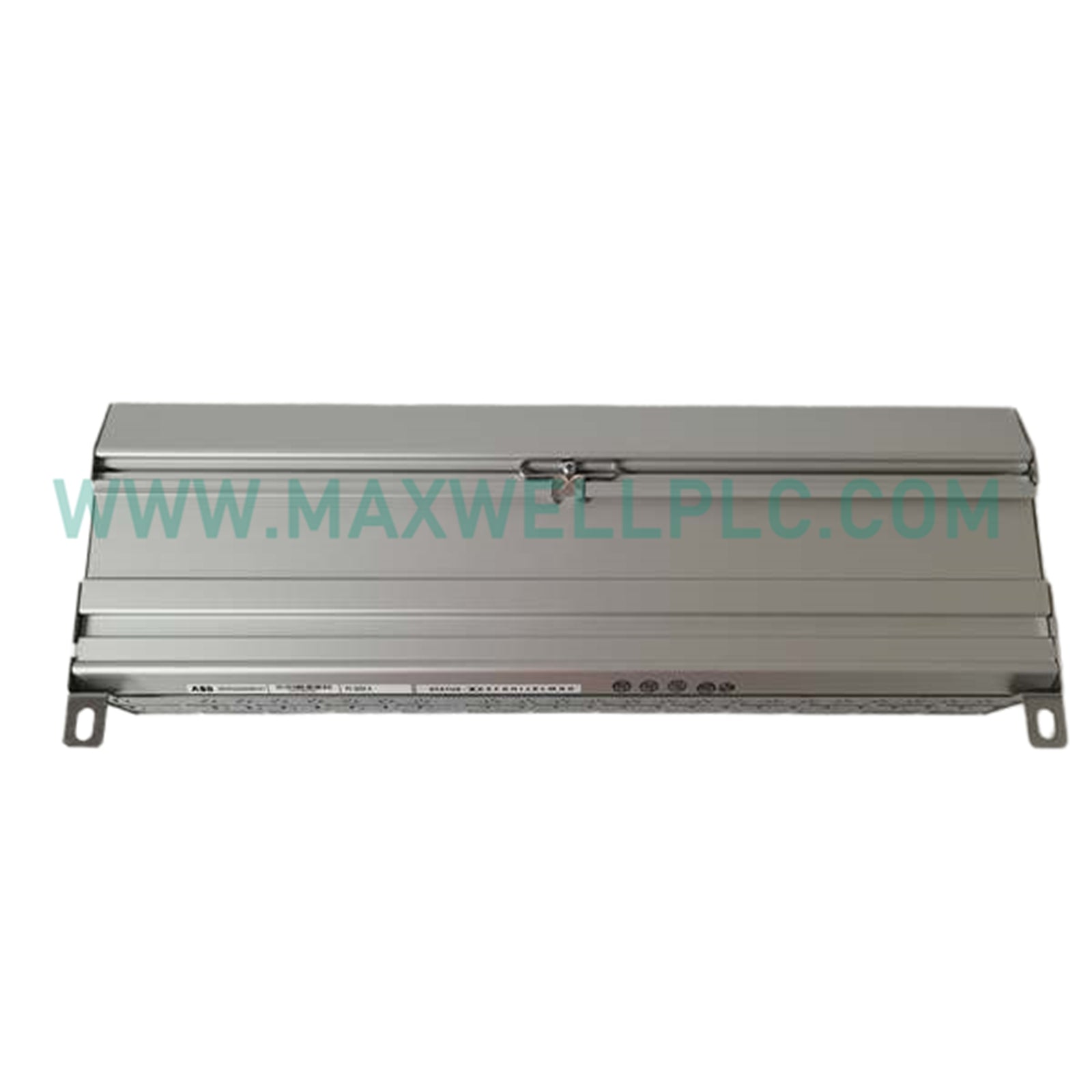

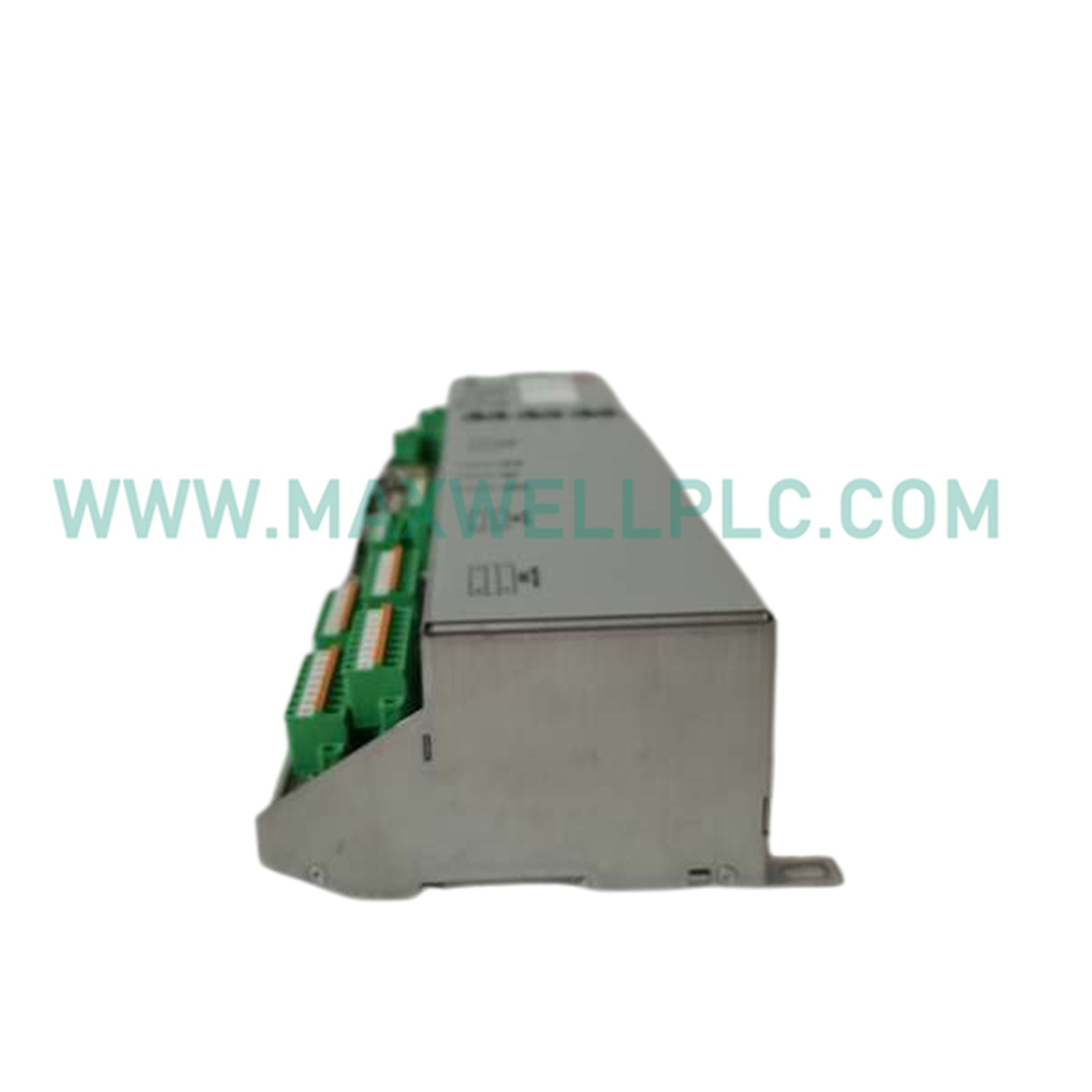

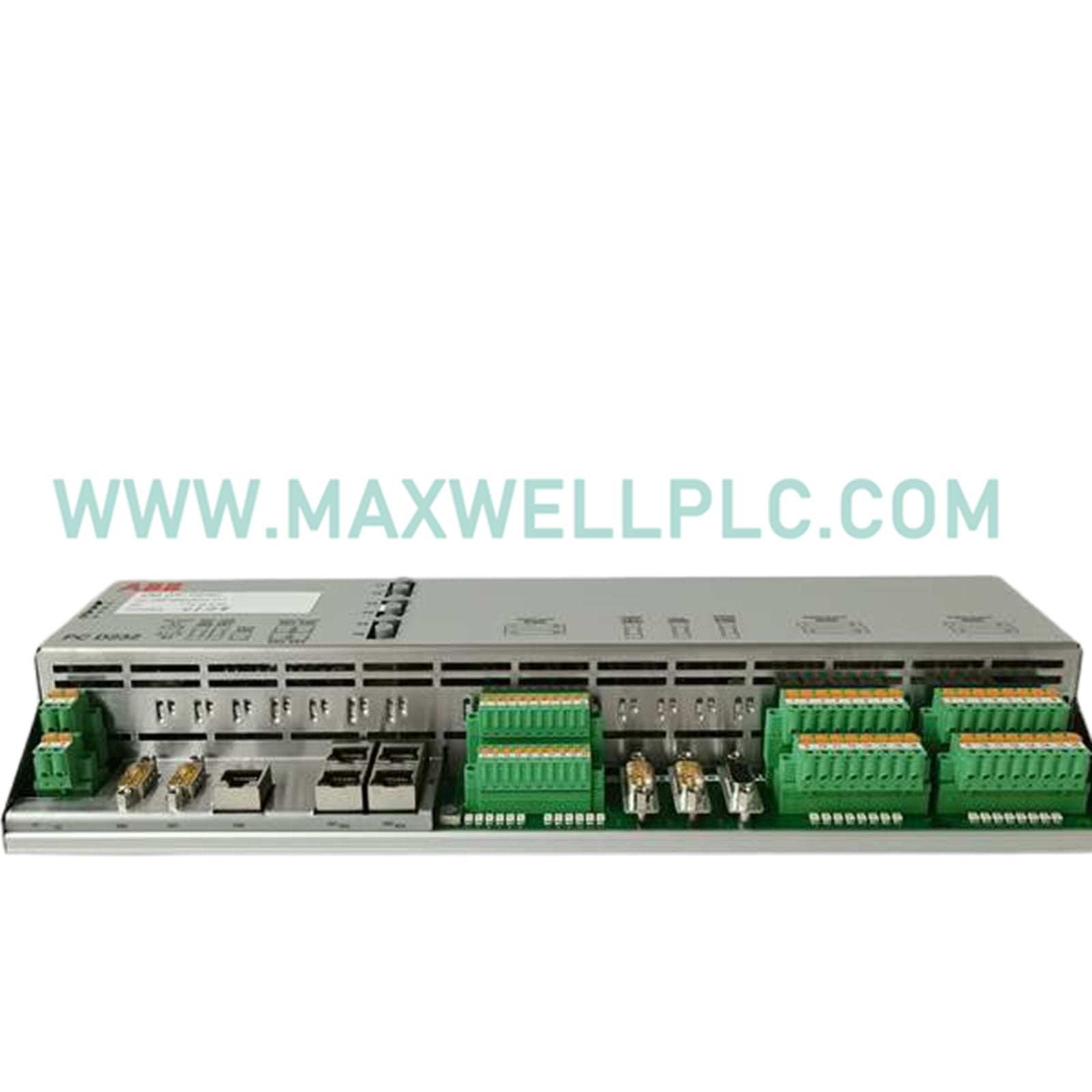

The ABB PC D232A, designated by part number 3BHE022293R0101, is a high-performance PEC80-CIO (Peripheral Control Input/Output) module designed for the AC 800PEC power electronics control system. This module serves as a specialized communication and signal processing interface, facilitating the seamless exchange of data between the central controller and peripheral field devices. It is engineered to handle high-speed I/O management in demanding applications such as large-scale power converters, excitation systems, and complex industrial drives.

As a critical node in the peripheral control architecture, the PC D232A ensures deterministic signal acquisition and distribution. Its design focuses on reducing latency in the control loop, which is vital for maintaining the stability of high-power electronics. The module is built to operate reliably within high electromagnetic interference (EMI) environments, providing the ruggedized hardware interface necessary for modern grid-tie inverters and heavy-duty motor control systems.

Functional Capability and System Integration

The PEC80-CIO architecture allows the 3BHE022293R0101 to manage a diverse array of digital and analog signals with high precision. By offloading primary I/O processing from the main CPU, the module enhances the overall efficiency of the AC 800PEC system. It features robust galvanic isolation and signal conditioning circuitry to protect the internal logic from field-side transients and voltage spikes.

This module is designed for compact integration into standardized control racks, utilizing a specialized backplane interface for high-speed communication. Its structural integrity and thermal management properties make it suitable for continuous operation in 24/7 industrial processes, including hydroelectric power plants, wind turbine converters, and marine propulsion systems.

Technical Specifications

• Manufacturer: ABB

• Model Number: PC D232A

• Order Code: 3BHE022293R0101

• Module Type: PEC80-CIO (Peripheral Control I/O)

• System Compatibility: AC 800PEC Control Series

• Dimensions (L x H x W): 12 cm x 8 cm x 14.7 cm

• Shipping Weight: Approximately 0.75 kg (Note: Standard module mass)

• Country of Origin: Switzerland (CH)

• Customs Tariff Number: 85371092

• Operational Role: High-speed signal acquisition and peripheral communication

Key Technical Characteristics

• Deterministic I/O Processing: Optimized for the microsecond-level response times required in power electronics regulation.

• Enhanced Signal Protection: Integrated isolation barriers prevent field disturbances from affecting the central processor.

• Industrial Hardening: Constructed with high-grade components to resist vibration, thermal stress, and electromagnetic noise.

• Versatile Interfacing: Supports various peripheral control topologies within the PEC80 framework.
