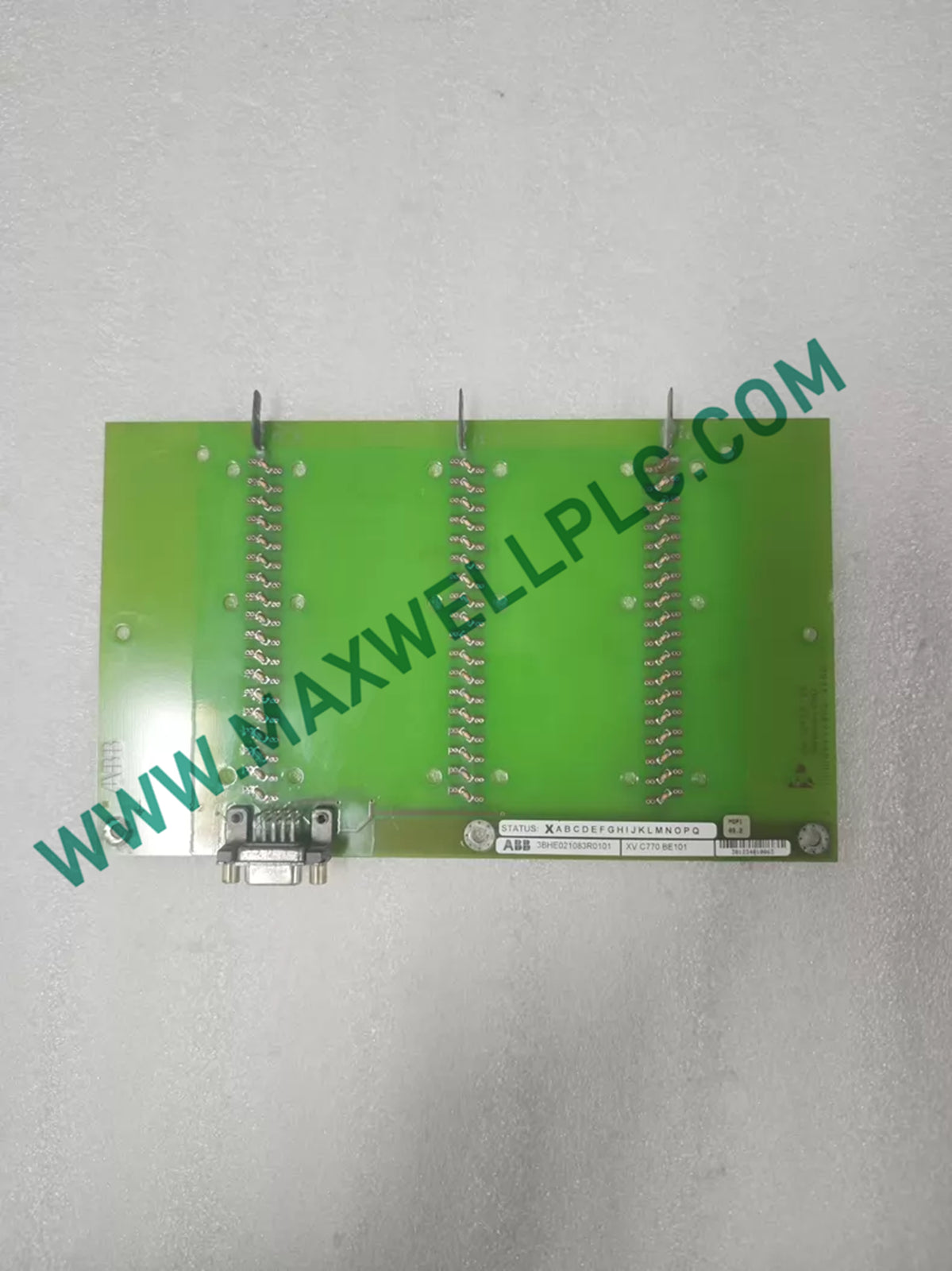

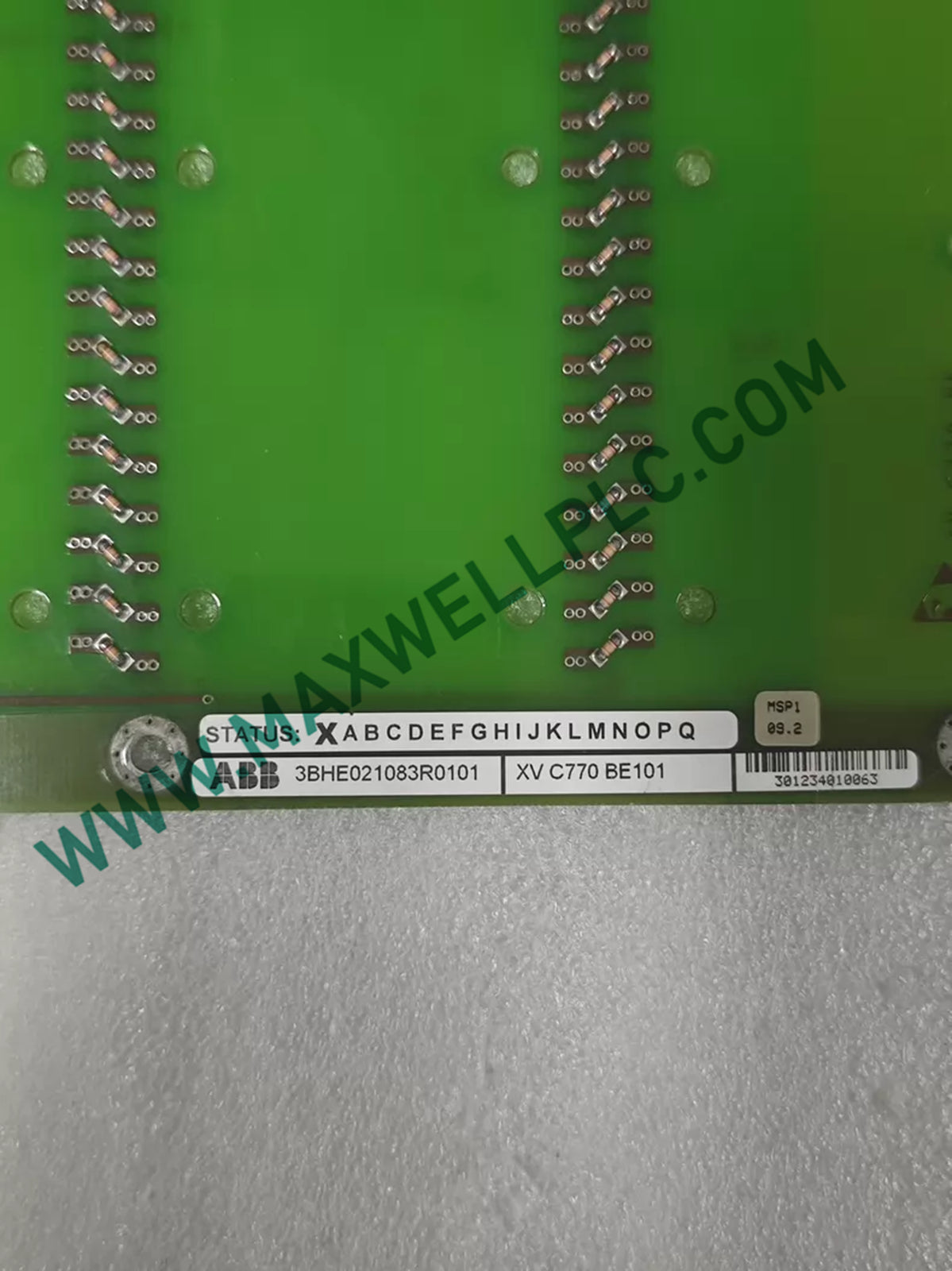

The ABB 3BHE021083R0101 XVC770 BE101, also cataloged as the XVC770 BE101 HVD Board, operates as a dedicated hardware component for high voltage detection and feedback signal conditioning within XV Series drive platforms.

Hardware Variant Structure

• 3BHE021083R0101 XVC770 BE101: Fully populated high voltage detection board assembly with integrated signal attenuation and interface connectors.
• XVC770BE101: Spare part designation for direct hardware replacement within XV Series converter modules.

Physical and Electrical Specifications

System Integration and Communication Capabilities

The high voltage detection board routes scaled analog feedback signals directly across the drive internal interface bus, maintaining backplane bus communication velocity across control loops. Firmware flash compatibility ensures seamless real-time voltage monitoring integration, high-density signal conversion, and deterministic data exchange across Profinet or EtherNet/IP connected drive networks.

Order Package Contents

• 1 x ABB 3BHE021083R0101 XVC770 BE101 HVD board
• Protective anti-static packaging shield
• Factory mechanical mounting standoff spacers

Field Installation Guidelines

• Ensure all main AC power sources (380 V to 690 V AC) and DC bus capacitors are completely discharged before handling.
• Attach a grounded wrist strap to prevent electrostatic discharge damage to sensitive board traces.
• Align board mounting holes with internal chassis standoffs and tighten retaining screws to specified mechanical torque.
• Inspect ribbon cables and terminal headers for secure engagement prior to closing cabinet doors.
• Maintain clear separation between high-voltage sensing lines and low-voltage digital control wiring.

Technical FAQ

• What is the rated AC voltage handling capacity for this board?

  The board is engineered to measure and condition AC line voltages operating in the range of 380 V to 690 V AC.

• Can the board be installed while the drive chassis is powered?

  Live insertion is prohibited; high potential voltages present on the terminals pose severe electrical shock and arc flash risks.

• What storage temperature limits apply to spare units?

  Uninstalled boards can be safely stored in non-condensing environments between -40 deg C and +85 deg C.

• How is signal integrity preserved against high-frequency switching noise?

  Internal attenuation networks isolate high-voltage power components from sensitive control logic circuits.

• How should shielding be terminated on external voltage measurement wires?

  Terminate cable shields using low-impedance grounding clamps connected directly to the enclosure earth bar.

• What ambient operating temperatures does the board support?

  The hardware operates reliably across an environmental operating temperature span from -20 deg C to +60 deg C.

• Is active cooling required for individual HVD boards?

  Convection airflow within the main converter unit is sufficient provided cabinet ventilation paths remain unobstructed.

• How are hardware revision mismatches avoided during board swap-out?

  Verify that the spare part model (XVC770BE101) match factory parameters printed on the primary assembly label.
