3BHE019958R0101 UAD206 A101 ABB Datasheet & Manual

3BHE019958R0101 UAD206 A101 ABB Communication Module AC 800PEC Series

ABB

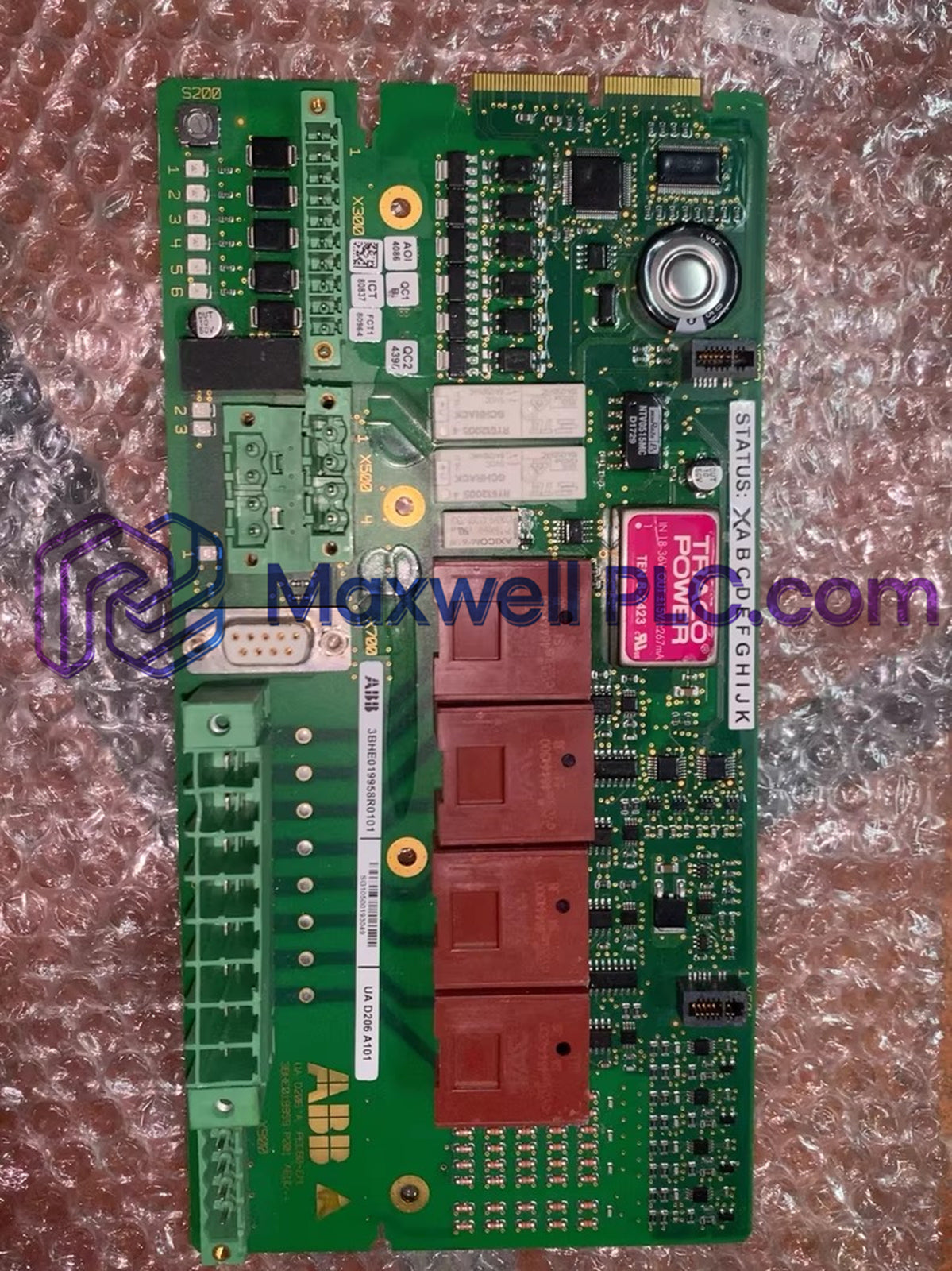

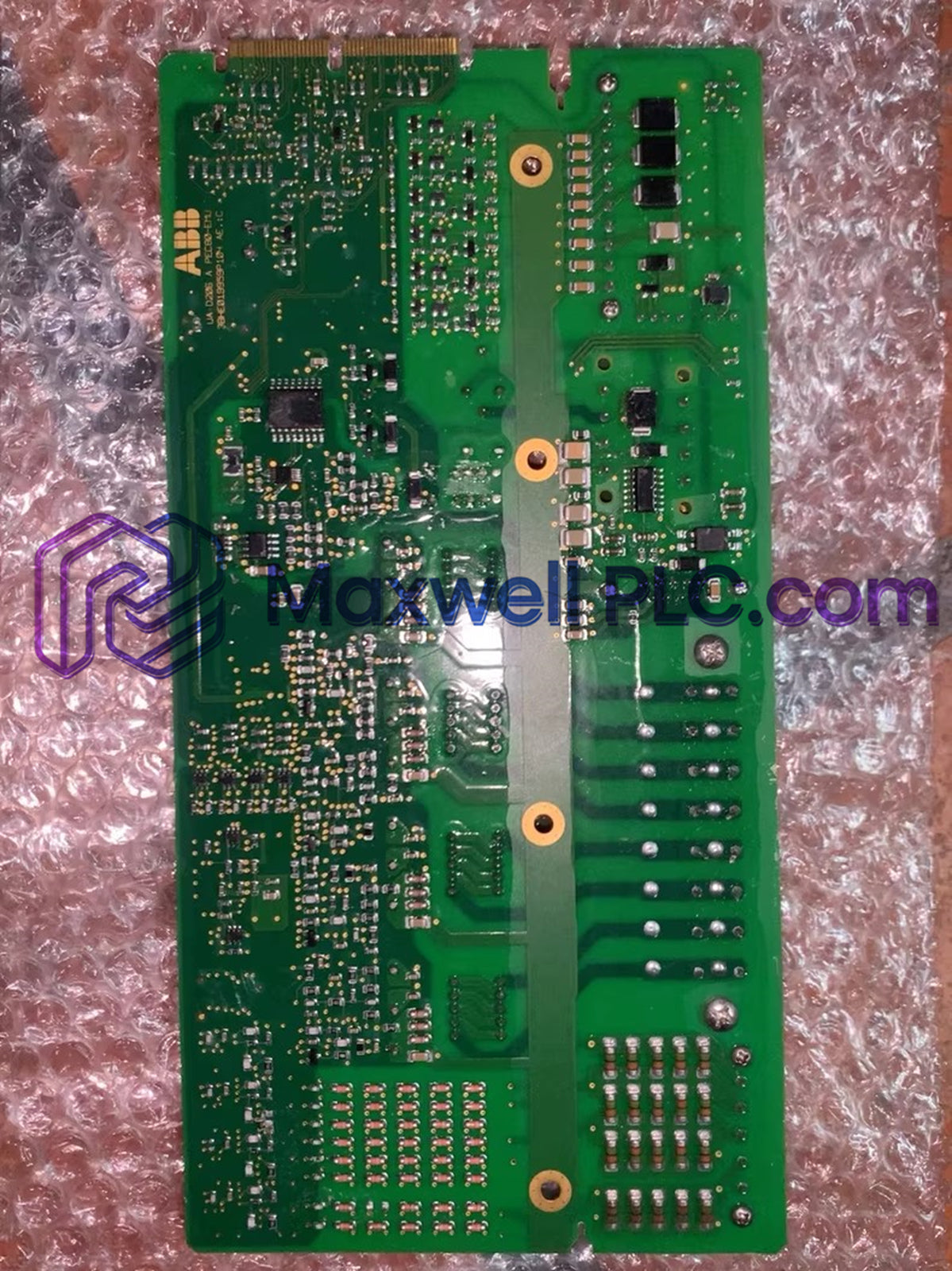

3BHE019958R0101 UAD206 A101 ABB Communication Module AC 800PEC Series

SKU: 3BHE019958R0101 UAD206 A101

In Stock

Dimensions: 20 x 10.5 x 5.5 cm
Country of origin: Sweden
Payment: T/T, Western Union
Shipping port: Xiamen

Categories : ABB, All Products

Tags : ABB Advant Controller, AC 800PEC, AC 800PEC Modules, Communication Modules, Serial Interface Cards

1 years warranty

Delivery time: 3-7 business days

Free 30 days return

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

The ABB 3BHE019958R0101 UAD206 A101, also cataloged as the UAD206 A101 Communication Module, operates as a dedicated hardware component for serial data transmission and protocol processing within AC 800PEC and Advant Controller AC 410 platforms.

Variant Mapping & Part Identifiers

Order Code: 3BHE019958R0101
Functional Designation: UA D206 A
Spare Model Identification: UAD206 A101
Tariff Heading Code: 8537101190
Country of Origin: Sweden

Operational Hardware Specifications

Parameter	Specification
Model	3BHE019958R0101 UAD206 A101
Brand	ABB
Origin	SWEDEN
Weight	0.44 kg
Shipping Dimensions	20 x 10.5 x 5.5 cm
Operating Temp	0 deg C to +60 deg C (32 deg F to 140 deg F)
Power Consumption	2.5 W max (5 VDC @ 500 mA)
Supply Voltage	5 VDC
Maximum Current Draw	500 mA
Serial Interfaces	2 x RS-232/485 ports
Transmission Baud Rate	300 bps - 115.2 kbps (per port)
Galvanic Isolation	500 V AC
Target System Controller	ABB Advant Controller AC 410 / AC 800PEC
Operating Humidity	5-95% RH (non-condensing)

Deterministic Serial Routing and Firmware Execution

The 3BHE019958R0101 UAD206 A101 module delivers dual-channel serial bus execution across system racks, maintaining high backplane bus communication velocity with main controller modules. High-density I/O routing enables independent configuration of each RS-232/485 channel up to 115.2 kbps. Onboard firmware flash compatibility permits direct synchronism with host controller operating software while 500 V AC galvanic isolation prevents ground loops.

Package Contents

1 x ABB 3BHE019958R0101 UAD206 A101 Communication Module
1 x Anti-Static Protective Packaging Envelope

Subrack Mounting and Cabling Directives

Card Insertion Guidelines

Power off the host subrack logic backplane prior to sliding the card into the slot guide rails.
Seat backplane multi-pin connectors completely and tighten front faceplate retention screws.

Serial Interface Shielding

Use double-shielded twisted-pair cables for all RS-485 network differential line connections.
Connect external cable shields to cabinet chassis earth at the cable entry gland plate.

Frequently Asked Questions

Does the 3BHE019958R0101 UAD206 A101 module support live hot-swapping?

Isolate subrack backplane power before module removal or insertion to prevent transient electrical damage.
What supply voltage and current are required by the internal logic circuits?

The module draws operating power directly from a 5 VDC backplane rail with a maximum current draw of 500 mA.
What communication interface standards are provided on the front panel connectors?

The module features two independent communication ports selectable for RS-232 or RS-485 serial standards.
What data transfer speed range is supported per serial channel?

Each port independently supports configurable baud rates ranging from 300 bps up to 115.2 kbps.
What level of electrical isolation is provided between communication ports and logic?

Internal isolation barriers withstand continuous potential differences up to 500 V AC between ports and backplane.
Which controller platforms accept direct installation of this communication module?

The card integrates directly into ABB Advant Controller AC 410 subracks and AC 800PEC system assemblies.
What ambient temperature limits govern normal enclosure installation?

Operation requires ambient control cabinet temperatures to remain between 0 deg C and +60 deg C.
How are baud rates and protocol modes initialized on the hardware?

Parameters are established via host system software downloads using flash firmware compatibility profiles.
